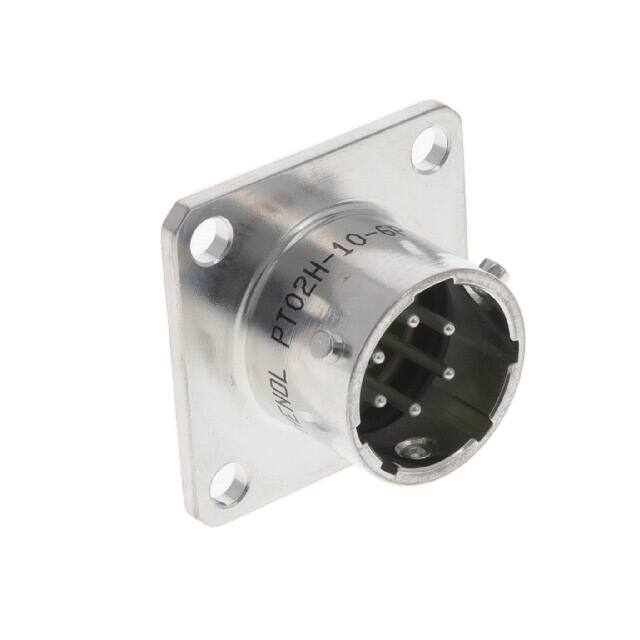

PT02H-10-6P

PT02H Hermetic Solder Mounting Receptacle 38999 III 38999 II 38999 I (TP) L W SJT PT .120 ± .005 Dia. (.147 ± .005 Dia., size 24) S R SP .150 ± .005 Dia. A Aquacon 4 Holes R S (TP) N Z 2M U 83723 26482 PT02H-XX-XXX - Solder cup pin contacts without interfacial seal P02Y-XX-XXX - Solder cup pin contacts with interfacial seal PT02H-XX-XXX (100) - Flat eyelet pin contacts without interfacial seal PT02Y-XX-XXX (100) - Flat eyelet pin contacts with interfacial seal 26500 Recept. Front View Receptacle Side View Shell Size R (TP) S ±.016 A Dia. +.001 -.005 K ±.015 L +.025 -.015 N Dia. +.001 -.005 U +.011 -.010 Z Max. 6 .511 .688 .348 .047 .494 .438 .062 .344 8 .636 .812 .473 .047 .494 .562 .062 .344 10 .761 .938 .590 .047 .494 .672 .062 .344 12 .855 1.031 .750 .047 .494 .781 .062 .344 14 .980 1.125 .875 .047 .494 .906 .062 .344 16 1.105 1.219 1.000 .047 .494 1.031 .062 .344 18 1.229 1.312 1.125 .047 .494 1.156 .062 .344 20 1.323 1.438 1.250 .047 .556 1.250 .062 .344 22 1.449 1.562 1.375 .079 .556 1.375 .062 .377 24 1.574 1.688 1.500 .079 .588 1.500 .062 .377 Contact Us: 800-678-0141 • www.amphenol-aerospace.com 89
