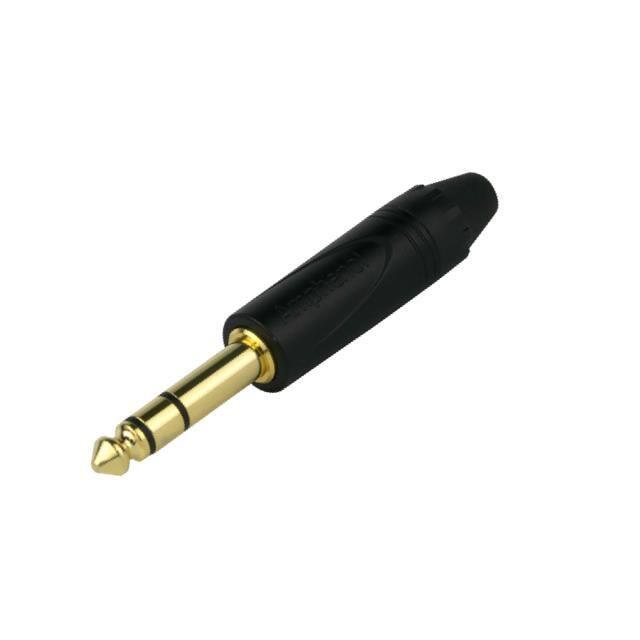

QS3PB-AU

5 4 3 2 ol Aus en Co m 20 al i a HS Ro liant p 1 1 / 6 5/ EU 1 REVISION HISTORY DESCRIPTION FIRST ISSUE UPDATED CABLE CLAMP REV 1 2 tr F Amp h 6 DATE CHG No 30-05-17 ---14-03-18 9465 F 14.0 E E Y Y 83.0 4 CABLE OD 3.0 - 7.0MM 14.0 6.32 52.7 D D 3 ISO VIEW 2 C CATALOGUE PN QS3P QS3PB-AU SHELL FINISH NICKEL MATT BLACK CONTACT FINISH NICKEL SLEEVE AND TIP GOLD SLEEVE AND TIP 3 1 BACKSHELL FINISH MATT BLACK MATT BLACK C CABLE CLAMP (SCALE 2 : 1 ) B B BREAK AWAY FOR CABLE OD RANGE FROM 5-7mm A 4 50440055-000/*00 THERMOPLASTIC BACKSHELL - BLACK/COLOUR 1 3 50260024-500 THERMOPLASTIC CABLE CLAMP - BLACK 1 2 50310064-100/300 MONO INSERT ASSEMBLY - GOLD/NICKEL 1 1 53480189-300/400 DIECAST SHELL - NICKEL/MATT BLACK ITEM PART NUMBER DESCRIPTION LINEAR ANGULAR X X 1 0.5 X.X' 30' X.X 0.1 X.X'X " 15' X.XX 0.05 BREAK ALL SHARP EDGES AND REMOVE ALL BURRS DO NOT SCALE THIS DOCUMENT IS THE PROPERTY OF AMPHENOL AUSTRALIA PTY. LTD. . NO PART THEREOF MAY BE REPRODUCED AND USED WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER MATERIAL: REFER TO COMPONENT FINISH: DIMENSIONS IN MILIMETRES Parts List 6 1 QTY UNLESS OTHERWISE SPECIFIED TOLERANCE TO BE 5 4 SEE TABLE THIRD ANGLE PROJECTION DRN: MH DATE: 30-05-17 CKD: MH DATE: 14-03-18 APP'D: PM DATE: 14-03-18 SCALE: 1:1 3 SIZE: A4 Amphenol TITLE: Amphenol Australia Pty.Ltd, 22 Industry Blvd, Carrum Downs, VIC 3201 1/4" PHONE STEREO PLUG CUSTOMER DRAWING CAD FILE: 55011235000111 2 PART No: SEE TABLE DRAWING NO. A SHEET 55011235-000-1 2/2 1
