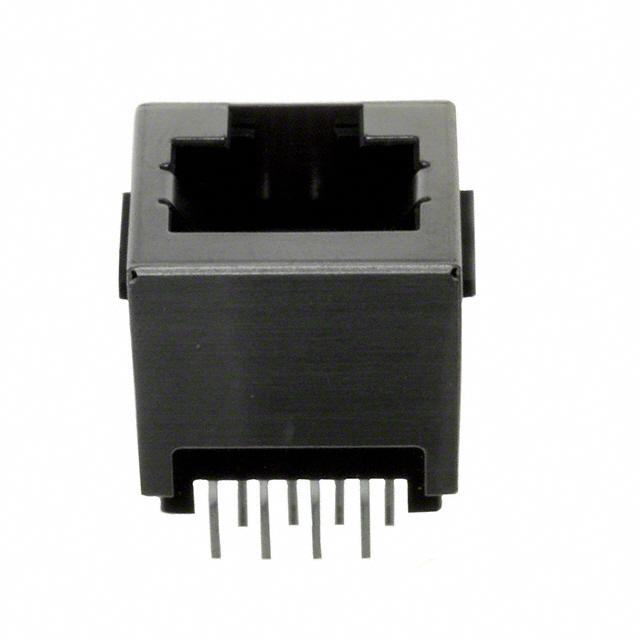

Amphenol RJE06 Product Specification S6068C Rev 1.3 About Amphenol Commercial Products Amphenol’s commercial connector products are used in a variety of end user applications including networking, telecom, server & computer, storage & HDD, consumer electronics and entertainment, professional audio & Industrial & Military/Aerospace. P/N RJE06-188-1X20 SHOWN RJE06 SERIES MODULAR JACK, 8 POSITIONS, 8 CONTACTS, VERTICAL MOUNT WITH SHIELD, WITH FLANGE- RoHS COMPLIANT Related Products RJSSE OVERVIEW This product specification defines the general use and performance parameters for Amphenol’s RJE06 series of modular jacks. Availability: Single port, 6P6C, 8P8C available, flanged and shielding options. USAGE P/N RJSSE-5081 SHOWN SINGLE PORT, 8 POSITION, WITH SHIELD AND LIGHT PIPE RJULE The RJE06 series of modular jack supports Ethernet Protocols. APPLICATIONS Intended for use in applications such as: Data P/N RJULE-4X182-01 SHOWN SINGLE PORT REGULAR MOUNT, STANDARD SHIELD WITH SMT      Storage Servers Routers Switches Hubs Networking & Telecom     5G Wireless Telephones Consumer Goods      Security Systems Set Top Boxes Video Game Systems PCs, Laptops Copiers, Printers Industrial and Instrumentation      Uninterruptible Power Supply (UPS) ATMs Vending Machines POS Terminals Industrial IoT Platforms Medical   Analysis Equipment Mass Spectrometers Modems Fax Machines Page 1 of 2 Revision Date: APR 26, 2019 Amphenol RJE06 Product Specification S6068C Rev 1.3 About Amphenol Commercial Products Amphenol’s commercial connector products are used in a variety of end user applications including networking, telecom, server & computer, storage & HDD, consumer electronics and entertainment, professional audio & Industrial & Amphenol ELECTRICAL CHARACTERISTICS Contact Resistance 20 mΩ maximum Insulation Resistance 500 MΩ minimum at 500V DC for 2 minutes maximum Current Rating 1.5 Amps per contact Voltage Rating 125 Volts AC DWV Contact to contacts is 1000 VAC, 60 Hz. 1 min Supports PoE, PoE+, and PoE++ per IEEE PoE standards IP20 rated per IEC 60529 Military/Aerospace. MECHANICAL CHARACTERISTICS Related Products FRJAE Mating Connector Insertion Force 5.0 lbs maximum Mating Connector Pull Retention Force 20.0 lbs minimum Durability 750 mating and unmating cycles for 50µ” gold plating Recommended Soldering Temperature Wave soldering peaked at 260⁰C for 5 seconds Operating Temperature -40⁰C to +85⁰C UL File #: E136228 P/N FRJAE-418 SHOWN SINGLE PORT, 8 POSITION, WITH FERRITE FILTER AND SHIELD (FRONT TABS) RJLSE MATERIAL REQUIREMENTS RJE06 connectors are RoHS compliant. Unless otherwise specified, the materials for component shall be: Insulator Engineering thermoplastic, complies with UL 94V-0 Contacts -Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ” 30µ”, 50µ”) over 50µ” minimum Nickel on contact mating area -100µ” minimum matte Tin or gold flash plating on tail area Shield Copper alloy, Nickel plating over all AVAILABLE DOCUMENTS P/N RJLSE-41181-01 SHOWN SINGLE PORT REGULAR MOUNT, STANDARD SHIELD WITH SMT Below is a list of the most popular standard sales drawings: Contact our website, sales, or an authorized Amphenol representation for additional drawings. RJE06-188-0X10 Single port. Vertical mount, unshielded without flange RJE06-188-1X11 Sinlge port, vertical mount, standard shield without panel stop RJE06-184-0X10 Single port, vertical mount, unshielded without flange RJE06-188-1X20 Single port, vertical mount, with shield and flange RJE06-166-1X10 Single port, vertical mount, with shield Amphenol Canada Corp. 605 Milner Avenue Toronto, Ontario, Canada M1B 5X6 www.amphenolcanada.com (www.amphenol-icc.com) (416) 291-4401 sales@amphenolcanada.com Copyright © Amphenol Corporation 2018 · All rights reserved Page 2 of 2 Amphenol THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
