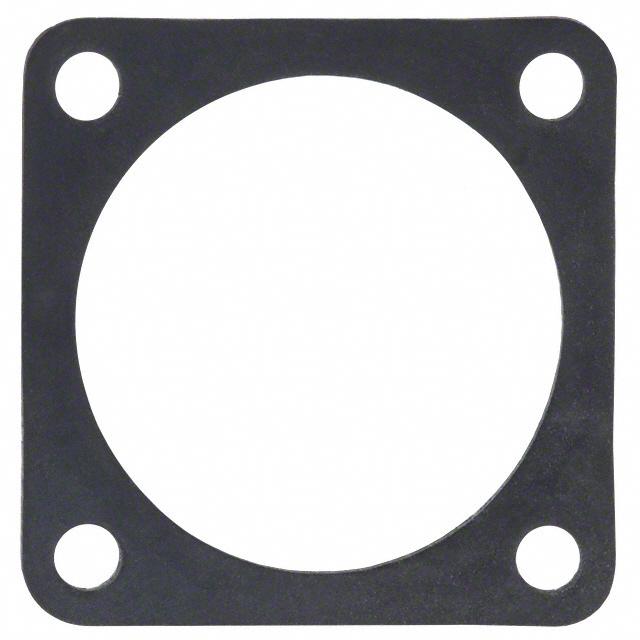

RJF54402JE

ROHS COMPLIANT RJF 544 Ethernet connection system for harsh environment – Industrial Ethernet RJF544 allows you to use an Ethernet Class D / Cat 5e connection for 10 BaseT, 100 Base TX or 1000 BaseT networks in harsh environments. With the patented RJStop® system you can use a standard RJ45 cordset in a protective composite plug which will protect it from shocks, dust and fluids. No hazardous on-field cabling and grounding ! Applications „ Telecom equipment „ Video control „ Robotics „ Industrial process control „ CNC machines „ Special machines „ Motion control „ Tele-maintenance Main characteristics „ Compliant with IEC 60603-7 variante 12 „ Shock, vibration and traction resistant „ No cabling operation in field and no tools required „ Sealed against fluids and dust (IP68) „ Quick push pull coupling „ RJ45 cordset retention in the plug: 100 N in the axis „ Mating cycles: 500 min „ Improved EMI Protection „ C ompatible with cable diameter from 6 mm [0.236 in] to 13 mm [0.512 in] Environmental Protection Now available with tranversal sealing* Amphenol NE W Sealing: IP68 „ „ Salt spray > 1000 h „ Fire retardant / Low smoke: UL94 V0 and NFF 16102, DIN 5510-2 „ Vibrations: 10 – 500 Hz, 10 g, 3 axes: no discontinuity > 10 nano s. „ Thermal shock: 5 cycles at - 40°C / +100°C „ Operating temperature: - 40°C / +85°C Data Transmission 10 BaseT, 100 BaseTX and 1000 BaseT networks Cat 5e per TIA/EIA 568B and ClassD per ISO/IEC 11801 *Seald in unmated condition Part number code RJF 544 2 2 03 100BTX Shell type 6: composite push pull plug, plastic gland 2: composite square flange receptacle 2S: composite square flange receptacle transversally sealed 2M: metallized (Ni) composite square flange receptacle 2SM: metallized (Ni) composite square flange receptacle transversally sealed Back terminations (for receptacles only) 1: female RJ45 1RA: right angle female RJ45 2: RJ45 cordset Cordset length (for receptacles with “2” back termination only) - Other lengths are available on demand 03 100BTX: 0.3 meters [11.81 inches] 05 100BTX: 0.5 meters [19.68 inches] 10 100BTX: 1 meter [39.37 inches] 15 100BTX: 1.5 meters [59.05 inches] 00: 8 tinned holes at the rear of the PCB to solder the cable Remark: cabling configuration Æ 100 BTX = 568B (Ethernet specification) Examples: - Plug: RJF 544 6 - Square flange receptacle, female RJ45 back termination: RJF 544 21 - Metallized square flange receptacle, female RJ45 back termination: RJF 544 2M 1 - Square flange receptacle, 1,5m [59.05”] 100 BTX cordset termination: RJF 544 22 15 100BTX - Square flange receptacle, solder termination: RJF 544 22 00 - Transversally sealed receptacle female RJ45 back termination: RJF544 2S1 13 Plug „ Type 6 shell with plastic gland RJF 544 6 Receptacle „ Type 2S/2M/2SM shell: square flange receptacle with 4 mounting holes RJF 544 2x 1 RA RJF 544 2x 1 Amphenol Back terminations Panel Drilling Type1: RJ45 Type 1:female Female RJ45 Type1RA: right angle female RJ45 Type2: RJ45 cordset Notes: type 2 without RJ45 plug at the end of the cable is also available: consult factory Accessories „ Rubber IP68 receptacle cap p/n RJF 544BESC „ Panel gasket p/n RJF 544 02JE „ Panel gasket (thickness: 0.6mm [.039]): p/n RJF 544 02 JE „ Plug Insert removal tool: p/n 5440 OT 02 14 „ IP68 caps for plug p/n 544 02 BM Type 2 - 00: solder - 8 tinned holes
