RJHS SERIES
EMI QUIET WITH LEDS
EMI Quiet Modular Jack
with LEDs
A series of EMI Quiet Modular Jack connectors with buit-in LEDs.
This product is ideal for LAN applications such as adapter cards and
routers. Shielded and non-shielded versions are available, with a
variety of LED colours and ports.
Specifications
Material
Insulator:
Contacts:
Shield:
LED:
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
Voltage Rating:
DWV:
High temperature engineering thermoplastic;
compiles with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ” minimum
nickel on contact mating area. 100μ” minimum
matte tin plating on soldering tail.
Stainless steel with tin dipped tails
Tin plating on LED tail. Epoxy lens.
20 mΩ maximum
500 MΩ minimum
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 minute
Standard LEDs: For 5.0 V Systems
Forward Voltage
2.1 Volts typical
Ordering Information
Reverse Voltage
Luminous Intensity:
6 Volts minimum
0.5 mCd minimum (at If = 2mA)
Low Current LEDs: For 3.3 V Systems
Forward Voltage:
2 Volts typical
Reverse Voltage:
6 Volts minimum
Luminous Intensity:
1 mCd minimum (at If = 2mA)
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Recommended Soldering
Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at
260°C for 5 seconds maximum
Operating Temperature:
UL File # :
CSA File # :
-55°C to + 85°C
E135615
LR68598
Connectors without LEDs are suitable for IR reflow
RJHS X - X X X X - XX
Series Designation
E - Standard series
P - PdNi contact plating
Version
3 - Vertical mount, 8 position
5 - Right angle, 8 position
7 - Right angle, 6 position
L - Right angle, low profile, 8 position
Shield Options
0 - No shield
3 - Standard shield
4 - Single port shield similar to code 3
but with side ground tabs
F - Shielded but with no top, side, or bottom tabs
Number of Ports
Blank - 1 port
02 - 2 ports
04 - 4 ports
06 - 6 ports
08 - 8 ports
LED Designation
Please refer to page 2 for options
Number of Contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
P - Shield with top & bottom tabs, for vertical mount connector
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
3
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJHS SERIES
EMI QUIET WITH LEDS
Single Port
RJHSE-508X
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJHSE-548X
Shielded - With Top & Side Ground Tabs
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJHSE-338X
Vertical Mount
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
4
RJHS SERIES
EMI QUIET WITH LEDS
Single Port
RJHSE-L38X
Shielded - Low Profile
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJHSE-508X-04
Multi Port
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
5
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJHS SERIES
EMI QUIET WITH LEDS
Multi Port
RJHSE-538X-04
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
6
RJSSE SERIES
SURFACE MOUNT WITH LIGHT PIPES
Surface Mount with Light
Pipes
Amphenol Canada's RJSSE series represents an expansion of
our current RJHSE series connector. The RJSSE offers all the
benefit of the RJHSE series in SMT with light pipes.
Shielded and unshielded versions are available with or without
the light pipe option.
Specifications
Material
Insulator:
Contacts:
Shield:
Light Pipe:
Electrical
High temperature thermoplastic; complies with UL 94V-0.
Colour: Black.
Phosphor bronze hard temper selective plated gold.
Over 50µ" minimal nickel. 100µ" minimal matte-tin
soldering tail.
Copper alloy; nickel or matte tin plating
Optical grade polycarbonate; complies with UL 94V-0
Contact Resistance:
Insulation Resistance:
Current Rating:
20 mΩ maximum
500 MΩ minimum at 500V DC for 2 mins max.
1.5 Amps
Voltage Rating:
DWV:
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Recommended Soldering Temperature:
Operating Temperature:
UL File # :
125 Volts AC
1000 VAC, 60Hz. 1 minute
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
IR Relflow peaked at 260°C
for 5 to 8 seconds
Light pipes to be installed after soldering
-55°C to +85°C
E135615
Ordering Information
RJSSE - X X X X - XX X
Version
5 - 8 position, 20 μ” gold plating
7 - 6 position, 20 μ” gold plating
Packaging
Blank - Tray
T - Tape and reel
Shield Options
0 - No shield, with hold down bracket
3 - Standard shield with tabs
5 - Shield, with flattened bottom tab
F - Shield, without tabs and boardlock
N - No shield, no hold down bracket
S - Shield, with straight PCB tail
Number of Ports
Blank - 1 port
02 - 2 ports
04 - 4 ports
Light Pipe Designation
0 - Blocked
1 - With light pipe
2 - Without light pipe, not blocked
Number of Contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
7
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJSSE SERIES
SURFACE MOUNT WITH LIGHT PIPES
Single Port
RJSSE-5080
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJSSE-5381
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
8
RJSSE SERIES
SURFACE MOUNT WITH LIGHT PIPES
Multi Port

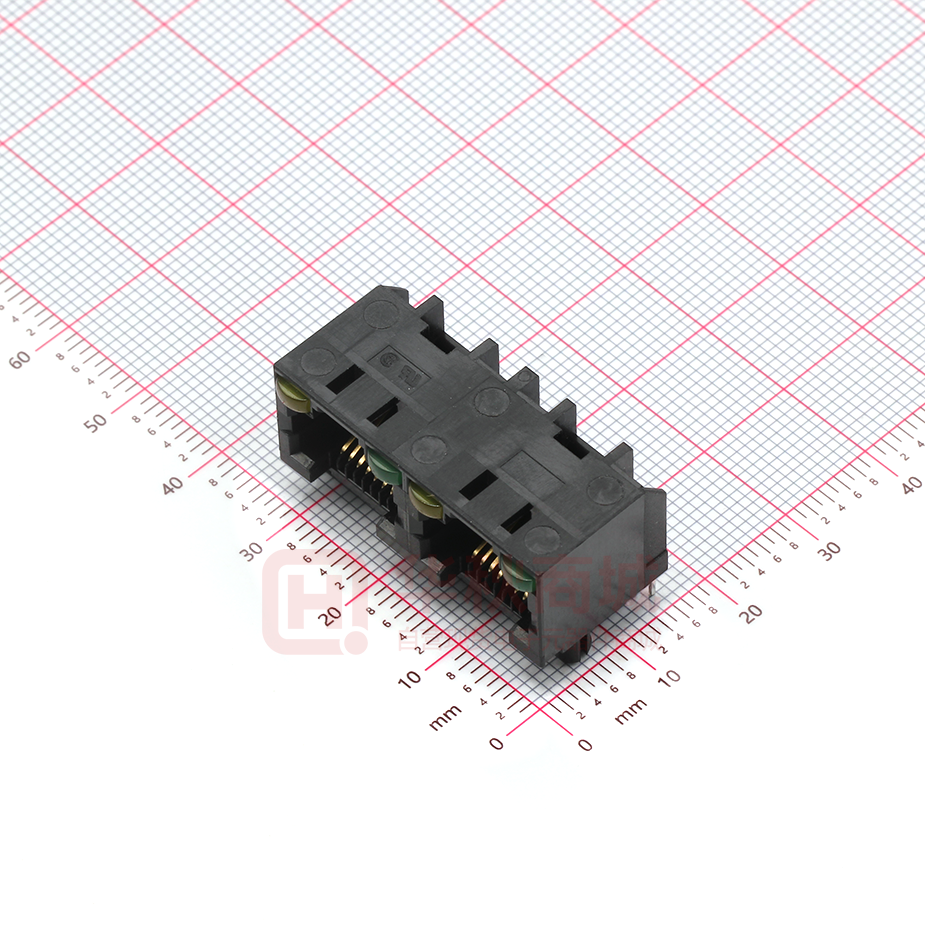

RJSSE-5081-02
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJSSE-5381-02
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
9
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJSBE SERIES
1, 2, AND 4 PORT WITH LEDS
1, 2, and 4 Port with LEDs
The RJSBE series of Modular Jacks supports Ethernet Protocols. Shielding
available with or without a ferrite filter for increased EMI performance and
LEDs for link activity and network speed verification.
Specifications
Material
Insulator:
Contacts:
Shield:
LED:
High temperature engineering thermoplastic;
complies with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with gold
thickness options (6µ", 15µ", 30µ", 50µ")
over 50µ" minimum nickel on contact
mating area. 100µ" minimum matte tin
plating on soldering tail.
Copper alloy; nickel plated with tin dipped tail
Tin plating on LED tail. Epoxy lens.
Mechanical
Mating Connector
Insertion Force:
Mating Connector Pull
Retention Force:
Durability:
Recommended Soldering
Temperature:
Operating Temperature:
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
Voltage Rating:
DWV:
LED Forward DC Current:
LED Forward Voltage:
LED Reverse Voltage:
LED Light Intensity:
5 lbs. maximum
LED Wave Length:
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at
260°C for 5 seconds maximum
UL File #
CSA File #
Connectors without LEDs are suitable for IR reflow
-55°C to +85°C
20 mΩ maximum
500 MΩ minimum at 500V DC
for 2 minutes maximum
1.5 Amps
125 Volts AC
1000V DC, 60Hz. 1 minute
20 mA typical
1.9 Volts max. @ 2mA (for single colours)
2.6 Volts max. @ 20mA (for Bi-colours)
5 Volts minimum
0.4 to 1.5 mcd @ 2mA (for single colours)
0.4 mcd min. @ 2mA (for Bi-colours)
Yellow: 587± 7 nm measured @ 20mA
Green: 565± 6 nm measured @ 20mA
Red: 625± 5 nm measured @ 20mA
E135615
LR68598
Ordering Information
RJSBE
Version
5 - 8 position, 50 µ” gold plating
7 - 6 position, 50 µ” gold plating
D - 8 position, 6 µ” gold plating
G - 8 position,15 µ” gold plating
J - 8 position, 30 µ” gold plating
Shield Options
0 - No shield
2 - Shield with top and side tabs, filtered
3 - Shield with top and side tabs, no filter
- X X X X-C X
Number of Ports
1 - 1 port
2 - 2 ports
4 - 4 ports
LED Designation
Please refer to page 2 for options
Number of Contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
F - Shield, with no tabs, no filter
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
10
RJSBE SERIES
1, 2, AND 4 PORT WITH LEDS
Single Port
RJSBE-508X-C1
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJSBE-538X-C1
Shielded
[17.65]
[2.54]
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
11
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJSBE SERIES
1, 2, AND 4 PORT WITH LEDS
Multi Port
RJSBE-508X-C4
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Shielded
RJSBE-538X-C4
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
12
FRJAE SERIES
FILTERED AND SHIELDED
Filtered and Shielded
The FRJAE series of shielded and filtered Modular Jacks offer
low cost and effective EMC control within standard RJ-11 and
RJ-45 connector footprints. EMC control is offered by a completely
shielded connector and/or with the use of a high resistivity,
high impedance ferrite block. No board layout changes are
required for its use. Simply replace the standard non-filtered
connector for superior EMC performance.
Specifications
Insulator:
Contacts:
Shield:
Filter:
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
Voltage Rating:
DWV:
High temperature engineering thermoplastic;
complies with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ"
minimum nickel on contact mating area. 100μ"
minimum matte tin plating on soldering tail.
Copper alloy; nickel plated with tin dipped tail
High impedance, high resistivity ferrite block
Operating Temperature:
UL File # :
CSA File # :
20 mΩ maximum
500 MΩ minimum at 500V DC for
2 minutes maximum
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 minute
Ordering Information
FRJAE
Version
4 - 8 position
6 - 6 position
Options
0 - Non-filtered, non shielded
1 - Filtered with front tab shield
3 - Shield with front tab
4 - Filtered
6 - Filtered with rear tab shield
7 - Filtered with non-tab shield
8 - Shield with rear tab
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
IR Reflow peaked at 260°C
for 5 to 8 seconds
IR reflow not recommended for connectors
with LEDs
-55°C to + 85°C
E135615
LR68598
Impedance Characteristics
IMPEDANCE (ohms)
Material
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Recommended Soldering
Temperature:
200
100
0
1
10
100
1000
FREQUENCY (MHz)
-
X X X
-
XX
Number of Ports
Blank - 1 port
02 - 2 ports
03 - 3 ports
04 - 4 ports
06 - 6 ports
08 - 8 ports
Number of Contacts
2 - 2 contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
13
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
FRJAE SERIES
FILTERED AND SHIELDED
Single Port
FRJAE-408
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
FRJAE-438
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Multi Port
FRJAE-4X8-0X
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
14
FRJAE SERIES
FILTERED AND SHIELDED
Multi Port
FRJAE-418-0X
Shielded
SIDE VIEW
FRONT VIEW
RECOMMENDED PCB LAYOUT
Notes
15
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJCSE SERIES
RJ45 SURFACE MOUNT WITH LEDS
RJ45 Surface Mount with LEDs
The RJCSE is a right angle surface mount connector with built-in LEDs,
available with or without shielding. Shielding available for increased EMI
performance and built-in LEDs for link activity and network verification.
This product is ideal for LAN applications such as adapter cards and routers.
Specifications
Material
Insulator:
Contacts:
Shield:
LED:
Electrical
High temperature engineering thermoplastic;
complies with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with gold
thickness options (15µ”, 50µ") over 50µ"
minimum nickel on contact mating area.
Gold flash over nickel on soldering tail.
Copper alloy with nickel plating
Tin plating on LED tail. Epoxy lens.
Contact Resistance:
Insulation Resistance:
20 mΩ maximum
500 MΩ minimum at 500V DC for
2 minutes maximum
Current Rating:
1.5 Amps
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 minute
LED Forward DC Current: 20mA typical
LED Forward Voltage:
1.9 Volts maximum @ 2mA (for single colours)
2.6 Volts maximum @ 20mA (for Bi-colours)
LED Reverse Voltage:
5 Volts minimum
LED Light Intensity:
0.4 to 1.5 mcd @ 2mA (for single colours)
0.5 mcd minimum @ 2mA (for Bi-colours)
LED Wave Length:
Yellow: 587 ± 7 nm measured @ 20mA
Green: 565 ± 6 nm measured @ 20mA
Red: 625 ± 5 nm measured @ 20mA
Mechanical
Mating Connector
Insertion Force:
Mating Connector Pull
Retention Force:
Durability:
Operating Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles (for 50µ"
gold plating option)
-55° C to + 85° C
Ordering Information
RJCSE
-
X X X X - 01
Version
Number of Ports
3 - 8 position, 15 µ” gold plating
01 - 1 port
4 - 8 position, 30 µ” gold plating
5 - 8 position, 50 µ” gold plating
LED Options
Refer to page 2 for options
Shielding Options
Number of Contacts
4 - 4 contacts
0 - No shield
3 - Standard shield
6 - 6 contacts
8 - 8 contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
16
RJCSE SERIES
RJ45 SURFACE MOUNT WITH LEDS
Single Port
RJCSE-508X-01
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJCSE-538X-01
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
17
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJLSE SERIES
SURFACE MOUNT ULTRA LOW PROFILE
Surface Mount Ultra Low Profile
The RJLSE series are surface mount Modular Jacks with superior EMI
performance that support Ethernet Protocols.This low profile connector
is built to meet your high volume RJ requirements. This series is a true
pick and place compatible SMT connector and is available with different
shielding, number of contacts, gold plating thickness, and colour options.
Built with high temperature engineering thermoplastic and suitable for IR
Reflow solder process.
Specifications
Material
Insulator:
Contacts:
Plating:
Shield:
Coplanarity:
Mechanical
Mating Connector
Insertion Force:
High temperature engineering thermoplastic;
flammability rating UL 94V-0. Available in black
yellow, and red.
Phosphor bronze
Gold plating on mating surfaces over 50µ" (1.27
microns) minimum nickel underplate. 100µ" (2.54
microns) minimum matte tin on contact tails.
Copper alloy; nickel or matte tin plated
The maximum gap between all terminal tails is
.004" (0.10 mm)
5 lbs. maximum
Mating Connector Pull
Retention Force:
20 lbs. minimum
Durability:
750 mating & unmating cycles
Recommended Soldering Temperature: IR Reflow peaked at 260°C for
5 to 8 seconds
Operating Temperature:
-55°C to +85°C
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
Voltage Rating:
DWV:
UL File #
CSA File #
20 mΩ maximum
500 MΩ minimum at 500V DC for 2 mins max.
1.5 Amps
125 Volts AC
1000 VAC, 60Hz. 1 minute
E135615
LR68598
Ordering Information
RJLSE - X X X X X - 01 X
Version
4 - 8 position
6 - 6 position
Packaging
Blank - Tray
T - Tape and reel
Contact Plating
0 - 1 ~ 3 μ" gold plating
1 - 15 μ" gold plating
2 - 30 μ" gold plating
3 - 50 μ" gold plating
Number of Ports
01 - 1 port
Shielding Options
0 - No Shield
1 - Standard Shield
Housing
1 - Black housing
2 - Yellow housing
3 - Red housing
Number of Contacts
2 - 2 Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
18
RJLSE SERIES
SURFACE MOUNT ULTRA LOW PROFILE
Single Port
RJLSE-XX0X1-01
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Shielded
RJLSE-4X181-01
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
19
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJESE SERIES
RJ45 AND RJ11 STANDARD PROFILE
RJ45 and RJ11 Standard Profile
This family of EMI Quiet Modular Jack connectors with integrated LEDs features the same
data transfer capabilities as our existing series of LED-integrated Modular Jacks. This product
is an economical solution ideal for LAN applications and is intended for use with low temperature
soldering processes. Shielded and non-shielded versions are available with a variety of LED
options to choose from. RJESE is offered in both single and multi-port configurations.
Specifications
Material
Insulator:
Contacts:
Shield:
LED:
Electrical
LED Forward Voltage:
Engineering thermoplastic. Complies with
UL 94V-0. Colour: Black.
Phospher hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ”
minimum nickel on contact mating area.
100μ” minimum matte tin plating on soldering tail
Stainless steel with tin dipped tails
Tin plating on LED tails
Contact Resistance:
Insulation Resistance:
Current Rating:
Voltage Rating:
DWV:
LED Forward DC Current:
LED Reverse Voltage:
LED Light Intensity:
LED Wave Length:
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Recommended Soldering Temperature:
20 mΩ maximum
500 MΩ minimum at 500V DC for 2 mins max.
1.5 Amps
125 Volts AC
1000 VAC, 60Hz. 1 minute
20mA typical
Ordering Information
1.9 Volts max. @ 2mA (for single colours)
2.6 Volts max. @ 20mA (for bi-colours)
5 Volts minimum
0.4 to 1.5 mcd @ 2mA (for single colours)
0.5 mcd minimum @ 2mA (for bi-colours)
Yellow: 587± 7 nm measured @ 20mA
Green: 565 ± 6 nm measured @ 20mA
Red: 625 ± 5 nm measured @ 20mA
Operating Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at 260°C
for 5 seconds maximum
-55°C to + 85°C
X
RJESE - X X X X - X X 0 X
Version
3 - Vertical mount, 8 positions, flanged housing
7 - Right angled, 6 position
8 - Right angled, 8 position
Shielding Options
0 - No shield
3 - Standard shield, 1 to 8 port (single port without side tabs)
4 - One port shield top tabs with side tabs
Number of Contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
LED Designation
Please refer to page 2 for options
Special Idenntifier
Blank- Standard black housing
02 - Housing colour: Yellow #114C
03- Housing colour: Red
Number of Ports
1 - 1 port
2 - 2 ports
4 - 4 ports
Contact Plating
0 - 6 µ" gold plating
1 - 15 µ" gold plating
2 - 30 µ" gold plating
3 - 50 µ" gold plating
F -Ports
1~3µ”(Standard
gold plating
Number of
1 port, use only when no digit is
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
20
RJESE SERIES
RJ45 AND RJ11 STANDARD PROFILE
Single Port
RJESE-808X-X1
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Shielded
RJESE-848X-X1
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
21
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJESE SERIES
RJ45 AND RJ11 STANDARD PROFILE
Multi Port
RJESE-808X-X4
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Shielded
RJESE-838X-X4
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
22
RJE01 SERIES
RJ11 (SIX POSITION)
RJ11 (Six Position)
The RJE01 series of 6-position jacks are designed for superior EMI
performance.The inverted connector provides shorter leads,
eliminating the EMI antenna effect of the standard connector footprint
Typical performance improvement over their standard connector
counterparts is 5-10 dB over the frequency range.
Specifications
Material
Insulator:
Contacts:
Shield:
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
High temperature thermoplastic. Complies
with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over minimum
nickel on contact mating area.100µ" minimum
matte tin plating on soldering tail.
Stainless steel with tin dipped tails
20 mΩ maximum
500 MΩ minimum at 500V DC for 2 mins max.
1.5 Amps
Voltage Rating:
DWV:
125 Volts AC
1000 VAC, 60Hz. 1 minute
UL File # :
CSA File # :
E135615
LR68598
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Reccomended Soldering Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
IR Reflow peaked at 260°C
for 5 to 8 seconds
-55°C to +85°C
Mechanical
Operating Temperature:
Ordering Information
RJE01
Contact Plating
1 - 6 µ" gold plating
6 - 50 µ" gold plating
-
X X X - XX
Number of Ports
01 - 1 port
02 - 2 ports
G - 15 µ" gold plating
J - 30 µ" gold plating
Number of Contacts
2 - 2 contacts
4 - 4 contacts
6 - 6 contacts
Shielding Options
0 - No shield
1 - Front/rear tab captions for single port
2 - Shielded with tabs and PCB tails
4 - Shielded without tabs, and without PCB tails
5 - Shielded without tabs, but with shield PCB tails
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
23
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE01 SERIES
RJ11 (SIX POSITION)
Single Port
RJE01-X60-01
Non-Shielded
FRONT VIEW
SIDE VIEW
Shielded
RECOMMENDED PCB LAYOUT
RJE01-X62-01
FRONT VIEW
SIDE VIEW
Multi Port
RECOMMENDED PCB LAYOUT
RJE01-X60-02
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE01-X62-02
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
24
RJE02 SERIES
SINGLE PORT HIGH PROFILE
Single Port High Profile
RJE02 series is a group of products within a family of standard Modular Jacks
designed to meet requirements for a variety of applications. Options within the
RJE02 family include flanged or without flange, and RJ11 & RJ45 configurations.
Specifications
Material
Insulator:
Contacts:
Electrical
Engineering thermoplastic. Complies with UL 94V-0.
Colour: Black.
Phosphor bronze hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ” minimum
nickel on contact mating area. 100μ” minimum matte
tin plating on soldering tail.
Contact Resistance: 20 mΩ maximum
Insulation Resistance: 500 MΩ minimum at 500V DC for 2 mins. max.
Current Rating:
1.5 Amps
Ordering Information
RJE02
Voltage Rating:
DWV:
125 Volts AC
1000 VAC, 60 Hz. 1 minute
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Recommended Soldering Temperature:
Connectors made with high temperature
material are suitable for IR reflow
Operating Temperature:
-
1 X X
-
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at
260° C for 5 seconds max.
-40°C to + 85°C
0 X X 0
Number of Ports
1 - 1 port
Modifier
0 - Standard product
Number of Positions
6 - 6 position
8 - 8 position
Flange Options
1 - Without flange
2 - With flange
Number of Contacts
2 - 2 contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Shield Options
0 - No shield
Single Port
RJE02-1XX-0X20
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
25
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE03 SERIES
SINGLE PORT LOW PROFILE
Single Port Low Profile
RJE03 series is a group of products within a family of
standard Modular Jacks designed to meet requirements
for a variety of applications.
Options within the RJE03 family include shielded &
non shielded, and RJ11 & RJ45 configurations.
Specifications
Materials
Insulator:
Contacts:
Shield:
Electrical
Contact Resistance:
Contact Resistance:
Engineering thermoplastic. Complies with
UL94V-0.Colour: Black.
Phosphor bronze hard temper with gold thickness options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ”
minimum nickel on contact mating area. 100μ”
minimum matte tin plating on soldering tail.
Copper alloy; nickel plated with tin
dipped tail
20 mΩ maximum
500 MΩ minimum at 500V DC for 2 mins. max.
Ordering Information
RJE03
-1
Current Rating:
Voltage Rating:
DWV:
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Recommended Soldering Temperature:
Operating Temperature:
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 minute
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at 260°C
for 5 seconds maximum
Connectors made with high temperature material
are suitable for IR reflow
-40°C to + 85°C
X X -X X X 0
Number of Ports
1 - 1 port
Modifier
0 - Standard product
Number of Positions
6 - 6 positions
Flange Options
1 - Without flange
8 - 8 positions
2 - With flange
Number of Contacts
2 - 2 contacts
Contact Plating
1 - 6µ” gold plating
4 - 4 contacts
2 - 15µ” gold plating
6 - 6 contacts
3 - 30µ” gold plating
8 - 8 contacts
4 - 50µ” gold plating
Shielding Options
0 - No shield
2 - Partial shield (must have flange)
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
26
RJE03 SERIES
SINGLE PORT LOW PROFILE
Single Port
RJE03-188-0X10
Non-Shielded
FRONT VIEW
SIDE VIEW
RJE03-188-2X20
Shielded with Flange
FRONT VIEW
RECOMMENDED PCB LAYOUT
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
27
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE05 SERIES
ULTRA LOW PROFILE
Ultra Low Profile
RJE05 series is a group of products within a family of
standard Modular Jacks designed to meet requirements for
a variety of applications.
Options within the RJE05 family include shielded or non shielded
and RJ11 or RJ45 configurations.
Specifications
Material
Insulator:
Contacts:
Shield:
Engineering thermoplastic. Complies with
UL94V-0. Colour: Black.
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ”
minimum nickel on contact mating area. 100µ”
minimum matte tin plating on soldering tail.
Copper alloy; nickel plated with tin dipped tail.
Electrical
Contact Resistance: 20 mΩ maximum
Insulation Resistance: 500 MΩ minimum at 500V DC for 2mins. max.
Current Rating
1.5 Amps
Ordering Information
RJE05
-
Voltage Rating
DWV:
125 Volts AC
1000 VAC, 60 Hz. 1 minute
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Recommended Soldering Temperature:
Operating Temperature:
UL File # :
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at 260°C
for 5 seconds maximum
Connectors made with high temperature material
are suitable for IR reflow
-40°C to + 85°C
E136228
-
1 X X X X 1 0
Number of Ports
1 - 1 port
Modifier
0 - Standard product
Number of Positions
4 - 4 position
6 - 6 position
8 - 8 position
Flange Options
1 - No flange
Number of Contacts
2 - 2 contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Shielding Options
0 - No Shield
1 - Shield
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
28
RJE05 SERIES
ULTRA LOW PROFILE
Single Port
RJE05-188-0X10
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE05-188-1X10
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
29
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE07 SERIES
SINGLE PORT SURFACE MOUNT
Single Port Surface Mount
RJE07 series is a group of products within a family of
standard Modular Jacks designed to meet requirements for
a variety of applications.
Options within the RJE07 family include shielded &
non shielded, and RJ11 and RJ45 configurations.
Specifications
Materials
Insulator:
Contacts:
Shield:
High temperature thermoplastic. Complies
with UL94V-0. Colour: Black.
Phosphor bronze hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ”, minimum
nickel on contact mating area. 100μ”, minimum
matte tin plating on soldering tail.
Copper alloy; nickel plated with tin dipped tail
Electrical
Contact Resistance: 20 mΩ maximum
Insulation Resistance: 500 MΩ minimum at 500V DC for 2 mins. max.
Ordering Information
RJE07
-1
Current Rating:
Voltage Rating:
DWV:
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Recommended Soldering Temperature:
Operating Temperature:
UL File # : X
Modifier
0 - Standard product
Number of Positions
8 - 8 position
6 - 6 position
Flange Options
1 - Without flange
2 - Flanged (must be flanged
for shield option)
Shielding Options
0 - No shield
2 - Through hole shield
3 - Surface mount shield
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Reflow soldering at 260° C
for 6 to 8 seconds maximum
-40°C to + 85°C
E136228
X X-X X X 0
Number of Ports
1 - 1 port
Number of Contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 minute.
Contact Plating
1 - 6 µ” gold plating
2 - 15 µ” gold plating
3 - 30 µ” gold plating
4 - 50 µ” gold plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
30
RJE07 SERIES
SINGLE PORT SURFACE MOUNT
Single Port
RJE07-188-0X10
Non-Shielded
FRONT VIEW
SIDE VIEW
RJE07-188-3X20
Surface Mount Shield
FRONT VIEW
SIDE VIEW
31
RECOMMENDED PCB LAYOUT
RJE07-188-2X20
Through-Hole Shield
FRONT VIEW
RECOMMENDED PCB LAYOUT
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE09 SERIES
STANDARD PROFILE
Standard Profile
RJE09 series is a group of products within a family of
standard Modular Jacks designed to meet requirements for
a variety of applications.
Options within the RJE09 family include shielded &
non shielded, and RJ11 & RJ45 configurations.
Specifications
Materials
Insulator:
Contacts:
Shield:
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
Engineering thermoplastic. Complies with
UL94V-0. Colour: Black.
Phosphor bronze hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ” minimum
nickel on contact mating area. 100μ” minimum
matte tin or gold flash plating on tail area.
Copper alloy; nickel plating over all
25 mΩ maximum
500 MΩ minimum at 500V DC for 2 mins max.
1.5 Amps
Ordering Information
Voltage Rating:
DWV:
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Recommended Soldering Temperature:
Number of Positions
6 - 6 position
8 - 8 position
A - 10 position
Number of Contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
A - 10 contacts
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at 260°C
for 5 seconds maximum
Connectors made with high temperature material
are suitable for IR reflow
Operating Temperature:
UL File # :
RJE09 - X X X - X X
Number of Ports
1 - 1 port
2 - 2 ports
4 - 4 ports
6 - 6 ports
8 - 8 ports
125 Volts AC
1000 VAC, 60 Hz. 1 minute
-40°C to + 85°C
E136228
1 0
Modifier
0 - Standard product
Flange Options
1 - No flange
2 - With flange
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Shielding
0 - No shield
1 - Shield
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
32
RJE09 SERIES
STANDARD PROFILE
Single Port
RJE09-1AA-0X10
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE09-188-1X10
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Multi Port
RJE09-288-0X10
Non-Shielded
FRONT VIEW
33
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE09 SERIES
STANDARD PROFILE
RJE09-888-1X10
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
34
RJE15 SERIES
SINGLE PORT LOW PROFILE
Single Port Low Profile
The RJE15 low profile connector is built to meet your
high volume RJ requirements. This is a true pick and
place compatible SMT connector and is available with
or without shielding, and a variety of options including number
of contacts, plating thickness, and colour. Built with high
temperature engineering thermoplastic and suitable for IR Reflow
solder process.
Specifications
Material
Insulator:
Contacts:
Shield:
Electrical
Contact Resistance:
High temp. thermoplastic. Complies with
UL94V-0. Colour: Black.
Phosphor bronze hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ” minimum
nickel on contact mating area. 100μ” minimum
matte tin or gold flash plating on tail area.
Copper alloy; nickel plating over all.
25 mΩ maximum
Insulation Resistance:
Current Rating:
Voltage Rating:
DWV:
1000 MΩ minimum at 500V DC for 2 mins. max.
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 minute
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Recommended Soldering Temperature:
Operating Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
IR Reflow peaked at 260°C
for 5 to 8 seconds maximum
-40°C to + 85°C
Ordering Information
RJE15 - 1 X X - X
X 1 0
Number of Ports
1 - 1 port
Modifier
0 - Standard product
Number of Positions
4 - 4 positions
6 - 6 positions
8 - 8 positions
A - 10 positions
Flange Options
1 - No flange
Number of Contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
A - 10 contacts
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Shielding
0 - No shield
1 - Shielded
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
35
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE15 SERIES
SINGLE PORT LOW PROFILE
Single Port
RJE15-1XX-0X10
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE15-1XX-1X10
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
36
RJULE SERIES
RECESSED, LOW PROFILE
Recessed, Low Profile
The RJULE is a series of single port RJ45 Modular Jacks designed for slim profile
applications. With a profile height of less than 10mm this connector is perfect
where vertical spaceis limited. Standard and rear mount shield options for superior
EMI performance makes this part ideal for LAN and router applications.
Specifications
Material
Housing:
Contacts:
Plating:
Shield:
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
High temperature engineering thermoplastic;
flammability rating UL 94V-0
Phosphor bronze
Gold plated on mating surfaces over 50µ"
(1.27 microns) minimum nickel underplate
Copper alloy; nickel plated
20 mΩ maximum
500 MΩ minimum at 500V DC for
2 minutes maximum
1.5 Amps
Voltage Rating:
DWV:
Mechanical
125 Volts AC
1000 VAC, 60 Hz. 1 minute
Mating Connector Insertion Force:
Mating Connector Pull
Retention Force:
Durability:
Recommended Soldering
Temperature:
5 lbs. maximum
Operating Temperature:
UL File # :
-55°C to +85°C
E135615
20 lbs. minimum
750 mating & unmating cycles
IR Reflow peaked at 260°C for
for 5 to 8 seconds maximum
Ordering Information
RJULE - 4 X X X X - 01 X
Number of Positions
4 - 8 positions
Contact Plating
0 - 1 ~ 3 μ" gold plating
1 - 15 μ" gold plating
2 - 30 μ" gold plating
3 - 50 μ" gold plating
Housing Options
1 - Black
2 - Yellow
3 - Red
Number of Contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
Packaging
Blank - Tray
T - Tape and reel
Number of Ports
01 - 1 Port
Shielding Options
0 - No Shield
1 - Standard shield
2 - Shield with side ground tabs
design to touch with mounting
panel
3 - Shield without ground tab
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
37
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJULE SERIES
RECESSED, LOW PROFILE
Single Port
RJULE-4X180-01
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJULE-4X182-01
Shielded with Side Ground Tabs
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJULE-4X181-01
Single Port
Standard Shield
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
38
RJE56 SERIES
RJ45 PRESS FIT
RJ45 Press Fit
The RJE56 series is designed for applications where soldering is
not an option. The pressfit contacts and shield tabs have the
"Eye of the Needle" design and provide good PCB retention and
reliable electrical performance.
Specifications
Material
Housing:
Contacts:
Shield:
Electrical
Contact Resistance:
Insulation Resistance:
High temperature thermoplastic; complies
with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ” minimum
nickel on contact mating area. 100μ” minimum
tin lead plating on press fit tail.
Stainless steel
20 mΩ maximum
500 MΩ minimum
Current Rating:
Voltage Rating:
DWV:
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
Mechanical
Mating Connector Insertion Force:
5 lbs. maximum
Mating Connector Pull Retention Force: 20 lbs. minimum
Durability:
750 mating & unmating cycles
Recommended Soldering Temperature: IR Reflow peaked at 260°C
for 5 to 8 seconds maximum
Operating Temperature:
-40°C to +70°C
Ordering Information
RJE56 - 1 8 X - X X 1 0 - X
Number of Ports
1 - 1 port
Number of Positions
8 - 8 Positions
Packaging
Blank - Tray
T - Tape and reel
Modifier
0 - Standard product
Number of Contacts
6 - 6 contacts
8 - 8 contacts
Flange Options
1 - No flange
Shielding Options
0 - No shield
1 - Full shield
Contact Plating
1 - 6 µ" gold plating
2 - 15 µ" gold plating
3 - 30 µ" gold plating
4 - 50 µ" gold plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
39
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE56 SERIES
RECESSED, LOW PROFILE
Single Port
RJE56-188-1X10
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
40
RJE73 SERIES
RJ45 LOW PROFILE WITH LEDS
RJ45 Low Profile with LEDs
The RJE73 Modular Jack is a low profile RJ45 with LEDs and superior
EMI shielding with a small foot print for space sensitive designs.
Built-in LEDs provide link activity and network verification. This product
is ideal for LAN applications such as adapter cards and routers.
Specifications
Material
Insulator:
Contacts:
Shield:
LED:
High temperature thermoplastic; complies
with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with gold
plating options 50µ" minimum nickel on
contact mating area. 100µ" minimum matte
tin on solder tails.
Stainless steel with tin dipped tails
Tin plating on LED tails
Mechanical
Mating Connector
Insertion Force:
Mating Connector Pull
Retention Force:
Durability:
Recommended Soldering
Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at 260°C
5 seconds maximum
Operating Temperature:
Electrical
Contact Resistance:
Insulation Resistance:
20 mΩ maximum
500 MΩ minimum at 500V DC for
2 minutes maximum
Current Rating:
1.0 Amps
: Rating:
Voltage
125 Volts AC
DWV
1000 VAC, 60 Hz. 1 minute
LED Forward DC Current: 20mA typical
LED Forward Voltage:
1.9 Volts maximum @ 2mA (for single colours)
2.6 Volts maximum @ 20mA (for Bi-colours)
LED Reverse Voltage:
5 Volts minimum
LED Light Intensity:
0.4 to 1.5 mcd @ 2mA (for single colours)
0.5 mcd minimum @ 2mA (for Bi-colours)
LED Wave Length:
Yellow: 587 ± 7 nm measured @ 20mA
Green: 565 ± 6 nm measured @ 20mA
Red: 625 ± 5 nm measured @ 20mA
UL File # :
Connectors without LEDs are suitable for IR reflow
-55°C to + 85°C
E135615
Ordering Information
RJE73
Number of Ports
1 - 1 port
-
18 8
X X X -
0 0 XX X
X X
Number of Positions
8 - 8 positions
LED Options
Please refer to page 2 for options
Number of Contacts
8 - 8 contacts
0 0 X
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
41
Ground Tabs Option
0 - Without tabs
1 - With side and top tabs
Contact Plating
1 - 6 µ" gold plating
2 - 15 µ" gold plating
3 - 30 µ" gold plating
4 - 50 µ" gold plating
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE73 SERIES
RJ45 LOW PROFILE WITH LEDS
Single Port
RJE73-188-004XX1
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
42
RJE06 SERIES
SINGLE PORT SLIM PROFILE
Single Port Slim Profile
RJE06 series is a group of products within a family of
standard Modular Jacks designed to meet requirements for
a variety of applications.
Options within the RJE06 family include shielded
& non shielded, and RJ12 & RJ45 configurations.
Specifications
Materials
Insulator:
Contacts:
Sheild:
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
Engineering thermoplastic. Complies with
Voltage Rating:
UL94V-0. Colour: Black.
DWV:
Phosphor bronze hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ” minimum Electrical
Mating Connector Insertion Force:
nickel on contact mating area. 100μ” minimum
Mating Conenctor Pull Retention Force:
matte tin or gold flash plating on tail area.
Durability:
Copper alloy; nickel plating over all.
Recommended Soldering Temperature:
125 Volts AC
1000 VAC, 60 Hz. 1 minute.
20 mΩ maximum
500 MΩ minimum at 500V DC for 2 mins max.
1.5 Amps
Connectors made with high temperature
material are suitable for IR reflow
Operating Temperature:
UL File # :
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at 260°C
for 5 seconds maximum
-40°C to + 85°C
E136228
Ordering Information
RJE06
Number of Ports
1 - 1 port
Number of Positions
6 - 6 positions
8 - 8 positions
Number of Contacts
6 - 6 contacts
8 - 8 contacts
Shielding Options
0 - No shield
1 - Standard shield
-
1 X188
X
-
X X X X
Modifier
0 - Standard tail length (3.25mm)
1 - 4.0mm tail length
Flange Options
1 - Without flange
2 - With flange
Contact Plating
1 - 6 µ” gold plating
2 - 15 µ” gold plating
3 - 30 µ” gold plating
4 - 50 µ” gold plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
43
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE06 SERIES
SINGLE PORT SLIM PROFILE
Single Port
RJE06-188-0X10
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE06-188-1X10
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
44
RJE08 SERIES
SINGLE PORT STANDARD PROFILE
Single Port Standard Profile
RJE08 series is a group of products within a family of standard Modular Jacks
designed to meet requirements for a variety of applications. Options within
the RJE08 include with & without flange, and RJ11 and RJ45 configurations.
Specifications
Material
Insulator:
Contacts:
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
Engineering thermoplastic. Complies with
UL94V-0. Colour: Black.
Phosphor bronze hard temper with gold thickness
options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ” minimum
nickel on contact mating area. 100μ” minimum
matte tin or gold flash plating on tail area.
25 mΩ maximum
500 MΩ minimum at 500V DC for 2 minutes max.
1.5 Amps
Ordering Information
Voltage Rating:
DWV:
125 Volts AC
1000 VAC, 60 Hz. 1 minute
Mating Connector Insertion Force:
Mating Connector Pull
Retention Force:
Durability:
Recommended Soldering
Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at 260°C
for 5 seconds maximum
Operating Temperature:
UL File # :
-40°C to + 85°C
E136228
Mechanical
Connectors made with high temperature material
are suitable for IR reflow
RJE08 - 1 X X - 0 X X 0
Number of Ports
1 - 1 port
Modifier
0 - Standard product
Number of Positions
4 - 4 positions
6 - 6 positions
8 - 8 positions
Flange Options
1 - No flange
2 - Flanged
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Number of Contacts
4 - 4 contacts
6 - 6 contacts
8 - 8 contacts
Shield Options
0 - No shield
Single Port
RJE08-188-0X10
Non-Shielded
FRONT VIEW
SIDE VIEW
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
45
.450 [11.43]
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE23 SERIES
SINGLE PORT SURFACE MOUNT
Single Port Surface Mount
The RJE23 series is designed for high volume production where a vertical
Modular Jack is required. Shielding provides increased EMI performance.
Surface mount contacts and a fitting nail bracket assist in speeding up the
production process.
Specification
Material
Housing:
Shield:
Contacts:
Hold Down:
Coplanarity:
Electrical
High temperature thermoplastic; complies with
UL 94V-0. Colour: Black.
Copper alloy; matte tin plating
Phosphor bronze hard temper with gold thickness
options (6µ", 15µ", 30µ", 50µ") over 50µ" minimum
nickel on contact mating area. 100µ" minimum matte
tin over nickel on soldering tail.
Copper alloy; matte tin plating
Maximum gap between all terminal tails is .004"
Contact Resistance:
Insulator Resistance:
20 mΩ maximum
500 MΩ minimum at 500V DC for 2 mins. max.
Current Rating:
Voltage Rating:
DWV:
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 minute
Mechanical
Mating Connector
Insertion Force:
Mating Connector Pull
Retention Force:
Durability:
Recommended Soldering
Temperature:
Operating Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
IR Reflow peaked at 260°C
for 5 to 8 seconds maximum
-40°C to +70°C
Ordering Information
RJE23
Number of Ports
1 - 1 port
Number of Positions
6 - 6 positions
8 - 8 positions
Number of Contacts
6 - 6 contacts
8 - 8 contacts
1 X X-0 X X 0- X
Packaging
Blank - Standard (Tray)
T - Tape and reel
Modifier
0 - Standard product
Housing/Flange Option
1 - Black housing without flange
2 - Black housing with flange
Number of Ports
Contact Plating
1 - 6 µ" gold plating
2 - 15 µ" gold plating
3 - 30 µ" gold plating
4 - 50 µ" gold plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
46
RJE23 SERIES
SINGLE PORT SURFACE MOUNT
Single Port
RJE23-188-0X10
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
47
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE74 SERIES
SINGLE PORT
Single Port
The RJE74 series, with superior EMI shielding, is built to fit your Registered
Jack requirements. The vertical 10P10C version is available with an RMK4
key interface to prevent an 8P8C plug from entering and damaging the connector.
Includes optional Mylar cover for automated assembly equipment.
Specifications
Material
Insulator:
Contacts:
Shield:
LED:
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
High temperature thermoplastic; complies
with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with 30µ"
minimum gold thickness over 50µ" minimum
nickel on contact mating area. 100µ"
minimum matte tin plating on soldering tail.
Stainless steel; pure tin dipped tails
Tin plating on LED tails
20 mΩ maximum
500 MΩ minimum at 500V DC for
2 minutes maximum
1.5 Amps
Voltage Rating:
DWV:
125 Volts AC
1000 VAC, 60 Hz. 1 minute
Mechanical
Mating Connector
Insertion Force:
Mating Connector
Pull Retention Force:
Durability:
Recommended Soldering
Temperature:
Operating Temperature:
20 lbs. minimum
750 mating & unmating cycles
IR Reflow peaked at 260°C
for 5 to 8 seconds maximum
-55°C to +85°C
UL File # :
E135615
5 lbs. maximum
Ordering Information
RJE74 - 1 X X - X X 1 X - X
Number of Ports
1 - 1 Port
Number of Positions
8 - 8 positions
A - 10 positions
Number of Contacts
8 - 8 contacts
A - 10 contacts
Shielding Options
0 - No Shield
1 - Full Shield
Options
Blank - PBT, tray, w/o Mylar
A - High temp housing, tray, w/o Mylar
H - High temp housing, tape & reel, with Mylar
LED Options
0 - Standard product
1 - With RMK4 keying
Flange Options
1 - No flange
Contact Plating
1 - 6 μ" gold plating
2 - 15 μ" gold plating
3 - 30 μ" gold plating
4 - 50 μ" gold plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
48
RJE74 SERIES
SINGLE PORT
Single Port
RJE74-1AA-0X11
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE74-1AA-1X11
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
49
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJSAE SERIES
2, 4, AND 8 PORTS WITH LEDS AND SHIELD OPTIONS
2, 4, and 8 Ports with LEDs
and Shield Options
The RJSAE is a RJ45 stackable connector that reduces component and
labour costs by incorporating LEDs into the connector. Its stackable feature
enables more ports with the same board space. With superior EMI performance,
the option of configuring your connector with a ferrite filter is available to
further reduce crosstalk in noisy applications. Amphenol offers a variety
of other options such as shielded and unshielded, and a variety of LED
combinations and port configurations.
Specifications
Material
Insulator:
Contacts:
Shield:
LED:
Electrical
Contact Resistance:
Insulation Resistance:
20 mΩ maximum
500 MΩ minimum at 500V DC for
2 minutes maximum
Current Rating:
1.5 Amps
Voltage
125 Volts AC
: Rating:
DWV
1000 VAC, 60 Hz. 1 minute
LED Forward DC Current: 20mA typical
LED Forward Voltage:
1.9 Volts maximum @ 2mA (for single colours)
2.6 Volts maximum @ 20mA (for Bi-colours)
LED Reverse Voltage:
5 Volts minimum
LED Light Intensity:
0.4 to 1.5 mcd @ 2mA (for single colours)
0.5 mcd minimum @ 2mA (for Bi-colours)
LED Wave Length:
Yellow: 587 ± 7 nm measured @ 20mA
Green: 565 ± 6 nm measured @ 20mA
Red: 625 ± 5 nm measured @ 20mA
UL File # :
E135615
CSA File # :
150190
High temperature thermoplastic; complies
with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with gold
thickness options (6μ”, 15μ”, 30μ”, 50μ”) over
50μ” minimum nickel on contact mating area.
100μ” minimum matte tin plating on soldering tail
Copper alloy; nickel plated with pure tin dipped tail
Pure tin plating on LED tail
Mechanical
Mating Connector Insertion Force:
5 lbs. maximum
Mating Connector Pull Retention Force: 20 lbs. minimum
Durability:
750 mating & unmating cycles
Wave soldering peaked at 260°C
Recommended Soldering
for 5 seconds maximum
Temperature:
Operating Temperature:
Connectors without LEDs are suitable for IR reflow
-55°C to +85°C
Ordering Information
RJSAE
Versions
5 - 8 position, 50 µ" gold plating
7 - 6 position, 50 µ" gold plating
8 - 8 position over 6 position, 50 µ" gold plating
-
X X X X - XX
Number of Ports
02 - 2 ports (1 over 1)
04 - 4 ports (2 over 2)
08 - 8 ports (4 over 4)
Shield Options
0 - No shield
2 - Shield with top and side tabs, with filter
3 - Shield with top and side tabs, no filter
F - Shield without top and side tabs
LED Options
Refer to page 2 for options
Number of Contacts
4 - 4 contacts
6 - 6 contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
8 - 8 contacts
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
50
RJSAE SERIES
2, 4, AND 8 PORTS WITH LEDS AND SHIELD OPTIONS
Single Port
RJSAE-508X-02
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJSAE-538X-02
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Multi Port
RJSAE-508X-08
Non-Shielded
FRONT VIEW
51
SIDE VIEW
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJSAE SERIES
2, 4, AND 8 PORTS WITH LEDS AND SHIELD OPTIONS
Multi Port
RJSAE-508X-08
Non-Shielded
RECOMMENDED PCB LAYOUT
RJSAE-538X-08
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
52
RJSNE SERIES
4 OVER 4 PORTS WITH LED AND SHIELD OPTIONS
4 Over 4 Ports with LED and
Shield Options
The RJSNE series is a stacked connector that offers LED options for link
activity and network verification. It is available with or without shielding.
The RJSNE series also includes a unique inner shield device to
reduce the cross talk between top and bottom ports.
Specifications
Material
Insulator:
Contacts:
Shield:
LED:
Operating Temperature:
High temperature engineering thermoplastic.
Complies with UL94V-0.Colour: Black.
Phosphor bronze hard temper with gold thickness options (6μ”, 15μ”, 30μ”, 50μ”) over 50μ”
minimum nickel on contact mating area. 100μ”
minimum matte tin plating on soldering tail.
Copper alloy, nickel plated with tin dipped tail
or stainless steel with tin dipped tail.
Pure tin plating on LED tail.
Mechanical
Mating Connector
Insertion Force:
Mating Connector Pull
Retention Force:
Durability:
Recommended Soldering
Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
Wave soldering peaked at 260°C for 5
seconds maximum
Connectors without LEDs are suitable for IR reflow
Electrical
Contact Resistance:
Insulation Resistance:
20 mΩ maximum
500 MΩ minimum at 500V DC for
2 minutes maximum
Current Rating:
1.5 Amps
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 minute
LED Forward DC Current: 20mA typical
LED Forward Voltage:
1.9 Volts maximum @ 2mA (for single colours)
2.6 Volts maximum @ 2mA (for bi-colours)
LED Reverse Voltage:
5 Volts minimum
LED Light Intensity:
0.4 to 1.5 mcd @ 2mA (for single colours)
0.5 mcd minimum @ 2mA (for bi-colours)
LED Wave Length:
Yellow: 587 ± 7 nm measured @ 20mA
Green: 565 ± 6 nm measured @ 20mA
Red: 625 ± 5 nm measured @ 20mA
UL File # :
E135615
Ordering Information
-
-55°C to +85°C
-
X
Special Identifier
0 - Standard
A - Contact tail, 0.130”, ± 0.10”
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
53
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJSNE SERIES
4 OVER 4 PORTS WITH LED AND SHIELD OPTIONS
Multi Port
RJSNE-538X-X8
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
54
RJE72 SERIES
CAT 5e, RIGHT ANGLED, RECESSED, LOW PROFILE
Right Angled, Recessed,
Low Profile
The RJE72 of Modular Jacks meet category CAT5e performance per
EIA-568-C.2. It supports Gigabit Ethernet Protocols. Shielding
available for increased EMI performance and LEDs for link
activity and network speed verification.
Specifications
Material
Insulator:
Contacts:
Shield:
LED:
High temperature thermoplastic; complies
with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with gold
thickness options (6µ", 15µ", 30µ", 50µ")
over 50µ" minimum nickel on contact mating
area. 100µ" minimum matte tin on solder tails.
Stainless steel with tin dipped tails
Steel with tin plating on LED tails. Epoxy lens.
Mechanical
Mating Connector
Insertion Force:
Mating Connector Pull
Retention Force:
Durability:
Recommended Soldering
Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
IR reflow peaked at 260°C for
5 to 8 seconds
IR reflow is not recommended for connectors with LEDs
Ordering Information
Operating Temperature:
-40°C to +85°C
Electrical
Contact Resistance:
Insulation Resistance:
20 mΩ maximum
500 MΩ minimum at 500V DC for
2 minutes maximum
Current Rating:
1.25 Amps
: Rating:
Voltage
125 Volts AC
DWV
1000 VAC, 60 Hz. 1 minute
LED Forward DC Current: 20mA typical
LED Forward Voltage:
1.9 Volts maximum @ 2mA (for single colours)
LED Reverse Voltage:
5 Volts minimum
LED Light Intensity:
0.4 to 1.5 mcd @ 2mA (for single colours)
LED Wave Length:
Yellow: 587 ± 7 nm measured @ 20mA
Green: 565 ± 6 nm measured @ 20mA
Red: 625 ± 5 nm measured @ 20mA
UL File # :
E135615
RJE72 - X 8 8 - 1 X X X - X
Number of Ports
1 - 1 Port
4 - 4 Ports
Packaging
Blank - Tray
T - Tape and reel
Number of Positions
8 - 8 positions
Modifie
1 - 3.18mm Tail length
2 - 2.27mm Tail length
3 - 2.16mm Tail length
Number of Contacts
8 - 8 contacts
Shielding Options
1 - Full shield
LED Options
Refer to page 2 for options
Contact Plating
1 - 6 µ" gold plating
2 - 15 µ" gold plating
3 - 30 µ" gold plating
4 - 50 µ" gold plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
55
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE72 SERIES
CAT 5e RIGHT ANGLED, RECESSED, LOW PROFILE
Single Port
RJE72-188-1XX1
3.18 [.125]
Shielded
FRONT VIEW
TOP VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE72-488-1XX1
Multi Port
3.18 [.125]
Shielded
TOP VIEW
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
56
RJE71 SERIES
CAT6, RIGHT ANGLED, RECESSED, LOW PROFILE
Right Angled, Recessed,
Low Profile
The RJE71 series of Modular Jacks meet category CAT6 performance per
EIA-568-C.2. It supports Gigabit Ethernet Protocols and 10G Ethernet
over lengths up to 50M. Shielding available for increased EMI performance
and LEDs for link activity and network speed verification.
Specifications
Material
Insulator:
Contacts:
Shield:
LED:
Mechanical
High temperature thermoplastic; complies
with UL 94V-0. Colour: Black.
Phosphor bronze hard temper with gold
thickness options (6µ", 15µ", 30µ", 50µ")
over 50µ" minimum nickel on contact mating
area. 100µ" minimum matte tin on solder tails
Stainless steel with tin dipped tails
Tin plating on LED tails
Mating Connector Insertion Force:
Mating Connector Pull
Retention Force:
Durability:
Recommended Soldering
Temperature:
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
IR reflow peaked at 260°C
for 5 to 8 seconds
Operating Temperature:
Electrical
Contact Resistance:
Insulation Resistance:
Current Rating:
Voltage Rating:
DWV:
LED Forward DC Current:
LED Forward Voltage:
Packaging
LED Reverse Voltage:
LED Light Intensity:
LED Wave Length:
IR reflow is not recommended for connectors
with LEDs
Ordering Information
-40°C to +85°C
20 mΩ maximum
500 MΩ minimum at 500V DC for 2 mins max.
1.25 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 minute
20mA typical
1.9 Volts maximum @ 2mA (for single colours)
2.6 Volts maximum @ 20mA (for Bi-colours)
5 Volts minimum
0.4 to 1.5 mcd @ 2mA (for single colours)
0.5 mcd minimum @ 2mA (for Bi-colours)
Yellow: 587 ± 7 nm measured @ 20mA
Green: 565 ± 6 nm measured @ 20mA
Red: 625 ± 5 nm measured @ 20mA
RJE71 - X 8 8 - 1 X X X - X
Number of Ports
1 - 1 Port
4 - 4 Port
Packaging
Blank - Tray
T - Tape and reel
Number of Positions
8 - 8 positions
Modifier
1 - 3.18mm Tail length
2 - 2.27mm Tail length
3 - 2.16mm Tail length
Number of Contacts
8 - 8 contacts
Shielding Options
1 - Full shield
LED Options
Refer to page 2 for options
Contact Plating
1 - 6 µ" gold plating
2 - 15 µ" gold plating
3 - 30 µ" gold plating
4 - 50 µ" gold plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
57
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE71 SERIES
RIGHT ANGLED, RECESSED, LOW PROFILE
Single Port
RJE71-188-1X1X
Shielded
FRONT VIEW
TOP VIEW
SIDE VIEW
Multi Port
RECOMMENDED PCB LAYOUT
RJE71-488-1XXX
3.18 [.125]
Shielded
FRONT VIEW
TOP VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
58
RJE17 SERIES
RJ45 COUPLER
RJ45 Coupler
The RJE17 coupler provides connections through barriers such as
equipment covers and panels. They are locked into place with a panel
latch for secure mounting. Available in CAT3 and CAT5e performance.
The added shielding provides optimal EMI protection.
Specifications
Material
Insulator:
Contacts:
Shield:
Engineering thermoplastic. Complies with UL 94V-0.
Colour: Black.
Phosphor bronze hard temper with gold thickness
options (30μ”, 50μ”) over 50μ” minimum nickel on
contact mating area
Stainless steel
Electrical
Contact Resistance:
20 mΩ maximum
Insulation Resistance: 500 MΩ minimum at 500V DC for 2 minutes max.
Current Rating:
1.5 Amps
Voltage Rating:
DWV
Mechanical
Mating Connector Insertion Force:
Mating Connector Pull Retention Force:
Durability:
Operating Temperature:
125 Volts AC
1000 VAC, 60 Hz. 1 minute
5 lbs. maximum
20 lbs. minimum
750 mating & unmating cycles
-40°C to + 85°C
1
Ordering Information
RJE17 - 2 8 8 - 1 X X X
Number of Ports
2 - 2 Ports
Number of Positions
8 - 8 positions
Number of Contacts
8 - 8 contacts
Contact Plating
1 - 6 μ" gold plating
2 - 15 μ" gold plating
3 - 30 μ" gold plating
4 - 50 μ" gold plating
5 -1 ~ 3 μ" gold plating
Modifier
1 - CAT3 with matte tin plating
on internal tail
3 - CAT5e with matte tin plating
on internal tail
4 - CAT5e with gold flash plating
on internal tail
LED Options
1 - Both ports are tab down
2 - One port is tab up and the
other is tab down
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
59
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
RJE17 SERIES
RJ45 COUPLER
Single Port
FRONT VIEW
RJE17-288-1X21
SIDE VIEW
REAR VIEW
Notes
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
60
NOTES
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
NOTES
nta
F - Shiel
Amphenol ® Canada Telephone: (416) 754-5656 Fax: (416) 754-8668 Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to the website for the most recent edition.
Amphenol ®
Location:
605 Milner Avenue
Toronto, Ontario
Canada, M1B 5X6
Website: www.amphenolcanada.com
Telephone: (416) 754-5656
Fax: (416) 754-8668
Email: sales@amphenolcanada.com
All specifications are subject to change without notice.
