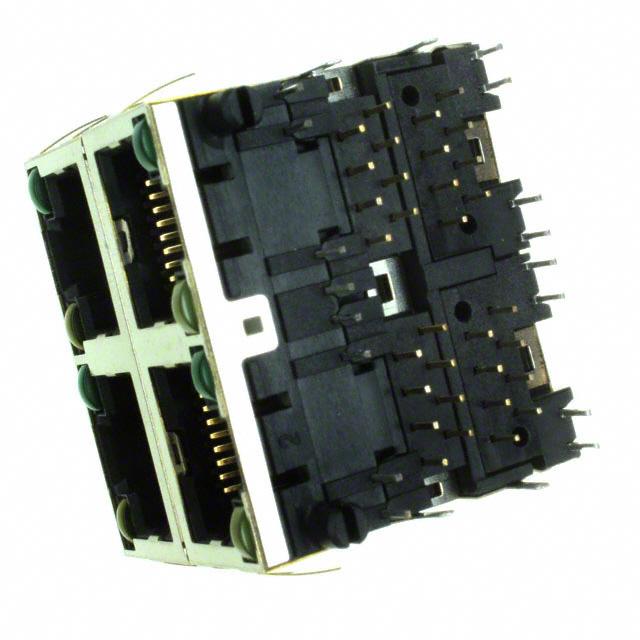

Amphenol RJSAE Product Specification S6037C Rev 1.7 About Amphenol Commercial Products Amphenol’s commercial connector products are used in a variety of end user applications including networking, telecom, server & computer, storage & HDD, consumer electronics and entertainment, professional audio & Industrial & Military/Aerospace. P/N RJSAE-5385-02 SHOWN STACKED 2X1, 8 POSITION, WITH SHILED AND LEDs Related Products RJSSE P/N RJSAE-7366-08X SHOWN STACKED 2X4, 6 POSITIONS, WITH SHIELD AND LEDs OVERVIEW This product specification defines the general use and performance parameters for Amphenol’s RJSAE series of stackable modular jacks. Availability: 2x1, 2x2 and 2x4 ports available with a wide variety of LED and shielding options. USAGE P/N RJSSE-5081 SHOWN SINGLE PORT, 8 POSITION, WITH SHIELD AND LIGHT PIPE The RJSAE stackable modular jacks supports Ethernet Protocols. Shielding available with and without a Ferrite filter for increased EMI performance and LEDs for Link Activity and Network Speed verification. RJSAE APPLICATIONS Intended for use in applications such as: Data P/N RJSAE-5385-02 SHOWN STACKED 2X1, 8 POSITION, WITH SHIELD AND LEDs      Servers Routers Switches Hubs Networking & Telecom     Revision Date: MAR 28, 2019 Storage 5G Wireless Telephones Consumer Goods      Security Systems Set Top Boxes Video Game Systems PCs, Laptops Copiers, Printers Industrial and Instrumentation      Uninterruptible Power Supply (UPS) ATMs Vending Machines POS Terminals Industrial IoT Platforms Medical   Analysis Equipment Mass Spectrometers Modems Fax Machines Page 1 of 3 Amphenol RJSAE Product Specification S6037C Rev 1.7 About Amphenol Commercial Products Amphenol’s commercial connector products are used in a variety of end user applications including networking, telecom, server & computer, storage & HDD, consumer electronics and entertainment, professional audio & Industrial & Military/Aerospace. Related Products Amphenol ELECTRICAL CHARACTERISTICS Contact Resistance 20 mΩ maximum Insulation Resistance 500 MΩ minimum at 500V DC for 2 minutes maximum Current Rating 1.5 Amps per contact Voltage Rating 125 Volts AC DWV Contact to Contact is 1000 VAC, 60 Hz, 1 min LED Forward DC Current 20 mA typical LED Forward Voltage 1.9 Volts max. @ 2mA (for single colours) 2.6 Volts max. @20mA (for Bi-colours) LED Reverse Voltage 5 Volts minimum LED Light Intensity 0.4 to 1.5 mcd @ 2mA (for single colours) 0.5 mcd min. @ 2mA (for Bi-colours) LED Wavelength Yellow: 587 ± 7nm measured @20mA Green: 565 ± 56m measured @20mA Red: 625 ± 5nm measured @ 20mA RJHSE Supports PoE, PoE+, and PoE++ per IEEE PoE standards IP20 rated per IEC 60529 MECHANICAL CHARACTERISTICS P/N RJHSE-3081 SHOWN SINGLE PORT VERTICAL MOUNT, NO SHIELD, WITH LEDs Mating Connector Insertion Force 5.0 lbs maximum Mating Connector Pull Retention Force 20.0 lbs minimum Durability 750 mating and unmating cycles for 50µ” gold plating Recommended Soldering Temperature Wave soldering peaked at 260⁰C for 5 seconds Operating Temperature -40⁰C to +70⁰C UL File #: E135615 P/N RJHSE-5385-02 SHOWN TWO PORT REGULAR SOUNT WITH SHIELD AND LEDs Amphenol Canada Corp. 605 Milner Avenue Toronto, Ontario, Canada M1B 5X6 www.amphenolcanada.com (www.amphenol-icc.com) (416) 291-4401 sales@amphenolcanada.com Copyright © Amphenol Corporation 2018 ·All rights reserved Page 2 of 3 Amphenol THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP. RJSAE Product Specification S6037C Rev 1.7 About Amphenol Commercial Products Amphenol’s commercial connector products are used in a variety of end user applications including networking, telecom, server & computer, storage & HDD, consumer electronics and entertainment, professional audio & Industrial & Military/Aerospace. Amphenol MATERIAL REQUIREMENTS RJSAE connectors of RoHS compliant. Unless otherwise specified, the material for each component shall be: Insulator Engineering thermoplastic, flammability rating UL 94V-0 Contacts -Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ” 30µ”, 50µ”) over 50µ” minimum Nickel on contact mating area -100µ” minimum matte Tin plating on soldering tail Shield Copper alloy with Nickel on contact mating area LED Pure Tin plating on LED tail AVAILABLE DOCUMENTS Below is a list of the most popular standard sales drawings: Contact our website, sales, or an authorized Amphenol representation for additional drawings. Related Products RJSAE-X38X-02X 2X1 Stackable Modular Jack, with LEDs RJSAE-XF8X-A4X Stackable Multi-Port, 4 Ports, with LEDs RJSAE-528X-A8X 4 over 4 ports, shield with top and side tabs, with LEDs FRJAE P/N FRJAE-418 SHOWN SINGLE PORT, 8 POSITION, WITH FERRITE FILTER AND SHIELD (FRONT TABS) RJLSE P/N RJLSE-41181-01 SHOWN SINGLE PORT REGULAR MOUNT, STANDARD SHIELD WITH SMT Amphenol Canada Corp. 605 Milner Avenue Toronto, Ontario, Canada M1B 5X6 www.amphenolcanada.com (www.amphenol-icc.com) (416) 291-4401 sales@amphenolcanada.com Copyright © Amphenol Corporation 2018 ·All rights reserved Page 3 of 3 Amphenol THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
