Am p h enol I nfo r matio n, Co m m u n icat io n s, a n d Co m m erc i a l
Amphenol
Modular Jacks
P R O D U C T C AT A L O G U E
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
Now You’re Connected!
1
Amphenol
The Company
Amphenol Commercial Products Group of Amphenol Canada Corp., a subsidiary of Amphenol Corporation,
is an ISO 9001 certified facility located in Toronto, Canada. Our activities are dedicated to the design, development, and manufacturing of interconnect products intended for use in the data communications and
telecommunications markets. Our expertise in understanding and supporting our customers’ interconnect
needs has earned Amphenol Canada a reputation of quality and excellence among the world’s leading users
of electronic components.
About the Catalogue
This modular jack catalogue represents some of our more popular products within this product category.
Other product categories include, but are not limited to: D-Sub, Micro-Ribbon, USB, Headers and Sockets,
CoolPower connectors, VHDCI, Capacitively Decoupled BNC, filtered connectors (D-Subs and micro-ribbon),
and rugged connectors (RJ, USB, D-Subs, and bulkhead adapters).
OL
C ANA
DA
RoHS
RP
A MP
N
CO
HE
All of our modular jacks are RoHS compliant.
All drawings in this document are measured in inches [mm], unless otherwise indicated.
/65
S
20
11
T
COMPLIANT
A
/EU REC
Notice: Specifications are subject to change without notice. Contact your nearest Amphenol sales office for the latest specifications. All statements, information, and data
given herein are believed to be accurate and reliable, but are presented without guarantee, warranty, or responsibility of any kind, expressed, or implied. Statements or suggestions concerning possible use of our products are made without representation or warranty that any such use is free of patent infringement, and are not recommended
to infringe any patent. The user should not assume that all safety measures are indicated or that other measures may not be required. Amphenol and RJ vista are registered
trademarks.
1
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
CONTENTS
Right Angle (Side Entry)
Vertical (Top Entry)
THROUGH-HOLE
THROUGH-HOLE
RJHSE
Tab Up, Multiport
RJESE
Tab Up, Standard Profile
RJE29
Tab Up, Slim Profile
RJE37
Tab Up, Single Port, Low Profile
RJE39
4-7
RJHSE
Tab Up, Multiport
8-10
RJE06
Single Port, Slim Profile
51-52
11-12
RJE08
Single Port, Standard Profile
53-54
13-14
RJE74
Single Port, Standard Profile
55-56
Tab Up, Narrow, 2 and 8 Port
15-16
RJE88
Single Port, Low Profile
57-58
RJE01
Tab Up, RJ11 (Six Position)
17-18
RJE1J
Single Port, Narrow Profile
59-60
RJSBE
Tab Down, 1, 2 and 4 Port
19-21
FRJAE
Tab Down, Filtered and Shielded
22-24
RJE02
Tab Down, Single Port, High Profile 25-26
RJE03
Tab Down, Single Port, Low Profile
27-28
Category 5e (1G, 2.5G)
RJE05
Tab Down, Ultra Low Profile
29-30
RJE48
Right Angle, Low Profile
68-69
RJE09
Tab Down, Standard Profile
31-33
RJE58
Right Angle, Standard Profile
70-72
RJULE
Tab Down, Recessed, Low Profile
34-35
RJE72
Right Angle, Recessed, Low Profile
73-74
RJE73
Tab Down, Single Port, Low Profile
36-37
RJSGE
Stacked, Press Fit, 2 over 2 Ports
75-76
RJE1R
Stacked, 1 over 1 Ports
SURFACE MOUNT
4-7
SURFACE MOUNT
RJE23
Single Port, Surface Mount
61-62
86-87
RJSSE
Tab Up, with Light Pipes
38-40
RJCSE
Tab Up, Standard Profile
41-42
Category 6 (5G, 10G)
RJLSE
Tab Down, Ultra Low Profile
43-44
RJE45
Vertical, Single Port, Low Profile
77-78
RJE07
Tab Down, Single Port
45-46
RJE49
Right Angle, Low Profile
79-80
RJE15
Tab Down, Single Port, Low Profile
47-48
RJE59
Right Angle, Standard Profile
81-83
RJE71
Right Angle, Recessed, Low Profile
84-85
49-50
RJE1R
Stacked, 1 over 1 Ports
RJE56
PRESS FIT
Tab Down, RJ45
STACKED
86-87

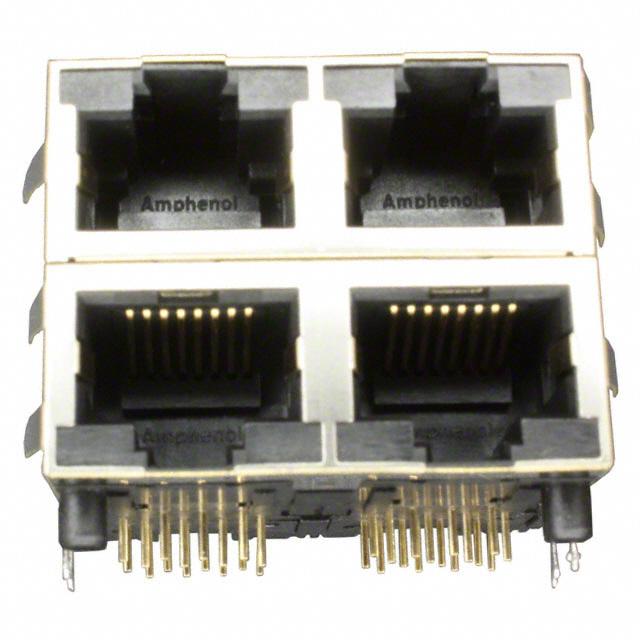

RJSAE
Stacked, 2, 4 and 8 Ports
63-65
Category 6A (10G)
RJSNE
Stacked, 4 over 4 Ports
66-67
RJE4A
Vertical, Single Port, Low Profile
88-89
RJE7B
Right Angle, Recessed, Low Profile
90-91
RJE60
Right Angle, Standard Profile
LED OPTIONS
Note:
3
92-94
Denotes LEDs are available for connectors in the series
Additional Products
RJE17
RJ45 Coupler
Coming Soon & Other
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
95-96
97-99
2
LED
LEDOPTIONS
OPTIONS
LED Designation
LED
Code
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
V
LED 2
Left
Blocked
Yellow
Blocked
Yellow
Green
Green
Yellow
Red
Green
Green
Green
Yellow
Red
Green
Red
Green
Green
Yellow
Green
Yellow
Green Orange
Green
Yellow
Red
Green
Yellow
Green
Yellow
Red
Green
Red
Green
Green Orange
Red
Red
Green
LED 1
Right
Blocked
Green
Green
Blocked
Yellow
Green
Yellow
Green
Red
Blocked
Green
Yellow
Red
Green
Green
Yellow
Green
Yellow
Green
Yellow
Yellow
Green Orange
Green
Yellow
Green Orange
Red
Yellow
Green
Yellow
Red
Green
Green
Red
Green
Ex. RJHSE - 538X*
*LED Designation Code
Note: A black X in the part number refers to the LED
designation code for all drawings in this catalogue.
Tab Up Connectors:
Tab Down Connectors:
Stacked Connectors:
Other LED options are available. If you do not see what you’re looking for,
Other LED options are available. If you do not see what you’re looking for,
please email sales@amphenolcanada.com to request the complete the LED ordering options.
Click to Return to Table of Contents
please email sales@amphenolcanada.com to request the complete the LED ordering options.
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol Commercial
Products
- Amphenol
CanadaCatalogue
Corp. | isTelephone:
(416) 291-4401
| Fax:
(416) 754-8668 | Email: sales@amphenolcanada.com
All specifications
are subject
to change
without notice.
updated regularly.
Please refer
to www.amphenolcanada.com
for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
33
THROUGH - HOLE
RJHSE
TAB UP, MULTIPORT, WITH LEDs
TAB UP, MULTIPORT, WITH LEDs
A series of EMI Quiet Modular Jack connectors with built-in LEDs. This product is ideal for
LAN applications such as adapter cards and routers. Shielded and non-shielded versions
are available, with a variety of LED colors and ports.
SPECIFICATIONS
Electrical
Material
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
Mechanical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-55°C to + 85°C
UL File #:
E135615
CSA File #:
LR685398
*Note: Connectors without LEDs are suitable for IR Reflow
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
Standard LEDs:
For 5.0 V Systems
Forward Voltage:
2.1 Volts typical
Reverse Voltage:
6 Volts min.
Luminous Intensity:
0.5 mcd min. at 2mA
Low Current LEDs:
For 3.3 V Systems
Forward Voltage:
2 Volts typical
Reverse Voltage:
6 Volts min.
Luminous Intensity:
1 mcd min. at 2mA
Note: Vertical version is only available in single port
ORDERING INFORMATION
RJHSE - X X X X - XX
Version
Number of ports
3 - Vertical mount, 8 positions, 30µ” gold plating
5 - Right angle, 8 positions, 50µ” gold plating
7 - Right angle, 6 positions, 50µ” gold plating
L - Right angle, low profile, 8 positions, 50µ” gold plating
N - Vertical mount, 8 positions, 50µ” gold plating
Blank - 1 Port
02 - 2 Ports
04 - 4 Ports
06 - 6 Ports
08 - 8 Ports
Shield Options
LED Options
0 - No shield
3 - Shield with top and side tabs (single port has top tabs only)
4 - For single port only: Shield with top and side tabs
F - Shield without top, side or bottom tabs
P - Shield with top & bottom tabs, for vertical mount connector
Click to view page 3 for options
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Number of Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
4
T H R TOHURGOHU- HG OH L -E H O L E
RJHSE
RJHSE
TABM��������,
UP, MULTIPORT,
WITH
LEDs
T�� U�,
����
LED�
Single Port
RJHSE-508X
Non-Shielded
∅.035±.002
[∅0.89±0.05]
HOLES 8 REQ'D
.590 [14.99]
.620 [15.75]
.100 [2.54]
.170 [4.32]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
Amphenol
.520 [13.21]
.110 [2.79]
.100 [2.54]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.040 [1.02] TYP.
.080 [2.03] TYP.
.280 [7.11]
.095 [2.41]
.200 [5.08]
FRONT VIEW
.500 [12.70]
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJHSE-548X
Shielded - With Top & Side Ground Tabs
∅.035±.015 [∅0.89±0.05]
HOLES 12 REQ'D
(BASED ON 2 LEDS)
.540 [13.72]
.650±.015
[16.51±0.38]
LED 2
.530±.015
[13.46±0.38]
.620±.015
[15.75±0.38]
LED 1
.125±.015
[3.18±0.38]
LED TAILS
Amphenol
.130 [3.30]
.100±.015
[2.54±0.38]
CONTACT TAILS
.190 [4.83]
.020 [0.51]
.100 [2.54]
∅.062±.015
[∅1.57±0.38]
HOLES 2 REQ'D
.360 [9.14]
∅.128±.015
[∅3.25±0.38]
HOLES 2 REQ'D
.170 [4.32]
.110 [2.79]
.135 [3.43]
.145±.015
[3.68±0.38]
.040 [1.02] TYP.
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.080 [2.03] TYP.
.215±.015
[5.46±0.38]
.070 [1.78]
TIN DIPPED
ZONE
.105±.015
[2.67±0.38]
FRONT VIEW
.090 [2.29] TYP.
.500 [12.70]
.640 [16.26]
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJHSE-338X
Vertical Mount
.540 [13.72]
LED 2
.650 [16.51]
LED 1
.625 [15.88]
.130 [3.30]
CONTACT TAILS
.125 [3.17]
LED TAILS
TIN DIPPED
ZONE
Amphenol
.535 [13.59]
.100 [2.54]
.150 [3.81]
.090 [2.29]
TYP.
.080 [2.03] TYP.
.040 [1.02] TYP.
.110 [2.79]
.180 [4.57]
.640 [16.26]
5
SIDE VIEW
∅.035±.002
[∅0.89±0.05]
HOLES 12 REQ'D
(BASED ON 2 LEDS)
.230
.167
.135
.035
∅.062±.002
[∅1.57±0.05]
HOLES 2 REQ'D
.500 [12.70]
FRONT VIEW
.130
[3.30]
[5.84]
[4.24]
[3.43]
[0.89]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.280 [7.11]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol Commercial
Commercial Products
Products--Amphenol
AmphenolCanada
CanadaCorp.
Corp. | | Telephone:
Telephone:(416)
(416)291-4401
291-4401 | | Fax:
Fax:
(416)754-8668
754-8668 | | Email:
Email:
sales@amphenolcanada.com
(416)
sales@amphenolcanada.com
All
without notice.
notice.Catalogue
Catalogueisisupdated
updatedregularly.
regularly.
Please
refer
to www.amphenolcanada.com
for the
most
recent
edition.
Allspecifications
specifications are
are subject
subject to change without
Please
refer
to www.amphenolcanada.com
for the
most
recent
edition.
T H R OT HU RG OH U -G H
H -OHL OE L E
RJHSE
RJHSE
T��UP,
U�,
M��������,
����
LED�
TAB
MULTIPORT,
WITH
LEDs
Single Port
RJHSE-L38X
Shielded - Low Profile
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Multi Port
RJHSE-508X-04
Non-Shielded
.590
[14.99]
2.480 [62.99]
LED 2
Amphenol
Amphenol
LED 1
Amphenol
Amphenol
.100 [2.54]
.520 [13.21]
.095 [2.41]
.125 [3.17]
.200 [5.08]
FRONT VIEW
.620 [15.75] TYP.
.540 [13.72] TYP.
.090 [2.29] TYP.
SIDE VIEW
∅.035±.002 [∅0.89±0.05]
HOLES 48 REQ'D
(BASED ON 2 LEDS PER PORT)
.100 [2.54]
.170 [4.32]
.020 [0.51]
.360 [9.14]
∅.128±.002 [∅3.25±0.05]
HOLES 2 REQ'D USE ∅3.25mm
DRILL BIT TO DRILL HOLE DIAMETER.
DO NOT USE ∅3.18mm or ∅3.20mm
DRILL BIT
.110 [2.79]
.040 [1.02] TYP.
.080 [2.03] TYP.
.280 [7.11] TYP.
.620 [15.75] TYP.
2.360 [59.94]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| |Telephone:
Telephone:
(416)
291-4401| |Fax:
Fax:
(416)
754-8668| |Email:
Email:
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.Please
Pleaserefer
refertotowww.amphenolcanada.com
www.amphenolcanada.comfor
forthe
the most
most recent
recent edition.
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
66
T H RTOHURGOHU- GH HO L-E H O L E
RJHSE
RJHSE
UP, MULTIPORT,
WITH
LEDs
T�� TAB
U�, M��������,
����
LED�
Multi Port
RJHSE-538X-04
Shielded
.780 [19.80]
.2.510 [63.75]
.126 [3.19]
CONTACT TAILS
.530
[13.46]
Amphenol
Amphenol
Amphenol
Amphenol
.157 [3.99]
LED TAILS
.132 [3.35]
TIN DIPPED ZONE
PURE TIN
DIPPED ZONE
.270 [6.86]
FRONT VIEW
SIDE VIEW
∅.035±.002 [∅0.89±0.05]
HOLES 48 REQ'D
(BASED ON 2 LEDS PER PORT)
.620 [15.75] TYP.
.540 [13.72] TYP.
.090 [2.29] TYP.
.020 [0.51]
.620 [15.75]
.170 [4.32]
.360 [9.14]
∅.062±.002
[∅1.57±0.05]
HOLES 4 REQ'D
.400
[10.16]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.100 [2.54]
.110 [2.79]
.040 [1.02] TYP.
.135 [3.43]
.080 [2.03] TYP.
.280 [7.11] TYP.
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.620 [15.75] TYP.
.870 [22.10]
.070 [1.78]
2.360 [59.94]
2.500 [63.50]
RECOMMENDED PCB LAYOUT
Notes
7
AmphenolCommercial
CommercialProducts
Products- Amphenol
- AmphenolCanada
Canada
Corp. | | Telephone:
Telephone:
(416)
291-4401| |Fax:
Fax:
(416)
754-8668| |Email:
Email:
sales@amphenolcanada.com
Amphenol
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
All specifications
specifications are
aresubject
subjectto
tochange
changewithout
withoutnotice.
notice.Catalogue
Catalogue
is updated
regularly.
Please
refer
to www.amphenolcanada.com
for most
the most
recent
edition.
is updated
regularly.
Please
refer
to www.amphenolcanada.com
for the
recent
edition.
THROUGH - HOLE
RJESE
TAB UP, RJ45 & RJ11, STANDARD PROFILE
TAB UP, RJ45 & RJ11, STANDARD PROFILE
This family of EMI quiet modular jack connectors with integrated LEDs features the same
data transfer capabilities as our existing series of LED-integrated modular jacks. This product is an economical solution ideal for LAN applications and is intended for use with low
temperature soldering processes. Shielded and non-shielded versions are available with a
variety of LED options. Also offered in both single and multi port configurations.
SPECIFICATIONS
Electrical
Material
Insulator:
Engineering thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 2mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
LED Wave Length:
Operating Temperature:
-55°C to + 85°C
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
ORDERING INFORMATION
Version
RJESE - X X X X - X X XX
Special Identifier
3 - Vertical mount, 8 positions, with panel stops
7 - Right angle, 6 positions
8 - Right angle, 8 positions
Blank - Standard black housing
02 - Yellow housing colour
03 - Red housing colour
Shield Options
Number of Ports
0 - No shield
3 - Standard shield, 1 to 8 port (single port without side tabs)
4 - Single port shield, top and side tabs
1 -1 Port
2 - 2 Ports
4 - 4 Ports
Number of Contacts
Contact Plating
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
0 - 6µ” gold plating
1 - 15µ” gold plating
2 - 30µ” gold plating
3 - 50µ” gold plating
F - 1~3µ” gold plating
LED Options
Click to view page 3 for options
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
8
T H RTOHURGOHU- GH HO L-E H O L E
RJESE
RJESE
T�� TAB
U�, S�������
P������
UP, RJ45 & RJ11,
STANDARD PROFILE
Single Port
RJESE-808X-X1
Non-Shielded
.540 [13.72]
.090 [2.29] TYP.
.020 [0.51]
.590 [14.99]
.620 [15.75]
LED 2
LED 1
.170 [4.32]
ø.035±.002
[ø0.89±0.05]
HOLES 12 REQ'D
(BASED ON 2 LEDS)
.035 [0.89]
.520
[13.21]
.100 [2.54]
.122
[3.10]
.360 [9.14]
ø.128±.002
[ø3.25±0.05]
HOLES 2 REQ'D
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.110 [2.79]
.095 [2.41]
.100
[2.54]
.200 [5.08]
.040 [1.02] TYP.
.080 [2.03] TYP.
.280 [7.11]
.500 [12.70]
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJESE-848X-X1
Shielded
ø.062±.002
[ø1.57±0.05]
HOLES 2 REQ'D
.540 [13.72]
.650 [16.51]
LED 2
.090 [2.29] TYP.
.620 [15.75]
.130 [3.30]
.360 [9.14]
ø.035±.002
[ø0.89±0.05]
HOLES 12 REQ'D
(BASED ON 2 LEDS)
.135 [3.43]
.100 [2.54]
.170 [4.32]
LED 1
.530
[13.46]
.125
[3.18]
ø.128±.002
[ø3.25±0.05]
HOLES 2 REQ'D
.080
.040
.110
.280
.100
[2.54]
.105 [2.67]
.180 [4.57]
.215 [5.46]
.500 [12.70]
.500 [12.70]
.640 [16.26]
FRONT VIEW
99
[2.03] TYP.
[1.02] TYP.
[2.79]
[7.11]
SIDE VIEW
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol
AmphenolCanada
CanadaCorp.
Corp. | | Telephone:
Telephone:(416)
(416)291-4401
291-4401 | | Fax:
Fax:(416)
(416)754-8668
754-8668 | | Email:
Email:sales@amphenolcanada.com
sales@amphenolcanada.com
Amphenol Commercial
Commercial Products - Amphenol
All
Catalogueisisupdated
updatedregularly.
regularly.Please
Please
refer
www.amphenolcanada.com
most
recent
edition.
Allspecifications
specificationsare
aresubject
subject to
to change
change without notice. Catalogue
refer
to to
www.amphenolcanada.com
for for
thethe
most
recent
edition.
THROUGH - HOLE
RJESE
RJESE
TAB UP, RJ45 & T��
RJ11,U�,
STANDARD
PROFILE
S�������
P������
Multi Port
RJESE-808X-X4
Non-Shielded
2.480 [62.99]
LED 2
.590 [14.99]
LED 1
.100 [2.54]
CONTACT TAIL
.520 [13.21]
.125 [3.17]
LED TAIL
.090 [2.29]
.200 [5.08]
FRONT VIEW
.620 [15.75] TYP.
.540 [13.72] TYP.
.090 [2.29] TYP.
.020 [0.51]
SIDE VIEW
∅.035±.002 [∅0.89±0.05]
HOLES 48 REQ'D
(BASED ON 2 LEDS PER PORT)
.100 [2.54]
.170 [4.32]
.360 [9.14]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.110 [2.79]
.040 [1.02] TYP.
.080 [2.03] TYP.
.280 [7.11] TYP.
.620 [15.75] TYP.
RECOMMENDED PCB LAYOUT
2.360 [59.94]
RJESE-838X-X4
Shielded
2.510 [63.75]
LED 2
.620 [15.75]
LED 1
.100 [2.54]
.530 [13.46]
.125 [3.18]
.105 [2.67]
.215 [5.46]
FRONT VIEW
SIDE VIEW
∅.035±.002 [∅0.89±0.05]
HOLES 48 REQ'D
(BASED ON 2 LEDS PER PORT)
.620 [15.75] TYP.
.540 [13.72] TYP.
.090 [2.29] TYP.
.020 [0.51]
.620
[15.75]
.170 [4.32]
.360 [9.14]
∅.062±.002
[∅1.57±0.05]
HOLES 4 REQ'D
.110
.040
.080
.280
.620
.400 [10.16]
[2.79]
[1.02] TYP.
[2.03] TYP.
[7.11] TYP.
[15.75] TYP.
.100 [2.54]
.135 [3.43]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.870 [22.10]
.070 [1.78]
PURE-TIN
DIPPED ZONE
2.360 [59.94]
2.500 [63.50]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
| Fax:
(416)
754-8668| Email:
| Email:
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
| Fax:
(416)
754-8668
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
www.amphenolcanada.comfor
forthe
themost
mostrecent
recentedition.
edition.
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
toto
www.amphenolcanada.com
10
10
THROUGH - HOLE
RJE29
TAB UP, SLIM PROFILE
TAB UP, SLIM PROFILE
RJE29 series is designed to meet a wide variety of applications. Available in multiple positions and contacts to support basic telecom and Ethernet protocols. Shielding is available
for increased EMI performance.
SPECIFICATIONS
Material
Mechanical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
Insertion Force:
4 contacts: 1.8 Kgf Max
6 contacts: 2.1 Kgf Max
8 contacts: 2.3 Kgf Max
10 contacts: 2.5Kgf Max
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles with 50u”
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-40°C to + 85°C
Electrical
Contact Resistance
40 mΩ max.
Insulation resistance:
500 MΩ min. at 100V DC
Current Rating:
1.5 Amps
Voltage Rating:
150 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE29 - 1 X X - X X X X
1 - 1 Port
Number of Positions
Modifier
0 - Standard product
1 - 15mm housing depth
4 - 4 Positions
6 - 6 Positions
8 - 8 Positions
Panel Stop Options
Number of Contacts
Contact Plating
4 - 4 Positions
6 - 6 Positions
8 - 8 Positions
1 - Without panel stops
2 - With panel stops
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Shield Options
0 - No shield
1 - Shield with no EMI tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
11
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJE29
RJE29
T�� U�, RJ11 (S�� P�������)
TAB UP, SLIM PROFILE
Single Port
RJE29-144-0X10
Non-Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE29-166-0X10
Non-Shielded
FRONT VIEW
SIDE VIEW
Non-Shielded
RECOMMENDED PCB LAYOUT
RJE29-188-0X10
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE29-188-1X10
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
16
12
THROUGH - HOLE
RJE37
TAB UP, SINGLE PORT, LOW PROFILE, WITH LEDs
TAB UP, SINGLE PORT, LOW PROFILE, WITH LEDs
Single port through-hole (THT) series with multiple shield and LED options. Similar to our
single port RJHSE series, but with a slightly lower profile and longer body. Inverted latch
orientation for easy mating with industry standard plugs.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
Mechanical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-55°C to + 85°C
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current :
20mA typical
LED Forward Voltage:
2.6 Volts max. at 2mA
LED Reverse Voltage:
5 Volts min.
LED Light Intensity:
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
LED Wave Length:
Yellow: 585 ± 7 nm measured at 20mA
Green: 568 ± 6 nm measured at 20mA
Red: 640 ± 5 nm measured at 20mA
*Note: Connectors without LEDs are suitable for IR Reflow
ORDERING INFORMATION
Number of Ports
RJE37 - 1 8 8 - X X X 0
0 - Standard product
Number of Positions
LED Options
8 - 8 Positions
Click to view page 3 for options
Number of Contacts
8 - 8 Contacts
Shield Options
0 - No shield
1 - Shield with top and side tabs
2- Shield with top tabs only
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
13
Number of Ports
1 - 1 Port
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
T H RTOHUR GO HU G- HH- OH LO EL E
RJE37
RJE37
T��UP,
U�,SINGLE
S�����PORT,
P���,
L��
P������,
����
LED�
TAB
LOW
PROFILE,
WITH
LEDs
Single Port
RJE37-188-0XX0
Non-Shielded
.470 [11.94]
LED 2
.622 [15.80]
.740 [18.80]
LED 1
.100 [2.54] TYP.
.100 [2.54] TYP.
∅.035 [∅0.89]
HOLES 8 REQ'D
Amphenol
.125±0.01
[3.18±0.2500]
FOR ALL LED AND
CONTACT TAILS
.482
[12.25]
.060 [1.53]
.125 [3.18]
8
.050 [1.27] TYP.
1
.202 [5.13]
FRONT VIEW
.470 [11.94]
SIDE VIEW
.760 [19.30]
LED 1
.100 [2.54] TYP.
.100 [2.54] TYP.
Amphenol
.125±0.01
[3.18±0.25]
FOR ALL LED
AND CONTACT
TAILS
.492
[12.50]
.125 [3.18]
8
.212 [5.38]
.050 [1.27] TYP.
.470 [11.94]
.634 [16.10]
FRONT VIEW
SIDE VIEW
.508
[12.90]
∅.128 [∅3.25]
HOLES 8 REQ'D
.025 [0.63]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RJE37-188-2XX0
.470 [11.94]
.760 [19.30]
LED 1
.100 [2.54] TYP.
.100 [2.54] TYP.
.125±0.01
[3.18±0.25]
FOR ALL LED
AND CONTACT
TAILS
.492
[12.50]
TIN DIPPED ZONE
.212 [5.38]
.050 [1.27] TYP.
.470 [11.94]
.634 [16.10]
SIDE VIEW
.508
[12.90]
∅.062 [∅1.57]
HOLES 2 REQ'D
.082 [2.08]
1
∅.038 [∅0.97]
HOLES 4 REQ'D
BASED ON 2 LEDS
.142 [3.61]
.288 [7.32]
.348 [8.84]
∅.035 [∅0.89]
HOLES 8 REQ'D
.060 [1.53]
.125 [3.18]
FRONT VIEW
∅.038 [∅0.97]
HOLES 4 REQ'D
BASED ON 2 LEDS
.142 [3.61]
.288 [7.32]
.348 [8.84]
RECOMMENDED PCB LAYOUT
Shielded - With Top Tabs Only
8
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
∅.062 [∅1.57]
HOLES 2 REQ'D
.082 [2.08]
TIN DIPPED ZONE
LED 2
∅.128 [∅3.25]
HOLES 8 REQ'D
.025 [0.63]
∅.035 [∅0.89]
HOLES 8 REQ'D
.060 [1.53]
1
.642 [16.31]
.508
.348 [8.84] [12.90]
RJE37-188-1XX0
.470 [11.94]
LED 2
.288
[7.32]
RECOMMENDED PCB LAYOUT
Shielded - With Full Tabs
.642 [16.31]
∅.038 [∅0.97]
HOLES 4 REQ'D
BASED ON 2 LEDS
∅.128 [∅3.25]
HOLES 8 REQ'D
.025 [0.63]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| | Telephone:
Telephone:
(416)
291-4401| |Fax:
Fax:
(416)
754-8668| | Email:
Email:
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.Please
Pleaserefer
refertotowww.amphenolcanada.com
www.amphenolcanada.com for
for the
the most recent edition.
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
edition.
14
12
THROUGH - HOLE
RJE39
TAB UP, NARROW, TWO AND EIGHT PORT
TAB UP, NARROW, TWO AND EIGHT PORT
Single and eight port through-hole (THT) series with multiple shield and LED options.
Similar to the RJHSE series, but with a narrower profile. This series is ideal for programs
that need multiple connectors, but have limited PCB space.
SPECIFICATIONS
Electrical
Material
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
Mechanical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-55°C to + 85°C
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
2.6 Volts max. at 2mA (for single colour)
LED Reverse Voltage:
5 Volts min.
LED Light Intensity:
4.5 to 6.0 mcd min. at 20mA (for single
colours)
LED Wave Length:
Yellow: 588 ± 7 nm measured at 20mA
Green: 570 ± 6 nm measured at 20mA
Red: 628 ± 5 nm measured at 20mA
*Note: Connectors without LEDs are suitable for IR Reflow
ORDERING INFORMATION
Number of Ports
RJE39 - X 8 8 - X X X 0
Modifier
2 - 2 Port
8 - 8 Port
0 - Standard product
Number of Positions
Click to view page 3 for options
8 - 8 Positions
Contact Plating
Number of Contacts
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
8 -8 Contacts
Shield Options
LED Options
0 - No shield
1 - Shield with top and side tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
15
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
T H RTOHURGO HU G- HH- OH LO EL E
RJE39
RJE39
T��UP,
U�,NARROW,
N�����,
T��
���
E����
P���
TAB
TWO
AND
EIGHT
PORT
Two Port
RJE39-288-1XX0
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Eight Port
RJE39-888-1XX0
Shielded
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| | Telephone:
Telephone:
(416)
291-4401| | Fax:
Fax:(416)
(416)
754-8668 | | Email:
Email:sales@amphenolcanada.com
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
754-8668
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.Please
Pleaserefer
referto
towww.amphenolcanada.com
www.amphenolcanada.com for the most recent edition.
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
edition.
16
14
THROUGH - HOLE
RJE01
TAB UP, RJ11 (SIX POSITION)
TAB UP, RJ11 (SIX POSITION)
The RJE01 series of 6-position jacks are designed for superior EMI performance. The
inverted connector provides shorter leads, eliminating the EMI antenna effect of the
standard connector footprint. Typical performance improvement over their standard
connector counterparts is 5-10 dB over the frequency range.
SPECIFICATIONS
Mechanical
Material
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Stainless steel with tin dipped tails
Electrical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-55°C to + 85°C
UL File #:
E135615
CSA File #:
LR685398
ORDERING INFORMATION
Contact Plating
RJE01 - X X X - XX
1 - 6µ” gold plating
G -15µ” gold plating
J - 30µ” gold plating
6 - 50µ” gold plating
Number of Contacts
2 - 2 Contacts
4 - 4 Contacts
6 - 6 Contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
17
Number of Ports
01 - 1 Port
02 - 2 Port
Shield Options
0 - No Shield
1 - Front/rear tab options for single port
2 - Shield with side & PCB tails
4 - Shield without tabs & PCB tails
5 - Shield without tabs, with shielded PCB tails
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJE01
RJE01
T��UP,
U�,
RJ11
(S��
P�������)
TAB
RJ11
(SIX
POSITION)
Single Port
RJE01-X60-01
∅.035±.002
[∅0.89±0.05]
HOLES 6 REQ'D
Non-Shielded
.475 [12.07]
.650 [16.51]
.120 [3.05]
∅.136±.002
[∅3.45±0.05]
HOLES 2 REQ'D
.507 [12.88]
.200 [5.08]
.040 [1.02]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.200 [5.08]
.375 [9.52]
.300 [7.62]
FRONT VIEW
.087 [2.22]
.080 [2.03]
.110
[2.80]
SIDE VIEW
RECOMMENDED PCB LAYOUT
∅.062±.002 [∅1.57±0.05]
HOLES 2 REQ'D
Shielded
.517 [13.13]
AT FRONT
RJE01-X62-01
∅.035±.002
[∅0.89±0.05]
HOLES 12 REQ'D
.676 [17.17]
.120 [3.05]
.160 [4.06]
∅.136±.002
[∅3.45±0.05]
HOLES 12 REQ'D
.515 [13.08]
.200 [5.08]
.040 [1.02] TYP.
.110
[2.80]
.060 [1.52]
.087 [2.22]
.080 [2.03] TYP.
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.200 [5.08]
.375 [9.52]
.313 [7.95]
FRONT VIEW
SIDE VIEW
.495 [12.57]
TIN DIPPED
ZONE
Multi Port
RECOMMENDED PCB LAYOUT
RJE01-X60-02
.475 [12.07]
Non-Shielded
.950 [24.14]
∅.035±.002
[∅0.89±0.05]
HOLES REQ'D BASED
ON # OF CONTACTS
.080 [2.03] TYP.
.650 [16.51]
.040 [1.02] TYP.
.088 [2.22]
.120 [3.05]
∅.136±.002
[∅3.45±0.05]
HOLES 2 REQ'D
.502
[12.75]
.200 [5.08]
.110
[2.80]
.100 [2.54]
.850 [21.59]
.300 [7.62]
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Shielded
.976 [24.79]
AT FRONT
∅.035±.002
[∅0.89±0.05]
HOLES 12 REQ'D
.676 [17.17]
∅.062±.002
[∅1.57±0.05]
HOLES 2 REQ'D
RJE01-X62-02
.120 [3.05]
.160 [4.06]
∅.136±.002
[∅3.45±0.05]
HOLES 2 REQ'D
.515
[13.08]
.110
[2.80]
.040
.080
.200
.475
.313 [7.95]
TIN DIPPED ZONE
FRONT VIEW
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
SIDE VIEW
[1.02] TYP.
[2.03] TYP.
[5.08]
[12.07]
.200 [5.08]
.060 [1.52]
.088 [2.22]
.850 [21.59]
.970 [24.64]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| | Telephone:
Telephone:
(416)
291-4401| | Fax:
Fax:
(416)
754-8668 | | Email:
Email:sales@amphenolcanada.com
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.Please
Pleaserefer
referto
towww.amphenolcanada.com
www.amphenolcanada.com for
for the most recent edition.
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
edition.
18
16
THROUGH - HOLE
RJSBE
TAB DOWN, 1, 2 AND 4 PORT WITH LEDs
TAB DOWN, 1, 2 AND 4 PORT WITH LEDs
The RJSBE series of modular jacks supports Ethernet Protocols. Shielding is available with or
without a ferrite filter for increased EMI performance and LEDs for link activity and network
speed verification.
SPECIFICATIONS
Electrical
Material
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Copper alloy; nickel plated with tin dipped tails
LED:
Tin plating on LED tails
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 2mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
LED Wave Length:
Operating Temperature:
-55°C to + 85°C
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
UL File #:
E135615
CSA File #:
LR685398
Note* Connectors without LEDs are suitable for IR Reflow
ORDERING INFORMATION
Version
RJSBE - X X X X - C X
5 - 8 Positions, 50µ” gold plating
7 - 6 Positions, 50µ” gold plating
D - 8 Positions, 6µ” gold plating
G - 8 Positions, 15µ” gold plating
J - 8 Positions, 30µ” gold plating
Shield Options
0 - No shield
2 - Shield with top and side tabs, filtered
3 - Shield with top and side tabs, no filter
F - Shield with no tabs, no filter
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
19
Number of Ports
Blank - 1 Port
02 - 2 Ports
04 - 4 Ports
LED Options
Click to view page 3 for options
Number of Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
T H R OT HU RG OH U-G HH O- HL OE L E
RJSBE
RJSBE
T��
D���,
2 ���
4 P���
����
LED�
TAB
DOWN,
1, 21,AND
4 PORT
WITH
LEDs
Single Port
RJSBE-508X-C1
Non-Shielded
CONTACT
POS. #1
.620 [15.75]
.670 [17.02]
CONTACT
POS. #8
.100 [2.54]
CONTACT TAILS
.493 [12.52]
Amphenol
.125 [3.18]
LED TAILS
LED 2
LED 1
FRONT VIEW
.205 [5.21]
.100 [2.54] TYP.
.050 [1.27] TYP.
.075 [1.91]
∅.035±.002 [∅0.89±0.05]
HOLES 12 REQ'D
(BASED ON 2 LEDS PER PORT)
SIDE VIEW
.325
[8.25]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.020 [0.51]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.100 [2.54] TYP.
.500 [12.70]
.540 [13.72]
RECOMMENDED PCB LAYOUT
RJSBE-538X-C1
Shielded
.774 [19.66]
.695 [17.66]
.650 [16.51]
.562 [14.27]
LED 2
.125 [3.17]
LED 1
Amphenol
.100 [2.54]
.500 [12.69]
.163 [4.14]
.018 [0.47]
.069 [1.75]
.047 [1.19]
.100 [2.54]
FRONT VIEW
.540 [13.72]
.215 [5.46]
TIN DIPPED ZONE
SIDE VIEW
.350 [8.89]
∅.035±.002 [∅0.89±0.05]
HOLES 12 REQ'D
BASED ON 2 LEDS
∅.062±.002
[∅1.57±0.05]
HOLES 2 REQ'D
.280 [7.11]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.500 [12.70]
.640 [16.26]
.050 [1.27] TYP.
.075 [1.91]
.070 [1.78]
.100 [2.54]
.325 [8.25]
.165 [4.19]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.020 [0.51]
.100 [2.54] TYP.
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| |Telephone:
Telephone:
(416)
291-4401| Fax:
| Fax:
(416)
754-8668| |Email:
Email:
sales@amphenolcanada.com
All specifications
are
subject
to
change
without
notice.
Catalogue
is
updated
regularly.
Please
refer
to
www.amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.comfor
forthe
themost
mostrecent
recentedition.
edition.
18
20
T H RT OHURGOHU-GHHO L- E H O L E
THROUGH-HOLE
RJSBE
RJSBE
T�� TAB
D���,
1, 21,���
4 P���
����
LED�
DOWN,
2 AND
4 PORT
WITH
LEDs
Multi Port
RJSBE-508X-C4
Non-Shielded
.478 [12.14]
2.480 [62.99]
CONTACT
POS. #1
.670 [17.02]
CONTACT POS. #8
Amphenol
Amphenol
Amphenol
Amphenol
.493 [12.52]
.100 [2.54]
LED 2
LED 1
.205 [5.21]
FRONT VIEW
.620 [15.75] TYP.
.100 [2.54] TYP.
.050 [1.27] TYP.
.075 [1.91]
SIDE VIEW
∅.035±.002 [∅0.89±0.05]
HOLES 48 REQ'D
(BASED ON 2 LEDS PER PORT)
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.325
.425
[8.25] [10.79]
.165
[4.19]
.020 [0.51]
.100 [2.54] TYP.
2.360 [59.94]
.540 [13.72] TYP.
.620 [15.75] TYP.
Multi Port
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
RJSBE-538X-C4
.695 [17.66]
2.510 [63.76]
Shielded
CONTACT
POS. #8
CONTACT
POS. #1
.500 [12.69]
Amphenol
LED 2
Amphenol
Amphenol
Amphenol
.100 [2.54]
CONTACT TAILS
.125
[3.18]
LED TAILS
LED 1
FRONT VIEW
.620 [15.75] TYP.
.100 [2.54] TYP.
.050 [1.27] TYP.
.075 [1.91]
.215
[5.46]
∅.035±.002 [∅0.89±0.05]
HOLES 48 REQ'D
(BASED ON 2 LEDS PER PORT)
∅.062±.002
[∅1.57±0.05]
HOLES 2 REQ'D
.325
.425
[8.25] [10.79]
.280 [7.11] TYP.
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.165
[4.19]
.020 [0.51]
.070 [1.78] TYP.
.100 [2.54] TYP.
.540 [13.72] TYP.
.620 [15.75] TYP.
TIN DIPPED ZONE
SIDE VIEW
2.360 [59.94]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| | Telephone:
Telephone:
(416)
291-4401| |Fax:
Fax:
(416)
754-8668| | Email:
Email:
sales@amphenolcanada.com
21Amphenol
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
edition. 19
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.Please
Pleaserefer
refertotowww.amphenolcanada.com
www.amphenolcanada.com for
for the
the most recent edition.
THROUGH - HOLE
FRJAE
TAB DOWN, FILTERED AND SHIELDED
TAB DOWN, FILTERED AND SHIELDED
The FRJAE series of shielded and filtered modular jacks offer low cost and effective EMC
control within standard RJ11 & RJ45 connector footprints. EMC control is offered by a
completely shielded connector and/or with the use of a high resistivity, high impedance ferrite filter. No board layout changes are required for its use. Simply replace the
standard non-filtered connector for superior EMC performance.
SPECIFICATIONS
Electrical
Material
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Copper alloy; nickel plated with tin dipped tails
Filter:
High impedance, high resistivity ferrite filter
IMPEDANCE (OHMS)
IMPEDANCE CHARACTERISTICS
200
100
0
1
10
100
FREQUENCY (MHZ)
1000
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
Mechanical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-55°C to + 85°C
UL File #:
E135615
CSA File #:
LR68598
ORDERING INFORMATION
Version
FRJAE - X X X - XX
4 - 8 Positions
6 - 6 Positions
Shield Options
0 - Non-filtered without shield
1 - Filtered with front tab shield
3 - Non-filtered with front tab shield
4 - Filtered without shield
6 - Filtered with rear tab shield
7 - Filtered without PCB tails shield
8 - Non-filtered with rear tab shield
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Number of Ports
Blank - 1 Port
02 - 2 Ports
04 - 4 Ports
06 - 6 Ports
08 - 8 Ports
Number of Contacts
2 - 2 Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
22
T HTRHORUOGUHG- H O- L HE O L E
FRJAE
FRJAE
T��TAB
D���,
F�������
���AND
S�������
DOWN,
FILTERED
SHIELDED
Single Port
FRJAE-A408
.450 [11.43]
.350 [8.89]
Non-Shielded
∅.035 [∅0.89]
HOLES REQ'D BASED
ON # OF CONTACTS
.120 [3.05]
.100 [2.54]
.100 [2.54] TYP.
.050 [1.27] TYP.
.710 [18.03]
.550 [13.97]
.050 [1.27]
.250 [6.35]
.500 [12.70]
.125
[3.18]
.100 [2.79]
.070 [1.78]
.590 [14.99]
.310 [7.87]
FRONT VIEW
SIDE VIEW
∅.136 [∅3.45]
HOLES 2 REQ'D
RECOMMENDED PCB LAYOUT
Shielded
FRJAE-438
.450 [11.43]
.350 [8.89]
.575 [14.60]
∅.035 [∅0.89]
HOLES REQ'D BASED
ON # OF CONTACTS
.120 [3.05]
.100 [2.54]
.100 [2.54] TYP.
.735 [18.67]
.050 [1.27] TYP.
.050 [1.27]
∅.062 [∅1.57]
HOLES FOR SHIELD
REAR TABS (2 REQ'D)
.510 [12.95]
.125
[3.18]
.110 [2.79]
PURE-TIN
DIPPED ZONE
.320 [8.13]
FRONT VIEW
.250 [6.35]
.070 [1.78]
.590 [14.99]
SIDE VIEW
∅.136 [∅3.45]
HOLES 2 REQ'D
RECOMMENDED PCB LAYOUT
Multi Port
FRJAE-4X8-0X
Non-Shielded
.710 [18.03]
FERRITE
(OPTIONAL)
.500 [12.70]
CENTRAL PEG
(FOR 8 PORT ONLY)
FRONT VIEW
.550 [13.97] TYP.
∅.062±.002
[∅1.57±0.05]
(ONLY FOR
4, 6, 8 PORT)
.050 [1.27] TYP.
.050 [1.27]
.100 [2.54]
.120 [3.05]
.410 [10.41]
.180 [4.57]
.250 [6.35]
.530 [13.46]
.100 [2.54]
RECOMMENDED PCB LAYOUT
23
21
.310 [7.87]
∅.035±.002 [∅0.89±0.05] (CENTRAL
4, 6 OR ALL 8 REQ'D PER PORT)
.350 [8.89] TYP.
.100 [2.54] TYP.
∅.136±.002
[∅3.45±0.05]
HOLES 2 REQ'D
∅.062±.002
[∅1.57±0.05]
HOLES FOR
SHIELD FRONT
TABS (2 REQ'D)
.110 [2.79]
.100 [2.54]
.125 [3.17]
SIDE VIEW
Number
of ports
A
C
2
1.200 [30.48]
1.000 [25.40]
4
2.300 [58.42]
2.100 [53.34]
6
3.400 [86.36]
3.200 [81.28]
8
4.500 [114.30]
4.300 [109.22]
∅.062±.002 [∅1.57±0.05] HOLES FOR SHIELD REAR TABS (2 REQ'D)
LOCATE HOLES
∅.005[0.13]
∅.136±.002 [∅3.45±0.05] POSITION DIMENSIONS
HOLE FOR 8 PORT ONLY ARE BASIC
AmphenolCommercial
CommercialProducts
Products- Amphenol
- Amphenol
Canada
Corp.| | Telephone:
Telephone:
(416)
291-4401| Fax:
| Fax:
(416)
754-8668| Email:
| Email:
sales@amphenolcanada.com
Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
All specifications
specificationsare
aresubject
subjecttotochange
changewithout
withoutnotice.
notice.Catalogue
Catalogue
is updated
regularly.
Please
to www.amphenolcanada.com
formost
the most
recent
edition.
All
is updated
regularly.
Please
referrefer
to www.amphenolcanada.com
for the
recent
edition.
T HTRHORUO GU HG H- - HH OO LL EE
FRJAE
FRJAE
T�� D���, F������� ��� S�������
TAB DOWN, FILTERED AND SHIELDED
Multi Port
FRJAE-418-0X
Shielded
.735 [18.67] TYP.
FERRITE
(OPTIONAL)
.510 [12.95] TYP.
PURE-TIN DIPPED ZONE
CENTRAL PEG
(FOR 8 PORT ONLY)
.110 [2.79]
.125 [3.17]
.320 [8.13]
BACK TAB ONLY
FOR 4, 6, 8 PORT
SIDE VIEW
FRONT VIEW
.550 [13.97] TYP.
.350 [8.89] TYP.
.100 [2.54] TYP.
.050 [1.27] TYP.
∅.035±.002 [∅0.89±0.05]
(CENTRAL 4, 6 OR ALL 8
REQ'D PER PORT)
∅.062±.002 [∅1.57±0.05]
(ONLY FOR 4, 6, 8 PORT)
.050 [1.27]
.100 [2.54]
.120 [3.05]
.410 [10.41]
.180 [4.57]
.250 [6.35]
∅.136±.002
[∅3.45±0.05]
HOLES 2 REQ'D
∅.062±.002
[∅1.57±0.05]
HOLES FOR SHIELD
FRONT TABS (2 REQ'D)
.530 [13.46]
.100 [2.54]
.110 [2.79]
∅.136±.002 [∅3.45±0.05]
HOLE FOR 8 PORT ONLY
RECOMMENDED PCB LAYOUT
Number
of ports
B
C
2
1.230 [31.24]
1.000 [25.40]
4
2.330 [59.18]
2.100 [53.34]
6
3.430 [87.12]
3.200 [81.28]
8
4.530 [115.06]
4.300 [109.22]
∅.062±.002 [∅1.57±0.05]
HOLES FOR SHIELD REAR TABS (2 REQ'D)
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
Notes
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
22
24
THROUGH - HOLE
RJE02
TAB DOWN, SINGLE PORT, HIGH PROFILE
TAB DOWN, SINGLE PORT, HIGH PROFILE
RJE02 series is a group of products within a family of standard modular jacks designed to
meet requirements for a variety of applications options within the RJE02 family include
options with and without a panel stops, and RJ11 & RJ45 configurations.
SPECIFICATIONS
Mechanical
Material
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Copper alloy; nickel plated with tin dipped tail
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
- 40°C to + 85°C
*Note: Connectors with high temp. material are suitable for IR Reflow
Electrical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1500 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE02 - 1 X X - 0 X X 0
Modifier
1 - 1 Port
0 - Standard product
Number of Positions
Panel Stop Options
4 - 4 Positions
6 - 6 Positions
8 - 8 Positions
1 - Without panel stop
2 - With panel stop
Number of Contacts
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
2 - 2 Contacts
4 - 4 Contacts
6 - 6 Contacts
Contact Plating
Shield Options
0 - No Shield
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
25
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJE02
RJE02
T�� D���, S����� P���, H��� P������
TAB DOWN, SINGLE PORT, HIGH PROFILE
Single Port
RJE02-1XX-0X20
Non-Shielded
SHARP
FOR
6 & 8
POS'N
RADIUS
FOR 4
POS'N
SEE DETAIL 'B'
FOR 4 POS'N
BOARDLOCK
.810 [20.57]
.236
[6.00]
DETAIL 'B'
FRONT
.145
[3.68]
.143 [3.63]
.050 [1.27]
DETAIL 'B'
SIDE
.416 [10.57]
FRONT VIEW
Part #
SIDE VIEW
No. of
No. of
Positions Contacts
RECOMMENDED PCB LAYOUT
Dimensions
A
B
C
D
E
RJE02-142-0X20
4
2
.540 [13.72] .440 [11.18]
.309 [7.85]
.300 [7.62]
.050 [1.27]
RJE02-144-0X20
4
4
.540 [13.72] .440 [11.18]
.309 [7.85]
.300 [7.62]
.150 [3.81]
RJE02-162-0X20
6
2
.620 [15.75] .520 [13.21]
.389 [9.88]
.400 [10.16]
.050 [1.27]
RJE02-164-0X20
6
4
.620 [15.75] .520 [13.21]
.389 [9.88]
.400 [10.16]
.150 [3.81]
RJE02-166-0X20
6
6
.620 [15.75] .520 [13.21]
.389 [9.88]
.400 [10.16]
.150 [3.81]
RJE02-188-0X20
8
8
.700 [17.78] .600 [15.24] .469 [11.91] .450 [11.43]
.350 [8.89]
Notes
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
24
26
THROUGH - HOLE
RJE03
TAB DOWN, SINGLE PORT, LOW PROFILE
TAB DOWN, SINGLE PORT, LOW PROFILE
RE03 series is a group of products within a family of standard modular jacks designed to
meet requirements for a variety of applications. Options within the RJE03 family include
shielded and non-shielded, and RJ11 & RJ45 configurations.
SPECIFICATIONS
Mechanical
Material
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Copper alloy; nickel plated with tin dipped tail
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for
5 secs max.
Operating Temperature:
- 40°C to + 85°C
*Note: Connectors with high temp. material are suitable for IR Reflow
Electrical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE03 - 1 X X - X X X 0
1 - 1 Port
Modifier
0 - Standard product
Number of Positions
Panel Stop Options
4 - 4 Positions
6 - 6 Positions
1 - Without panel stop
2 - With panel stop
Number of Contacts
Contact Plating
2 - 2 Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Shield Options
0 - No Shield
2 - Partial shield (must have panel stop)
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
27
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJE03
RJE03
T�� D���, S����� P���, L�� P������
TAB DOWN, SINGLE PORT, LOW PROFILE
Single Port
RJE03-188-0X10
Non-Shielded
.600±.015
[15.24±0.38]
.100 [2.54] TYP.
.710±.015
[18.03±0.38]
∅.035±.002
[∅0.89±0.05]
HOLES 8 REQ'D
.050 [1.27] TYP.
.050 [1.27]
.495±.015
[12.57±0.38]
.100 [2.54]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.150±.012
[3.81±0.30]
.350
[8.89]
.310±.010
[7.87±0.25]
FRONT VIEW
.450 [11.43]
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE03-188-2X20
Shielded with Panel Stop
.700 [17.78]
.624 [15.86]
.722 [18.34]
.350
.100
.050
.050
.105 [2.67] TYP.
.020 [0.50]
.519
.491
[13.19] [12.48]
.138±0.16
[3.50±0.40]
FRONT VIEW
.183
[4.65]
[8.89]
[2.54] TYP.
[1.27] TYP.
[1.27]
∅.035 [∅0.90]
HOLES 2 REQ'D
.100 [2.54]
∅.128 [∅3.25]
HOLES 2 REQ'D
.350 [8.89]
∅.063 [∅1.60]
HOLES 2 REQ'D
.142 [3.61]
.021 [0.53]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.048 [1.22]
.120 [3.05]
.320 [8.12]
.100 [2.54]
.350 [8.89]
SIDE VIEW
.085 [2.16]
.120 [3.05]
.450
[11.43]
.620 [15.75]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Notes
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| |Telephone:
Telephone:
(416)
291-4401| Fax:
| Fax:
(416)
754-8668| |Email:
Email:
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refertotowww.amphenolcanada.com
www.amphenolcanada.comfor
forthe
themost
mostrecent
recentedition.
edition.
26
28
THROUGH - HOLE
RJE05
TAB DOWN, ULTRA LOW PROFILE
TAB DOWN, ULTRA LOW PROFILE
RJE05 series is a group of products within a family of standard modular jacks designed to
meet requirements for a variety of applications. Options within the RJE05 family include
shielded or non-shielded, and RJ11 & RJ45 configurations.
SPECIFICATIONS
Mechanical
Material
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Copper alloy; nickel plated with tin dipped tail
Electrical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for
5 secs max.
Operating Temperature:
- 40°C to + 85°C
UL File #:
E135615
*Note: Connectors with high temp. material are suitable for IR Reflow
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE05 - 1 X X - X X 1 0
1 - 1 Port
Number of Positions
4 - 4 Positions
6 - 6 Positions
8 - 8 Positions
A - 10 Positions
Number of Contacts
2 - 2 Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
A - 10 Contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
29
Modifier
0 - Standard product
Panel Stop Options
1 - No panel stop
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Shield Options
0 - No shield
1 - Shield with front PCB tabs, no top or side tabs
5 - Shield with top, side, and front PCB tabs
8 - Shield with rear PCB tabs, no top or side tabs
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJE05
RJE05
T�� D���, U���� L�� P������
TAB DOWN, ULTRA LOW PROFILE
Single Port
RJE05-188-0X10
Non-Shielded
.350 [8.89]
∅.035 [∅0.89]
HOLES 8 REQ'D
.100 [2.54] TYP.
.713 [18.10]
.590 [15.00]
.050 [1.27] TYP.
.050 [1.27]
.579
[14.70]
.450
[11.43]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.453
[11.50]
.350
.250 [6.35] [8.89]
.126
[3.20]
.100 [2.54]
.310
[7.88]
FRONT VIEW
.350 [8.89]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.450 [11.43]
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE05-188-1X10
Shielded with Front PCB Tabs
.350 [8.89]
.100 [2.54] TYP.
.620 [15.76]
∅.035 [∅0.89]
HOLES 8 REQ'D
.050 [1.27] TYP.
.734 [18.63]
.050 [1.27]
∅.128 [∅3.25]
HOLES 2 REQ'D
.463
[11.75]
.350
.250 [6.35] [8.89]
∅.063 [∅1.60]
HOLES 2 REQ'D
.117 [2.97]
.135 [3.43]
.081 [2.06]
.320 [8.12]
.450 [11.43]
.612 [15.54]
FRONT VIEW
SIDE VIEW
Shielded with Top, Side, and Front PCB Tabs
FRONT VIEW
SIDE VIEW
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
RJE05-188-5X10
RECOMMENDED PCB LAYOUT
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
28
30
THROUGH - HOLE
RJE09
TAB DOWN, STANDARD PROFILE
TAB DOWN, STANDARD PROFILE
RJE09 series is a group of products within a family of standard modular jacks designed
to meet requirements for a variety of applications. Options with the RJE09 family include
shielded & non-shielded, and RJ11 & RJ45.
SPECIFICATIONS
Mechanical
Material
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel
on contact mating area; 100µ” min. matte tin or gold
flash plating on soldering tail
Shield:
Copper alloy; nickel plated allover
Electrical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5 to
8 secs max.
Operating Temperature:
- 40°C to + 70°C
UL File #:
E136228
ORDERING INFORMATION
Number of Ports
1 -1 Port
2 - 2 Ports
4 - 4 Ports
6 - 6 Ports
8 - 8 Ports
RJE09 - X X X - X X X 0
0 - Standard product
Panel Stop Options
1 - No panel stop
2 - With panel stop
Number of Positions
Contact Plating
6 - 6 Positions
8 - 8 Positions
A - 10 Positions
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Number of Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
A - 10 Contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
31
Modifier
Shield Options
0 - No shield
1 - Shield with rear PCB tabs, no top or side tabs
5 - Shield with top, side, and front PCB tabs
8 - Shield with front PCB tabs, no top or side tabs
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH-HOLE
THROUGH - HOLE
RJE09
RJE09
T�� D���, S������� P������
TAB DOWN, STANDARD PROFILE
Single Port
RJE09-1AA-0X10
Non-Shielded
.100 [2.54] TYP.
.810 [20.57]
.600 [15.25]
.050 [1.27] TYP.
∅.035±.002
[∅0.89±0.05]
HOLES 10 REQ'D
.100 [2.54]
.250 [6.35]
.524
[13.30]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.415
[10.55]
FRONT VIEW
.450
[11.43]
.135 [3.44]
SIDE VIEW
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
RJE09-188-1X10
Shielded
.630
[16.00]
.612
[15.55]
.839 [21.30]
SEE DETAIL 'X'
.031 [0.80]
∅.122
[∅3.10]
.089
[2.25]
.020
[0.50]
.104
[2.65]
.148
[3.75]
.051 [1.30]
.130 [3.30]
DETAIL ‘X’
.45
[11.43]
∅.120±.010
[∅3.25±0.05]
CONTACT TAILS
.543
[13.80]
.350 [8.89]
∅.063±.002
[∅1.60±0.05]
HOLES 2 REQ'D
∅.035±.002
[∅0.90±0.05]
.050 [1.27]
.100 [2.54]
.35 [8.89]
.120 [3.05]
.146 [3.70]
.114 [2.90]
.047 [1.20]
.120±.010
[3.05±0.25]
.100±.008
[2.54±0.20]
.450
[11.43]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.350±.008
[8.89±0.20]
.425 [10.80]
FRONT VIEW
∅.126±.002
[∅3.20±0.05]
HOLES 2 REQ'D
SIDE VIEW
RECOMMENDED PCB LAYOUT
Shielded
RJE09-188-5X10
.100 [2.54]
.050 [1.27]
.837 [21.27]
.625 [15.88]
∅.035±.002
[∅0.89±0.05]
.050 [1.27]
.535
[13.60]
.126
[3.20]
.120 [3.05]
∅.062±.002
[∅1.57±0.05]
∅.128±.002
[∅3.25±0.05]
.450 [11.43]
.450
[11.43]
FRONT VIEW
.429
[10.89]
SIDE VIEW
TIN DIPPED
ZONE
.250 .350
[6.35] [8.89]
.610 [15.49]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
30
32
THROUGH-HOLE
THROUGH - HOLE
RJE09
RJE09
T�� D���, S������� P������
TAB DOWN, STANDARD PROFILE
Multi Port
Non-Shielded
RJE09-288-0X10
1.200 [30.48]
.810 [20.57]
.550 [13.97]
.535 [13.59]
.135 [3.44]
.415
[10.54]
FRONT VIEW
SIDE VIEW
.100 [2.54] TYP.
.050 [1.27] TYP.
.050 [1.27]
.100 [2.54]
∅.035±.002
[∅0.89±0.05]
HOLES 16 REQ'D
.350 [8.89]
∅.128±.002 [∅3.25±0.05]
HOLES 2 REQ'D
.350 [8.89] TYP.
.550 [13.97]
1.000 [25.40]
RECOMMENDED PCB LAYOUT
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
Shielded
RJE09-888-1X10
4.525 [114.94]
.837 [21.27]
.543
[13.80]
.126 [3.20]
.429
[10.89]
4.300 [109.22]
FRONT VIEW
SIDE VIEW
2.150 [54.61]
∅.063±.002
[∅1.60±0.05]
HOLES 3 REQ'D
.350 [8.89] TYP.
.100 [2.54] TYP.
∅.035±.002
[∅0.90±0.05]
HOLES 64 REQ'D
.050 [1.27] TYP.
.050 [1.27]
.050 [1.27]
.100 [2.54]
.250 [6.35]
.145 [3.68]
∅.128±.002
[∅3.25±0.05]
HOLES 3 REQ'D
.550 [13.97] TYP.
.108 [2.73]
4.300 [109.22]
4.515 [114.67]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
31
33
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
| refer
Fax: (416)
754-8668 | Email: sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
to www.amphenolcanada.com
for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJULE
TAB DOWN, RECESSED, LOW PROFILE
TAB DOWN, RECESSED, LOW PROFILE
RJULE is a series of single port RJ45 modular jacks designed for slim profile applications.
With a profile height of less than 10 millimeters, this connector is perfect where vertical
space is limited. Standard and rear mount shield options for superior EMI performance
makes this part ideal for LAN and router applications.
SPECIFICATIONS
Material
Mechanical
Housing:
High temp. thermoplastic;
Flammability rating UL94-0; RoSH compliant
Contacts:
Phosphor bronze
Plating:
Gold plated on mating surfaces over 50µ” (1.27
microns) min. nickel under plate; 100µ” (2.54 microns)
min. matte tin on contact tails
Shield:
Copper alloy; nickel plated
Electrical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-55°C to + 85°C
UL File #:
E135615
*Note: Suitable for IR Reflow
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Positions
RJULE - 4 X X X X - 01 X
4 - 8 Positions
Contact plating
0 - 1~3µ” gold plating
1 - 15µ” gold plating
2 - 30µ” gold plating
3 - 50µ” gold plating
Housing Options
1 - Black
2 - Yellow
3 - Red
Packaging
Blank - Tray
T - Tape & Reel
Number of Ports
01- 1 Port
Shield Options
0 - No shield
1 - Shield with top, side, and rear PCB tabs
2 - Shield with flared side tabs
3 - Shield with rear PCB, no top or side tabs
Number of Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
34
T H R O U G H - -H OH LOEL E
RJULE
RJULE
T��
TABD���,
DOWN,R�������,
RECESSED,L��
LOWP������
PROFILE
Single Port
RJULE-4X180-01
Non-Shielded
.175 [4.445]
.284
[7.20]
.695 [17.65]
.573
[14.54]
.050 [1.27]
.100 [2.54]
.473
[12.00]
.427
[10.85]
Amphenol
∅.035 [∅0.89]
8 PLACES
.137 [3.48]
.450
[11.43]
R.046 [R1.18]
R.064 [R1.63]
2 PLACES
.250 [6.35]
.355 [9.00]
.087 [2.20]
.309 [7.85]
.450 [11.43]
.601 [15.25]
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Shielded with Side Ground Tabs
.745 [18.91] MAX
RJULE-4X182-01
.017 [0.42]
.705 [17.91] MIN
.175 [4.445]
.284
[7.20]
.377
[9.58]
.447
[11.35]
.586 [14.88]
.100 [2.54]
.050 [1.27]
.715 [18.15]
Amphenol
.120 [3.058]
∅.035 [∅0.89]
8 PLACES
R.046 [R1.18]
∅.062 [∅1.58]
2 PLACES
.473
[12.00]
R.064 [R1.63]
2 PLACES
.137 [3.48]
.593
[15.04]
.250 [6.35]
.319 [8.10]
TIN DIPPED
AREA
.120 [3.05]
.450 [11.43]
.100 [2.54]
.250 [6.35]
FRONT VIEW
.355 [9.00]
.087 [2.20]
SIDE VIEW
.601 [15.25]
RECOMMENDED PCB LAYOUT
Standard Shield
RJULE-4X181-01
.586 [14.88]
.017 [0.42]
.593
[15.04]
.175 [4.445]
.715 [18.15]
.050 [1.27]
.386 [9.80]
∅.035±0.002
[∅0.89±0.05]
0.003[0.08] W
R.046 [R1.18]
Amphenol
.499
.447
[12.65] [11.35]
.377
[9.58]
.137
[3.48]
.100 [2.54]
∅.062±0.002
[∅1.58±0.05]
.120 [3.05]
R.064±0.002
[R1.63±0.05]
.124 [3.14]
.128
[3.26]
.319
[8.10]
.070
[1.77]
FRONT VIEW
35
33
.100 [2.54]
.197
[5.00]
.120 [3.05]
.250 [6.35]
.250 [6.35]
SIDE VIEW
.355 [9.00]
.450 [11.43]
-W-
RECOMMENDED PCB LAYOUT
AmphenolCommercial
CommercialProducts
Products- Amphenol
- Amphenol
Canada
Corp.| | Telephone:
Telephone:
(416)
291-4401| |Fax:
Fax:
(416)
754-8668| Email:
| Email:
sales@amphenolcanada.com
Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
All specifications
specificationsare
aresubject
subjecttotochange
changewithout
withoutnotice.
notice.Catalogue
Catalogue
is updated
regularly.
Please
to www.amphenolcanada.com
formost
the most
recent
edition.
All
is updated
regularly.
Please
referrefer
to www.amphenolcanada.com
for the
recent
edition.
THROUGH - HOLE
RJE73
TAB DOWN, SINGLE PORT, LOW PROFILE, WITH LEDs
TAB DOWN, SINGLE PORT, LOW PROFILE
The RJE73 modular jack is a low profile RJ45 with LEDs and superior EMI shielding with
a small footprint for space sensitive designs. This connector features built-in LEDs that
provide link activity and network verification. This product is ideal for LAN applications
such as adapter cards and routers.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL94-0; Black
Contacts:
Phosphor bronze hard temper with gold plating
options over 50µ” min. nickel on contact mating area;
100µ” min. matte tin plating on solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.0 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 2mA (for bicolours)
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
LED Reverse Voltage:
5 Volts min.
Durability:
750 mating & unmating cycles
LED Light Intensity:
Recommended
Soldering Temperature:
Wave soldering peaked at 245°C for 8 to
10 secs max.
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Operating Temperature:
-55°C to + 85°C
LED Wave Length:
UL File #:
E135615
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
ORDERING INFORMATION
Number of Ports
RJE73 - 1 8 8 - 0 0 X X X
Shield Options
Number of Positions
0 - Shield without tabs
1 - Shield with side and top tabs
N - No Shield
8 - 8 Positions
LED Options
1- 1 Port
Number of Contacts
8 - 8 Contacts
Click to view page 3 for options
Contact plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
36
TT HH RR OO UU GG HH - H- OHLOEL E
RJE73
RJE73
T�� D���, S����� P���, L�� P������
TAB DOWN, SINGLE PORT, LOW PROFILE, WITH LEDs
Single Port
RJE73-188-00XX0
Shielded - No Top or Side Tabs
ø.035±0.002
[ø0.9±0.05]
HOLES 8 REQ'D
.552 [14.02]
.352 [8.94]
.635 [16.14]
.040 [1.02]
.594 [15.1]
.443
.531
[13.5] [11.25]
.070 [1.78]
ø.035±0.002
[ø1.1±0.05]
HOLES 4 REQ'D
.057 [1.45]
.142 [3.6]
.171 [4.35]
.453
[11.5]
.079 [2.0]
LED 2
.281 [7.14]
ø.071±0.002
[ø1.8±0.05]
HOLES 2 REQ'D
.236 [6]
.079 [2]
LED 1
.177 [4.5]
TIN DIP
AREA
.452
[11.48]
.630 [16]
FRONT VIEW
SIDE VIEW
.031 [0.8]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
RJE73-188-00XX1
Shielded - With Top and Side Tabs
ø.035±0.002
[ø0.9±0.05]
HOLES 8 REQ'D
.552 [14.02]
.352 [8.94]
.635 [16.14]
.040 [1.02]
.594 [15.1]
.443
.531
[13.5] [11.25]
.070 [1.78]
ø.035±0.002
[ø1.1±0.05]
HOLES 4 REQ'D
.057 [1.45]
.142 [3.6]
.171 [4.35]
.453
[11.5]
.079 [2.0]
LED 2
.281 [7.14]
ø.071±0.002
[ø1.8±0.05]
HOLES 2 REQ'D
.236 [6]
.079 [2]
LED 1
.177 [4.5]
TIN DIP
AREA
.452
[11.48]
.630 [16]
FRONT VIEW
35
37
SIDE VIEW
.031 [0.8]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
| refer
Fax: (416)
754-8668 | Email: sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
to www.amphenolcanada.com
for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
SURFACE MOUNT
RJSSE
TAB UP, WITH LIGHT PIPES
TAB UP, WITH LIGHT PIPES
The RJSSE series represents an expansion of Amphenol Canada’s current RJHSE series
connector. The RJSSE offers all the benefits of the RJHSE series in SMT with light pipes.
Shielded and non-shielded versions are available with or without light pipes.
SPECIFICATIONS
Material
Mechanical
Insulator:
High temp. thermoplastic;
Complies with UL94-0; Black
Insertion Force:
5 lbs max.
Contacts:
Phosphor bronze hard temper with gold plating
options over 50µ” min. nickel on contact mating area;
100µ” min. matte tin plating on solder tails
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Shield:
Copper alloy; nickel or matte tin plating
Recommended
Soldering Temperature:
IR Reflow peaked at 260°C for 5 to 10
secs max.
Light Pipe:
Optical polycarbonate; UL 94V-0
Operating Temperature:
-55°C to + 85°C
UL File #:
E135615
Electrical
-
*Note: Light Pipes to be installed after soldering
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1500 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
RJSSE - X X X X - XX - X
Version
5 - 8 Positions, 20µ” gold plating
7 - 6 Positions, 20µ” gold plating
Packaging
Blank - Tray
T - Tape & Reel
Shield Options
Number of Ports
0 - No shield with hold-down bracket
3 - Shield with top tabs
5 - Shield with flattened bottom tab
F - Shield without tabs and boardlock
N - No shield, no hold-down bracket
S - Shield with straight PCB
Blank - 1 Port
02 - 2 Ports
04 - 4 Ports
Number of Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
Light Pipe Options
0 - Blocked
1 - With light pipe
2 - Without light pipe, not blocked
Note: The light pipes are available to be purchased on their own.
Part Number: RJSSE-2485-01
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
38
S SU UR RF AF CA EC EM M
O UO NU TN T
RJSSE
RJSSE
T��
U�,
TAB
UP,����
WITHL����
LIGHTP����
PIPES
Single Port
.050 [1.27] TYP.
Non-Shielded
.022 [0.56]
(8 PLCS)
.634±.010
[16.10±0.25]
RJSSE-5080
SOLDER PADS
.064 [1.63]
.598±.010
[15.19±0.25]
.100 [2.54]
CONNECTOR
OUTLINE
.130 [3.30] TYP.
Amphenol
.495±.010
[12.57±0.25]
.564 [14.31]
.515±.010
[13.08±0.25]
TERMINAL TAILS
SEE NOTE 2.
.070±.010
[1.78±0.25]
.162±.010
[4.11±0.25]
∅.106±.002
[∅2.69±0.05]
HOLES 2 REQ'D
.062 [1.58] REF.
.075 [1.92]
.100±.010
[2.54±0.25]
.245 [6.22] TYP.
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.330 [8.39]
TERMINAL TAILS
SEE NOTE 2.
.181±.010
[4.60±0.25]
FRONT VIEW
.116 [2.95]
.500 [12.70]
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJSSE-5381
Standard Shield - With Top & Side Ground Tabs
.893 [22.68]
Amphenol
INSERT LIGHT
PIPE AFTER
SOLDER REFLOW
.803 [20.40]
.650 [16.51]
.620 [15.75]
.525
[13.34]
.065 [1.65]
.055 [1.41]
PCB
.100[2.54]
.070 [1.78]
.170 [4.32]
.088 [2.24] MAX.
.120 [3.05]
.027 [0.70]
.181 [4.60]
SIDE VIEW
FRONT VIEW
FOR REFERENCE
.429 [10.90]
.050 [1.27] TYP.
SEE DETAIL 'A'
.035 [0.89]
.022 [0.56]
(8 PLCS)
.064 [1.63]
.090 X .090 [2.29 X 2.29]
LIGHT ENTRANCE AREAS OF
LIGHT PIPES
.047 [1.19] TYP.
.035 [0.90]
.100 [2.54]
CONNECTOR
OUTLINE
.125 [3.18]
TYP.
.564
[14.31]
.118 [3.00]
.075 [1.92]
.245 [6.22] TYP.
.330 [8.39]
.500 [12.70]
.678
[17.22]
∅.106±.002 [∅2.69±0.05]
HOLES 2 REQ'D
.047
[1.19]
TYP.
DETAIL 'A' (ENLARGED)
SMT LED SOLDER PAG
(SMT LED TO BE PROVIDED
BY THE CUSTOMER)
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
39
37
Amphenol Commercial
Commercial Products
Products--Amphenol
AmphenolCanada
CanadaCorp.
Corp. | | Telephone:
Telephone:
(416)
291-4401 | | Fax:
Fax:
(416)
754-8668 | | Email:
Email:
sales@amphenolcanada.com
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
All
without notice.
notice.Catalogue
Catalogueisisupdated
updatedregularly.
regularly.
Please
refer
to www.amphenolcanada.com
for the
most
recent
edition.
Allspecifications
specifications are
are subject to change without
Please
refer
to www.amphenolcanada.com
for the
most
recent
edition.
SURFACE MOUNT
RJSSE
RJSSE
Multi Port
T�� U�, ���� L���� P����
TAB UP, WITH LIGHT PIPES
RJSSE-5081-02
.881 [22.38]
THIS LIGHT PIPE
IS INTENDED FOR
POST REFLOW INSERTION
INTO THE CONNECTOR
ASSEMBLY.
.791 [20.09]
Non-Shielded
1.254 [31.85]
Amphenol
Amphenol
.600 [15.24]
.055 [1.39]
.514 [13.06]
.070
[1.79]
∅.098 [2.50] TYP.
TERMINAL TAILS
.100 [2.55]
.158 [4.01]
FRONT VIEW
SIDE VIEW
.620 [15.75] TYP.
.050 [1.27] TYP.
.429 [10.90] TYP.
.191 [4.85]
.022 [0.56] (32 PLCS)
SEE DETAIL 'A' (ON PREVIOUS PAGE)
.100 [2.54]
.090 X .090
[2.29 X 2.29]
LIGHT ENTRANCE
AREAS OF LIGHT PIPES
.064 [1.63]
.035
[0.90]
.125
.118
.075
.245
[3.18] TYP.
[3.00]
[1.92]
[6.22] TYP.
CONNECTOR
OUTLINE
.950 [24.14]
1.120 [28.45]
Multi Port
∅.106±.002
[∅2.69±0.05]
HOLES 2 REQ'D
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
RJSSE-5381-02
Shielded
.893 [22.68]
.620 [15.75]
1.270 [32.26]
Amphenol
.564
.678
[14.31] [17.22]
Amphenol
.065 [1.65]
.055 [1.40]
.525 [13.34]
TERMINAL TAILS
.060
[1.51]
FRONT VIEW
THIS LIGHT PIPE IS
INTENDED FOR POST
REFLOW INSERTION
INTO THE CONNECTOR
ASSEMBLY
.088 [2.24] MAX.
.100 [2.54]
SIDE VIEW
.027 [0.70]
FOR REFERENCE
.620 [15.75] TYP.
.050 [1.27] TYP.
.429 [10.90] TYP.
.022 [0.56] (32 PLCS)
.191 [4.85]
.090 X .090 [2.29 X 2.29]
LIGHT ENTRANCE AREAS
OF LIGHT PIPES
.100 [2.54]
.064 [1.63]
.035 [0.90]
.125 [3.18]
TYP.
.118 [3.00]
.075 [1.92]
.245 [6.22] TYP.
CONNECTOR
OUTLINE
.950 [24.14]
1.120 [28.45]
.564
[14.31]
.678
[17.22]
∅.106±.002
[∅2.69±0.05]
HOLES 2 REQ'D
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
38
40
SURFACE MOUNT
RJCSE
TAB UP, STANDARD PROFILE, WITH LEDs
TAB UP, STANDARD PROFILE, WITH LEDs
The RJCSE is a right angle surface mount connector. Shielding is available for increased
EMI performance as well as built-in LEDs for link activity and network verification. This
product is ideal for LAN applications such as adapter cards and routers.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Stainless steel with matte-tin plating
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 2mA (for bicolours)
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
LED Reverse Voltage:
5 Volts min.
Durability:
750 mating & unmating cycles
LED Light Intensity:
Recommended
Soldering Temperature:
Suitable for IR Reflow at 260°C for 10
secs max.
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Operating Temperature:
- 55°C to + 85°C
LED Wave Length:
UL File #:
E135615
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
CSA File #:
LR685398
ORDERING INFORMATION
RJCSE - X X X X - 01
Version
Number of Ports
3 - 8 Positions, 15µ” gold plating
4 - 8 Positions, 30µ” gold plating
5 - 8 Positions, 50µ” gold plating
01 - 1 Port
Shield Options
0 - No shield
3 - Standard shield with top and side tabs
4 - Standard shield with no tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
41
LED Options
Click to view page 3 for options
Number of Contacts
2 - 2 Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
SURFACE MOUNT
RJCSE
RJCSE
T�� U�, S������� P������, ���� LED�
TAB UP, STANDARD PROFILE, WITH LEDs
Single Port
RJCSE-508X-01
Non-Shielded
.040 [1.02]
.085 [2.15]
LED 2
.624 [15.86]
.599 [15.22]
LED 1
.050 [1.27]
.024 [0.61] TYP
.120
[3.05]
Amphenol
.425
[10.80]
.572
.519
[14.54] [13.18]
.393
[9.98]
ø.128±.002
[ø3.25±0.05]
.500 [12.70]
.200 [5.08]
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJCSE-538X-01
Shielded
LED 2
.640 [16.26]
.040 [1.02]
.615 [15.62]
LED 1
.085 [2.15]
.024 [0.61] TYP
.050 [1.27]
.120
[3.05]
Amphenol
.740 [18.80]
FRONT VIEW
.530
[13.46]
.527
[13.38]
.425
.393
[10.80] [9.98]
.054
[1.36]
.154
[3.90]
ø.218±.002
SIDE VIEW
.120 [3.04]
.091 [2.31]
.208 [5.28]
.500 [12.70]
.098 [2.50]
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| |Telephone:
Telephone:
(416)
291-4401| |Fax:
Fax:
(416)
754-8668| |Email:
Email:
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Pleaserefer
refertotowww.amphenolcanada.com
www.amphenolcanada.comfor
forthe
themost
most recent
recent edition.
edition.
42
40
SURFACE MOUNT
RJLSE
TAB DOWN, ULTRA LOW PROFILE
TAB DOWN, ULTRA LOW PROFILE
The RJLSE series contains surface mount modular jacks with superior EMI performance that
supports Ethernet Protocols. This low profile connector is built to meet your high volume
RJ requirements. This series is a true pick and place compatible SMT connector and is
available with different shielding, contacts, gold plating thickness, and color options. This
connector is built with high temperature engineering thermoplastic and suitable for the IR
Reflow solder process.
SPECIFICATIONS
Material
Mechanical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel
on contact mating area; Gold flash over palladium
nickel also available; 100µ” min. matte tin plating on
soldering tail
Copper alloy; nickel or matte tin plated
*Note: Other insulator colour options available
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Lead free reflow soldering up to 260°C
for 10 secs max. 3 reflow passes max.
Operating Temperature:
- 55°C to + 85°C
UL File #:
E135615
CSA File #:
LR685398
*Note to recommended reflow profile below
Electrical
300-
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
Version
10s max
| |
260˚C max
230˚C
4˚C/s max
250 200 150 -
150~180˚C
4˚C/s max
4˚C/s max
30~50s
60~120s
100 50 0
ORDERING INFORMATION
RJLSE - X X X X X - 01 X
|
50
|
100
|
|
150
200
Time (sec)
Blanks - Tray
T - Tape &Reel
Contact Plating
Number of Ports
0 - 1~3µ” gold plating
1 - 15µ” gold plating
2 - 30µ” gold plating
3 - 50µ” gold plating
01 - 1 Port
0 - No shield with hold-down bracket
1 - Standard shield, SMT without PCB tabs
3 - Shield with PCB tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
|
250
|
300
Packaging
4 - 8 Positions
6 - 6 Positions
Shield Options
43
5 lbs max.
Temperature (oC)
Shield:
Insertion Force:
Housing Options
1 - Black
2 - Yellow
3 - Red
Number of Contacts
2 - 2 Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
SURFACE MOUNT
RJLSE
RJLSE
D���,
U����
P������
TABT��
DOWN,
ULTRA
LOWL��
PROFILE
Single Port
RJLSE-6X061-01
Non-Shielded
.250 [6.35]
.050 [1.27] TYP.
.520 [13.21]
CONTACT
POS. #1
.665 [16.89]
CONTACT
POS. #6
CONTACT
POS. #6
.025 [0.64] TYP.
CONTACT POS. #1
.262 [6.65]
.462
[11.73]
.187 [4.75]
123456
.665
[16.89]
TERMINAL
TAILS
FITTING NAILS
FRONT VIEW
.205 [5.21]
.100 [2.54]
.055 [1.41]
CONNECTOR
OUTLINE
.592
[15.04]
.260 [6.60]
.520 [13.21]
SIDE VIEW
RECOMMENDED PCB LAYOUT
Shielded
RJLSE-4X381-01
.350 [8.89]
.050 [1.27] TYP.
CONTACT
POS. #1
.175 [4.44]
.025 [0.64] TYP.
.685 [17.40]
.620 [15.74]
CONTACT
POS. #8
CONTACT
POS. #8
CONTACT POS. #1
.187 [4.75]
12345678
.470
[11.93]
.396
[10.07]
Amphenol
PURE-TIN
DIPPED
ZONE
TERMINAL
TAILS
CONNECTOR
OUTLINE
.203 [5.16]
.055 [1.41]
.203 [5.16]
FRONT VIEW
.472 [11.98]
SIDE VIEW
ø.062±.002
[ø1.57±0.05]
.608 [15.44]
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products- Amphenol
- AmphenolCanada
CanadaCorp.
Corp. | | Telephone:
Telephone: (416)
(416) 291-4401
291-4401 || Fax:
Fax: (416)
(416) 754-8668
754-8668 || Email:
Email: sales@amphenolcanada.com
sales@amphenolcanada.com
Amphenol
Commercial
Products
specifications
subject
change
without
notice.Catalogue
Catalogueisisupdated
updatedregularly.
regularly. Please
All All
specifications
areare
subject
toto
change
without
notice.
Please refer
referto
towww.amphenolcanada.com
www.amphenolcanada.comfor
forthe
themost
mostrecent
recentedition.
edition.
44
42
SURFACE MOUNT
RJE07
TAB DOWN, SINGLE PORT
TAB DOWN, SINGLE PORT
RJE07 products belong to a family of standard modular jacks designed to meet requirements for a variety of applications. Options within the FRJAE series offer low cost and
effective EMC control within standard RJ11 & RJ45 connector footprints. EMC control is
offered by a completely shielded connector and/or with the use of a high resistivity, high
impedance ferrite filter. No board layout changes are required for its use. Simply replace
the standard non-filtered connector for superior EMC performance.
SPECIFICATIONS
Material
Mechanical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel
on contact mating area; Gold flash over palladium
nickel also available; 100µ” min. matte tin plating on
soldering tail
Shield:
Copper alloy; nickel or matte tin plated
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Reflow soldering peaked at 260°C for 6
to 8 secs max
Operating Temperature:
- 40°C to + 85°C
Electrical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE07 - 1 X X - X X X 0
Modifier
1 - 1 Port
0 - Standard product
Number of Positions
Panel Stop Options
6 - 6 Positions
8 - 8 Positions
1 - Without panel stop
2 - With panel stop (must have for shield)
Number of Contacts
Contact Plating
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Shield Options
0 - No shield
2 - Through-hole shield
3 - Surface mount shield
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
45
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
SURFACE MOUNT
RJE07
RJE07
D���,
S�����
P���
TABT��
DOWN,
SINGLE
PORT
Single Port
RJE07-188-0X10
Non-Shielded
.030 [0.76] TYP.
.713 [18.10]
.594 [15.09]
.500
[12.70]
.310
[7.87]
FRONT VIEW
.110±.010
[2.80±0.25]
.067±.008
[1.70±0.20]
.014 [0.35]
.492
[12.51]
.100 [2.54]
.050 [1.27] TYP.
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
TERMINAL
TAILS
.050
[1.27]
.450
[11.43]
SIDE VIEW
.450
[11.43]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Surface Mount Shield
RJE07-188-3X20
.030 [0.76] TYP.
.700 [17.78]
.624 [15.85]
.105
[2.67]
.722 [18.33]
.100 [2.54]
.050
[1.27]
.050 [1.27] TYP.
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.050 [1.27]
.450
[11.43]
.080 [2.03]
.080 [2.03]
TYP.
.010
[0.25]
.082 [2.07]
.080 [2.03] TYP.
FRONT VIEW
SIDE VIEW
.450 [11.43]
.613 [15.57]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Through-Hole Shield
RJE07-188-2X20
.030 [0.76] TYP.
.700 [17.78]
.624 [15.85]
.105
[2.67]
.722 [18.34]
.100 [2.54]
.050 [1.27] TYP.
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.004
[0.10]
.050 [1.27]
.450
[11.43]
.120 [3.05]
.082 [2.07]
.120 [3.05]
.322 [8.18]
FRONT VIEW
SIDE VIEW
∅.062±.002
[∅1.57±0.05]
HOLES 2 REQ'D
.450 [11.43]
.613 [15.57]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
| Telephone:
291-4401
Fax:to(416)
754-8668 | Email: sales@amphenolcanada.com
All
specifications
are subject
to change
withoutCanada
notice. Corp.
Catalogue
is updated(416)
regularly.
Please|refer
www.amphenolcanada.com
for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
44
46
SURFACE MOUNT
RJE15
TAB DOWN, SINGLE PORT, LOW PROFILE
TAB DOWN, SINGLE PORT, LOW PROFILE
The RJE15 low profile connector is built to meet your high volume RJ requirements.
This is a true pick and place compatible SMT connector and is available with or without shielding, as well as with a variety of options including number of contacts, plating
thickness, and color. This connector is built with high temperature engineering thermoplastic and suitable for IR Reflow solder process.
SPECIFICATIONS
Material
Mechanical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating or
gold flash on tail area
Shield:
Copper alloy; nickel plating overall
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering at 260°C for 6 to 8 secs
max
Operating Temperature:
- 40°C to + 70°C
Electrical
Contact Resistance
25 mΩ max.
Insulation resistance:
1000 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE15 - 1 X X - X X 1 0
1 - 1 Port
Number of Positions
4 - 4 Positions
6 - 6 Positions
8 - 8 Positions
A - 10 Positions
Number of Contacts
2 - 2 Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
A - 10 Contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
47
Modifier
0 - Standard product
Panel Stop Options
1 - No panel stop
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Shield Options
0 - No shield
1 - Standard shield, no tabs
5 - Shield with top and side tabs
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
SURFACE MOUNT
RJE15
RJE15
T��DOWN,
D���,SINGLE
S�����PORT,
P���,
L��
P������
TAB
LOW
PROFILE
Single Port
RJE15-1AA-0X10
Non-Shielded
.450 [11.43]
.592 [15.03]
.579
[14.70]
Amphenol
.050 [1.27] TYP.
.030 [0.76] TYP.
.713 [18.10]
∅.128 [∅3.25]
HOLES 2 REQ'D
.453
[11.50]
.452 [11.47]
.098
[2.50]
.310 [7.88]
FRONT VIEW
.125 [3.18]
.450
[11.43]
SIDE VIEW
RECOMMENDED PCB LAYOUT
Shielded
RJE15-1AA-1X10
.620 [15.74]
.450 [11.43]
.050 [1.27] TYP.
.030 [0.76] TYP.
.734 [18.65]
.125 [3.18]
∅.128 [∅3.25]
HOLES 2 REQ'D
.463
[11.75]
.100
.572
[2.54] [14.52]
.004
[0.10]
.120 [3.05]
.450 [11.43]
.728 [18.50]
FRONT VIEW
.098
[2.50]
.063 [1.60]
.200 [5.08]
.450
[11.43]
.320 [8.13]
.644 [16.35]
SIDE VIEW
.123 [3.12]
RECOMMENDED PCB LAYOUT
Notes
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
| Fax:
(416)
754-8668| Email:
| Email:
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
| Fax:
(416)
754-8668
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
www.amphenolcanada.comfor
forthe
themost
mostrecent
recentedition.
edition.
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
toto
www.amphenolcanada.com
48
46
PRESS FIT
RJE56
PRESS FIT, TAB DOWN, RJ45
TAB DOWN, RJ45
The RJE56 series is designed for applications where soldering is not an option. The press
fit contacts and shield tabs have the “eye of the needle” design and provide good PCB
retention as well as reliable electrical performance.
SPECIFICATIONS
Material
Mechanical
Insulator:
PBT material; complies with UL 940-0; Black
Insertion Force:
5 lbs max.
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
press fit tail
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5 to
8 secs max
Operating Temperature:
- 55°C to + 85°C
Shield:
Stainless steel
Electrical
* Note: Suitable for IR Reflow
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE56 - 1 8 X - X X 1 0 - X
1 - 1 Port
Number of Positions
8 - 8 Positions
Number of Contacts
Blank - Tray
T - Tape & Reel
Modifier
0 - Standard product
6 - 6 Contacts
8 - 8 Contacts
Panel Stop Options
Shield Options
Contact Plating
0 - No shield
1 - Full Shield
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
49
Packaging
1 - No panel stop
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
PRESS FIT
RJE56
RJE56
D���,
PRESS FIT, TABT��
DOWN,
RJ45RJ45
Single Port
RJE56-188-1X10
Shielded
.799±.008 [20.30±.20]
.531±.006 [13.50±.15]
0.461 [11.70]
.268 [6.80]
.531±.008
[13.50±.20]
0.118 [3.00]
.053
[1.35]
0.035 [0.90]
0.110 [2.80]
0.132 [3.37]
0.161 [4.10]
.100
[2.54]
0.098 [2.50]
0.039 [1.00]
0.350 [8.89]
FRONT VIEW
0.016 [0.40]
0.098 [2.50]
0.228 [5.80]
0.018 [0.45]
0.032 [0.81]
SIDE VIEW
0.100 [2.54]
0.050 [1.27]
∅.024±.002
[∅.60±.05]
8 HOLES REQ'D
GROUNDING PAD
0.047 [1.20]
.335
[8.50]
∅.118±.002
[∅3.00±.05]
2 HOLES REQ'D
.228
[5.80]
0.217 [5.50]
0.346 [8.80]
0.531 [13.50]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Notes
Amphenol
Commercial
Products- Amphenol
- AmphenolCanada
CanadaCorp.
Corp. | | Telephone:
Telephone:(416)
(416)291-4401
291-4401 || Fax:
Fax: (416)
(416)754-8668
754-8668 || Email:
Email: sales@amphenolcanada.com
sales@amphenolcanada.com
Amphenol
Commercial
Products
specifications
subject
change
without
notice.Catalogue
Catalogueisisupdated
updatedregularly.
regularly. Please
All All
specifications
areare
subject
to to
change
without
notice.
Please refer
referto
towww.amphenolcanada.com
www.amphenolcanada.comfor
forthe
themost
mostrecent
recentedition.
edition.
50
48
THROUGH - HOLE
RJE06
SINGLE PORT, SLIM PROFILE
SINGLE PORT, SLIM PROFILE
RJE06 series is a group of products within a family of standard modular jacks designed to
meet requirements for a variety of applications. Options within the RJE06 family include
shielded & non-shielded, and 8P8C configurations.
SPECIFICATIONS
Material
Mechanical
Insulator:
Engineering theromplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel
on contact mating area; 100µ” min. matte tin or gold
flash plating on tail area
Shield:
Copper alloy; nickel plating overall
Electrical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-40°C to + 70°C
UL File #:
E136228
*Note: Connectors with high temp. material are suitable for IR Reflow
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE06 - 1 X X - X X X X
1 -1 Port
Number of Positions
6 - 6 Positions
8 - 8 Positions
Number of Contacts
6 - 6 Contacts
8 - 8 Contacts
Shield Options
0 - No shield
1 - Standard shield
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
51
Modifier
0 - Standard tail length (3.23mm)
2 - 4.0mm tail length
Panel Stop Options
1 - Without panel stop
2 - With panel stop
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJE06
RJE06
S�����PORT,
P���,
S���
P������
SINGLE
SLIM
PROFILE
Single Port
RJE06-188-0X10
Non-Shielded
.050 [1.27]
∅.047±.002
[∅1.19±0.05]
HOLES 8 REQ'D
.100 [2.54] TYP.
.606 [15.40]
.640 [16.25]
.128 [3.25]
.050 [1.27] TYP.
.050 [1.27]
.500
[12.70]
.100 [2.54]
.127 [3.24]
.350 [8.89]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
FRONT VIEW
SIDE VIEW
.450
[11.43]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Non-Shielded
RJE06-166-0X10
.250 [6.35]
∅.035±.002
[∅0.89±0.05]
HOLES 6 REQ'D
.100 [2.54] TYP.
.606 [15.40]
.630 [16.00]
.128 [3.25]
.050 [1.27] TYP.
.100 [2.54]
.500
[12.70]
.127 [3.24]
.350 [8.89]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
FRONT VIEW
.100 [2.54]
SIDE VIEW
.450
[11.43]
RECOMMENDED PCB LAYOUT
Standard Shield
RJE06-188-1X10
.350 [8.89]
.050 [1.27]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.100 [2.54]
.100 [2.54]
626±.015
[15.90±0.38]
642±.015
[16.30±0.38]
.050 [1.27]
.126 [3.20]
.521±.015
[13.23±0.38]
.142 [3.61]
∅.047±.002
[∅1.57±0.05]
HOLES 8 REQ'D
.350 [8.89]
∅.062±.002
[∅1.57±0.05]
HOLES 2 REQ'D
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
FRONT VIEW
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
SIDE VIEW
.450
[11.43]
.116 [2.95]
.085 [2.16]
.620 [15.75]
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
| Fax:
(416)
754-8668
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
| Fax:
(416)
754-8668| Email:
| Email:
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
toto
www.amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
www.amphenolcanada.comfor
forthe
themost
mostrecent
recentedition.
edition.
52
50
THROUGH - HOLE
RJE08
SINGLE PORT, STANDARD PROFILE
SINGLE PORT, STANDARD PROFILE
RJE08 series is a group of products within a family of standard modular jacks designed to
meet requirements for a variety of applications. Options within the RJE08 include with and
without panel stops, and RJ11 & RJ45 configurations.
SPECIFICATIONS
Material
Mechanical
Insulator:
Engineering theromplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel
on contact mating area; 100µ” min. matte tin or gold
flash plating on tail area
Electrical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-40°C to + 70°C
UL File #:
E136228
ORDERING INFORMATION
Number of Ports
RJE08 - 1 X X - 0 X X 0
1 -1 Port
0 - Standard product
Number of Positions
Panel Stop Options
4 - 4 Positions
6 - 6 Positions
8 - 8 Positions
A - 10 Positions
1 - Without panel stop
2 - With panel stop
Number of Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
A - 10 Contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
53
Modifier
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Shield Options
0 - No shield
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJE08
RJE08
S�����
P���,
S�������
P������
SINGLE
PORT,
STANDARD
PROFILE
Single Port
RJE08-188-0X10
Non-Shielded
∅.035±.002
[∅0.90±0.05]
HOLES 8 REQ'D
.075 [1.90] TYP.
.641 [16.29]
.601 [15.26]
.128
[3.25]
.025 [.63] TYP.
.100 [2.54]
.050 [1.27]
.652
[16.56]
.128±0.02∅
[∅3.25±0.05]
HOLES 2 REQ'D
.621
[15.78]
.250 [6.35]
.250 [6.35]
.450 [11.43]
FRONT VIEW
SIDE VIEW
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Notes
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401| Fax:
| Fax:
(416)
754-8668| Email:
| Email:
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
toto
www.amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
www.amphenolcanada.comfor
forthe
themost
mostrecent
recentedition.
edition.
54
52
THROUGH - HOLE
RJE74
SINGLE PORT, STANDARD PROFILE
SINGLE PORT, STANDARD PROFILE
The RJE23 series is designed for high volume production where a vertical modular jack is
required. Shielding provides increased EMI performance. Surface mount contacts and holddown nail bracket assist in speeding up the production process.
SPECIFICATIONS
Material
Mechanical
Insulator:
High temp. theromplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with 30µ” min. gold
thickness over 50µ” min. nickel on contact mating
area; 100µ” min. matte tin plating on soldering tail
Shield:
Stainless steel; pure tin dipped tail
Electrical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Peaked at 260°C for 5 secs max.
Operating Temperature:
-55°C to + 85°C
*Note: Suitable for IR Reflow
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE74 - 1 X X - X X 1 X - X
1 -1 Port
Number of Positions
8 - 8 Positions
A - 10 Positions
Number of Contacts
8 - 8 Contacts
A - 10 Contacts
Shield Options
0 - No shield
1 - Full shield
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
55
Packaging
Blank - PBT, tray, without Mylar
A - High temp housing, tray, without Mylar
H - High temp housing, tape & reel with Mylar
Modifier
0 - Standard product
1 - With RMK4 keying
Panel Stop Options
1 - No panel stop
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJE74
RJE74
S����� P���,
S�������PROFILE
P������
SINGLE
PORT, STANDARD
Single Port
RJE74-1AA-0X10
Non-Shielded
.450
[11.43]
.125 [3.18]
.646 [16.40]
.050 [1.27]
.100 [2.54]
∅.036±.002
[∅0.90±0.05]
HOLES 10 REQ'D
.100 [2.54]
.250 [6.35]
.638
16.20
∅.132±.002
[∅3.35±0.05]
HOLES 2 REQ'D
.250 [6.35]
.014 [0.35]
.610
[15.50]
FRONT VIEW
.450
[11.43]
.125 [3.18]
SIDE VIEW
RECOMMENDED PCB LAYOUT
RJE74-1AA-0X11
Non-Shielded with Keying
.450
[11.43]
.125 [3.18]
.646 [16.40]
.050 [1.27]
.100 [2.54]
∅.036±.002
[∅0.90±0.05]
HOLES 10 REQ'D
.100 [2.54]
.250 [6.35]
.638
16.20
∅.132±.002
[∅3.35±0.05]
HOLES 2 REQ'D
.250 [6.35]
.014 [0.35]
.610
[15.50]
FRONT VIEW
.450
[11.43]
.125 [3.18]
SIDE VIEW
RJE74-1AA-1X11
.657 [16.7]
.125 [3.18]
.644 [16.35]
.267 [6.78]
∅.132±.002
[∅3.35±0.05]
HOLES 2 REQ'D
.155 [3.94]
.050 [1.27]
∅.036±.002
[∅0.90±0.05]
HOLES 10 REQ'D
∅.065±.002
[∅1.65±0.05]
HOLES 2 REQ'D
.125 [3.18]
SIDE VIEW
.450
[11.43]
TIN DIPPED
ZONE
.658
[16.70]
FRONT VIEW
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Shielded with Keying
.630
[16.00]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.100 [2.54]
.097 [2.46]
.153 [3.89]
.450 [11.43]
.620 [15.75]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp. Corp.
| Telephone:
(416) (416)
291-4401
| Fax:
754-8668
| Email:
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
| Telephone:
291-4401
| (416)
Fax: (416)
754-8668
| Email:
sales@amphenolcanada.com
All specifications
are subject
to change
withoutwithout
notice.notice.
Catalogue
is updated
regularly.
Please
referrefer
to www.amphenolcanada.com
for the
most
recent
edition.
All specifications
are subject
to change
Catalogue
is updated
regularly.
Please
to www.amphenolcanada.com
for the
most
recent
edition.
56
56
THROUGH - HOLE
RJE88
SINGLE PORT, LOW PROFILE, WITH LEDs
SINGLE PORT, LOW PROFILE, WITH LEDs
Vertical through-hole (THT) in single port RJ45 configurations with full shield or superior
EMI protection. A variety of LED options for link activity and network verification are available. Made with high temperature composite and when accompanied with our high temperature resistant LEDs, these connectors are well suited for the IR Reflow process.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. theromplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
soldering tail
Shield:
Stainless steel; pure tin dipped tail
LED:
Tin plating on LED tails
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 2mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
LED Wave Length:
Operating Temperature:
-55°C to + 85°C
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mAw
*Note: Connectors without LEDs are suitable for IR Reflow
ORDERING INFORMATION
Number of Ports
RJE88 - 1 8 8 - X X X X - X
1 -1 Port
Number of Positions
8 - 8 Positions
Number of Contacts
8 - 8 Contacts
Shield Options
0 - No shield
1 - Shield with PCB tabs, no top and bottom tabs
2 - Shield with PCB tabs, top and bottom tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
57
Packaging
Blank - Tray
T - T ape & Reel
Modifier
0 - 2.7mm (0.11”) tail length
A - 3.5mm (0.14”) tail length
LED Options
Click to view page 3 for options
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJE88
RJE88
S�����
P���,
L��
P������,
����
LED�
SINGLE
PORT,
LOW
PROFILE,
WITH
LEDs
Single Port
Shielded
.126 [3.20]
.518
[13.15]
.634 [16.10]
DIM A (DEFINED IN
PART #) FOR ALL
CONTACT & LED TAILS
.277 [7.02]
.177 [4.48]
.122 [3.10]
Amphenol
.069 [1.76]
.579
[14.70]
.051 [1.30]
RJE88-188-1XXX
.350 [8.89]
.050 [1.27]
.050 [1.27]
∅.079±.002
[∅2.00±0.05]
UNPLATED HOLES
2 REQ'D
∅.035±.002
[∅0.90±0.05]
PLATED HOLES
8 REQ'D
0.276
[7.02]
∅.067±.002
[∅1.70±0.05]
PLATED HOLES
2 REQ'D
.069 [1.76]
∅.043±.002
[∅1.10±0.05]
HOLES 4 REQ'D
.122 [3.10]
.100 [2.54]
.030 [0.75]
.100 [2.54]
LED 2
LED 1
.132 [3.35]
TIN DIP AREA
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.309 [7.85]
.450 [11.43]
.620 [15.75]
FRONT VIEW
SIDE VIEW
Non-Shielded
FRONT VIEW
RECOMMENDED PCB LAYOUT
RJE88-188-0X0X
SIDE VIEW
RECOMMENDED PCB LAYOUT
Notes
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401| Fax:
| Fax:
(416)
754-8668| Email:
| Email:
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
toto
www.amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
www.amphenolcanada.comfor
forthe
themost
mostrecent
recentedition.
edition.
58
58
THROUGH - HOLE
RJE1J
SINGLE PORT, NARROW PROFILE
PORT, NARROW PROFILE
Multiple position and contact options, single port, vertical connector with no shield or LED
options. Made with high temperature thermoplastic this series is suitable for the IR Reflow
process. This series is ideal for high volume cost sensitive programs.
SPECIFICATIONS
Material
Mechanical
Insulator:
High temp. theromplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel
on contact mating area; 100µ” min. matte tin plating
on tail
Electrical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-55°C to + 85°C
*Note: Suitable for IR Reflow
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE1J - 1 X X - 0 X 1 0 - X
1 -1 Port
Number of Positions
Packaging
Blank - Tray
T - Tape & Reel
4 - 4 Positions
6 - 6 Positions
8 - 8 Positions
Modifier
Number of Contacts
1 - Black housing
2 - 2 Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
Shield Options
0 - Standard product
Panel Stop Options
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
0 - No shield
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
59
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
THROUGH - HOLE
RJE1J
RJE1J
S�����
P���,
N�����
P������
SINGLE
PORT,
NARROW
PROFILE
Single Port
RJE1J-188-0X10
Non-Shielded
.350 [8.89]
.436 [11.08]
.050 [1.27]
.050 [1.27] TYP.
.157 [4.00]
ø.035±.002
[ø0.90±0.05]
HOLES 8 REQ'D
Amphenol
.618
[15.70]
.100 [2.54]
.500
[12.70]
.050
[1.27]
.118 [3.00]
.600 [15.24]
.100 [2.54]
.195 [4.96]
FRONT VIEW
.350
[8.89]
.130±0.01
[3.30±0.35]
CONTACT TAILS
SIDE VIEW
ø.128±.002
[ø3.25±0.05]
HOLES 2 REQ'D
.350
[8.89]
.300
[7.62]
.450
[11.43]
.450 [11.43]
BOTTOM VIEW
.350
[8.89]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Non-Shielded
RJE1J-144-0X10
.150 [3.81]
.436 [11.08]
.050 [1.27] TYP.
.157 [4.00]
ø.035±.002
[ø0.90±0.05]
HOLES 4 REQ'D
.075 [1.91]
Amphenol
.100 [2.54]
.618
[15.70]
.500
[12.70]
.350
[8.89]
ø.128±.002
[ø3.25±0.05]
HOLES 2 REQ'D
.118 [3.00]
.440 [11.18]
.100 [2.54]
.195 [4.96]
FRONT VIEW
.350
[8.89]
SIDE VIEW
.050 [1.27]
.130±0.01
[3.30±0.35]
CONTACT TAILS
.150 [3.81]
.300 [7.62]
BOTTOM VIEW
.300
[7.62]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| |Telephone:
Telephone:
(416)
291-4401| |Fax:
Fax:
(416)
754-8668| |Email:
Email:
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Pleaserefer
refertotowww.amphenolcanada.com
www.amphenolcanada.comfor
forthe
themost
mostrecent
recent edition.
edition.
60
60
SURFACE MOUNT
RJE23
SINGLE PORT, SURFACE MOUNT
SINGLE PORT, SURFACE MOUNT
The RJE23 series is designed for high volume production where a vertical modular jack is
required. Shielding provides increased EMI performance. Surface mount contacts and holddown nail bracket assist in speeding up the production process.
SPECIFICATIONS
Material
Mechanical
Insulator:
High temp. theromplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel
on contact mating area; 100µ” min. matte tin
plating over nickel on soldering tail
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Operating Temperature:
-55°C to + 85°C
*Note: Connector is suitable for IR Reflow
Shield:
Copper alloy; matte tin plating
Hold Down:
Copper alloy; matte tin plating
Electrical
Coplanarity:
0.004” max. gap between all terminal tails
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE23 - 1 X X - X X X X - X
1 -1 Port
Number of Positions
4 - 4 Positions
6 - 6 Positions
8 - 8 Positions
Number of Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
Shield Options
0 - No shield
2 - Shield with no tabs
3 - Shield with side tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
61
Packaging
Blank - Tray
T - Tape & Reel
Modifier
3 - Standard with solderplate & kapton tape
4 - Standard with solderplate
6 - Standard with solderplate inward
Housing/Panel Stop Options
1 - Black housing without panel stop
2 - Black housing with panel stop
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
SURFACE MOUNT
RJE23
RJE23
S�����
P���,
S������
M����
SINGLE
PORT,
SURFACE
MOUNT
Single Port
RJE23-188-3X16
Shielded
.047 [1.20]
.526 [13.35]
.077 [1.94]
.004 [0.10] MAX GAP
B/N LEVEL SURFACE
AND ALL TERMINAL
TAILS & FITTING NAILS
.574
[14.58]
.123 [3.14]
.633 [16.08]
FRONT VIEW
SIDE VIEW
.350
[8.89]
.362
[9.20]
.050 [1.27]
.016 [0.41]
.171 [4.34]
.213 [5.40]
PCB
CONNECTOR
.598±0.004
[15.20±0.10]
.079 [2]
.175 [4.45]
.118 [3]
.050 [1.27]
.315 [8]
.350 [8.89]
BOTTOM VIEW
.030+.002 [0.76+.05] OR
.030-.001 [0.76-.02]
RECOMMENDED PCB LAYOUT
RJE23-188-0X13
Non-Shielded
.776 [19.72]
.560 [14.22]
.819 [20.80]
MYLAR TAPE
.134 [3.40]
.470
[11.94]
SOLDER
BRACKET
CONTACT
.124 [3.15]
.346
[8.80]
.350
[8.89]
.098 [2.50]
.144
[3.65]
.270 [6.85]
FRONT VIEW
.099 [2.50]
.118 [3]
.776 [19.72]
SIDE VIEW
.050 [1.27]
.110 [2.80]
.028 [0.70]
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401| Fax:
| Fax:
(416)
754-8668| Email:
| Email:
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
toto
www.amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
www.amphenolcanada.comfor
forthe
themost
mostrecent
recentedition.
edition.
62
54
STACKED
RJSAE
2, 4 AND 8 PORTS WITH LED AND SHIELD OPTIONS
2, 4 AND 8 PORTS WITH LED AND SHIELD OPTIONS
The RJSAE is a RJ45 stackable connector that reduces component and labor costs by incorporating LEDs. Its stackable feature enables more ports with the same board space. With
superior EMI performance, the option of configuring your connector with a ferrite filter is
available to further reduce crosstalk in noisy applications.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel
on contact mating area; 100µ” min. matte tin plating
on tail
Shield:
Copper alloy; nickel plated or stainless steel with tin
dripped tail (as specified in drawing)
LED:
Tin plating on LED tail
Mechanical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-55°C to + 85°C
UL File #:
E136228
CSA File #:
150190
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
Contact to contact: 1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 2mA (for bicolours)
LED Reverse Voltage:
5 Volts min.
LED Light Intensity:
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
LED Wave
Length:
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
*Note: Connectors without LEDs are suitable for IR Reflow;
Connectors with Reflow LEDs available
ORDERING INFORMATION
RJSAE - X X X X - X X
Version
5 - 8 Positions, 50µ” gold plating
7 - 6 Positions, 50µ” gold plating
8 - 8 Positions over 6, 50µ” gold plating
2 - 2 Ports (1 over 1)
4 - 4 Ports (2 over 2)
8 - 8 Ports (4 over 4)
Shield Options
Contact Length
0 - No shield
2 - Shield with top and side tabs, with filter
3 - Shield with top and side tabs, no filter
F - Shield without top and side tabs
0 - Standard 0.1” (2.54mm)
A - 0.130” (3.30mm)
B - 0.138” (3.51mm)
Number of Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
63
Number of Ports
LED Options
Click to view page 3 for options
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
STACKED
RJSAE
RJSAE
4 ���
8 P����
����
S�����
O������
2, 42,AND
8 PORTS
WITH
LEDLED
AND���
SHIELD
OPTIONS
Single Port
.540 [13.72]
.100 [2.54] TYP.
Non-Shielded
.100 [2.54] TYP.
.620
[15.75]
TOP LED 2
.050 [1.27] TYP.
1.078 [27.38]
TOP LED 1
.990
[25.15]
.100
[2.55]
.125
[3.18]
BOTTOM
LED 2
BOTTOM
LED 1
.090 [2.29]
FRONT VIEW
.650
[16.51]
∅.035±.002 [∅0.89±0.05]
HOLES 24 REQ'D (BASED
ON 2 LEDS PER PORT)
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Shielded
TOP LED 2
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
SIDE VIEW
.165 [4.19]
.325 [8.25]
.825
[30.95]
.570
[14.48]
.100 [2.54]
TYP.
.100 [2.54]
TYP.
.075 [1.91]
.350 [8.89]
.020 [0.51]
.500 [12.70]
.205 [5.21Z]
RJSAE-508X-02
∅.035±.002 [∅0.89±0.05]
(24 PLCS) (BASED ON
TWO LEDS PER PORT)
∅.062±.002
[∅1.57±0.05]
(4 PLCS)
1.108 [28.15]
TOP LED 1
RJSAE-538X-02
*.540 [13.72]
*.350 [8.89]
.100 [2.54] TYP.
.050 [1.27] TYP.
.100 [2.54]
.125±.020
[3.18±.51]
LED TAIL
1.0
[25.40]
BOTTOM
LED 2
.100±.020
[2.54±.51]
CONTACT TAIL
BOTTOM
LED 1
.018±.005
[0.46±.13]
CONTACT TAIL
.020±.005
[0.51±.13]
LED TAIL
.100 [2.54]
.215 [5.46]
.020±.005 [.050±.13]
LED TAIL
FRONT VIEW
TIN
DIPPED
ZONE
.014±.005
[.036±.13]
CONTACT TAIL
SIDE VIEW
.825
[20.95]
.100 [2.54]
.610
[15.49]
.280
[7.11]
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
.500 [12.70] -A-
.670
[17.02]
.325
.165 [4.19] [8.25]
.100 [2.54] TYP.
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
*.640 [16.26]
ARE BASIC
DIMENSIONS MARKED WITH * ARE SYMMETRICAL ABOUT
CENTER LINE AS DEFINED BY DATUM -A-
RECOMMENDED PCB LAYOUT
Multi Port
RJSAE-508X-08
Non-Shielded
1.078 [27.38]
2.480 [62.99]
TOP LED 2
TOP LED 1
TOP CONNECTOR
BOTTOM CONNECTOR
.990
[25.14]
.100 [2.55]
.125 [3.18]
BOTTOM
LED 2
BOTTOM
LED 1
FRONT VIEW
.090 [2.29]
.205 [5.21]
SIDE VIEW
Amphenol
Commercial
Products
- Amphenol
Canada
Corp. | | Telephone:
Telephone:(416)
(416)291-4401
291-4401 | | Fax:
Fax:(416)
(416)754-8668
754-8668 || Email:
Email: sales@amphenolcanada.com
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
All
specifications
are
subject
to
change
without
notice.
Catalogue
is
updated
regularly.
Please
refer
to
www.amphenolcanada.com
edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.comfor
forthe
themost
mostrecent
recent
edition.
64
62
STACKED
RJSAE
RJSAE
2,2,44���
��� S�����
AND88P����
PORTS ����
WITH LED
LED AND
SHIELD O������
OPTIONS
Multi Port
Non-Shielded
RJSAE-508X-08
CONNECTOR OUTLINE
.540 [13.72] TYP.
.350 [8.89] TYP.
.100 [2.54] TYP.
.050 [1.27] TYP.
.165 [4.19]
TOP LED ROW
.325 [8.25]
.825
[20.95]
.570
[14.48]
.100 [2.54] TYP.
.100 [2.54] TYP.
∅.128±.002
[∅3.25±0.05]
HOLES 2 REQ'D
∅.035±.002 [∅0.89±0.05] HOLES 96 REQ'D
(BASED ON 2 LEDS PER PORT)
.620 [15.75] TYP.
BOTTOM LED ROW
.020 [0.51] TYP.
.075 [1.91]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
2.360 [59.94]
RECOMMENDED PCB LAYOUT
RJSAE-538X-08
Shielded
1.108 [28.15]
2.510 [63.75]
TOP LED 2
TOP LED 1
.062+.032 [1.57+0.81] OR
.062-.016 [1.57-0.41]
TOP CONNECTOR
BOTTOM CONNECTOR
1.062
[26.97]
.100±.010
[2.54±.25]
1.000
[25.4]
BOTTOM
LED 2
.016±.004
[0.41±0.10]
.125±.010
[3.18±.25]
BOTTOM LED 1
.020±.002 [0.51±0.05] X .020±.002 [0.51±0.05]
.122±.004 [3.1±0.10]
.100 [2.54]
.018±.002 [0.46±0.05] X .0137±.002 [0.35±0.05]
TIN
.054±.004
.121±.004
.136±.004
.215 [5.46]
FRONT VIEW
DIPPED ZONE
[1.37±0.10]
[3.07±0.10]
[3.45±0.10]
SIDE VIEW
.620 [15.75] TYP.
CONNECTOR OUTLINE
.540 [13.72] TYP.
.350
[8.89]
TYP.
.050 [1.27] TYP.
TOP LED ROW
.100 [2.54] TYP.
.825 [20.95]
.610 [15.49]
.570 [14.48]
.325 [8.25]
.280 [7.11]
.100 [2.54] TYP.
.100 [2.54] TYP.
.165 [4.19]
∅.062±.002 [∅1.57±0.05]
HOLES 4 REQ'D
∅.128±.002 [∅3.25±0.05]
HOLES 2 REQ'D
.620 [15.75] TYP.
.075 [1.91]
.070 [1.78] TYP.
.020 [0.51] TYP.
2.360 [59.94]
2.500 [63.50]
∅.035±.002 [∅0.89±0.05] HOLES 96 REQ'D
(BASED ON 2 LEDS PER PORT)
BOTTOM LED ROW
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
63 Amphenol
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
65
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
Amphenol Commercial Products - Amphenol Canada Corp. |
Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
STACKED
RJSNE
4 OVER 4 PORTS WITH LED AND SHIELD OPTIONS
4 OVER 4 PORTS WITH LED AND SHIELD OPTIONS
The RJSNE series is a stacked connector that offers LED options for link activity and
network verification. It is available with or without shielding. The RJSNE series also
includes a unique inner shield device to reduce the crosstalk between top and
bottom ports.
SPECIFICATIONS
Material
Electrical
Insulator:
Engineering thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
tail
Shield:
Copper alloy; nickel plated or stainless steel with tin
dipped tail
LED:
Pure tin plating on LED tail
Mechanical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-40°C to + 85°C
UL File #:
E135615
CSA File #:
150190
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.5 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
LED Reverse Voltage:
5 Volts min.
LED Light Intensity:
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
LED Wave
Length:
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
ORDERING INFORMATION
Version
RJSNE - X X X X - X 8
5 - 8 Positions, 50µ” gold plating
D - 8 Positions, 6µ” gold plating
G - 8 Positions, 15µ” gold plating
J - 8 Positions, 30µ” gold plating
Shield Options
0 - No shield
3 - Shield with top and side tabs, no filter
F - Shield without top and side tabs
Number of Ports
8 - 8 Ports (4 over 4)
Contact Length
0 - Standard 0.1” (2.54mm)
A - 0.130” (3.30mm)
LED Options
Click to view page 3 for options
Number of Contacts
4 - 4 Contacts
6 - 6 Contacts
8 - 8 Contacts
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
66
STACKED
RJSNE
RJSNE
42,O���
4 P����
����
LED
4 AND
8 PORTS
WITH
LED���
ANDS�����
SHIELDO������
OPTIONS
Single Port
RJSNE-538X-X8
Non-Shielded
2.510±0.15 [63.75±0.38]
TOP LED 2
.079+.031 [2.00+0.80] OR
.079-.016 [2.00-0.40]
1.108±0.15
[28.15±0.38]
TOP LED 1
.030±.010 [0.75±0.25]
BOTTOM SHIELD EDGE
ABOVE THE STANDOFF
.130±.010
[3.30±0.25]
CONTACT TAILS
1.000±.015
[25.4±0.38]
.125±.010
[3.18±0.25]
LED TAILS
BOTTOM LED 2
.057 [1.45] MAX.
BOTTOM LED 1
2.360 [59.94]
.018±0.002 [0.46±0.05]
X .014±0.002 [0.36±0.05]
CONTACT TAILS
FRONT VIEW
CONNECTOR OUTLINE
.050 [1.27] TYP.
TOP LED ROW
.100±.010 [2.54±0.25]
.215±.010 [5.46±0.25]
SIDE VIEW
.620 [15.75] TYP.
.350
[8.89]
TYP.
.540 [13.72] TYP.
.100 [2.54] TYP.
.825 [20.95]
.610 [15.49]
.570 [14.48]
.325 [8.25]
.280 [7.11]
.100 [2.54] TYP.
.165 [4.19]
.215 [5.46]
.118 [3.00] MIN.
.100 [2.54] TYP.
∅.062±.002 [∅1.57±0.05]
HOLES 4 REQ'D
∅.128±.002 [∅3.25±0.05]
HOLES 2 REQ'D
KEEP-OUT ZONE IN HATCHED AREA
NO TRACES OR INK MARKING ALLOWED
.620 [15.75] TYP.
.075 [1.91]
.070 [1.78] TYP. .020 [0.51] TYP.
.114 [2.91]
2.360 [59.94]
2.500 [63.50]
2.589 [65.75] MIN.
RECOMMENDED PCB LAYOUT
∅.035±.002 [∅0.89±0.05] HOLES 96 REQ'D
(BASED ON 2 LEDS PER PORT)
BOTTOM LED ROW
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
Notes
65
67
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
C AT 5e
RJE48
CAT 5e, RIGHT ANGLE, LOW PROFILE, WITH LEDs
RIGHT ANGLED, LOW PROFILE, WITH LEDs
The RJE48 series of modular jacks meet CAT 5e performance per EIA-568-C.2. It supports
Gigabit Ethernet Protocols. Shielding is available for increased EMI performance and LEDs
for link activity and network verification.
SPECIFICATIONS
Material
Insulator:
Contacts:
Electrical
High temp. thermoplastic;
Complies with UL 94V-0; Black
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tail
Mechanical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-55°C to + 85°C
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
LED Reverse Voltage:
5 Volts min.
LED Light Intensity:
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
LED Wave
Length:
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
ORDERING INFORMATION
Number of Ports
RJE48 - X 8 8 - X X X 1 - X
Packaging
1 - 1 Port
4 - 4 Port
Blank - Tray
T - Tape & Reel
Number of Positions
Modifier
8 - 8 Positions
1 - 3.00mm tail length
Number of Contacts
LED Options
8 - 8 Contacts
Click to view page 3 for options
Shield Options
Contact Plating
0 - No shield
1 - Full shield with top and side tabs
3 - Full shield with top tabs only
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
68
C AT 5e
RJE48
RJE48
CAT
L�� PROFILE,
P������, WITH
���� LEDs
LED�
CAT5e,
5e,R����
RIGHTA�����,
ANGLE, LOW
Single Port
Shielded
RJE48-188-1XX1
.815 [20.70]
LED 2
(LEFT)
LED 1
(RIGHT)
Amphenol
.470
[11.95]
.626
[15.90]
.472
[11.98]
.118 [3.00]
FRONT VIEW
SIDE VIEW
.172 [4.38]
∅.044±.002
[∅1.12±0.05]
HOLES 4 REQ'D
.665
[16.90]
.513 [13.04]
.090 [2.29]
∅.035±.002
[∅0.90±0.05]
HOLES 8 REQ'D
Amphenol
.129 [3.27]
.199 [5.05]
.102 [2.60]
.292 [7.42]
.039
[1.00]
.638
[16.20]
TOP VIEW
.626
[15.90]
.040 [1.02] * 7
= 0.281 [7.14]
RECOMMENDED PCB LAYOUT
Multi Port
Shielded
RJE48-488-1XX1
.563 [14.3] * 3 = 1.69 [42.9]
LED 2 (LEFT)
Amphenol
Amphenol
Amphenol
LED 1
(RIGHT)
.815 [20.70]
.039
[1.00]
.470
[11.95]
Amphenol
.118 [3.00]
.472 [11.98]
2.28 [57.80]
FRONT VIEW
2.31 [58.80]
TIN DIPPING
.592 [15.05]
∅.044±.002
[∅1.12±0.05]
HOLES 16 REQ'D
∅.035±.002
[∅0.90±0.05]
HOLES 32 REQ'D
SIDE VIEW
.563 [14.3] * 3
= 1.69 [42.90]
.153 [3.88]
.153 [3.88]
.090 [2.29] TYP.
.090 [2.29] TYP.
.292
[7.42]
.121 [3.07]
.102 [2.60]
.513 [13.04]
.575 [14.60]
2.29 [58.10]
1.13 [28.60]
∅.098±.002
[∅2.50±0.05]
HOLES 2 REQ'D
.039 [1.00]
2.28 [57.80]
TOP VIEW
67
69
.218 [5.42]
.199 [5.05]
.129 [3.27]
.040 [1.02] * 7
= 0.281 [7.14]
RECOMMENDED PCB LAYOUT
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
C AT 5e
RJE58
RIGHT ANGLED, STANDARD PROFILE, WITH LEDs
CAT 5e, RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
The RJE58 series of modular jacks meet CAT 5e performance per EIA-568-C.2. It supports
Gigabit Ethernet Protocols. Shielding is available for increased EMI performance and LEDs
for link activity and network speed verification.
SPECIFICATIONS
Material
Insulator:
Electrical
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel
on contact mating area; 100µ” min. matte tin plating
on solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tail
Mechanical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
IR Reflow peaked at 260°C for 5 secs
max.
Operating Temperature:
-55°C to + 85°C
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
LED Reverse Voltage:
5 Volts min.
LED Light Intensity:
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
LED Wave
Length:
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
ORDERING INFORMATION
RJE58 - 1 8 8 - X X X X - X
Number of Ports
Packaging
1 - 1 Port
Blank - Tray
T - Tape & Reel
Number of Positions
8 - 8 Positions
Number of Contacts
8 - 8 Contacts
Modifier
1 - Standard with boardlocks
2 - Without boardlocks
LED Options
Shield Options
Click to view page 3 for options
3 - Full shield with top tabs
5 - Full shield with top and side tabs
6 - Full shield without tabs
Contact Plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
70
C AT 5e
RJE58
RJE58
CAT 5e, R���� A�����, S������� P������, ���� LED�
CAT 5e, RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
Single Port
Shielded - Option 3
.631
[16.03]
.043 [1.09]
.547
[13.90]
Amphenol
.131
[3.32]
BOARD
LOCK
RJE58-188-3XX1
.100
[2.54]
.137
[3.48]
.411
[10.43]
.625
[15.88]
.117 [2.97]
.080 [2.03]
DIPPED ZONE
.197 [5.00]
.136 [3.46]
FRONT VIEW
SIDE VIEW
.040 [1.02] * 7
= .281 [7.14]
.510 [12.94]
.022 [0.55]
.100 [2.54]
.040 [1.02] TYP.
∅.044±0.002
[∅1.12±0.05] TYP.
Amphenol
.846
[21.49]
0.117 [2.97]
.080 [2.03]
∅.035±0.002
[∅0.90±0.05] TYP.
.197 [5.00]
∅.128±0.002
[∅3.25±0.05] TYP.
∅.063±0.002
[∅1.60±0.05] TYP.
.450 [11.43]
CENTER
LINE OF
BOARD
LOCKS
.625 [15.88]
TOP VIEW
.136 [3.46]
LOCATE HOLES
∅.006[0.15]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
RJE58-188-5XX1
Shielded - Option 5
.631
[16.03]
.043 [1.09]
.547
[13.90]
Amphenol
.131
[3.32]
BOARD
LOCK
.100
[2.54]
.137
[3.48]
.411
[10.43]
.625
[15.88]
.117 [2.97]
.080 [2.03]
DIPPED ZONE
.197 [5.00]
.136 [3.46]
FRONT VIEW
SIDE VIEW
.040 [1.02] * 7
= .281 [7.14]
.510 [12.94]
.022 [0.55]
.100 [2.54]
.040 [1.02] TYP.
∅.044±0.002
[∅1.12±0.05] TYP.
Amphenol
.846
[21.49]
∅.063±0.002
[∅1.60±0.05] TYP.
.450 [11.43]
.625 [15.88]
7169
.080 [2.03]
.197 [5.00]
∅.128±0.002
[∅3.25±0.05] TYP.
TOP VIEW
0.117 [2.97]
∅.035±0.002
[∅0.90±0.05] TYP.
CENTER
LINE OF
BOARD
LOCKS
.136 [3.46]
LOCATE HOLES
∅.006[0.15]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol
Commercialare
Products
Amphenol
Canadanotice.
Corp. Catalogue
| Telephone:
(416) 291-4401
| Fax: refer
(416)to754-8668
| Email: sales@amphenolcanada.com
All specifications
subject-to
change without
is updated
regularly. Please
www.amphenolcanada.com
for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
C AT 5e
RJE58
RJE58
CAT 5e, R���� A�����, S������� P������, ���� LED�
CAT 5e, RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
Single Port
Shielded - Option 6
RJE58-188-6XX1
.631
[16.03]
.547
[13.90]
Amphenol
.131
[3.32]
BOARD
LOCK
.100
[2.54]
.137
[3.48]
.411
[10.43]
.625
[15.88]
.117 [2.97]
.080 [2.03]
DIPPED ZONE
.197 [5.00]
.136 [3.46]
FRONT VIEW
SIDE VIEW
.040 [1.02] * 7
= .281 [7.14]
.510 [12.94]
.022 [0.55]
.100 [2.54]
.040 [1.02] TYP.
∅.044±0.002
[∅1.12±0.05] TYP.
Amphenol
.846
[21.49]
.080 [2.03]
.197 [5.00]
∅.128±0.002
[∅3.25±0.05] TYP.
∅.063±0.002
[∅1.60±0.05] TYP.
.450 [11.43]
.625 [15.88]
TOP VIEW
0.117 [2.97]
∅.035±0.002
[∅0.90±0.05] TYP.
CENTER
LINE OF
BOARD
LOCKS
.136 [3.46]
LOCATE HOLES
∅.006[0.15]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Notes
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Commercial
Products
- Amphenol
CanadaCatalogue
Corp. | isTelephone:
(416) 291-4401
| Fax:
(416) 754-8668 | Email: sales@amphenolcanada.com
All Amphenol
specifications
are subject
to change
without notice.
updated regularly.
Please refer
to www.amphenolcanada.com
for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
70
72
C AT 5e
RJE72
CAT 5e, RIGHT ANGLE, RECESSED, LOW PROFILE WITH LEDs
RIGHT ANGLE, RECESSED, LOW PROFILE WITH LEDs
The RJE72 series of modular jacks meet CAT 5e performance per EIA-568-C.2. It supports
Gigabit Ethernet Protocols. Shielding available for increased EMI performance and LEDs for
link activity and network speed verification.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tail
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
LED Wave
Length:
Operating Temperature:
-55°C to + 85°C
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
UL file #:
E135615
*Note: IR Reflow compatible; Consult factory for details
ORDERING INFORMATION
Number of Ports
RJE72 - X 8 8 - 1 X X X - X
1 - 1 Port
4 - 4 Ports
Blank - Tray
T - Tape & Reel
Number of Positions
Modifier
8 - 8 Positions
1 - 0.125” (3.18mm)
2 - 0.089” (2.27mm)
3 - 0.085” (2.16mm)
Number of Contacts
8 - 8 Contacts
Shield Options
1 - Full shield with top and side tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
73
Packaging
LED Options
Click to view page 3 for options
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
C AT 5e
RJE72
RJE72
CAT 5e, R���� A�����, R�������, L�� P������, ���� LED�
CAT 5e, RIGHT ANGLE, RECESSED, LOW PROFILE WITH LEDs
Single Port
Shielded
RJE72-188-14X1
LED 2
(LEFT)
.038 [0.97]
LED 1
(RIGHT)
.815 [20.70]
.333
[8.47]
.470
[11.95]
Amphenol
.781 [19.84]
DIPPED
ZONE
.354 [8.98]
.541 [13.75]
FRONT VIEW
DIM A±0.20
[DIM A±.008]
TAIL LENGTH FOR
LED AND SIGNAL PIN
SIDE VIEW
.665
[16.90]
.665 [16.9]
∅.035±.002 [∅0.90±0.05]
HOLES 4 REQ'D
.513 [13.0]
.090 [2.29]
∅.035±.002 [∅0.90±0.05]
HOLES 8 REQ'D
.247 [6.27]
.317 [8.05]
Amphenol
.410
[10.42]
R0.50 [R.020]
.094 [2.40]
.200 [5.07]
.039 [1.00]
.638
[16.20]
.040 [1.02] * 7
= 0.281 [7.14]
.638 [16.2]
RECOMMENDED PCB LAYOUT
Multi Port
RJE72-488-14X1
.563 [14.3] * 3 = 1.69 [42.9]
LED 2 (LEFT)
Amphenol
.103 [2.61]
.781 [19.84]
TOP VIEW
Shielded
.302 [7.68]
Amphenol
Amphenol
LED 1
(RIGHT)
.038 [0.97]
.815 [20.70]
.333
[8.47]
.470
[11.95]
Amphenol
DIPPED
ZONE
.354 [8.98]
2.43 [61.7]
FRONT VIEW
2.32 [58.8]
.541 [13.75]
∅.0.44±.002
[∅1.12±0.05]
HOLES 16 REQ'D
∅.035±.002
[∅0.90±0.05]
HOLES 32 REQ'D
DIM A±0.20
[DIM A±.008]
TAIL LENGTH FOR
LED AND SIGNAL PIN
SIDE VIEW
.563 [14.3] * 3
= 1.69 [42.9]
.090 [2.29] TYP.
.090 [2.29] TYP.
.247 [6.27]
.317 [8.05]
.410
[10.42]
.502
[12.75]
.513 [13.0]
.040 [1.02] * 7 = .281 [7.14]
.200
[5.07]
2.29 [58.1]
TOP VIEW
.094 [2.40]
.039 [1.00] TYP
R0.50 [R.020]
2.29 [58.1]
2.32 [58.8]
.331 [8.42]
.230 [5.84]
.200 [5.07]
2.43 [61.7]
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
Corp. Corp.
| Telephone:
(416)(416)
291-4401
| Fax:
(416)(416)
754-8668
| Email:
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
| Telephone:
291-4401
| Fax:
754-8668
| Email:
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.notice.
Catalogue
is updated
regularly.
Please
referrefer
to www.amphenolcanada.com
forfor
thethe
most
recent
edition.
All specifications
are subject
to change
without
Catalogue
is updated
regularly.
Please
to www.amphenolcanada.com
most
recent
edition.
74
72
C AT 5e
RJSGE
CAT 5e, 2 OVER 2 PORTS, PRESS FIT, WITH LEDs
2 OVER 2 PORTS, PRESS FIT, WITH LEDs
The RJSGE series of modular jacks meet CAT 5e performance per EIA-568-C.2. It
supports Gigabit Ethernet Protocols. Shielding available for increased EMI performance and LEDs for Link Activity and Network Speed verification.
SPECIFICATIONS
Material
Insulator:
Electrical
Engineering thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steal with press-fit tails
LED:
Press-fit with tin plating on LED tails
Mechanical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
Operating Temperature:
-55°C to + 85°C
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
LED Reverse Voltage:
5 Volts max.
LED Light Intensity:
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
LED Wave
Length:
Yellow: 587 ± 7 nm measured at 20mA
Green: 570 ± 5 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
*Note: IR Reflow compatible; Consult factory for details
ORDERING INFORMATION
Number of Ports
RJSGE - 4 8 8 - X X X 1 - X
4 - 2 over 2 Port
Number of Positions
8 - 8 Positions
Number of Contacts
8 - 8 Contacts
Shield Options
6 - Full shield without EMI tabs
7 - Full shield with EMI tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
75
Packaging
Blank - Tray
T - Tape & Reel
Modifier
1 - Standard, black housing,
0.130” contact and LED tail length
LED Options
See page 3 for options
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Content
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
C AT 5e
RJSGE
RJSGE
CAT 5e, R����CAT
A�����,
R�������,
L��
P������,
����LEDs
LED�
5e, 2 OVER
2 PORTS,
PRESS
FIT, WITH
Four Port
RJSGE-488-6XX1
Shielded - with no EMI Tabs
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Measurements: mm [Inches]
RJSGE-488-7XX1
Shielded - with EMI Tabs
FRONT VIEW
SIDE VIEW
RECOMMENDED PCB LAYOUT
Measurements: mm [Inches]
7276
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Amphenol are
Commercial
- Amphenol
Canada
Corp. is|updated
Telephone:
(416)Please
291-4401
| www.amphenolcanada.com
Fax: (416) 754-8668 | Email:
All specifications
subject toProducts
change without
notice.
Catalogue
regularly.
refer to
forsales@amphenolcanada.com
the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
C AT 6
RJE45
CAT 6, SINGLE PORT, LOW PROFILE, WITH LEDs
SINGLE PORT, LOW PROFILE, WITH LEDs
The RJE45 series of modular jacks meet CAT 6 performance per EIA-568-C.2. It supports
Gigabit Ethernet Protocols and 10 Gig links in applications up to 50m. Shielding available
for increased EMI performance and LEDs for link activity and network speed verification.
SPECIFICATIONS
Material
Insulator:
Electrical
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tail
Mechanical
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max. or lead free reflow soldering
up to 260°C for 10 secs for one cycle
with an LED defect rate of no more than
1000ppm
Operating Temperature:
-55°C to + 85°C
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA
LED Reverse Voltage:
5 Volts min.
LED Light Intensity:
0.4 to 1.5 mcd min. at 2mA
LED Wave
Length:
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
*Note: Multiple exposures not recommended
ORDERING INFORMATION
Number of Ports
RJE45 - 1 8 8 - X X X X - X
1 - 1 Port
Number of Positions
8 - 8 Positions
Number of Contacts
8 - 8 Contacts
Shield Options
0 - No shield
1 - Full shield with top and bottom EMI tabs
2 - Full shield without EMI tabs, back PCB tabs
4 - Full shield without EMI tabs, front PCB tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
77
Packaging
Blank - Tray
T - Tape & Reel
Modifier
1 - Standard, black housing,
0.130” contact and LED tail length
2 - Black housing, with flange,
0.130” contact and LED tail length
LED Options
Click to view page 3 for options
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
CAT 6
RJE45
RJE45
CAT 6, S����� P���, L�� P������, ���� LED�
CAT 6, SINGLE PORT, LOW PROFILE, WITH LEDs
Single Port
RJE45-188-0X01
Non-Shielded
.470
[11.95]
.600 [15.24]
.130 [3.30]
.100 [2.54]
.655
[16.64]
.350
[8.89]
.625
[15.87]
Amphenol
.250
[6.35]
.470 [11.94]
TOP VIEW
SIDE VIEW
.600 [15.24]
.350 [8.89]
.100 [2.54]
.050 [1.27]
.050 [1.27]
.100 [2.54]
∅.035±0.002
[∅0.90±0.05]
HOLES 8 REQ'D
.642
[16.30]
.350
[8.89]
∅.128±0.002
[∅3.25±0.05]
HOLES 2 REQ'D
.450
[11.43]
.110
[2.80]
.450
[11.43]
BACK VIEW
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
RJE45-188-1XX1
Shielded
.130 [3.30]
.100 [2.54]
.120 [3.05]
.350
[8.89]
.834
[21.19]
.261
[6.63]
SIDE VIEW
TOP VIEW
.350 [8.89]
.624 [15.84]
.100 [2.54]
.050 [1.27]
.050 [1.27]
.083 [2.11]
.100 [2.54]
∅.035±0.002
[∅0.90±0.05]
HOLES 8 REQ'D
.350
[8.89]
∅.065±0.002
[∅1.65±0.05]
HOLES 2 REQ'D
∅.128±0.002
[∅3.25±0.05]
HOLES 2 REQ'D
.651
[16.54]
.120 [3.05]
.450 [11.43]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
.450
[11.43]
.110
[2.80]
BACK VIEW
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401| |Fax:
Fax:
(416)
754-8668| |Email:
Email:
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
| Telephone:
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refertotowww.amphenolcanada.com
www.amphenolcanada.comfor
forthe
the most
most recent edition.
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
edition.
78
74
C AT 6
RJE49
CAT 6, RIGHT ANGLE, LOW PROFILE, WITH LEDs
RIGHT ANGLE, LOW PROFILE, WITH LEDs
The RJE49 series of modular jacks meet CAT 6 performance per EIA-568-C.2. It supports
Gigabit Ethernet Protocols. Shielding is available for increased EMI performance and LEDs
for link activity and network verification.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tail
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
LED Wave
Length:
Operating Temperature:
-55°C to + 85°C
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
ORDERING INFORMATION
RJE49 - 1 8 8 - X X X 1 - X
Number of Ports
Packaging
1 - 1 Port
Blank - Tray
T - Tape & Reel
Number of Positions
Modifier
8 - 8 Positions
1 - 3.00mm tail length
Number of Contacts
LED Options
8 - 8 Contacts
Click to view page 3 for options
Shield Options
0 - No shield
1 - Full shield with top and side tabs
3 - Full shield with top tabs only
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
79
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
CAT 6
RJE49
RJE49
CAT
L��PROFILE,
P������,
����
LED�
CAT6,
6,R����
RIGHT A�����,
ANGLE, LOW
WITH
LEDs
Single Port
Shielded
RJE49-188-1XX1
.815 [20.70]
LED 2
(LEFT)
LED 1
(RIGHT)
Amphenol
.470
[11.95]
.118 [3.00]
.626
[15.90]
.472
[11.98]
FRONT VIEW
.665
[16.90]
SIDE VIEW
∅.044±.002
[∅1.12±0.05]
HOLES 4 REQ'D
.172 [4.38]
.513 [13.04]
.090 [2.29]
∅.035±.002
[∅0.90±0.05]
HOLES 8 REQ'D
Amphenol
.129 [3.27]
.199 [5.05]
.102 [2.60]
.292 [7.42]
.638
[16.20]
TOP VIEW
.039
[1.00]
.626
[15.90]
.040 [1.02] * 7
= 0.281 [7.14]
RECOMMENDED PCB LAYOUT
Notes
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| |Telephone:
Telephone:
(416)
291-4401| |Fax:
Fax:
(416)
754-8668| |Email:
Email:
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Pleaserefer
refertotowww.amphenolcanada.com
www.amphenolcanada.com for
for the most recent
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
recent edition.
edition.
80
76
C AT 6
RJE59
CAT 6, RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
The RJE59 series of modular jacks meet CAT 6 performance per EIA-568-C.2. It supports
Gigabit Ethernet Protocols. Shielding is available for increased EMI performance and LEDs
for link activity and network speed verification.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tail
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for
10 secs max. for one cycle with an LED
defect rate of no more than 100ppm
LED Wave
Length:
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
Operating Temperature:
-55°C to + 85°C
*Note: multiple exposures not recommended; IR Reflow compatible version also available; Consult factory for details
ORDERING INFORMATION
Number of Ports
RJE59 - 1 8 8 - X X X X - X
1 - 1 Port
Number of Positions
8 - 8 Positions
Number of Contacts
8 - 8 Contacts
Shield Options
3 - Full shield with top tabs
5 - Full shield with top and side tabs
6 - Full shield without tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
81
Packaging
Blank - Tray
T - Tape & Reel
Modifier
1 - Standard with boardlocks
2 - Without boardlocks
LED Options
Click to view page 3 for options
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
CAT 6
RJE59
RJE59
CAT 6, R���� A�����, S������� P������, ���� LED�
CAT 6, RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
Single Port
Shielded - Option 3
RJE59-188-3XX1
.631
[16.03]
.043 [1.09]
.547
[13.90]
Amphenol
.131
[3.32]
BOARD
LOCK
.100
[2.54]
.137
[3.48]
.411
[10.43]
.625
[15.88]
.117 [2.97]
.080 [2.03]
DIPPED ZONE
.197 [5.00]
.136 [3.46]
FRONT VIEW
SIDE VIEW
.040 [1.02] * 7
= .281 [7.14]
.510 [12.94]
.022 [0.55]
.100 [2.54]
.040 [1.02] TYP.
∅.044±0.002
[∅1.12±0.05] TYP.
Amphenol
.846
[21.49]
0.117 [2.97]
.080 [2.03]
∅.035±0.002
[∅0.90±0.05] TYP.
.197 [5.00]
∅.128±0.002
[∅3.25±0.05] TYP.
∅.063±0.002
[∅1.60±0.05] TYP.
.450 [11.43]
CENTER
LINE OF
BOARD
LOCKS
.625 [15.88]
TOP VIEW
.136 [3.46]
LOCATE HOLES
∅.006[0.15]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
RJE59-188-5XX1
Shielded - Option 5
.631
[16.03]
.043 [1.09]
.547
[13.90]
Amphenol
.131
[3.32]
BOARD
LOCK
.100
[2.54]
.137
[3.48]
.411
[10.43]
.625
[15.88]
.117 [2.97]
.080 [2.03]
DIPPED ZONE
.197 [5.00]
.136 [3.46]
FRONT VIEW
SIDE VIEW
.040 [1.02] * 7
= .281 [7.14]
.510 [12.94]
.022 [0.55]
.100 [2.54]
.040 [1.02] TYP.
∅.044±0.002
[∅1.12±0.05] TYP.
Amphenol
.846
[21.49]
.080 [2.03]
.197 [5.00]
∅.128±0.002
[∅3.25±0.05] TYP.
∅.063±0.002
[∅1.60±0.05] TYP.
.450 [11.43]
.625 [15.88]
TOP VIEW
0.117 [2.97]
∅.035±0.002
[∅0.90±0.05] TYP.
CENTER
LINE OF
BOARD
LOCKS
.136 [3.46]
LOCATE HOLES
∅.006[0.15]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Canada
| Telephone:
(416)
291-4401
| Fax:
(416)
754-8668| Email:
| Email:
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.Corp.
| Telephone:
(416)
291-4401
| Fax:
(416)
754-8668
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
www.amphenolcanada.comfor
forthe
themost
mostrecent
recent edition.
edition.
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
toto
www.amphenolcanada.com
82
78
C AT 6
RJE59
RJE59
CAT
6, 6,
R����
A�����,
P������,WITH
����LEDs
LED�
CAT
RIGHT
ANGLE, S�������
STANDARD PROFILE,
Single Port
Shielded - Option 6
.547
[13.90]
Amphenol
.131
[3.32]
BOARD
LOCK
RJE59-188-6XX1
.631
[16.03]
.100
[2.54]
.137
[3.48]
.411
[10.43]
.625
[15.88]
.117 [2.97]
.080 [2.03]
DIPPED ZONE
.197 [5.00]
.136 [3.46]
FRONT VIEW
SIDE VIEW
.040 [1.02] * 7
= .281 [7.14]
.510 [12.94]
.022 [0.55]
.100 [2.54]
.040 [1.02] TYP.
∅.044±0.002
[∅1.12±0.05] TYP.
Amphenol
.846
[21.49]
.080 [2.03]
.197 [5.00]
∅.128±0.002
[∅3.25±0.05] TYP.
∅.063±0.002
[∅1.60±0.05] TYP.
.450 [11.43]
.625 [15.88]
TOP VIEW
0.117 [2.97]
∅.035±0.002
[∅0.90±0.05] TYP.
CENTER
LINE OF
BOARD
LOCKS
.136 [3.46]
LOCATE HOLES
∅.006[0.15]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Notes
83
79
AmphenolCommercial
Commercial Products
Products -- Amphenol
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
Amphenol
AmphenolCanada
CanadaCorp.
Corp. | | Telephone:
Telephone:
(416)
291-4401 | | Fax:
Fax:
(416)
754-8668| |Email:
Email:
sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
CAT 6
RJE71
CAT 6, RIGHT ANGLE, RECESSED, LOW PROFILE, WITH LEDs
RIGHT ANGLED, RECESSED, LOW PROFILE, WITH LEDs
The RJE71 series of modular jacks meet CAT 6 performance per EIA-568-C.2. It supports
Gigabit Ethernet Protocols. Shielding available for increased EMI performance and LEDs for
link activity and network speed verification.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tail
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max.
LED Wave
Length:
Operating Temperature:
-55°C to + 85°C
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
UL File:
E135615
*Note: IR Reflow compatible version also available; Consult factory for
details
ORDERING INFORMATION
Number of Ports
RJE71 - X 8 8 - 1 X X X - X
1 - 1 Port
4 - 4 Ports
Number of Positions
8 - 8 Positions
Number of Contacts
8 - 8 Contacts
Shield Options
1 - Full shield with top and side tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Packaging
Blank - Tray
T - Tape & Reel
Modifier
1 - 0.125” (3.18mm)
2 - 0.089” (2.27mm)
3 - 0.085” (2.16mm)
LED Options
Click to view page 3 for options
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
84
C AT 6
RJE71
RJE71
CAT 6, R���� A�����, R�������, L�� P������, ���� LED�
CAT 6, RIGHT ANGLE, RECESSED, LOW PROFILE, WITH LEDs
Single Port
Shielded
LED 2
(LEFT)
RJE71-188-1XXX
.038 [0.97]
LED 1
(RIGHT)
.815 [20.70]
.333
[8.47]
.470
[11.95]
Amphenol
DIM A±0.20 [DIM A±.008]
TAIL LENGTH FOR
LED AND SIGNAL PIN
Part Number
.354 [8.98]
.781 [19.84]
DIM A
RJE71-188-1XX1 0.125 [3.18]
DIPPED ZONE
RJE71-188-1XX2 0.089 [2.27]
.541 [13.75]
RJE71-188-1XX3 0.085 [2.16]
SIDE VIEW
FRONT VIEW
.513 [13.04]
.665 [16.90]
.090 [2.29]
∅.044±.002 [∅1.12±0.05]
HOLES 4 REQ'D
.317 [8.05]
.247 [6.27]
∅.035±.002 [∅0.90±0.05]
HOLES 8 REQ'D
Amphenol
.410
[10.42]
.200 [5.07]
R.020 [R0.50]
.094 [2.40]
.039 [1.00]
.638 [16.20]
.040 [1.02] * 7
= .281 [7.14]
.638 [16.20]
.781 [19.84]
TOP VIEW
RECOMMENDED PCB LAYOUT
Multi Port
RJE71-488-1XX1
Shielded
.563 [14.3] * 3 = 1.689 [42.90]
LED 2 (LEFT)
Amphenol
Amphenol
Amphenol
LED 1 (RIGHT)
Amphenol
.038 [0.97]
.815 [20.70]
.333 [8.47]
.470
[11.95]
.470
[11.95]
.125 [3.18]
.354 [8.98]
2.431 [61.74]
FRONT VIEW
2.315 [58.80]
DIPPED
ZONE
.541 [13.75]
∅.0.44±.002
[∅1.12±0.05]
HOLES 16 REQ'D
∅.035±.002
[∅0.90±0.05]
HOLES 32 REQ'D
SIDE VIEW
.563 [14.3] * 3
= 1.689 [42.90]
.090 [2.29] TYP.
.090 [2.29] TYP.
.247 [6.27]
.317 [8.05]
.410
[10.42]
.502
[12.75]
.513 [13.04]
.040 [1.02] * 7 = .281 [7.14]
2.287 [58.10]
.200
[5.07]
.094 [2.40]
TOP VIEW
8185
.039 [1.00] TYP
R0.50 [R.020]
2.287 [58.10]
2.315 [58.80]
.331 [8.42]
.230 [5.84]
.200 [5.07]
2.431 [61.71]
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
Products
- Amphenol
Fax: (416)
(416) 754-8668
754-8668 || Email:
Email:sales@amphenolcanada.com
sales@amphenolcanada.com
Amphenol
Commercial
Products
- AmphenolCanada
CanadaCorp.
Corp. | | Telephone:
Telephone: (416) 291-4401 | Fax:
All specifications
subject
change
without
notice.Catalogue
Catalogueisisupdated
updated regularly.
regularly. Please
forfor
thethe
most
recent
edition.
All specifications
areare
subject
to to
change
without
notice.
Pleaserefer
refertotowww.amphenolcanada.com
www.amphenolcanada.com
most
recent
edition.
C AT 5 e / C A T 6
RJE1R
CAT 5e/CAT 6, 1 OVER 1 PORT WITH LEDs
CAT 5e, CAT 6, 1 OVER 1 PORT WITH LEDs
The RJE1R series is a unique 2x1 stacked connector. Two 8P8C ports with the option to
choose from three different performances levels for each individual port: Cat5 equivalent, Cat5e, or Cat6. Each port will meet their designated performance as per EIA-568-C.2.
Shielding available for increased EMI performance and LEDs for link activity and network
speed verification.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
IR reflow peaked at 260°C for 5 to 8 secs.
LED Wave
Length:
Operating Temperature:
-55°C to + 85°C
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
*Note: IR Reflow is not recommended for connectors with LEDs
ORDERING INFORMATION
Number of Ports
RJE1R - 2 8 8 - X X X X - X X
2 - 1 over 1 ports
Number of Contacts (Top)
Contact Tail Length
1 - 3.60mm
2 - 3.20mm
3 - 2.80mm
8 - 8 Positions
LED Options
Number of Contacts (Bottom)
See page 3 for options
8 - 8 Contacts
Contact Plating
Top Port Category Options
1 - CAT 5 compatible
2 - CAT 5e
3 - CAT 6
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Top Port Category Options
Shield Options
1 - CAT 5 compatible
2 - CAT 5e
3 - CAT 6
0 - No Shield
3 - Full shield with top tabs only
5 - Full shield with top and side tabs
6 - Full shield with no tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Click to Return to Table of Content
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
86
6 AT 6
C AT 5e/C
RJE1R
RJE1R
CAT 6, S����� P���, L�� P������, ���� LED�
CAT 5e/CAT 6, 1 OVER 1 PORT WITH LEDs
One Over One Port
RJE1R-288-XX3X-XX
Shielded
LED2 (LEFT)
16.90
30.70
LED1 (RIGHT)
TOP PORT
27.60 ±0.50
A10
A1
B1
B10
26.50
BOTTOM PORT
LED2 (LEFT)
LED1 (RIGHT)
10.00
19.10 ±0.50
3.00
10.41
1.79
2.54
2.54
SIDE VIEW
FRONT VIEW
4.45
1.27
2.54
1.15(8X)
1.57(5X)
A10
A12 A11
A7 A5
0.90(16X)
3.00(2X)
A9
A3 A1
A8 A6 A4 A2
B12
3.75 1.79
B2
B4 B6
B1 B3
B5 B7
B11
B10
9.50
10.00
16.70
B8
B9
2.54
7.60 12.68 16.90
5.06 11.66 14.20
RECOMMENDED PCB LAYOUT
Measurements: mm
Notes
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.notice.
Catalogue
is updated
regularly.
Please
referrefer
to www.amphenolcanada.com
for the
most
recent
edition.
87
All specifications
are subject
to change
without
Catalogue
is updated
regularly.
Please
to www.amphenolcanada.com
for the
most
recent
edition. 74
Amphenol Commercial Products - Amphenol Canada Corp. |
Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
C AT 6A
RJE4A
CAT 6A, SINGLE PORT, LOW PROFILE, WITH LEDs
VERTICAL, LOW PROFILE, WITH LEDs
The RJE4A series of modular jacks meet CAT 6A performance per EIA-568-C.2. It supports
Gigabit Ethernet Protocols. Shielding available for increased EMI performance and LEDs for
link activity and network speed verification.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tail
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for 5
secs max. or lead free reflow soldering
up to 260°C for 10 secs for one cycle
with an LED defect rate of no more than
1000ppm
LED Wave
Length:
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
Operating Temperature:
-55°C to + 85°C
*Note: Multiple exposures not recommended
ORDERING INFORMATION
Number of Ports
RJE4A - 1 8 8 - X X X 1 - X
1 - 1 Port
Number of Positions
8 - 8 Positions
Number of Contacts
8 - 8 Contacts
Shield Options
0 - No shield
1 - Full shield with top and bottom EMI tabs
2 - Full shield without EMI tabs, back PCB tabs
4 - Full shield without EMI tabs, front PCB tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
Packaging
Blank - Tray
T - Tape & Reel
Modifier
1 - Standard, black housing,
0.130” contact and LED tail length
LED Options
See page 3 for options
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
88
C AT 6A
RJE4A
RJE4A
CAT 6, S����� P���, L�� P������, ���� LED�
CAT 6A, SINGLE PORT, LOW PROFILE, WITH LEDs
Single Port
Non-Shielded
RJE4A-188-0X01
.470
[11.95]
.600 [15.24]
.130 [3.30]
.100 [2.54]
.655
[16.64]
.350
[8.89]
.625
[15.87]
Amphenol
.250
[6.35]
.470 [11.94]
TOP VIEW
SIDE VIEW
.600 [15.24]
.350 [8.89]
.100 [2.54]
.050 [1.27]
.050 [1.27]
.100 [2.54]
∅.035±0.002
[∅0.90±0.05]
HOLES 8 REQ'D
.642
[16.30]
.350
[8.89]
∅.128±0.002
[∅3.25±0.05]
HOLES 2 REQ'D
.450
[11.43]
.110
[2.80]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
.450
[11.43]
BACK VIEW
RECOMMENDED PCB LAYOUT
RJE4A-188-XXX1
Shielded
.130 [3.30]
.100 [2.54]
.120 [3.05]
.350
[8.89]
.834
[21.19]
.261
[6.63]
SIDE VIEW
TOP VIEW
.624 [15.84]
.350 [8.89]
.100 [2.54]
.050 [1.27]
.050 [1.27]
.083 [2.11]
.100 [2.54]
∅.035±0.002
[∅0.90±0.05]
HOLES 8 REQ'D
.651
[16.54]
.350
[8.89]
∅.065±0.002
[∅1.65±0.05]
HOLES 2 REQ'D
∅.128±0.002
[∅3.25±0.05]
HOLES 2 REQ'D
.120 [3.05]
.450 [11.43]
LOCATE HOLES
∅.005[0.13]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
.450
[11.43]
.110
[2.80]
BACK VIEW
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
89
All specifications
are subject
to change
without
notice.notice.
Catalogue
is updated
regularly.
Please
refer
to www.amphenolcanada.com
forfor
thethe
most
recent
edition.
All specifications
are subject
to change
without
Catalogue
is updated
regularly.
Please
refer
to www.amphenolcanada.com
most
recent
edition. 74
Amphenol Commercial Products - Amphenol Canada Corp. |
Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
C AT 6A
RJE7B
RIGHT ANGLED, STANDARD PROFILE, WITH LEDs
CAT 6A, RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
The RJE7B series of modular jacks meet CAT 6A performance per EIA-568-C.2. It supports
Gigabit Ethernet Protocols and 10G Ethernet over lengths of up to 100m. Shielding available for increased EMI performance and LEDs for link activity and network speed verification.
SPECIFICATIONS
Material
Insulator:
Contacts:
Electrical
High temp. thermoplastic;
Complies with UL 94V-0; Black colour
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
IR reflow peaked at 260°C for 5 to 8 secs.
LED Wave
Length:
Operating Temperature:
-55°C to + 85°C
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
*Note: IR Reflow compatible version also available; Consult factory for
details
ORDERING INFORMATION
Number of Ports
RJE7B - 1 8 8 - 1 X X X - X
1 - 1 Port
Number of Positions
8 - 8 Positions
Packaging
Blank - Tray
T - Tape & Reel
Modifier
8 - 8 Contacts
1 - 0.125” (3.18mm)
2 - 0.089” (2.27mm)
3 - 0.085” (2.16mm)
Shield Options
LED Options
Number of Contacts
1 - Full shield with top and bottom tabs
See page 3 for options
Contact Plating
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
90
C AT 6A
RJE7B
RJE7B
CAT 6, R���� A�����, R�������, L�� P������, ���� LED�
CAT 6A, RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
Single Port
Shielded
LED 2
(LEFT)
LED 1
(RIGHT)
Amphenol
RJE7B-188-1XXX
.038 [0.97]
.815 [20.70]
.333
[8.47]
.470
[11.95]
DIM A±0.20 [DIM A±.008]
TAIL LENGTH FOR
LED AND SIGNAL PIN
Part Number
.781 [19.84]
.354 [8.98]
DIPPED ZONE
RJE71-188-1XX2 0.089 [2.27]
.541 [13.75]
FRONT VIEW
.665 [16.90]
RJE71-188-1XX3 0.085 [2.16]
SIDE VIEW
.513 [13.04]
.090 [2.29]
∅.044±.002 [∅1.12±0.05]
HOLES 4 REQ'D
.317 [8.05]
.247 [6.27]
∅.035±.002 [∅0.90±0.05]
HOLES 8 REQ'D
Amphenol
DIM A
RJE71-188-1XX1 0.125 [3.18]
.410
[10.42]
.200 [5.07]
R.020 [R0.50]
.094 [2.40]
.638 [16.20]
.039 [1.00]
.040 [1.02] * 7
= .281 [7.14]
.638 [16.20]
.781 [19.84]
TOP VIEW
RECOMMENDED PCB LAYOUT
Notes
81
91
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
Commercial
Products
- Amphenol
Corp. | Telephone:
(416) 291-4401
| Fax:
754-8668 | Email: sales@amphenolcanada.com
AllAmphenol
specifications
are subject
to change
without Canada
notice. Catalogue
is updated regularly.
Please refer
to(416)
www.amphenolcanada.com
for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
C AT 6A
RJE60
RIGHT ANGLED, STANDARD PROFILE, WITH LEDs
CAT 6A, RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
The RJE60 series of modular jacks meet CAT 6A performance per EIA-568-C.2. It supports
Gigabit Ethernet Protocols. Shielding is available for increased EMI performance and LEDs
for link activity and network speed verification.
SPECIFICATIONS
Material
Electrical
Insulator:
High temp. thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with gold thickness
options (6µ”, 15µ”, 30µ”, 50µ”) over 50µ” min. nickel on
contact mating area; 100µ” min. matte tin plating on
solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tail
Mechanical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
LED Forward DC
Current:
20mA typical
LED Forward Voltage:
1.9 Volts max. at 2mA (for single colours)
2.6 Volts max. at 20mA (for bicolours)
Insertion Force:
5 lbs max.
LED Reverse Voltage:
5 Volts min.
Pull Retention Force:
20 lbs min.
LED Light Intensity:
Durability:
750 mating & unmating cycles
0.4 to 1.5 mcd min. at 2mA (for single
colours)
0.5 mcd min. at 2mA (for bicolours)
Recommended
Soldering Temperature:
Wave soldering peaked at 260°C for
10 secs max. for one cycle with an LED
defect rate of no more than 100ppm
LED Wave
Length:
Yellow: 587 ± 7 nm measured at 20mA
Green: 565 ± 6 nm measured at 20mA
Red: 625 ± 5 nm measured at 20mA
Operating Temperature:
-55°C to + 85°C
*Note: Multiple exposure not recommended; IR Reflow compatible version
also available; Consult factory for details
ORDERING INFORMATION
Number of Ports
RJE60 - 1 8 8 - X X X X - X
1 - 1 Port
Number of Positions
Packaging
Blank - Tray
T - Tape & Reel
8 - 8 Positions
Modifier
Number of Contacts
1 - Standard with boardlocks
2 - Without boardlocks
8 - 8 Contacts
Shield Options
3 - Full shield with top tabs
5 - Full shield with top and side tabs
6 - Full shield without tabs
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
LED Options
See page 3 for options
Contact Plating
1 - 6µ” gold plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
92
C AT 6A
RJE60
RJE60
CAT 6A, R���� A�����, S������� P������, ���� LED�
CAT 6A, RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
Single Port
Shielded - Option 3
.631
[16.03]
.043 [1.09]
.547
[13.90]
Amphenol
.131
[3.32]
BOARD
LOCK
RJE60-188-3XX1
.100
[2.54]
.137
[3.48]
.411
[10.43]
.625
[15.88]
.117 [2.97]
.080 [2.03]
DIPPED ZONE
.197 [5.00]
.136 [3.46]
FRONT VIEW
SIDE VIEW
.040 [1.02] * 7
= .281 [7.14]
.510 [12.94]
.022 [0.55]
.100 [2.54]
.040 [1.02] TYP.
∅.044±0.002
[∅1.12±0.05] TYP.
Amphenol
.846
[21.49]
0.117 [2.97]
.080 [2.03]
∅.035±0.002
[∅0.90±0.05] TYP.
.197 [5.00]
∅.128±0.002
[∅3.25±0.05] TYP.
∅.063±0.002
[∅1.60±0.05] TYP.
.450 [11.43]
CENTER
LINE OF
BOARD
LOCKS
.625 [15.88]
TOP VIEW
.136 [3.46]
LOCATE HOLES
∅.006[0.15]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
RJE60-188-5XX1
Shielded - Option 5
.631
[16.03]
.043 [1.09]
.547
[13.90]
Amphenol
.131
[3.32]
BOARD
LOCK
.100
[2.54]
.137
[3.48]
.411
[10.43]
.625
[15.88]
.117 [2.97]
.080 [2.03]
DIPPED ZONE
.197 [5.00]
.136 [3.46]
FRONT VIEW
SIDE VIEW
.040 [1.02] * 7
= .281 [7.14]
.510 [12.94]
.022 [0.55]
.100 [2.54]
.040 [1.02] TYP.
∅.044±0.002
[∅1.12±0.05] TYP.
Amphenol
.846
[21.49]
∅.063±0.002
[∅1.60±0.05] TYP.
.450 [11.43]
.625 [15.88]
8393
.080 [2.03]
.197 [5.00]
∅.128±0.002
[∅3.25±0.05] TYP.
TOP VIEW
0.117 [2.97]
∅.035±0.002
[∅0.90±0.05] TYP.
CENTER
LINE OF
BOARD
LOCKS
.136 [3.46]
LOCATE HOLES
∅.006[0.15]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Amphenol
Commercial
(416) 291-4401 || Fax:
Fax:(416)
(416)754-8668
754-8668 || Email:
Email:sales@amphenolcanada.com
sales@amphenolcanada.com
Amphenol
CommercialProducts
Products- -Amphenol
AmphenolCanada
CanadaCorp.
Corp. || Telephone: (416)
All All
specifications
areare
subject
toto
change
regularly. Please
Pleaserefer
refertotowww.amphenolcanada.com
www.amphenolcanada.com
most
recent
edition.
specifications
subject
changewithout
withoutnotice.
notice.Catalogue
Catalogue is
is updated regularly.
forfor
thethe
most
recent
edition.
C AT 6A
RJE60
RJE60
CAT 6A, R���� A�����, S������� P������, ���� LED�
CAT 6A, RIGHT ANGLE, STANDARD PROFILE, WITH LEDs
Single Port
Shielded - Option 6
RJE60-188-6XX1
.631
[16.03]
.547
[13.90]
Amphenol
.131
[3.32]
BOARD
LOCK
.100
[2.54]
.137
[3.48]
.411
[10.43]
.625
[15.88]
.117 [2.97]
.080 [2.03]
DIPPED ZONE
.197 [5.00]
.136 [3.46]
FRONT VIEW
SIDE VIEW
.040 [1.02] * 7
= .281 [7.14]
.510 [12.94]
.022 [0.55]
.100 [2.54]
.040 [1.02] TYP.
∅.044±0.002
[∅1.12±0.05] TYP.
Amphenol
.846
[21.49]
.080 [2.03]
.197 [5.00]
∅.128±0.002
[∅3.25±0.05] TYP.
∅.063±0.002
[∅1.60±0.05] TYP.
.450 [11.43]
.625 [15.88]
TOP VIEW
0.117 [2.97]
∅.035±0.002
[∅0.90±0.05] TYP.
CENTER
LINE OF
BOARD
LOCKS
.136 [3.46]
LOCATE HOLES
∅.006[0.15]
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PCB LAYOUT
Notes
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.
(416)
291-4401
(416)
754-8668
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.| |Telephone:
Telephone:
(416)
291-4401| |Fax:
Fax:
(416)
754-8668| |Email:
Email:
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
edition.
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Pleaserefer
refertotowww.amphenolcanada.com
www.amphenolcanada.comfor
for the
the most recent edition.
94
84
RJE17
RJ45 COUPLER
RJ45 COUPLER
The RJE17 coupler provides connections through barriers such as equipment covers and
panels. They are locked into place with a panel latch for secure mounting. Available in CAT 3
and CAT 5e performance. The added shielding provides optional EMI protection.
SPECIFICATIONS
Material
Mechanical
Insulator:
Engineering thermoplastic;
Complies with UL 94V-0; Black
Contacts:
Phosphor bronze hard temper with several gold thickness options over 50µ” min. nickel on contact mating
area (refer to drawing below)
Shield:
Stainless steel with tin dipped tails
Insertion Force:
5 lbs max.
Pull Retention Force:
20 lbs min.
Durability:
750 mating & unmating cycles
Operating Temperature:
-40°C to + 70°C
Operating Temperature:
-40°C to + 85°C
Electrical
Contact Resistance
20 mΩ max.
Insulation resistance:
500 MΩ min. at 500V DC for 2 mins max.
Current Rating:
1.25 Amps per contact
Voltage Rating:
125 Volts AC
DWV:
1000 VAC, 60 Hz. 1 min.
ORDERING INFORMATION
Number of Ports
RJE17 - 2 8 8 - X X X X
2 - 2 Port
Number of Positions
8 - 8 Positions
Number of Contacts
8 - 8 Contacts
Shield Options
0 - No shield
1 - Full shield
Didn’t find what you were looking for?
Please contact sales@amphenolcanada.com and let us know what you need.
95
Modifier
1 - CAT 3, matte tin plating on internal tail
3 - Cat 5e, matte tin plating on internal tail
Port Options
1 - Both ports are tab down
2 - One port is tab up, other is tab down
Contact Plating
2 - 15µ” gold plating
3 - 30µ” gold plating
4 - 50µ” gold plating
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
RJE17
RJE17
RJ45 C������
RJ45 COUPLER
Single Port
RJE17-288-1X21
Shielded
18.54 [.730]
19.09 [.752]
14.48 [.570]
17.54 [.691]
21.00 [.827]
20.20 [.795]
16.13
[.635]
8.37 [.330]
19.70 [.776]
18.80 [.740]
1.55 [.061]
27.46 [1.081]
FRONT VIEW
SIDE VIEW
REAR VIEW
Notes
Amphenol
Commercial
Products
- Amphenol
Canada
| Telephone:
291-4401
| Fax:
(416)
754-8668
| Email:
sales@amphenolcanada.com
Amphenol
Commercial
Products
- Amphenol
Canada
Corp.Corp.
| Telephone:
(416)(416)
291-4401
| Fax:
(416)
754-8668
| Email:
sales@amphenolcanada.com
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
to www.amphenolcanada.com
the
mostrecent
recentedition.
edition.
All specifications
are subject
to change
without
notice.
Catalogue
is updated
regularly.
Please
refer
to www.amphenolcanada.com
forfor
the
most
96
86
STACKED
RJSDE
RJSAR
RJE36
(RJ over USB)
RJSFE
Click to Return to Table of Contents
97
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
HIGH PERFORMANCE
CAT 5e
RJE1A
RJE2A
CAT 6
RJE1B
CAT 6A
RJE1C
RJE50
Click to Return to Table of Contents
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
98
DUST COVERS & OTHERS
Dust Covers
FRJ-2611
FRJ-2411
Other
RJE1L
Click to Return to Table of Contents
99
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
NOTES
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
100
Amphenol
605 Milner Avenue
Toronto, Ontario
Canada, M1B 5X6
www.amphenolcanada.com (www.amphenol-icc.com)
Telephone: (416) 291-4401
Fax: (416) 754-8668
E-mail: sales@amphenolcanada.com
All specifications are subject to change without notice.
Amphenol Commercial Products - Amphenol Canada Corp. | Telephone: (416) 291-4401 | Fax: (416) 754-8668 | Email: sales@amphenolcanada.com
28/02/18
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
