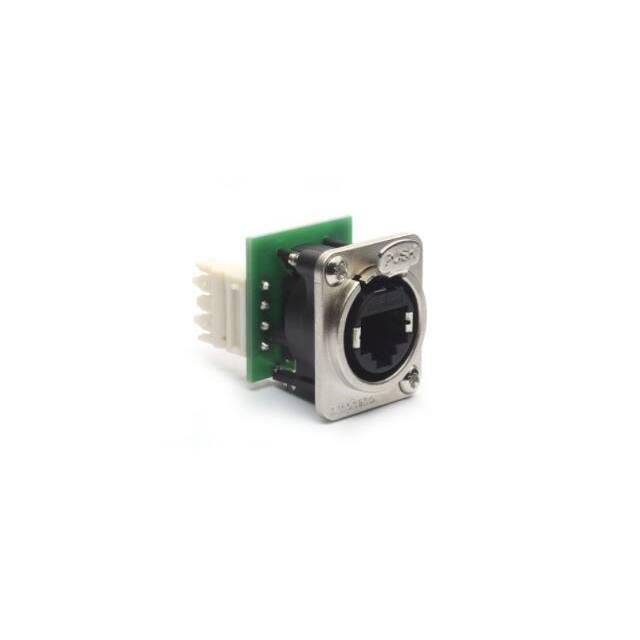

RJX8FD5110

19.00 [.748] 4 19.8 [.780] 45.4 [1.789] 3 2 1 26.0 [1.024] 16.0 [.630] F 19.00 [.748] 35.0 [1.378] 24.00 [.945] F E 5 24.00 [.945] 6 n 24.0 [.945] E METAL FLANGE ASSEMBLED FRONT PANEL D 17.8 [.701] 43.4 [1.710] 2 x n 3.20 [.126] PANEL CUT OUT 3:2 ( CONNECTOR FRONT VIEW) D 16.0 [.630] 31.0 [1.220] 24.00 [.945] C 19.00 [.748] AT PANEL REAR SIDE C 3D VIEW 26.0 [1.024] 6 5 ol Au s en 20 UNLESS OTHERWISE SPECIFIED TOLERANCE TO BE LINEAR ANGULAR X ± 0.5 X~ ±1 X.X ± 0.1 X.X' ± 30' X.X ± 0.05 X.X'X " ± 15' BREAK ALL SHARP EDGES AND REMOVE ALL BURRS DO NOT SCALE 4 B HS Ro liant Co m Amp h SPECIFICATIONS: 1. MATERIALS: - PLASTIC INSERT & HOUSING: HIGH TEMPERATURE THERMOPLASTIC FLAMMABILITY RATING UL94V-0    DSM Stanyl, 30% BLACK - FRONT METAL SHELL: ZINC ALLOY ZAMAK 3, NICKEL PLATE. - CONTACTS: PHOSPHORE BRONZE, 1.27 um GOLD PLATE ON MATING SURFACES, 1.27 um NICKEL MIN UNDERPLATE. 3.81 um MIN MATTE TIN ON CONTACT TAILS. - LATCH LOCK AND SPRING: SPRING STEEL, NICKEL PLATE. - EMI/RFI HOOD: BRASS, TIN PLATE 2. ELECTRICAL CHARACTERISTICS: - RATED VOLTAGE: 125 VAC - TYPICAL CONTACT RESISTANCE: 20 mOhm - INSULATION RESISTANCE: >500 MOhm - DIELECTRIC STRENGTH: 1000 VAC, 60 SECONDS - TRANSMISSION SPECIFICATION/CLASS: COMPLIES WITH CAT5e 1000 PER EIA-568-C.2 AND ISO 11801 - PoE+ COMPLIES WITH 802.3at Type 2. p ali a A METAL FLANGE ASSEMBLED AT PANEL FRONT SIDE tr B 1:1 U 1 1 / 6 5/ E THIS DOCUMENT IS THE PROPERTY OF AMPHENOL AUSTRALIA PTY. LTD. . NO PART THEREOF MAY BE REPRODUCED AND USED WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER. MATERIAL: REFER SPECIFICATION FINISH: DIMENSIONS IN MILIMETRES 3 THIRD ANGLE PROJECTION DRN: T.N DATE: 06/03/14 CKD: P.M DATE: 06/03/14 APP'D: P.M DATE: 06/03/14 SCALE: 3:2 SIZE: A3 Amphenol TITLE: Amphenol Australia Pty.Ltd, 20 Industry Blvd, Carrum Downs VIC 3201 Australia XLRnet D TYPE CAT5e PUNCHDOWN 110 TYPE CUSTOMER DRAWING 2 PART No: REV RJX8FD5110B DRAWING No. 1 SHEET 55010960-000 1 2/2 A
