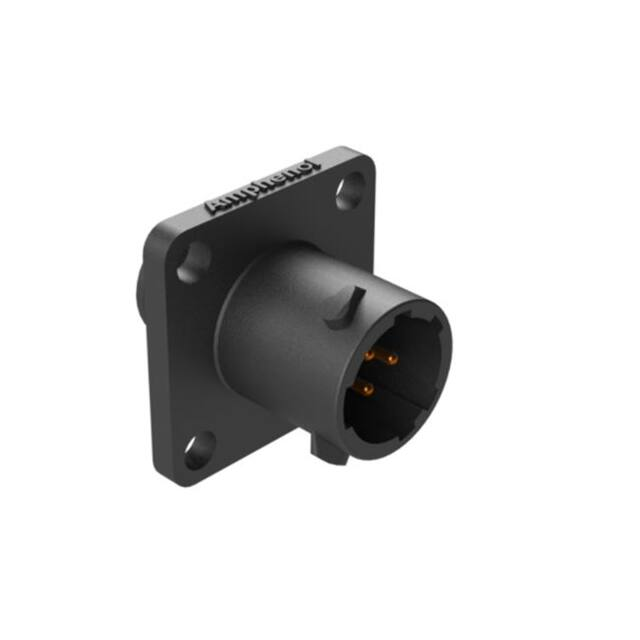

RTS08N4P

REVISIONS REV ECO DATE BY APPR A1 -- RELEASED DRAWING Jun-30-2017 Nick Tommy A2 -- UPDATE DRAWING Mar-16-2018 White Tommy A3 -- UPDATE DRAWING Apr-10-2018 White Tommy DESCRIPTION TITLE: MASTER KEYWAY .1 Ø11.9 15.3 ECO-MATE, RECEPTACLE,FLANGE, SIZE 8, 4 POS, PIN RTS08*4P YYWW 20.6 3 4-Ø 11.7 2.2 15.3 24.3 20.6 DWG NO: ) ting un l Mo ne +0.2 (F 4 2. 0 or F RTS08*4P 15.3 Ø1 Ø14.5+0.2 0 (For Re a r Panel M 4-Ø3 . N RTS08N4P SH: 20+0.20 A3 15.3 1 OF: PANEL CUT OUT REFERENCE 1 2.7 MATING CYCLES DURABILITY：500 CYCLES MIN. 2.8 RoHS COMPLIANT. 3. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. PART NUMBER ounting) ITEM DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY UNLESS OTHERWISE SPECIFIED SIGNATURES PANEL EXTERNAL. KEY REV: NOTES：(UNLESS OTHERWISE SPECIFIED) 1. MATERIAL： SHELL：THERMOPLASTIC，UL94 V-0. INSERT：CHLOROPRENE RUBBER. SEAL GASKET：NBR. CONTACT : COPPER ALLOY , GOLD PLATED. 2. SPECIFICATIONS： 2.1 RATED CURRENT：7A (MAX). 2.2 RATED VOLTAGE：250V(AC/DC). 2.3 OPERATING TEMPERATURE：-40°C ~ +105°C . 2.4 DIELECTRIC WITHSTANDING VOLTAGE：LESS THAN 2 MILLIAMPS CURRENT LEAKAGE@1500 VOLTS AC. 2.5 INSULATION RESISTANCE：5000 MEGOHMS MIN. 2.6 IP--CLASS：IP67 AND IP69K IN THE MATED CONDITION, Pa ront 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 DATE Amphenol DRAWN: CHECKED: White Tod Apr-10-2018 Apr-10-2018 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: 3) Note reference = X APPROVAL: Tommy MATERIAL SPECIFICATIONS: Apr-10-2018 CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. B NEXT ASS'Y: ECO-MATE, RECEPTACLE, FLANGE, SIZE 8, 4 POS, PIN TYPE C- NONE DWG NO: REVISION RTS08*4P SHEET A3 1 OF 1
