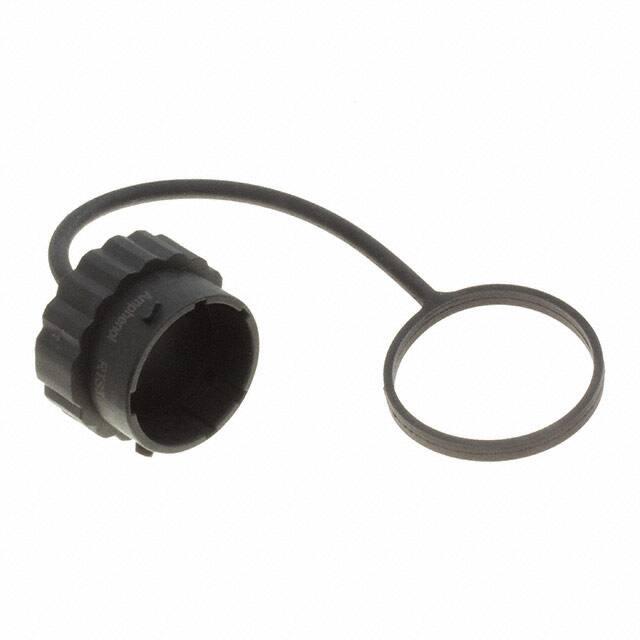

RTS616NDCG

REVISIONS REV ECO A1 -- DATE BY APPR Dec-26-2016 Ben Tommy DESCRIPTION RELEASED DRAWING 145 Max TITLE: .5 Amphenol RTS6 ECO-MATE,PLUG SEALING CAP,SIZE 16 30.1 30 DWG NO: RTS616*DCG* PART NUMBER KEY N -40°C ~ 125°C RTS616*DCG RTS616*DCG03 REV: A1 SH: 1 OF: 1 NOTES：(UNLESS OTHERWISE SPECIFIED) 1. MATERIAL： SHELL：THERMOPLASTIC，UL94 V-0. SEAL GASKET：NBR OR SR. 2. SPECIFICATIONS： 2.1 OPERATING TEMPERATURE：SEE TABLE. 2.2 INSULATION RESISTANCE：5000 MEGOHMS MIN. 2.3 IP CLASS：IP67. 2.4 MATING CYCLES DURABILITY：500 CYCLES MIN. 2.5 RoHS COMPLIANT. 3. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. -40°C ~ 105°C ITEM DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY UNLESS OTHERWISE SPECIFIED SIGNATURES 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 DATE Amphenol DRAWN: Ben Dec-26-2016 CHECKED: Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: 3) Note reference = X APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: ECO-MATE,PLUG SEALING CAP,SIZE 16 PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. B NEXT ASS'Y: TYPE C- NONE DWG NO: REVISION RTS616*DCG* SHEET A1 1 OF 1
