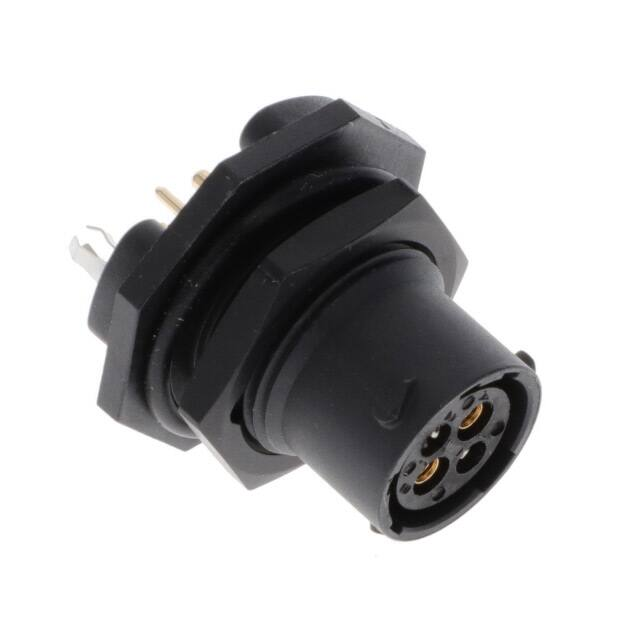

RTS710ND2S0332

NOTES: (UNLESS OTHERWISE SPECIFIED) 1. MATERIAL: SHELL: THERMOPLASTIC, UL94 V-0. INSERT: THERMOPLASTIC, UL94 V-0. O-RING: SILICONE RUBBER. SEAL GASKET: SILICONE RUBBER. JAM NUT: ALUMINIUM ALLOY, BLACK ANODIZING. CONTACT: COPPER ALLOY,GOLD PLATED. LOCKING POSTS: COPPER ALLOY, TIN PLATED. 2. SPECIFICATIONS: 2.1 RATED CURRENT: 2.1.1 16# CONTACT 13A (MAX). 2.1.2 20# MACHINED CONTACT 7.5A (MAX). 2.2 RATED VOLTAGE: 500V(AC/DC). 2.3 OPERATING TEMPERATURE: -40C - 125C. 2.4 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE@2000 VOLTS AC. 2.5 INSULATION RESISTANCE: 5000 MEGOHMS MIN. 2.6 IP--CLASS: IP67 AND IP69K IN THE MATED CONDITION. 2.7 MATING CYCLES DURABILITY: 500 CYCLES MIN. 2.8 RoHS COMPLIANT. 3. SUITABLE CONTACTS: 16# & 20# CONTACTS. 4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. RECOMMEND MOUNTING HOLE RECOMMEND PCB LAYOUT KEY PART NUMBER N RTS710ND2S0332 W RTS710WD2S0332 X RTS710XD2S0332 ECOMATE® AQUARIUS™, RECEPTACLE, JAM NUT, SIZE 10, 4POS(2+2), SOCKET Y RTS710YD2S0332 Z RTS710ZD2S0332 RTS710*D2S0332
