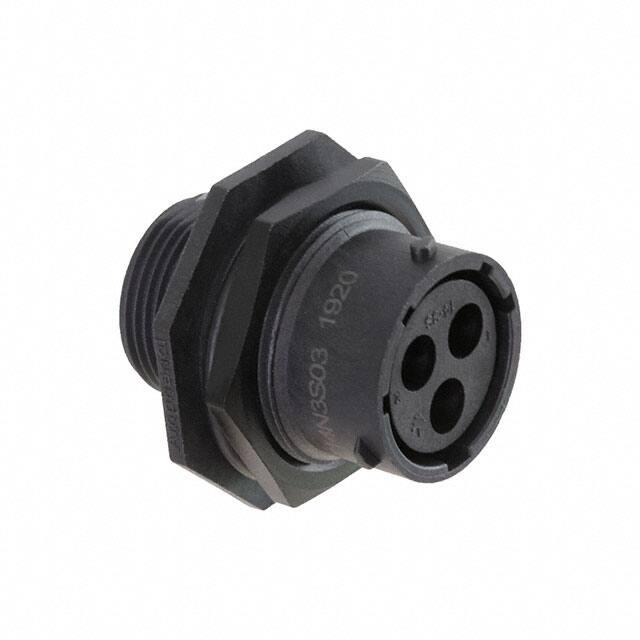

RTS714N3S03

REVISIONS REV ECO A1 -- A2 -- DATE BY APPR RELEASED DRAWING Jun-15-18 White TOMMY UPDATE NOTES Oct-18-2018 Blink Tommy DESCRIPTION 33.4 35 19.3 30.2 MASTER KEYWAY TITLE: ECO-MATE,RECEPTACLE,JAM NUT,SIZE 14,3POS,SOCKET Ø22.2 RTS714*3Sxx XXXX UNEF 13/16 20 THREAD DWG NO: Ø2 5.6 +0 .2 SEE TABLE. RTS714*3Sxx 24.2+0.2 -0 -0 PART NUMBER KEY 2 MILLIAMPS CURRENT LEAKAGE@2500 VOLTS AC. -40°C ~ 125°C RTS714N3S RTS714N3S03 N REV: -40°C ~ 105°C A2 SH: IN THE MATED CONDITION, WIRE SEALS FULLY POPULATED. 2.8 RoHS COMPLIANT. 1 PANEL CUTOUT REFERENCE THICKNESS:3.2MM (MAX) OF: 1 A2 CONTACT SIZE CONTACT PN WIRE RANGE CORD GRIP ITEM DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY UNLESS OTHERWISE SPECIFIED SIGNATURES MS10A23x-25 MS10A23x-63 16 - 14AWG 12 - 10AWG 8# MS10A23x-10 BACK SHELL 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 DATE Amphenol DRAWN: CHECKED: Blink Tod Oct-18-2018 Oct-18-2018 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: 3) Note reference = X APPROVAL: 8 AWG Tommy MATERIAL SPECIFICATIONS: Oct-18-2018 CUSTOMER: MS10A23x 12 - 10AWG END CAP IN THE CONTACT PN,"x" DENOTE DIFFERENT PLATING. 4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. B NEXT ASS'Y: ECO-MATE,RECEPTACLE, JAM NUT, SIZE 14,3POS,SOCKET TYPE C- NONE DWG NO: REVISION RTS714*3Sxx SHEET A2 1 OF 1 ecomate® RM/RSSM/Aquarius™ - Contact Size 3.6mm (1403 Insert Arrangement) Options Crimp Contacts, 1403 Insert Arrangement, Machined Part Number Male Female AWG Wire Range (mm²) For Use w Endcap Plating MP10A23T-10 MS10A23T-10 8 10.0 No Tin MP10A23S-10 MS10A23S-10 8 10.0 No Silver Gold Flash MP10A23F-10 MS10A23F-10 8 10.0 No MP10A23G5-10 MS10A23G5-10 8 10.0 No Gold 5µ" MP10A23G10-10 MS10A23G10-10 8 10.0 No Gold 10µ" MP10A23G15-10 MS10A23G15-10 8 10.0 No Gold 15µ" MP10A23G30-10 MS10A23G30-10 8 10.0 No Gold 30µ" MP10A23S-63 MS10A23S-63 12-10 4.0 - 6.0 No Silver MP10A23F-63 MS10A23F-63 12-10 4.0 - 6.0 No Gold Flash MP10A23TL MS10A23T 12-10 3.0 - 6.0 Yes Tin MP10A23SL MS10A23S 12-10 3.0 - 6.0 Yes Silver MP10A23FL MS10A23F 12-10 3.0 - 6.0 Yes Gold Flash MP10A23G5L MS10A23G5 12-10 3.0 - 6.0 Yes Gold 5µ" MP10A23G10L MS10A23G10 12-10 3.0 - 6.0 Yes Gold 10µ" MP10A23G15L MS10A23G15 12-10 3.0 - 6.0 Yes Gold 15µ" MP10A23G30L MS10A23G30 12-10 3.0 - 6.0 Yes Gold 30µ" MP10A23S-25 MS10A23S-25 16-14 1.5 - 2.5 No Silver MP10A23F-25 MS10A23F-25 16-14 1.5 - 2.5 No Gold Flash Tooling, Machined Part Number Description QXRT08 Contact Extraction Tool, # 8 (Ø 3.6mm) Contact M300BT Hand Crimper WA27-300BT-EP TP968 Pneumatic Crimper Locator M3200BT and WA27-300BT-EP Plating Options Symbol Plating T Tin Plating Over Nickel S Silver Plating Over Nickel F Gold Plated G5 Gold Plated (Thickeness 5µ") G10 Gold Plated (Thickeness 10µ") G15 Gold Plated (Thickeness 15µ") G30 Gold Plated (Thickeness 30µ") Amphenol Sine Systems 44724 Morley Drive, Clinton Township, MI 48036 USA www.amphenol-sine.com 09/2021
