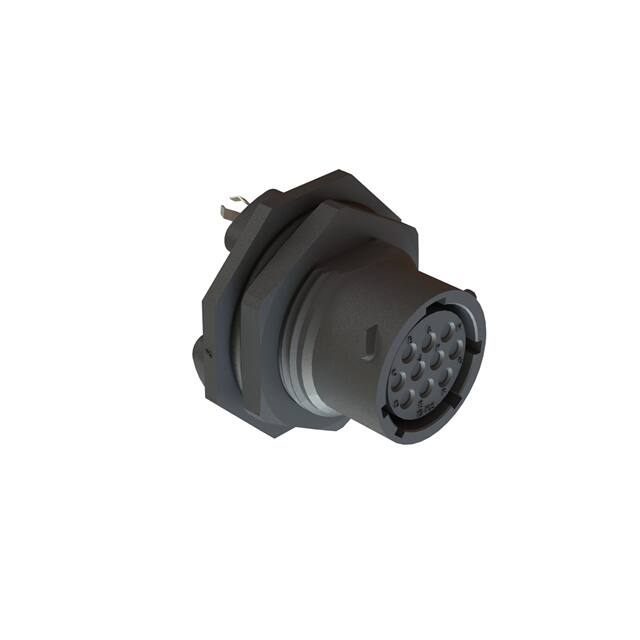

RTS714ND8S03

MASTER KEYWAY NOTES: (UNLESS OTHERWISE SPECIFIED) 1. MATERIAL: SHELL: THERMOPLASTIC, UL94 V-0. INSERT: THERMOPLASTIC, UL94 V-0. O-RING: SILICONE RUBBER. SEAL GASKET: SILICONE RUBBER. JAM NUT: ALUMINIUM ALLOY, BLACK ANODIZING. CONTACT: COPPER ALLOY,GOLD PLATED. 2. SPECIFICATIONS: 2.1 RATED CURRENT: 13A (MAX). 2.2, RATED VOLTAGE: 500V (AC/DC). 2.3, OPERATING TEMPERATURE: -40C - 125C. 2.4 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE@2000 VOLTS AC. 2.5 INSULATION RESISTANCE: 5000 MEGOHMS MIN. 2.6 IP--CLASS: IP67 AND IP69K IN THE MATED CONDITION. 2.7 MATING CYCLES DURABILITY: 500 CYCLES MIN. 2.8 RoHS COMPLIANT. 3. SUITABLE CONTACTS: 16# CONTACT 4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. PAD POSITION RECOMMEND MOUNTING HOLE KEY PART NUMBER N RTS714ND8S03 W RTS714WD8S03 X RTS714XD8S03 Y RTS714YD8S03 Z RTS714ZD8S03 RECOMMEND PCB LAYOUT ECOMATE® AQUARIUS™, RECEPTACLE, JAM NUT, 8POS, SOCKET CONTACT, DIPSOLDER, SIZE 14 RTS714*D8S03
