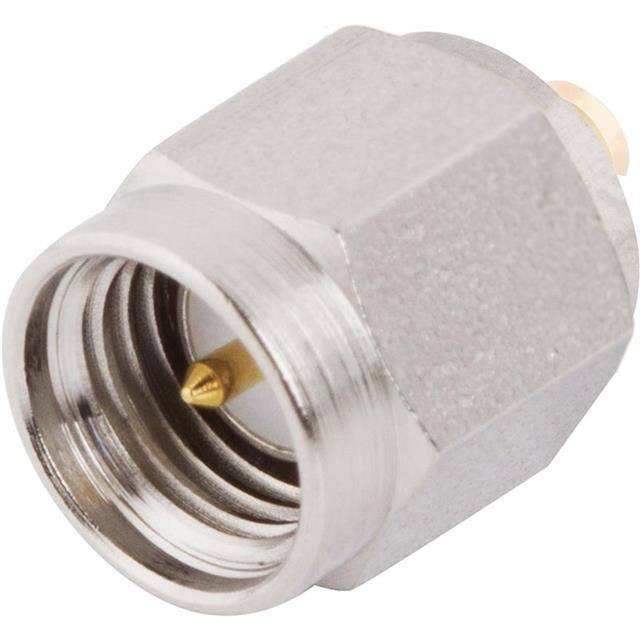

SF2906-6002

ROHS COMPLIANT REVISION HISTORY DESCRIPTION REV PRODUCT DATA DRAWING DATE APPROVED B REL. DCN 32900 03/05 BRT C DCN 41517 07/15 STW .442 11.227 .330 8.382 .190 4.826 MATERIAL: BODY & COUPLING NUT: STAINLESS STEEL LOCK RING: BERYLLIUM COPPER CONTACT: BRASS INSULATOR: PTFE GASKET: SILICONE RUBBER 5/16 HEX. FINISH: COUPLING NUT: PASSIVATED BODY & CONTACT: GOLD OVER NICKEL MATERIAL: SEE ABOVE DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL: FINISH: PERFORMANCE: SEE ABOVE SURFACE AREA: IMPEDANCE: FREQ. RANGE: 50 OHMS DC TO 18.0 GHz. N/A PROPRIETARY THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SV MICROWAVE, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF SV MICROWAVE, INC IS PROHIBITED. DECIMAL: .X .XX .XXX 1/64 ANGULAR: X X X' 1 0' 15' .030 .010 .005 INTERPRET DIMENSIONS AND TOLERANCES PER ASME Y14.5M - 1994 THIRD ANGLE PROJECTION UNLESS OTHERWISE SPECIFIED 1) ALL DIMENSIONS ARE AFTER PLATING. 2) BREAK CORNERS & EDGES .005 R. MAX. 3) CHAM. 1ST & LAST THREADS. 4) SURFACE ROUGHNESS 63 S MIL-STD-10. 5) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC WITHIN .005 T.I.R. 6) REMOVE ALL BURRS DRAWN: JI 08/20/93 CHECKED: APPROVED: DWC 08/23/93 DWC 08/23/93 2400 Centrepark West Drive, Suite 100 West Palm Beach, FL 33409 TITLE: SMA STRAIGHT PLUG FOR Ø.085 CABLE SIZE CAGE CODE DWG. NO. B 95077 SCALE: 4:1 SF2906-6002 SHEET 1 OF 1
