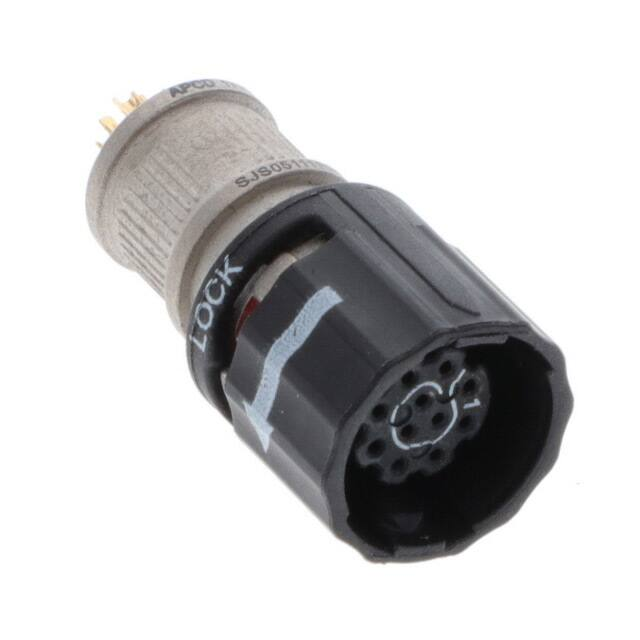

SJS0511110P

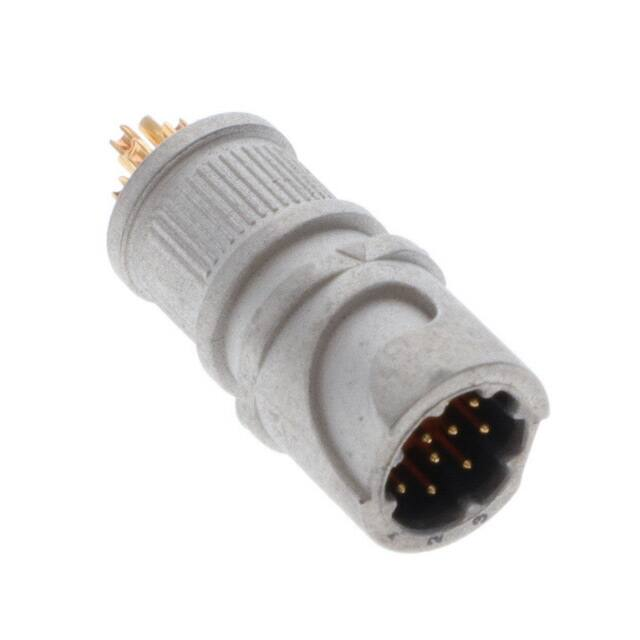

NANO PEGASUS Overview Nano-Pegasus & Nano-Luminus build upon APCD’s success in light weight, plastic circular connectors in the aerospace market, in a very small way. Nano-Pegasus & Nano-Luminus are small, plastic, easy to use connectors designed specifically for sensing, command and control applications where a Micro or Nano Dsub would be used. Nano-Pegasus & Nano-Luminus provide exceptional performance in tight spaces, packing 11 high grade contacts in a shell size 5 housing (0.325” outer diameter). That’s equivalent to 132 contacts per square inch! Contacts are rated for 1a. With 0.050” spacing, this gives 1000MΩ insulation resistance, and 250Vrms withstand at sealevel. Scoop proof construction and enclosed contacts protect the small gauge contacts during mating. When mated, IP67 sealing is guaranteed by the interfacial seal, helping ensure the contacts are free from dust, moisture and corrosion. And unlike many of the competitive connectors, which are multi-piece assemblies, Nano-Pegasus & Nano-Luminus shells are a single piece housing, impervious to humidity and dust, further enhancing clean, crack free operations over the full operating temperature and environmental conditions. Shells are a high grade polyethermide construction, providing a temperature range of -65C to +150C, and high mating cycles, making Nano-Luminus suitable for man/machine interfaces. Nano-Pegasus adds a copper & nickel overplate, providing 40db to 60db EMI shielding. Available in solder cup for user assembly or as a finished good pig tail assembly. Cable Configurations & Drawings SERIES ALPHA NUMERIC IDENTIFIER MCS 0001 Standard size Luminus/Pegasus APCD Unique Identifier CONNECTOR STYLE A: Inline Receptacle SHELL SIZE 05 (11, Size 28) POSITIONS Example: 11=11 Positions MCN Nano Luminus/ Pegasus KEY FIELD A PLATING N: Not Plated CONTACT TYPE P: Pins Features & Benefits C: Crimp S: Solder B P: Plated B: Inline Plug TERMINATION TYPE S: Sockets C 1⁄4 Turn Cam Lock Easy to use, blind mate with audible click and visual locking aids Interfacial & Wire sealing IP67 performance for use in human interface, wet and damp applications Polyethermide Single Piece Housing High temperature resistance, resistance to a large number of harsh fuels & chemicals, a long working life & high mating cycles 7.5 grams / mated pair Lighter weight means longer flight times, larger payloads, longer battery life in non-static applications 28 awg wire barrel 1.5A continuous over full voltage and temperature range 0.050” Contact Spacing Very high density interconnect, equivalent to 132 contacts per sq inch 30μ inch gold plated contacts Long working life & high mating cycles Nickel / Copper plating Up to 60db EMI shielding typical, depending on frequency of interest E: Jamnut Pcb D E Materials & Specifications Shock 300G, 3 Axis Vibration 43.9G Random Flammability & Toxicity Meets FAR Par 25 Appendix F, Part 1 Sealing IP67 when mated Fluid Resistance Skydrol, Ethylene Glycol, Jet A, more Salt Spray 5% solution 96 hrs. Temperature -65°C to +150°C EMI Shielding 50db typical • • • F H: Flange Rear Mount Applications • F: Oval Flange Communications via single and dual USB2.0, CAN Bus, USB3.0, CAT5 & CAT6 ethernet, or user defined low and medium speed requirements. Command and Control as typically found in subsystem interconnects with user defined high density data and low power signaling. Sensor connectivity, such as found in missile and munition guidance systems, infrared target acquisition and tracking gimbels, angle of attack and inertial guidance systems. Low pin count Micro (M83513) & Nano (M32139) DSub alternative where a circular connector is more appropriate. Visit amphenolpcd.com for more information * TBD: Square Flange, Circular Flange, Flange Front Mount Amphenol Pcd Contact info@amphenolpcd.com CABLE LENGTH Example: 072=72 in. Lengh Amphenol Pcd NANO PEGASUS Supported Contacts Integral Solder Cup or wire crimp. C54400 Bronze Alloy with 30 micro-inches gold plate. 28 awg pin barrel. Wire barrel accepts 28 or 30 wire gauges. (0.126” / 0.32mm or 0.01” / 0.254mm) Existing Cable Assemblies Position Style Pigtail Plug/Receptacle Crimp/Solder Cable Type MCN0000A0511ANPC-006 11 Nano Luminus Pigtail Receptacle Crimp 28 AWG wire, no braid MCN0000B0511ANSC-006 11 Nano Luminus Pigtail Plug Crimp 28 AWG wire, no braid MCN0000A0511ANPS-006 11 Nano Luminus Pigtail Receptacle Solder 28 AWG wire, no braid MCN0000B0511ANSS-006 11 Nano Luminus Pigtail Plug Solder 28 AWG wire, no braid MCN0001A0511APPS-006 11 Nano Pegasus Pigtail Receptacle Solder 28 AWG wire, metal Braid MCN0001B0511APSS-006 11 Nano Pegasus Pigtail Plug Solder 28 AWG wire, metal braid MCN0001A0511APPC-006 11 Nano Pegasus Pigtail Receptacle Crimp 28 AWG wire, metal braid MCN0001B0511ASPC-006 11 Nano Pegasus Pigtail Plug Crimp 28 AWG wire, metal braid MCN0002A0511ANPC-006 11 Nano Luminus Pigtail Receptacle Crimp 28 AWG wire, Nomex braid MCN0002B0511ANSC-006 11 Nano Luminus Pigtail Plug Crimp 28 AWG wire, Nomex braid MCN0002A0511ANPS-006 11 Nano Luminus Pigtail Receptacle Solder 28 AWG wire, Nomex braid MCN0002B0511ANSS-006 11 Nano Luminus Pigtail Plug Solder 28 AWG wire, Nomex braid Amphenol Pcd NANO PEGASUS Small, easy to use connectors that provide exceptional performance in tight spaces. Configurations & Ordering Info Product Line Solder Cup Crimp (Available as a crimp pigtail configurations only) 11 pin inline plug Nano Pegasus SJS0511110P SJS051111P 11 pin inline receptacle Nano Pegasus SJS0511120P SJS0511121P 11 pin Jamnut panel mount Nano Pegasus SJS0511190P SJS0511191P 11 pin Jamnut pcb mount Nano Pegasus SJS0511160P SJS0511161P 11 pin Oval flange mount Nano Pegasus SJS0511170P SJS0511171P 11 pin inline plug Nano Luminus SJS0511110 SJS0511111 11 pin inline receptacle Nano Luminus SJS0511120 SJS0511211 11 pin Jamnut panel mount Nano Luminus SJS0511190 SJS0511191 11 pin jamnut pcb mount Nano Luminus SJS0511160 SJS0511161 11 pin Oval flange mount Nano Luminus SJS0511170 SJS0511171 Description Contact produced@amphenolpcd.com
