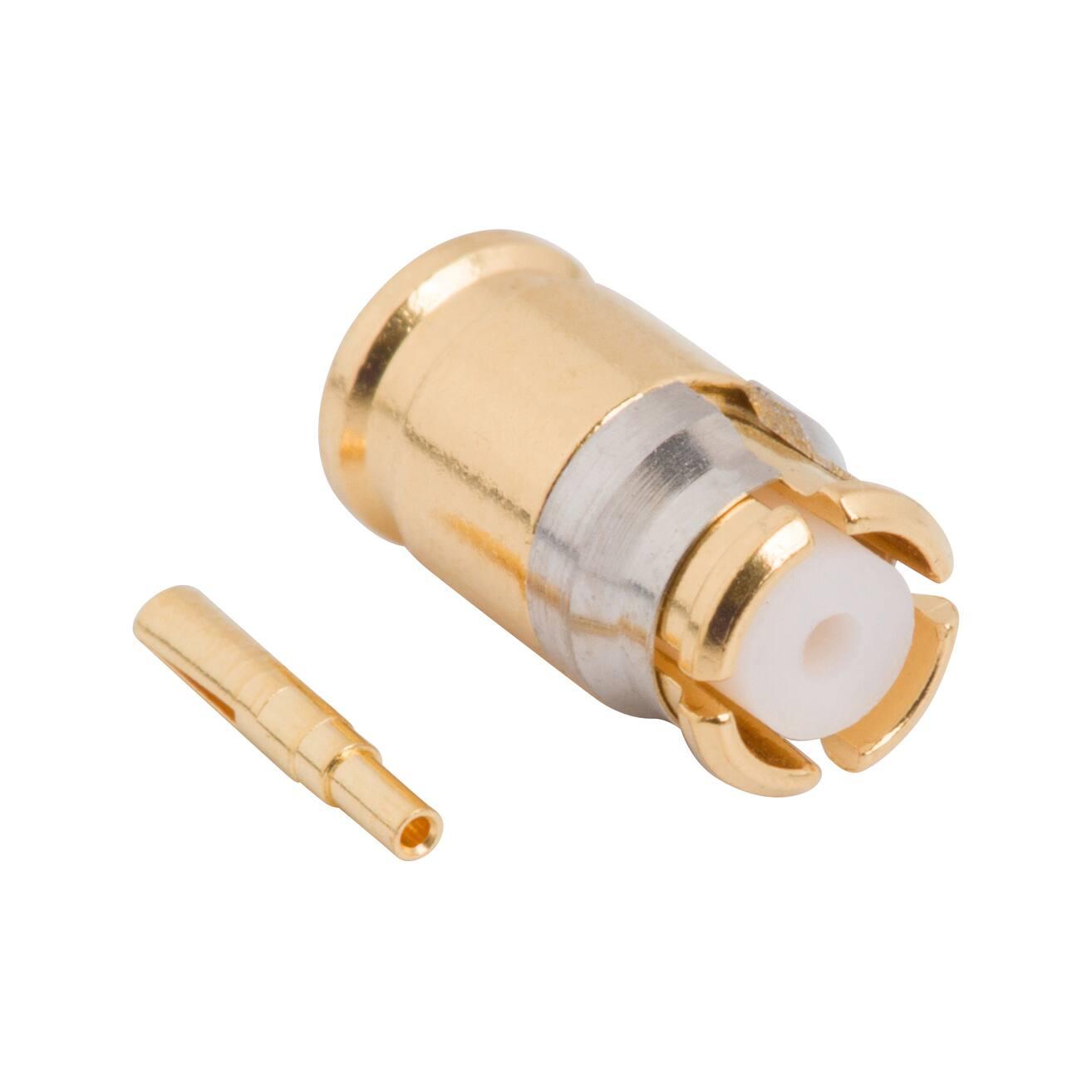

SMP-FS-C06-1-R

NOTES: THIRD ANGLE PROJ. 1. MATERIALS AND FINISHES: BODY & CONTACT - BeCu, GOLD PLATING INSULATOR - PTFE, NATURAL RETAINER RING - BeCu, NICKEL PLATING 4. PACKAGING: A. QUANTITY: SINGLE PACK B. MARKING: BAG TO BE MARKED "AMPHENOL RF, SMP-FS-C06-1-R AND DATE CODE". 2. ELECTRICAL: A. IMPEDANCE: 50 OHM B. FREQUENCY RANGE: DC - 26.5 GHz C. VSWR (RETURN LOSS): 1.20 MAX. (-20.80 dB 1.40 MAX. (-15.60 dB 1.50 MAX. (-14.00 dB D.DIELECTRIC WITHSTANDING VOLTAGE: 500 VRMS, 5. CABLE ASSEMBLY INSTRUCTIONS: A. SEE AMPHENOL SPEC 349-50687. 3. REV DESCRIPTION A REVISIONS RELEASE TO MFG. DATE ECN 28-Jan-19 10388 APPR EH 6. SHOWS CABLE ENTRY DIMENSIONS. MIN) @ DC - 10 GHz MIN) @ 10 - 18 GHz MIN) @ 18 - 26.5 GHz MIN. MECHANICAL: A. DURABILITY: 100 CYCLES MIN. WHEN MATED FULL DETENT JACK 500 CYCLES MIN. WHEN MATED LIMITED DETENT JACK 1000 CYCLES MIN. WHEN MATED A SMOOTH BORE JACK B. TEMPERATURE RANGE: -65 $ C TO +165 $ C C. MATING FORCES (PER DSCC #94007): ENGAGEMENT: DISENGAGEMENT: FULL DETENT: 15 LBS (67 N) MAX. FULL DETENT: 5 LBS (22 N) MIN. LIMITED DETENT: 10 LBS (45 N) MAX. LIMITED DETENT: 2 LBS (9 N) MIN. SMOOTH BORE: 2 LBS (9 N) MAX. SMOOTH BORE: 0.5 LBS (2.2 N) MIN SCALE 6.500 6,60 REF [0.260 ] 3,43 REF [0.135 ] 6 1,27 [0.050 ] 6 0,34 [0.014 ] INTERFACE PER MIL-STD-348 SERIES: SMP PLUG CONTACT CUSTOMER OUTLINE DRAWING ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
