1C0870-20

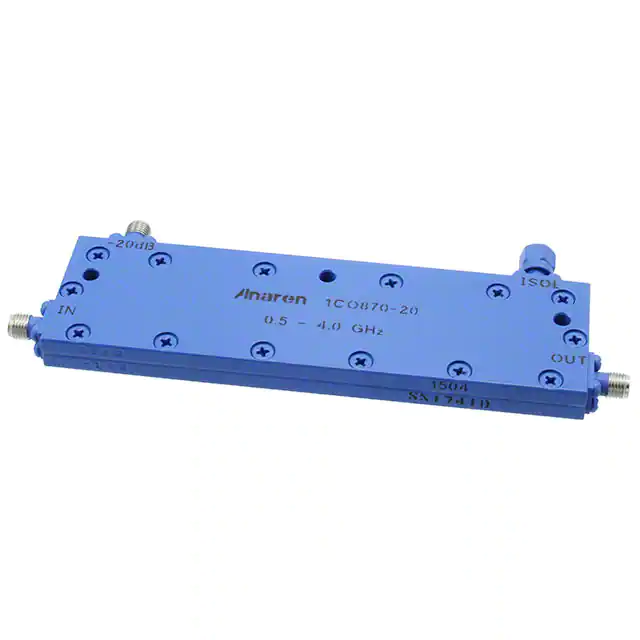

6.4.8 Aluminum Cased Connectorized Components Model 1C0870-20 Directional Couplers “In-Line” Style Applications • Subassemblies • Lab Systems • Leveling Loops • Power Monitoring • Test and Calibration Features • Military Grade • 0.5 - 4.0 GHz • “In-Line” Configuration • Connectors Per MIL-C-39012 • Rugged Aluminum Housing • Built in Termination Model # 1C0870-20 Freq. Sems. dB Max Electrical Specifications Model# 1C0870-20 Frequency GHz Coupling dB Mean Insert. Loss dB Max Input VSWR Max:1 0.5 - 4.0 20.0 ± 1.5 Directivity dB Min/Typ 0.50 1.30 Max CW Power* Forward Backward ±1.5 17/20 100 50 Outline Drawing Notes: Electrical and Mechanical Specifications subject to change without notice. Impedance: 50 ohms nominal. Meets MIL-E-5400 Class 3 requirements. Additional screening available for military and space applications. *These power ratings apply when coupled port VSWR is 2.0:1 or less. Higher power can be handled with a lower VSWR termination. In general the Max CW Power is identical to 3 dB couplers when there is no internal termination or one supplied by Anaren. All models have SMA connectors. Sales Desk USA: Voice: (800) 544-2414 Fax: (315) 432-9121 Sales Desk Europe: Voice: (+44) 23 92 232392 Fax: (+44) 23 92 251369
