R3B100550R0J5G0

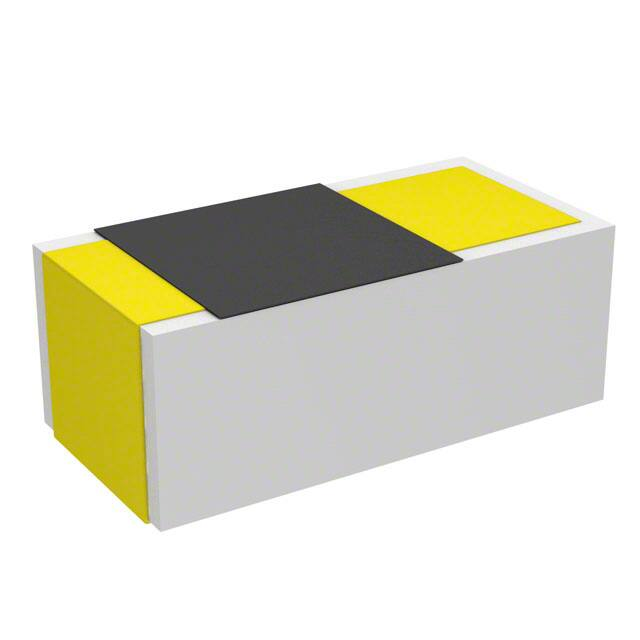

Model R3B100550R0J5G0 Anaren High Frequency Chip Resistor Electrical Specifications: Min. 47.5 -300 Resistance (Ω) TCR (ppm / ºC) Room (25 ºC) Typ. Max. 50 52.5 +300 Power (W) Features:  RF performance up to 5 GHz 0.5 Operating Temperature (º C) Frequency Range (GHz) Return Loss (dB -55 DC 150 5 10 Specifications subject to change with out notice.  50 Ω  15 mil 96 % Alumina  Non-Nichrome Resistive Element Description  Thick Film single wrap chip resistor with gold terminals.  Terminals: Gold  Gold terminals are wire bondable.  Epoxy Attach  Base Material is 15 mil 96% Alumina.  Wire Bondable  Tolerance 5% Dimensions shown in inches ±0.002 unless otherwise shown Outline Drawing .040 ±.003 .020 ±.003 R3B100550R0J5G0 (097) Rev B Available on Tape and Reel For Pick and Place Manufacturing. USA/Canada: Toll Free: Europe: (315) 432-8909 (800) 544-2414 +44 2392-232392 Model R3B100550R0J5G0 Performance Specifications: Power De-rating: Suggested Mounting: Epoxy mount bottom side to circuit. Gold terminal is wire bondable Description of Standard Tests as specified by options in Part Number Change in Resistance Parameter Limit Typical Test Method Resistance T.C.R (ppm / ºC) ± 5% 50 Ω Measurement at 25°C ± 300 165 Measurement at +25°C to-55°C and +25°C to +125°C Overload (Short Time) ±2% ±0.5% Thermal Shock ±0.5% ±0.3% Life Test ±3% ±1% High Temperature Exposure ±1% ±0.3% Rated Voltage x 2.5 for 5 seconds -55°C (30 minutes), +125°C (30 minutes), 100 cycles 70°C ± 2°C, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle +125°C, 1000 hours +155°C, 1000 hours R3B100550R0J5G0 (097) Rev B USA/Canada: Toll Free: Europe: (315) 432-8909 (800) 544-2414 +44 2392-232392 Available on Tape and Reel For Pick and Place Manufacturing.
