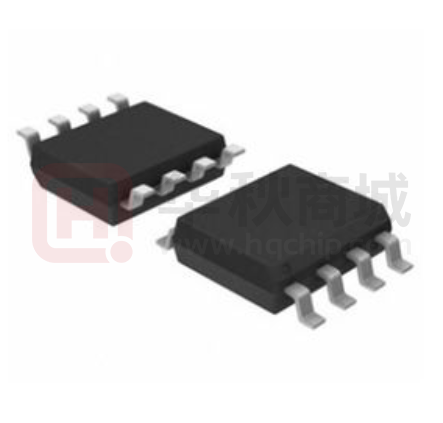

APL5932AKAI-TRG

APL5932A/B/C/D 3A, Ultra Low Dropout (0.23V Typical) Linear Regulator Features • General Description The APL5932A/B/C/D is a 3A ultra low dropout linear regulator. The IC needs two supply voltages, one is a Ultra Low Dropout - 0.23V (Typical) at 3A Output Current • control voltage (VCNTL) for the control circuitry, the other is a main supply Voltage(VIN) for power conversion, to re- Low ESR output Capasitor (Milti-layer Chip Capasitors (MLCC)) Applicable • • duce power dissipation and provide extremely low dropout voltage. 0.8V Reference Voltage High Output Accuracy The APL5932A/B/C/D integrates many functions. A PowerOn-Reset (POR) circuit monitors both supply voltages on - ±1.5% Over Line, Load, and Temperature Range • • • Fast Transient Response VCNTL and VIN pins to prevent erroneous operations. The functions of thermal shutdown and current-limit protect Adjustable Output Voltage the device against thermal and current over-loads. A POK indicates that the output voltage status with a delay time Power-On-Reset Monitoring on Both VCNTL and VIN Pins • • • • • • set internally. It can control other converter for power sequence. APL5932A/B/C/D can be enabled by other Internal Soft-Start Current-Limit and Short Current-Limit Protections power systems. Pulling and holding the EN voltage below 0.4V or ENB above 1.2V will shuts off the output. Thermal Shutdown with Hysteresis Open-Drain VOUT Voltage Indicator (POK) The APL5932A/B/C/D is available in a SOP-8P package which features small size as SOP-8 and an Exposed Low Shutdown Quiescent Current (< 30µA ) Built in Shutdown/Enable Control with floating high/ Pad to reduce the junction-to-case resistance to extend power range of applications. low Function • Simple SOP-8P and TDFN3x3-10 Packages with Exposed Pad • Lead Free and Green Devices Available Simplified Application Circuit (RoHS Compliant) Applications • • • VCNTL Motherboards, VGA Cards VIN Notebook PCs VCNTL POK Add-in Cards VIN POK VOUT VOUT APL5932 A/B/C/D EN Enable EN FB GND Optional ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and advise customers to obtain the latest version of relevant information to verify before placing orders. Copyright  ANPEC Electronics Corp. Rev. A.4 - Sep., 2013 1 www.anpec.com.tw APL5932A/B/C/D Pin Configuration POK EN VIN VCNTL 8 7 6 5 1 2 3 4 VOUT VOUT VOUT FB POK GND FB VOUT NC 1 2 3 4 5 GND APL5932A/B SOP-8P (Top View) POK ENB VIN VCNTL APL5932A/B TDFN3x3-10 (Top View) 8 7 6 5 1 2 3 4 10 VCNTL 9 VIN 8 VIN 7 VIN 6 EN VOUT VOUT VOUT FB POK GND FB VOUT NC APL5932C/D SOP-8P (Top View) 1 2 3 4 5 GND 10 VCNTL 9 VIN 8 VIN 7 VIN 6 ENB APL5932C/D TDFN3x3-10 (Top View) = Exposed Pad (connected to ground plane for better heat dissipation) = Exposed Pad (connected to ground plane for better heat dissipation) Ordering and Marking Information Package Code KA : SOP-8P QB : TDFN3x3-10 Operating Ambient Temperature Range I : -40 to 85 oC Handling Code TR : Tape & Reel Enable Function / Turn On Delay Time A : Active High / 2.5ms B : Active High / 50µs C : Active Low / 2.5ms D : Active Low / 200µs Assembly Material G : Halogen and Lead Free Device APL5932 Assembly Material Handling Code Temperature Range Package Code Enable Function / Turn On Delay Time APL5932A KA : APL5932 A APL5932B KA : APL5932 B APL5932A QB : APL5932B QB : APL5932 C XXXXX - Date Code APL5932C KA : XXXXX XXXXX - Date Code APL5932D KA : APL 5932A XXXXX - Date Code APL5932C QB : APL 5932C XXXXX - Date Code XXXXX - Date Code APL5932D QB : APL 5932D XXXXX - Date Code XXXXX XXXXX APL 5932 B XXXXX XXXXX XXXXX - Date Code APL5932 D XXXXX - Date Code XXXXX XXXXX XXXXX Note: ANPEC lead-free products contain molding compounds/die attach materials and 100% matte tin plate termination finish; which are fully compliant with RoHS. ANPEC lead-free products meet or exceed the lead-free requirements of IPC/JEDEC J-STD-020D for MSL classification at lead-free peak reflow temperature. ANPEC defines “Green” to mean lead-free (RoHS compliant) and halogen free (Br or Cl does not exceed 900ppm by weight in homogeneous material and total of Br and Cl does not exceed 1500ppm by weight). Copyright  ANPEC Electronics Corp. Rev. A.4 - Sep., 2013 2 www.anpec.com.tw APL5932A/B/C/D Absolute Maximum Ratings Symbol VCNTL VIN VOUT (Note 1) Parameter VCNTL Supply Voltage (VCNTL to GND) VIN Supply Voltage (VIN to GND) VOUT to GND Voltage POK to GND Voltage Rating Unit -0.3 ~ 6 V -0.3 ~ 6 V -0.3 ~ VIN+0.3 V -0.3 ~ 6 V EN, FB to GND Voltage -0.3 ~ VCNTL+0.3 V PD Power Dissipation Internally Limited W TJ Maximum Junction Temperature TSTG Storage Temperature Range TSDR Maximum Lead Soldering Temperature, 10 Seconds 150 ο -65 ~ 150 ο 260 ο C C C Note1: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Thermal Characteristics Symbol Parameter Typical Value Unit Junction-to-Ambient Resistance in Free Air (Note 2) θJA SOP-8P TDFN3x3-10 50 60 o SOP-8P TDFN3x3-10 20 5 o C/W Junction-to-Case Resistance in Free Air (Note 3) θJC C/W Note 2: θJA is measured with the component mounted on a high effective thermal conductivity test board in free air. The exposed pad of SOP-8P/TDFN3x3-10 is soldered directly on the PCB. Note 3: The “Thermal Pad Temperature” is measured on the PCB copper area connected to the thermal pad of package. 1 8 2 7 3 4 5 1 2 3 4 5 6 Measured Point GND 10 9 8 7 6 Measured Point PCB Copper PCB Copper Copyright  ANPEC Electronics Corp. Rev. A.4 - Sep., 2013 3 www.anpec.com.tw APL5932A/B/C/D Recommended Operating Conditions Symbol VCNTL VIN Range Unit VCNTL Supply Voltage Parameter 3.0 ~ 5.5 V VIN Supply Voltage 1.2 ~ 5.5 V 0.8 ~ VIN – VDROP V 0~3 A VOUT VOUT Output Voltage (when VCNTL-VOUT>2.1V) IOUT VOUT Output Current COUT ESRCOUT TA TJ VOUT Output Capacitance IOUT = 3A at 25% nominal VOUT 8 ~ 250 IOUT = 2A at 25% nominal VOUT 8 ~ 890 IOUT = 1A at 25% nominal VOUT 8 ~ 1500 µF ESR of VOUT Output Capacitor 0 ~ 200 Ambient Temperature -40 ~ 85 ο -40 ~ 125 ο Junction Temperature mΩ C C Note 4: Refer to the typical application circuit. Electrical Characteristics Unless otherwise specified. These specifications apply over VCNTL=5V, vIN=1.8v, VOUT=1.2V, and TA= -40 ~ 85oC, unless otherwise o specified. Typical values are at TJ=25 C. Symbol Parameter APL5932A/B/C/D Test Conditions Unit Min. Typ. Max. SUPPLY CURRENT IVCNTL ISD VCNTL Supply Current EN=VCNTL, IOUT=0A - 1.0 1.5 mA VCNTL Supply Current at Shutdown EN=GND or ENB=VCNTL - 20 30 µA VIN Supply Current at Shutdown VIN=5.5V, EN=GND or ENB=VCNTL - - 1 µA 2.5 2.7 2.9 V POWER-ON-RESET (POR) Rising VCNTL POR Threshold VCNTL POR Hysteresis Rising VIN POR Threshold VIN POR Hysteresis - 0.4 - V 0.8 0.9 1.0 V - 0.5 - V 0.792 0.8 0.808 V -1.5 - +1.5 % OUTPUT VOLTAGE VREF Reference Voltage FB=VOUT Output Voltage Accuracy VCNTL =3.0~5.5V, IOUT= 0~3A, TJ= -40~125 oC Load Regulation IOUT=0A ~3A Line Regulation IOUT=10mA, VCNTL=3.0 ~ 5.5V VOUT Pull-Low Resistance VCNTL=5V, VEN=0V or VENB=5V, VOUT
