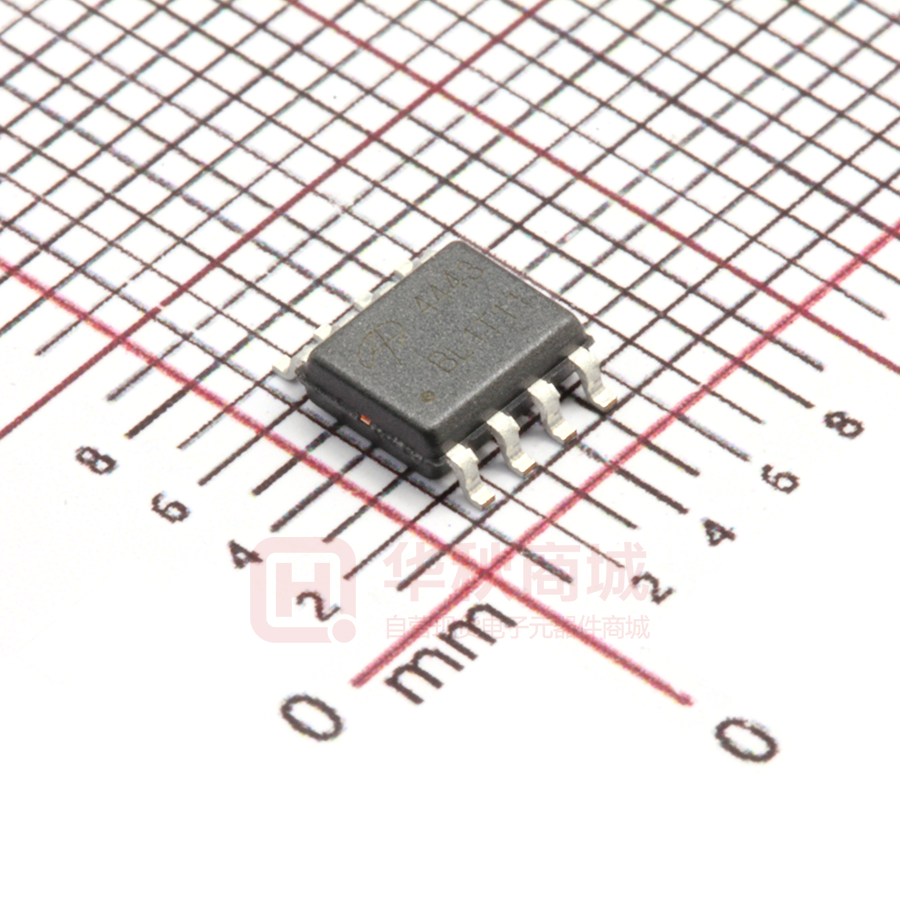

AO4443
40V P-Channel MOSFET
General Description
Product Summary
The AO4443 combines advanced trench MOSFET
technology with a low resistance package to provide
extremely low RDS(ON). This device is ideal for load switch
and battery protection applications.
ID (at VGS=-10V)
VDS
-40V
-6A
RDS(ON) (at VGS=-10V)
< 42mΩ
RDS(ON) (at VGS =-4.5V)
< 63mΩ
100% UIS Tested
100% Rg Tested
SOIC-8
Top View
D
D
D
Bottom View
D
D
G
G
S
S
S
S
Pin1
Absolute Maximum Ratings TA=25°C unless otherwise noted
Parameter
Symbol
Drain-Source Voltage
VDS
Gate-Source Voltage
VGS
TA=25°C
Continuous Drain
Current
Pulsed Drain Current
C
Units
V
±20
V
-6
ID
TA=70°C
Maximum
-40
-5
A
IDM
-40
Avalanche Current C
IAS, IAR
20
A
Avalanche energy L=0.1mH C
TA=25°C
EAS, EAR
20
mJ
Power Dissipation B
Junction and Storage Temperature Range
Thermal Characteristics
Parameter
Maximum Junction-to-Ambient A
Maximum Junction-to-Ambient A D
Maximum Junction-to-Lead
Rev 5: June 2015
3.1
PD
TA=70°C
TJ, TSTG
Symbol
t ≤ 10s
Steady-State
Steady-State
W
2
RθJA
RθJL
www.aosmd.com
-55 to 150
Typ
31
59
16
°C
Max
40
75
24
Units
°C/W
°C/W
°C/W
Page 1 of 5
AO4443
Electrical Characteristics (TJ=25°C unless otherwise noted)
Symbol
Parameter
STATIC PARAMETERS
BVDSS
Drain-Source Breakdown Voltage
IDSS
Zero Gate Voltage Drain Current
Conditions
Min
ID=-250µA, VGS=0V
-40
-1
TJ=55°C
-5
Gate-Body leakage current
VDS=0V, VGS=±20V
VGS(th)
Gate Threshold Voltage
VDS=VGS ID=-250µA
-1.5
ID(ON)
On state drain current
VGS=-10V, VDS=-5V
40
VGS=-10V, ID=-6A
Static Drain-Source On-Resistance
TJ=125°C
VGS=-4.5V, ID=-5A
gFS
Forward Transconductance
VDS=-5V, ID=-6A
VSD
Diode Forward Voltage
IS=-1A,VGS=0V
IS
Maximum Body-Diode Continuous Current
DYNAMIC PARAMETERS
Ciss
Input Capacitance
Coss
Output Capacitance
Crss
Reverse Transfer Capacitance
Rg
Gate resistance
Max
±100
nA
-2.6
V
35
42
53
65
46.5
63
mΩ
-1
V
-3.5
A
A
-0.76
750
940
1175
97
7
14
pF
21
Ω
nC
17.3
22
Qg(4.5V)
8.4
11
VGS=-10V, VDS=-20V, ID=-6A
Gate Source Charge
Qgd
Gate Drain Charge
tD(on)
Turn-On DelayTime
tr
Turn-On Rise Time
tD(off)
Turn-Off DelayTime
tf
Turn-Off Fall Time
trr
Body Diode Reverse Recovery Time
Qrr
Body Diode Reverse Recovery Charge IF=-6A, dI/dt=100A/µs
VGS=-10V, VDS=-20V,
RL=3.35Ω, RGEN=3Ω
3.2
nC
4.3
nC
10.3
ns
4.3
ns
39
ns
46.5
IF=-6A, dI/dt=100A/µs
pF
pF
SWITCHING PARAMETERS
Qg(10V)
Total Gate Charge
Qgs
mΩ
S
72
VGS=0V, VDS=0V, f=1MHz
µA
-2
17
VGS=0V, VDS=-20V, f=1MHz
Units
V
VDS=-40V, VGS=0V
IGSS
RDS(ON)
Typ
17
ns
24
11.5
ns
nC
A. The value of RθJA is measured with the device mounted on 1in2 FR-4 board with 2oz. Copper, in a still air environment with TA =25°C. The
value in any given application depends on the user's specific board design.
B. The power dissipation PD is based on TJ(MAX)=150°C, using ≤ 10s junction-to-ambient thermal resistance.
C. Repetitive rating, pulse width limited by junction temperature TJ(MAX)=150°C. Ratings are based on low frequency and duty cycles to keep
initialTJ=25°C.
D. The RθJA is the sum of the thermal impedence from junction to lead RθJL and lead to ambient.
E. The static characteristics in Figures 1 to 6 are obtained using
