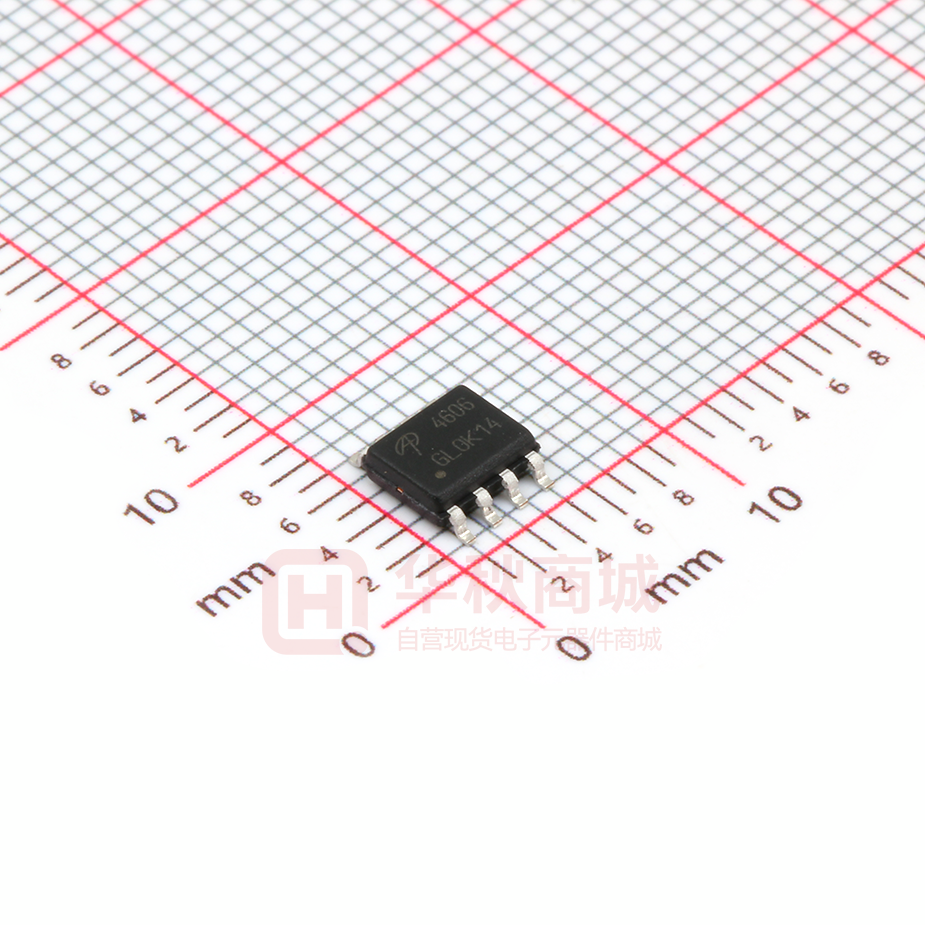

AO4606
30V Complementary MOSFET
General Description
Product Summary
The AO4606 uses advanced trench technology
MOSFETs to provide excellent RDS(ON) and low gate
charge. The complementary MOSFETs may be used to
form a level shifted high side switch, and for a host of
other applications.
N-Channel
VDS= 30V
P-Channel
-30V
ID= 6A (VGS=10V)
-6.5A (VGS=-10V)
RDS(ON)
RDS(ON)
< 30mΩ (VGS=10V)
< 28mΩ (VGS=-10V)
< 42mΩ (VGS=4.5V)
< 44mΩ (VGS=-4.5V)
100% UIS Tested
100% Rg Tested
100% UIS Tested
100% Rg Tested
SOIC-8
D2
Top View
D1
Bottom View
Top View
S2
G2
S1
G1
1
2
3
4
8
7
6
5
D2
D2
D1
D1
G2
G1
S2
n-channel
Pin1
Absolute Maximum Ratings TA=25°C unless otherwise noted
Parameter
Symbol
Max n-channel
VDS
Drain-Source Voltage
30
Gate-Source Voltage
VGS
TA=25°C
Continuous Drain
Current
ID
TA=70°C
S1
p-channel
Max p-channel
-30
Units
V
±20
±20
V
6
-6.5
A
5
-5.3
IDM
30
-30
Avalanche Current C
IAS, IAR
10
23
A
Avalanche energy L=0.1mH C
TA=25°C
EAS, EAR
5
26
mJ
Pulsed Drain Current
Power Dissipation B
C
PD
TA=70°C
Junction and Storage Temperature Range
Thermal Characteristics
Parameter
Maximum Junction-to-Ambient A
Maximum Junction-to-Ambient A D
Maximum Junction-to-Lead
Rev 10: April 2012
Steady-State
Steady-State
2
1.3
TJ, TSTG
Symbol
t ≤ 10s
2
1.3
RθJA
RθJL
www.aosmd.com
-55 to 150
Typ
48
74
32
W
°C
Max
62.5
90
40
Units
°C/W
°C/W
°C/W
Page 1 of 9
AO4606
N-Channel Electrical Characteristics (TJ=25°C unless otherwise noted)
Symbol
Parameter
STATIC PARAMETERS
BVDSS
Drain-Source Breakdown Voltage
IDSS
Zero Gate Voltage Drain Current
Conditions
Min
ID=250µA, VGS=0V
V
Gate-Body leakage current
VDS=0V, VGS=±20V
Gate Threshold Voltage
VDS=VGS ID=250µA
1.2
ID(ON)
On state drain current
VGS=10V, VDS=5V
30
VGS=10V, ID=6A
TJ=125°C
VGS=4.5V, ID=5A
±100
nA
1.8
2.4
V
25
30
40
48
33.5
42
mΩ
1
V
2.5
A
A
gFS
Forward Transconductance
VDS=5V, ID=6A
15
VSD
Diode Forward Voltage
IS=1A,VGS=0V
0.76
IS
Maximum Body-Diode Continuous Current
DYNAMIC PARAMETERS
Input Capacitance
Ciss
Output Capacitance
Crss
Reverse Transfer Capacitance
Rg
Gate resistance
µA
5
IGSS
Coss
Units
1
TJ=55°C
Static Drain-Source On-Resistance
Max
30
VDS=30V, VGS=0V
VGS(th)
RDS(ON)
Typ
mΩ
S
200
255
310
pF
VGS=0V, VDS=15V, f=1MHz
30
45
60
pF
20
35
50
pF
VGS=0V, VDS=0V, f=1MHz
1.6
3.25
4.9
Ω
SWITCHING PARAMETERS
Qg(10V) Total Gate Charge
4
5.2
6
nC
Qg(4.5V) Total Gate Charge
2
2.55
3
nC
VGS=10V, VDS=15V, ID=6A
Qgs
Gate Source Charge
Qgd
Gate Drain Charge
tD(on)
Turn-On DelayTime
tr
Turn-On Rise Time
tD(off)
Turn-Off DelayTime
tf
trr
Turn-Off Fall Time
IF=6A, dI/dt=100A/µs
8.5
12
Qrr
Body Diode Reverse Recovery Charge IF=6A, dI/dt=100A/µs
2.2
3
Body Diode Reverse Recovery Time
VGS=10V, VDS=15V, RL=2.5Ω,
RGEN=3Ω
0.85
nC
1.3
nC
4.5
ns
2.5
ns
14.5
ns
3.5
ns
ns
nC
A. The value of RθJA is measured with the device mounted on 1in2 FR-4 board with 2oz. Copper, in a still air environment with TA =25°C. The
value in any given application depends on the user's specific board design.
B. The power dissipation PD is based on TJ(MAX)=150°C, using ≤ 10s junction-to-ambient thermal resistance.
C. Repetitive rating, pulse width limited by junction temperature TJ(MAX)=150°C. Ratings are based on low frequency and duty cycles to keep
initialTJ=25°C.
D. The RθJA is the sum of the thermal impedence from junction to lead RθJL and lead to ambient.
E. The static characteristics in Figures 1 to 6 are obtained using
