AOZ1334DI-02

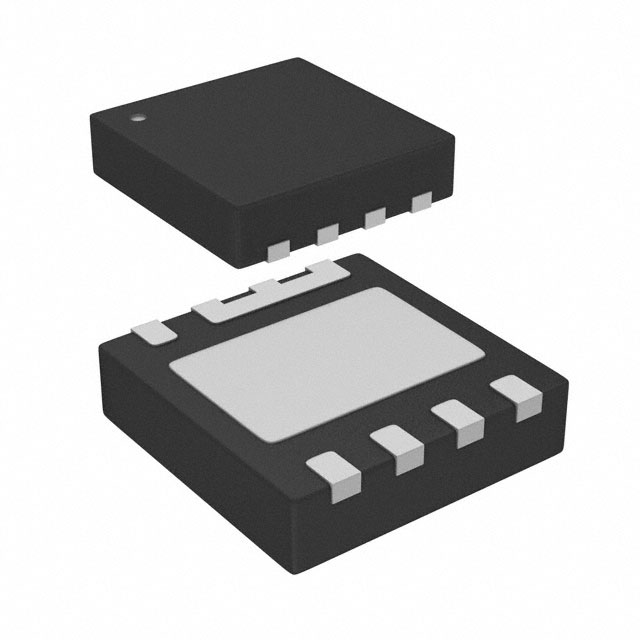

AOZ1334DI-02 Single Channel Smart Load Switch General Description Features The AOZ1334DI-02 is a single channel load switch with very low on-resistance in a small package. It contains an n-channel MOSFET for up to 5.5V input voltage operation and 10A current channel with 5V bias supply. The load switch is controlled by a low voltage control signal through ON pin.  0.8V to 5.5V input voltage range  10A continuous current  Low RDS(ON) internal NFETs – 3.6mΩ at VBIAS = 5V, VIN = 1.05V  60µA low quiescent current The AOZ1334DI-02 integrates an internal 220Ω load resistor for quick output discharge when load switch is off.  0.5ms turn on rise time at VBIAS = 5V and VIN = 1.05V  2.5V to 5.5V bias voltage  Integrated quick output discharge resistor The AOZ1334DI-02 is available in a 3mm x 3mm DFN-8L package with bottom thermal pad and is rated over a -40°C to +85°C ambient temperature range.  Thermally enhanced 3mm x 3mm DFN-8L package Applications  Portable computers  Ultrabooks  Tablet PCs  Set top boxes  LCD TVs  Telecom/Networking/Datacom equipment  SSD  Consumer electronics Typical Application VIN OUT IN CIN VOUT CL IN OUT AOZ1334DI-02 VBIAS VBIAS OUT ON GND CBIAS ON OFF Rev. 1.1 January 2016 www.aosmd.com Page 1 of 12 AOZ1334DI-02 Ordering Information Part Number Temperature Range Package Environmental AOZ1334DI-02 -40°C to +85°C 3mm x 3mm DFN-8L Green All AOS products are offered in packages with Pb-free plating and compliant to RoHS standards. Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information. Pin Configuration IN 1 8 OUT OUT 8 IN 2 7 OUT OUT VBIAS 3 6 OUT ON 4 5 GND IN EPAD 1 IN 7 2 IN OUT 6 3 VBIAS GND 5 4 ON IN EPAD 3mm x 3mm DFN-8 3mm x 3mm DFN-8 (Top View) (Bottom View) Pin Description Pin Number Pin Name 1, 2, EPAD IN 3 VBIAS Pin Function Load Switch Input. Bypass capacitor is recommended to minimize input voltage dip. Recommended voltage range of this pin is 0.8V to 5.5V to obtain optimal RON. Bias Voltage. Power supply input for the device. Recommended voltage range is 2.5V to 5.5V. 4 ON 5 GND Ground. 6, 7, 8 OUT Load switch output. Rev. 1.1 January 2016 Active High Switch Control Input. Do not leave floating. www.aosmd.com Page 2 of 12 AOZ1334DI-02 Functional Block Diagram IN OUT IN OUT Charge Pump VBIAS ON OUT Control Logic GND Absolute Maximum Ratings Recommend Operating Ratings Exceeding the Absolute Maximum ratings may damage the device. The device is not guaranteed to operate beyond the Maximum Operating Ratings. Parameter Parameter Rating IN, ON, VBIAS, OUT to GND -0.3V to 6V Junction Temperature (TJ) +150°C Storage Temperature (TS) -65°C to +150°C ESD Rating HBM/CDM 2kV/1kV Rating Supply Voltage (VIN) 5.5V Ambient Temperature (TA) -40°C to +85°C Package Thermal Resistance 3x3 DFN-8 (ΘJC) 3x3 DFN-8 (ΘJA) 8°C/W 60°C/W Electrical Characteristics TA = 25°C, VBIAS = 5V, VIN = 1.05V, unless otherwise specified. Specifications in BOLD indicate a temperature range of -40°C to +85°C. Symbol VIN VBIAS ID IPLS Iq IOFF IINOFF ION Parameter IN Supply Voltage Conditions VON = 5V VBIAS Supply Voltage Min. Typ. Max. Units 0.8 1.05 5.5 V 2.5 5 5.5 V Maximum Continuous Current VON = 5V 10 A Maximum Pulsed Switch Current VIN = VON = 5V Pulse < 300µs, 2% Duty Cycle 12 A Quiescent Supply Current of VBIAS IOUT = 0V, VON = 5V 60 µA VBIAS Shutdown Supply Current VON = 0V, VOUT = 0V 2 µA IN Shutdown Supply Current VON = 0V, VOUT = 0V 2 µA ON Leakage Current VON = 5V 1 µA VONH ON High Level Voltage VONL ON Low Level Voltage 1.2 V 0.5 V Switching ON Resistance RON Switch ON-State Resistance RPD Output Pull-Down Resistance Rev. 1.1 January 2016 IOUT = -6A, VON = 5V, VBIAS = 5V 4.5 5 mΩ IOUT = -6A, VON = 5V, VBIAS = 3.3V 4.5 5 mΩ IOUT = 15mA, VON = 0V 220 300 Ω www.aosmd.com Page 3 of 12 AOZ1334DI-02 Switching Characteristics VON 50% 50% t OFF tON 90% 90% tD-ON VOUT 50% 50% 10% 1% tR 10% tF Test conditions: TA = 25°C, CIN = 1µF, CL = 0.1µF (unless otherwise specified). Symbol Parameter Min. Typ. Max. Units VIN = 1.05V, VBIAS = VON = 5V, RL = 10Ω tON Turn-ON Time 800 tD-ON Turn-ON Delay time 350 500 650 tR Turn-ON Rise Time 350 500 650 tOFF tF Turn-OFF Time 2.8 Turn-OFF Fall Time 2.0 µs VIN = 1.5V, VBIAS = VON = 5V, RL = 10Ω tON Turn-ON Time 830 tD-ON Turn-ON Delay time 336 480 624 tR Turn-ON Rise Time 420 600 780 tOFF tF Turn-OFF Time 2.5 Turn-OFF Fall Time 2.0 µs VIN = 1.05V, VBIAS = VON = 5V, IOUT = -6A Turn-ON Time 1140 tD-ON Turn-ON Delay time 660 tR Turn-ON Rise Time 700 tON tOFF tF Turn-OFF Time 2.3 Turn-OFF Fall Time 0.5 µs VIN = 1.5V, VBIAS = VON = 5V, IOUT = -6A tON Turn-ON Time 1120 tD-ON Turn-ON Delay time 630 tR Turn-ON Rise Time 770 Turn-OFF Time 2.0 Turn-OFF Fall Time 0.5 tOFF tF Rev. 1.1 January 2016 www.aosmd.com µs Page 4 of 12 AOZ1334DI-02 Typical Characteristics Quiescent Current vs. VBIAS RON vs. VIN (VIN=VBIAS=VON=5V) 90 (VBIAS=5.5V, IOUT=-6A) 5.0 -40ºC 25ºC 70ºC 85ºC 80 4.5 RSDON (mΩ) IBIAS (μA) 70 60 4.0 3.5 50 3.0 40 2.5 -40ºC 30 25ºC 70ºC 85ºC 2.0 3.0 3.3 3.5 3.8 4.0 4.3 4.5 VBIAS (V) 4.8 5.0 5.3 0.8 5.5 1.3 1.8 2.3 RON vs. VIN 3.3 3.8 VIN (V) 4.3 4.8 5.3 5.8 VOUT vs. VON (VBIAS=2.5V, IOUT=-6A) 5.5 2.8 (TA=25ºC, VIN=2V) 2.5 5.0 2.0 VOUT (V) RDSON (mΩ) 4.5 4.0 3.5 1.5 1.0 3.0 VBIAS = 2.5V -40ºC 0.5 VBIAS = 3.3V VBIAS = 5.0V VBIAS = 5.5V 25ºC 70ºC 85ºC 2.5 0 2.0 0.8 1.1 Rev. 1.1 January 2016 1.4 1.7 VIN (V) 2.0 2.3 2.6 www.aosmd.com 0.5 0.7 0.9 VON (V) 1.1 1.3 Page 5 of 12 AOZ1334DI-02 Typical Characteristics (Continued) tON vs. VIN tD-ON vs. VIN (VBIAS=2.5V) 1900 (VBIAS=5.5V) 700 1800 600 1700 500 tD-ON (μs) tON (μs) 1600 1500 1400 400 300 1300 1200 -40ºC 1100 25ºC 70ºC 85ºC -40ºC 25ºC 70ºC 85ºC 200 100 1000 0.8 1.0 1.2 1.4 1.6 1.8 VIN (V) 2.0 2.2 2.4 0.8 2.6 1.2 1.6 2.0 2.4 tON vs. VIN 3.2 3.6 4.0 VIN (V) 4.4 4.8 5.2 5.6 tR vs. VIN (VBIAS=5.5V) 1100 2.8 (VBIAS=2.5V) 2500 1050 2000 1000 900 tR (μs) tON (μs) 950 850 1500 1000 800 750 -40ºC -40ºC 700 500 25ºC 70ºC 85ºC 650 25ºC 70ºC 85ºC 0 600 0.8 1.2 1.6 2.0 2.4 1200 2.8 3.2 3.6 4.0 VIN (V) 4.4 4.8 0.8 5.2 5.6 1.0 1.2 1.4 1.6 1.8 VIN (V) tD-ON vs. VIN tR vs. VIN (VBIAS=2.5V) (VBIAS=5.5V) 1200 2.0 2.2 2.4 2.6 1100 1000 1000 900 tR (μs) tD-ON (μs) 800 600 800 700 400 200 -40ºC 600 -40ºC 25ºC 70ºC 85ºC 500 25ºC 70ºC 85ºC 400 0 0.8 1.0 1.2 Rev. 1.1 January 2016 1.4 1.6 1.8 VIN (V) 2.0 2.2 2.4 2.6 www.aosmd.com 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0 VIN (V) 4.4 4.8 5.2 5.6 Page 6 of 12 AOZ1334DI-02 Typical Characteristics (Continued) tOFF vs. VIN tOFF vs. VIN (VBIAS=2.5V) 5.5 (VBIAS=5.5V) 4.5 -40ºC 5.0 -40ºC 25ºC 70ºC 85ºC 4.5 25ºC 70ºC 80ºC 4.0 tOFF (μs) tOFF (μs) 3.5 4.0 3.5 3.0 2.5 3.0 2.0 2.5 1.5 2.0 0.8 1.0 1.2 1.4 1.6 1.8 VIN (V) 2.0 2.2 2.4 0.8 2.6 1.2 1.6 2.0 2.4 tF vs. VIN 4.4 4.8 5.2 5.6 tF vs. VIN (VBIAS=2.5V) 5.0 2.8 3.2 3.6 4.0 VIN (V) (VBIAS=5.5V) 5.0 4.5 -40ºC 4.0 25ºC 70ºC 85ºC 4.5 -40ºC 4.0 25ºC 70ºC 85ºC 3.5 3.5 tF (μs) tF (μs) 3.0 3.0 2.5 2.5 2.0 2.0 1.5 1.5 1.0 1.0 0.5 0 0 0.8 1.0 1.2 Rev. 1.1 January 2016 1.4 1.6 1.8 VIN (V) 2.0 2.2 2.4 2.6 www.aosmd.com 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0 VIN (V) 4.4 4.8 5.2 5.6 Page 7 of 12 AOZ1334DI-02 Functional Characteristics Turn-ON & Turn-ON Rise Times Turn-ON & Turn-ON Rise Times (VINX=1.5V, VBIAS=5V, CIN=1μF, CL=0.1μF, RL=10Ω) (VINX=1.05V, VBIAS=5V, CIN=1μF, CL=0.1μF, RL=10Ω) VON (5V/div) VON (5V/div) VOUT (200mV/div) VOUT (200mV/div) Turn-OFF & Turn-OFF Fall Times Turn-OFF & Turn-OFF Fall Times (VINX=1.5V, VBIAS=5V, CIN=1μF, CL=0.1μF, RL=10Ω) (VINX=1.05V, VBIAS=5V, CIN=1μF, CL=0.1μF, RL=10Ω) VON (5V/div) VON (5V/div) VOUT (200mV/div) Turn-ON & Turn-OFF at IOUT=-6A Turn-ON & Turn-OFF at IOUT=-6A (VINX=1.5V, VBIAS=5V, CIN=1μF, CL=0.1μF) (VINX=1.05V, VBIAS=5V, CIN=1μF, CL=0.1μF) Rev. 1.1 January 2016 VOUT (200mV/div) VON (5V/div) VON (5V/div) VOUT (500mV/div) VOUT (500mV/div) IOUT (2A/div) IOUT (2A/div) www.aosmd.com Page 8 of 12 AOZ1334DI-02 Detailed Description Applications Information ON/OFF Control The basic AOZ1334DI-02 application circuit is shown in the first page. Component selection is explained below. The AOZ1334DI-02 is enabled when the ON pin is on active high with 1.2V or above voltage. The device is disabled when the ON pin voltage is 0.5V or lower. The EN input is compatible with both TTL and CMOS logic. VBIAS Voltage Range For optimal on-resistance of load switch, make sure the voltage is within 2.5V to 5.5V. On-resistance of load switch will be higher if the condition is not satisfied. Resistance curves of a typical sample device at VBIAS = VIN and at different output currents are shown as below. 4.3 RDSON (mΩ) 4.1 VBIAS = 2.5V VBIAS = 3.3V VBIAS = 5.0V VBIAS = 5.5V 3.9 Output Capacitor A capacitor of 10μF or higher value is recommended to be place between the OUT pins and GND. The capacitance does not affect the turn-on slew rate. However, a larger capacitor makes the initial turn-on transient smoother. Thermal Considerations To ensure proper operation, the maximum junction temperature of the AOZ1334DI-02 should not exceed 150°C. Several factors attribute to the junction temperate rise: load current, MOSFET on-resistance, junction-toambient thermal resistance, and ambient temperature. The maximum load current can be determined by: 4.2 4.0 Input Capacitor A capacitor of 10μF or higher value is recommended to be place close to the IN pins of AOZ1334DI-02. This capacitor can reduce the voltage drop caused by the in-rush current during the turn-on transient of the load switch. A higher value capacitor can be used to further reduce the voltage drop during high-current application. TA = 25ºC 3.8 I LOAD ( MAX ) = 3.7 T J ( MAX ) – T C --------------------------------------Θ JC × R DS ( ON ) 3.6 1 2 3 4 5 6 7 8 9 10 IOUT (A) 5.3 5.2 Layout Guidelines 5.2 RDSON (mΩ) It is noted that the maximum continuous load current is 10A. Exceeding the maximum continuous load current may cause permanent damage to the device. Good PCB is important for improving the thermal performance of AOZ1334DI-02. Place the input and output bypass capacitors close to the IN and OUT pins. The input and output PCB traces should be as wide as possible for the given PCB space. Use a ground plane to enhance the power dissipation capability of the device. 5.0 4.9 VBIAS = 2.5V VBIAS = 3.3V 4.8 VBIAS = 5.0V VBIAS = 5.5V 4.7 TA = 85ºC 4.6 4.5 4.4 4.3 1 2 3 4 5 6 7 8 9 10 IOUT (A) Rev. 1.1 January 2016 www.aosmd.com Page 9 of 12 AOZ1334DI-02 Package Dimensions, DFN3x3_8L, EP1_S b1 D 8x bbb 8 e b C A B 8 aaa C 2x L E E1 L 1 1 aaa C 2x D1 TOP VIEW Pin1 Identification BOTTOM VIEW ccc C A1 Seating Plane A ddd C SIDE VIEW C RECOMMENDED LAND PATTERN Symbols Min. 1.60 0.40 0.30 0.30 0.65 1.30 2.60 1.60 Dimensions in millimeters 2.40 UNIT: mm A A1 b1 b c D D1 E E1 e L R aaa bbb ccc ddd 0.70 0.00 1.55 0.25 --2.90 2.35 2.90 1.50 Nom. 0.75 0.02 1.60 0.30 0.203 3.00 2.40 3.00 1.60 0.65 BSC 0.35 0.40 0.20 0.15 0.10 0.10 0.08 Max. 0.80 0.05 1.65 0.35 --3.10 2.45 3.10 1.70 0.45 Dimensions in inches Symbols Min. A A1 b1 b c D D1 E E1 e L R aaa bbb ccc ddd Nom. Max. 0.028 0.000 0.061 0.010 --0.114 0.093 0.114 0.059 0.030 0.031 0.001 0.002 0.063 0.065 0.012 0.014 0.008 --0.118 0.122 0.094 0.096 0.118 0.122 0.063 0.067 0.026 BSC 0.014 0.016 0.018 0.008 0.006 0.004 0.004 0.003 Notes: 1. Dimensions and tolerances conform to ASME Y14.5M-1994. 2. Controlling dimension is millimeter, converted inch dimensions are not necessarily exact. 3. Dimension b applies to metallized terminal and is measured between 0.15mm and 0.30mm from the terminal tip. If the terminal has the optional radius on the other end of the terminal, dimension b should not be measured in that radius area. 4. Coplanarity ddd applies to the terminals and all other bottom surface metallization. Rev. 1.1 January 2016 www.aosmd.com Page 10 of 12 AOZ1334DI-02 Tape and Reel Dimensions, DFN3x3_8L, EP1_S Carrier Tape D0 P1 A–A D1 A E1 K0 E2 E B0 A P2 T P0 A0 Feeding Direction UNIT: mm Package DFN 3x3_EP A0 B0 3.40 3.35 ±0.10 ±0.10 D0 K0 1.50 1.10 ±0.10 +0.10/-0.0 D1 1.50 +0.10/-0.0 E 12.00 ±0.30 Reel E1 1.75 ±0.10 E2 5.50 ±0.05 P0 8.00 ±0.10 P1 4.00 ±0.10 P2 2.00 ±0.05 T 0.30 ±0.05 W1 N S G K M V R H W UNIT: mm Tape Size Reel Size M N 12mm ø330 ø330.00 ø97.00 ±0.50 ±0.10 W1 H K S W 13.00 17.40 ø13.00 10.60 2.00 ±0.50 ±0.30 ±1.00 +0.5/-0.2 G N/A R N/A V N/A Leader / Trailer & Orientation Unit Per Reel: 5000pcs Trailer Tape 300mm Min. Rev. 1.1 January 2016 Components Tape Orientation in Pocket www.aosmd.com Leader Tape 500mm Min. Page 11 of 12 AOZ1334DI-02 Package Marking AOZ1334DI-02 (DFN3x3-8) 1334 Part Number Code XOAW Extension Code LT Option Code Year & Week Code Assembly Lot Code Assembly Location Code LEGAL DISCLAIMER Applications or uses as critical components in life support devices or systems are not authorized. AOS does not assume any liability arising out of such applications or uses of its products. AOS reserves the right to make changes to product specifications without notice. It is the responsibility of the customer to evaluate suitability of the product for their intended application. Customer shall comply with applicable legal requirements, including all applicable export control rules, regulations and limitations. AOS' products are provided subject to AOS' terms and conditions of sale which are set forth at: http://www.aosmd.com/terms_and_conditions_of_sale LIFE SUPPORT POLICY ALPHA AND OMEGA SEMICONDUCTOR PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS. As used herein: 1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury of the user. Rev. 1.1 January 2016 2. A critical component in any component of a life support, device, or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness. www.aosmd.com Page 12 of 12
