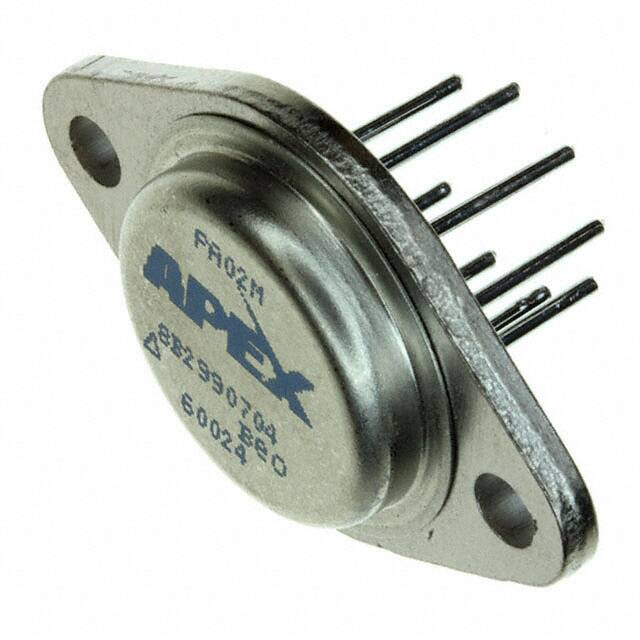

PA02M

PA02M/883 Table 4 Group A Inspection SG Parameter Symbol Temp. Power Test Conditions Min Max Units IQ 25°C ±15V VIN =0, AV=100, RCL=0.2 Ω 40 mA Input Offset Voltage VOS 25°C ±15V VIN = 0, AV = 100 10 mV 1 Input Offset Voltage VOS 25°C ±7V VIN = 0, AV = 100 11.6 mV 1 Input Offset Voltage VOS 25°C ±19V VIN = 0, AV = 100 10.8 mV 1 Input Bias Current, +IN +IB 25°C ±15V VIN = 0 200 pA 1 Input Bias Current, –IN –IB 25°C ±15V VIN = 0 200 pA 1 Input Offset Current IOS 25°C ±15V VIN = 0 100 pA 3 Quiescent Current IQ –55°C ±15V VIN=0, AV=100, RCL =0.2 Ω 60 mA 3 Input Offset Voltage VOS –55°C ±15V VIN = 0, AV = 100 14 mV 3 Input Offset Voltage VOS –55°C ±7V VIN = 0, AV = 100 15.6 mV 3 Input Offset Voltage VOS –55°C ±19V VIN = 0, AV = 100 14.8 mV 3 Input Bias Current, +IN +IB –55°C ±15V VIN = 0 200 pA 3 Input Bias Current, –IN –IB –55°C ±15V VIN = 0 200 pA 3 Input Offset Current IOS –55°C ±15V VIN = 0 100 pA 2 Quiescent Current IQ 125°C ±15V VIN=0, AV =100, RCL=0.2 Ω 60 mA 2 Input Offset Voltage VOS 125°C ±15V VIN = 0, AV = 100 15 mV 2 Input Offset Voltage VOS 125°C ±7V VIN = 0, AV = 100 16.6 mV 2 Input Offset Voltage VOS 125°C ±19V VIN = 0, AV = 100 15.8 mV 2 Input Bias Current, +IN +IB 125°C ±15V VIN = 0 30 nA 2 Input Bias Current, –IN –IB 125°C ±15V VIN = 0 30 nA 2 Input Offset Current IOS 125°C ±15V VIN = 0 10 nA 4 Output Voltage, IO = 5A VO 25°C ±9V 5 V 4 Output Voltage, IO = 36mA VO 25°C ±19V RL = 500 Ω 18 V 4 Output Voltage, IO = 2A VO 25°C ±12V RL = 5 Ω, RCL = 0 Ω 10 V 4 Current Limits ICL 25°C ±9V 4 Stability/Noise EN 25°C ±15V RL=500 Ω, AV=1, CL=1.5nF 4 Slew Rate SR 25°C ±18V RL = 500 Ω 13 4 Open Loop Gain AOL 25°C ±15V RL = 500 Ω, F = 10 Hz 86 dB 4 Common Mode Rejection CMR 25°C 70 dB 1 Quiescent Current 1 www.apexanalog.com ±8.25V RL = 1 Ω, RCL = 0 Ω RL = 5 Ω, RCL = 1 Ω RL = 500 Ω, F = DC, VCM= ±2.25V © Apex Microtechnology Inc. All rights reserved 0.54 0.86 A 1 mV 100 V/µs Oct 2017 PA02MU Rev M PA02M/883 SG Parameter Symbol Temp. Power Test Conditions 6 Output Voltage, IO = 5A VO –55°C ±9V 6 Output Voltage, IO = 36mA VO –55°C 6 Output Voltage, IO = 2A VO 6 Stability/Noise 6 RL = 1 Ω, RCL = 0 Ω Min Max Units 5 V ±19V RL = 500 Ω 18 V –55°C ±12V RL = 5 Ω, RCL = 0 Ω 10 V EN –55°C Slew Rate SR –55°C ±15V RL=500 Ω, AV=1, CL=1.5nF ±18V RL = 500 Ω 6 Open Loop Gain AOL 6 Common Mode Rejection CMR ±15V RL = 500 Ω, F = 10 Hz RL = 500 Ω, F = DC, –55°C ±8.25V VCM= ±2.25V 5 Output Voltage, IO = 3A VO 125°C ±7V 5 Output Voltage, IO = 36mA VO 125°C 5 Output Voltage, IO = 2A VO 5 Stability/Noise 5 –55°C 13 1 mV 100 V/µs 86 dB 70 dB RL = 1 Ω, RCL = 0 Ω 3 V 18 V 125°C ±19V RL = 500 Ω ±12V RL = 5 Ω, RCL = 0 Ω 10 V EN 125°C ±15V RL=500 Ω, AV=1, CL=1.5nF Slew Rate SR 125°C 5 Open Loop Gain AOL 125°C ±18V RL = 500 Ω ±15V RL = 500 Ω, F = 10 Hz 5 Common Mode Rejection CMR 125°C ±8.25V 2 RL = 500 Ω, F = DC, VCM= ±2.25V 8.5 1 mV 100 V/µs 86 dB 70 dB PA02MU Rev M PA02M/883 BURN IN CIRCUIT Figure 1: Burn In Circuit *These components are used to stabilize device due to poor high frequency characteristics of burn in board. **Input signals are calculated to result in internal power dissipation of approximately 2.1W at case tempera‐ ture = 125°C. NEED TECHNICAL HELP? CONTACT APEX SUPPORT! For all Apex Microtechnology product questions and inquiries, call toll free 800-546-2739 in North America. For inquiries via email, please contact apex.support@apexanalog.com. International customers can also request support by contacting their local Apex Microtechnology Sales Representative. To find the one nearest to you, go to www.apexanalog.com IMPORTANT NOTICE Apex Microtechnology, Inc. has made every effort to insure the accuracy of the content contained in this document. However, the information is subject to change without notice and is provided "AS IS" without warranty of any kind (expressed or implied). Apex Microtechnology reserves the right to make changes without further notice to any specifications or products mentioned herein to improve reliability. This document is the property of Apex Microtechnology and by furnishing this information, Apex Microtechnology grants no license, expressed or implied under any patents, mask work rights, copyrights, trademarks, trade secrets or other intellectual property rights. Apex Microtechnology owns the copyrights associated with the information contained herein and gives consent for copies to be made of the information only for use within your organization with respect to Apex Microtechnology integrated circuits or other products of Apex Microtechnology. This consent does not extend to other copying such as copying for general distribution, advertising or promotional purposes, or for creating any work for resale. APEX MICROTECHNOLOGY PRODUCTS ARE NOT DESIGNED, AUTHORIZED OR WARRANTED TO BE SUITABLE FOR USE IN PRODUCTS USED FOR LIFE SUPPORT, AUTOMOTIVE SAFETY, SECURITY DEVICES, OR OTHER CRITICAL APPLICATIONS. PRODUCTS IN SUCH APPLICATIONS ARE UNDERSTOOD TO BE FULLY AT THE CUSTOMER OR THE CUSTOMER’S RISK. Apex Microtechnology, Apex and Apex Precision Power are trademarks of Apex Microtechnology, Inc. All other corporate names noted herein may be trademarks of their respective holders. PA02MU Rev M 3
