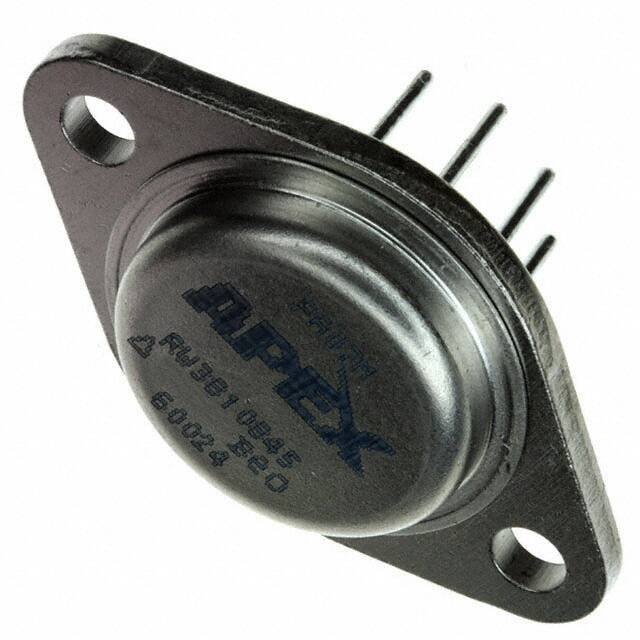

PA07M

PA07M/883 Table 4 Group A Inspection SG Parameter Symbol Temp. Power Test Conditions Min Max Units IQ 25°C ±35V VIN = 0, AV = 100 30 mA Input Offset Voltage VOS 25°C ±35V VIN = 0, AV = 100 2 mV 1 Input Offset Voltage VOS 25°C ±12V VIN = 0, AV = 100 4.3 mV 1 Input Offset Voltage VOS 25°C ±50V VIN = 0, AV = 100 3.5 mV 1 Input Bias Current, +IN +IB 25°C ±35V VIN = 0 50 pA 1 Input Bias Current, –IN –IB 25°C ±35V VIN = 0 50 pA 1 Input Offset Current IOS 25°C ±35V VIN = 0 50 pA 3 Quiescent Current IQ –55°C ±35V VIN = 0, AV = 100 46 mA 3 Input Offset Voltage VOS –55°C ±35V VIN = 0, AV = 100 4.4 mV 3 Input Offset Voltage VOS –55°C ±12V VIN = 0, AV = 100 6.7 mV 3 Input Offset Voltage VOS –55°C ±50V VIN = 0, AV = 100 5.9 mV 3 Input Bias Current, +IN +IB –55°C ±35V VIN = 0 50 pA 3 Input Bias Current, –IN –IB –55°C ±35V VIN = 0 50 pA 3 Input Offset Current IOS –55°C ±35V VIN = 0 50 pA 2 Quiescent Current IQ 125°C ±35V VIN = 0, AV = 100 30 mA 2 Input Offset Voltage VOS 125°C ±35V VIN = 0, AV = 100 5 mV 2 Input Offset Voltage VOS 125°C ±12V VIN = 0, AV = 100 7.3 mV 2 Input Offset Voltage VOS 125°C ±50V VIN = 0, AV = 100 6.5 mV 2 Input Bias Current, +IN +IB 125°C ±35V VIN = 0 10 nA 2 Input Bias Current, –IN –IB 125°C ±35V VIN = 0 10 nA 2 Input Offset Current IOS 125°C ±35V VIN = 0 10 nA 4 Output Voltage, IO = 5A VO 25°C ±15.3V RL = 2.07 Ω 10.3 V 4 Output Voltage, IO = 90mA VO 25°C ±50V RL = 500 Ω 45 V 4 Output Voltage, IO = 2A VO 25°C ±29V RL = 12 Ω 24 V 4 Current Limits ICL 25°C ±19V RL = 12 Ω, RCL= 1 Ω 4 Stability/Noise EN 25°C ±35V RL =100 Ω, AV =1, CL =1nF 4 Slew Rate SR 25°C ±35V RL = 500 Ω 2.5 4 Open Loop Gain AOL 25°C ±35V RL = 500 Ω, F = 15 Hz 89 dB 4 Common Mode Rejection CMR 25°C 80 dB 1 Quiescent Current 1 www.apexanalog.com ±34.5V RL=500 Ω, F=DC, VCM = ±24.5V © Apex Microtechnology Inc. All rights reserved 0.54 0.86 A 1 mV 10 V/µs Aug 2015 PA07MU Rev N PA07M/883 SG Parameter Symbol Temp. Power Test Conditions Min 10.3 V 45 V 24 V 6 Output Voltage, IO = 5A VO 6 Output Voltage, IO = 90mA VO –55°C ±15.3V RL = 2.07 Ω –55°C ±50V RL = 500 Ω 6 Output Voltage, IO = 2A VO –55°C ±29V RL = 12 Ω 6 Stability/Noise EN –55°C 6 Slew Rate SR –55°C ±35V RL =100 Ω, AV =1, CL =1nF ±35V RL = 500 Ω 6 Open Loop Gain AOL –55°C 6 Common Mode Rejection CMR 5 Output Voltage, IO = 3A 5 2.5 Max Units 1 mV 10 V/µs ±35V RL = 500 Ω, F = 15 Hz R =500 Ω, F=DC, VCM = –55°C ±34.5V L ±24.5V 89 dB 80 dB VO 125°C ±11.3V RL = 2.07 Ω 6.3 V Output Voltage, IO = 90mA VO 125°C ±50V RL = 500 Ω 45 V 5 Output Voltage, IO = 2A VO 125°C 24 V 5 Stability/Noise EN 125°C ±29V RL = 12 Ω ±35V RL =100 Ω, AV =1, CL =1nF 5 Slew Rate SR 125°C 5 Open Loop Gain AOL 125°C 5 Common Mode Rejection CMR 125°C ±34.5V 2 ±35V RL = 500 Ω ±35V RL = 500 Ω, F = 15 Hz RL=500 Ω, F=DC, VCM = ±24.5V 1.25 1 mV 10 V/µs 89 dB 80 dB PA07MU Rev N PA07M/883 BURN IN CIRCUIT *These components are used to stabilize device due to poor high frequency characteristics of burn in board. **Input signals are calculated to result in internal power dissipation of approximately 2.1W at case tempera‐ ture = 125°C. NEED TECHNICAL HELP? CONTACT APEX SUPPORT! For all Apex Microtechnology product questions and inquiries, call toll free 800-546-2739 in North America. For inquiries via email, please contact apex.support@apexanalog.com. International customers can also request support by contacting their local Apex Microtechnology Sales Representative. To find the one nearest to you, go to www.apexanalog.com IMPORTANT NOTICE Apex Microtechnology, Inc. has made every effort to insure the accuracy of the content contained in this document. However, the information is subject to change without notice and is provided "AS IS" without warranty of any kind (expressed or implied). Apex Microtechnology reserves the right to make changes without further notice to any specifications or products mentioned herein to improve reliability. This document is the property of Apex Microtechnology and by furnishing this information, Apex Microtechnology grants no license, expressed or implied under any patents, mask work rights, copyrights, trademarks, trade secrets or other intellectual property rights. Apex Microtechnology owns the copyrights associated with the information contained herein and gives consent for copies to be made of the information only for use within your organization with respect to Apex Microtechnology integrated circuits or other products of Apex Microtechnology. This consent does not extend to other copying such as copying for general distribution, advertising or promotional purposes, or for creating any work for resale. APEX MICROTECHNOLOGY PRODUCTS ARE NOT DESIGNED, AUTHORIZED OR WARRANTED TO BE SUITABLE FOR USE IN PRODUCTS USED FOR LIFE SUPPORT, AUTOMOTIVE SAFETY, SECURITY DEVICES, OR OTHER CRITICAL APPLICATIONS. PRODUCTS IN SUCH APPLICATIONS ARE UNDERSTOOD TO BE FULLY AT THE CUSTOMER OR THE CUSTOMER’S RISK. Apex Microtechnology, Apex and Apex Precision Power are trademarks of Apex Microtechnology, Inc. All other corporate names noted herein may be trademarks of their respective holders. PA07MU Rev N 3
