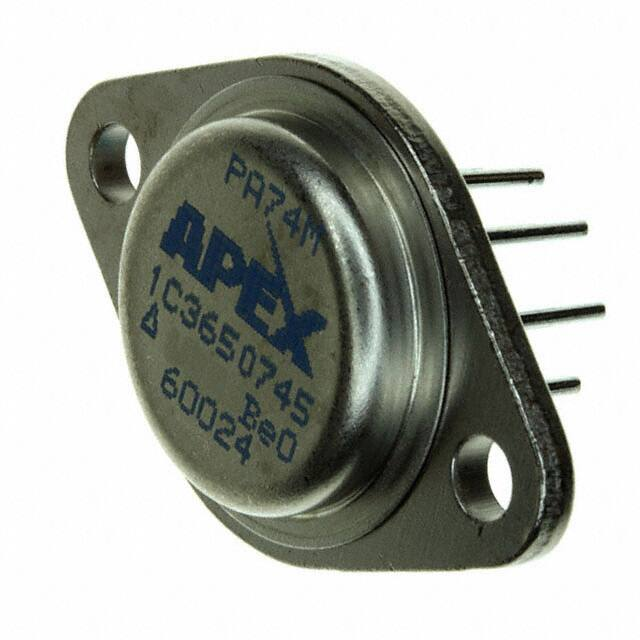

PA74M

PA74M Table 4 Group A Inspection SG Parameter Symbol Temp. Power Test Conditions Min Max Units IQ 25°C ±15 VIN = 0, AV = 100 30 mA Input Offset Voltage VOS 25°C ±2.5 VIN = 0, AV = 100 10 mV 1 Input Offset Voltage VOS 25°C ±15 VIN = 0, AV = 100 10 mV 1 Input Offset Voltage VOS 25°C ±20 VIN = 0, AV = 100 14 mV 1 Input Bias Current, +IN +IB 25°C ±15 VIN = 0 1000 nA 1 Input Bias Current, –IN –IB 25°C ±15 VIN = 0 1000 nA 1 Input Offset Current IOS 25°C ±15 VIN = 0 500 nA 3 Quiescent Current IQ –55°C ±15 VIN = 0, AV = 100 30 mA 3 Input Offset Voltage VOS –55°C ±2.5 VIN = 0, AV = 100 14 mV 3 Input Offset Voltage VOS –55°C ±15 VIN = 0, AV = 100 14 mV 3 Input Offset Voltage VOS –55°C ±20 VIN = 0, AV = 100 18 mV 3 Input Bias Current, +IN +IB –55°C ±15 VIN = 0 1000 nA 3 Input Bias Current, –IN –IB –55°C ±15 VIN = 0 1000 nA 3 Input Offset Current IOS –55°C ±15 VIN = 0 500 nA 2 Quiescent Current IQ 125°C ±15 VIN = 0, AV = 100 40 mA 2 Input Offset Voltage VOS 125°C ±2.5 VIN = 0, AV = 100 15 mV 2 Input Offset Voltage VOS 125°C ±15 VIN = 0, AV = 100 15 mV 2 Input Offset Voltage VOS 125°C ±20 VIN = 0, AV = 100 19 mV 2 Input Bias Current, +IN +IB 125°C ±15 VIN = 0 1000 nA 2 Input Bias Current, –IN –IB 125°C ±15 VIN = 0 1000 nA 2 Input Offset Current IOS 125°C ±15 VIN = 0 500 nA 4 Output Voltage, IO = 2A VO 25°C ±9.5 RL = 3 Ω 6.0 V 4 Output Voltage, IO = 100mA VO 25°C ±11 RL = 100 Ω 9.9 V 4 Output Voltage, IO = 1A VO 25°C ±4.8 RL = 3 Ω 2.8 V 4 Stability/Noise EN 25°C ±15 RL = 500 Ω, AV = 1 CL = 1.5nF 4 Crosstalk XTLK 25°C ±15 RL = 3 Ω 50 dB 4 Slew Rate SR 25°C ±15 RL = 500 Ω 0.5 V/µs 4 Open Loop Gain AOL 25°C ±15 RL = 500 Ω, F = 10 Hz 75 dB 4 Common Mode Rejection CMR 25°C ±17 RL = 500 Ω, VCM = ±14V 60 dB 1 Quiescent Current 1 www.apexanalog.com © Apex Microtechnology Inc. All rights reserved 1.0 mV Dec 2015 PA74MU Rev D PA74M SG Parameter Symbol Temp. Power Test Conditions Min Max Units 6 Output Voltage, IO = 2A VO –55°C ±9.5 RL = 3 Ω 6.0 V 6 Output Voltage, IO = 100mA VO –55°C ±11 RL = 100 Ω 9.9 V 6 Output Voltage, IO = 1A VO –55°C ±4.8 RL = 3 Ω 2.8 V 6 Stability/Noise EN –55°C ±15 RL = 500 Ω, AV = 1, CL = 1.5nF 6 Slew Rate SR –55°C ±15 RL = 500 Ω 0.5 V/µs 6 Open Loop Gain AOL –55°C ±15 RL = 500 Ω, F = 10 Hz 75 dB 6 Common Mode Rejection CMR –55°C ±17 RL = 500 Ω, VCM = ±14V 60 dB 5 Output Voltage, IO = 1A VO 125°C ±4.8 RL = 3 Ω 2.8 V 5 Output Voltage, IO = 100mA VO 125°C ±11 RL = 100 Ω 9.9 V 5 Output Voltage, IO = 750mA VO 125°C ±4.0 RL = 3 Ω 2.25 V 5 Stability/Noise EN 125°C ±15 RL = 500 Ω, AV = 1, CL = 1.5nF 5 Slew Rate SR 125°C ±15 RL = 500 Ω 0.5 V/µs 5 Open Loop Gain AOL 125°C ±15 RL = 500 Ω, F = 10 Hz 75 dB 5 Common Mode Rejection CMR 125°C ±17 RL = 500 Ω, VCM = ±14V 60 dB 2 1.0 1.0 mV mV PA74MU Rev D PA74M BURN IN CIRCUIT Figure 1: Burn in Circuit * These components are used to stabilize device due to poor high frequency characteristics of burn in board. ** Input signals are calculated to result in internal power dissipation of approximately 2.1W at case tempera‐ ture = 125°C NEED TECHNICAL HELP? CONTACT APEX SUPPORT! For all Apex Microtechnology product questions and inquiries, call toll free 800-546-2739 in North America. For inquiries via email, please contact apex.support@apexanalog.com. International customers can also request support by contacting their local Apex Microtechnology Sales Representative. To find the one nearest to you, go to www.apexanalog.com IMPORTANT NOTICE Apex Microtechnology, Inc. has made every effort to insure the accuracy of the content contained in this document. However, the information is subject to change without notice and is provided "AS IS" without warranty of any kind (expressed or implied). Apex Microtechnology reserves the right to make changes without further notice to any specifications or products mentioned herein to improve reliability. This document is the property of Apex Microtechnology and by furnishing this information, Apex Microtechnology grants no license, expressed or implied under any patents, mask work rights, copyrights, trademarks, trade secrets or other intellectual property rights. Apex Microtechnology owns the copyrights associated with the information contained herein and gives consent for copies to be made of the information only for use within your organization with respect to Apex Microtechnology integrated circuits or other products of Apex Microtechnology. This consent does not extend to other copying such as copying for general distribution, advertising or promotional purposes, or for creating any work for resale. APEX MICROTECHNOLOGY PRODUCTS ARE NOT DESIGNED, AUTHORIZED OR WARRANTED TO BE SUITABLE FOR USE IN PRODUCTS USED FOR LIFE SUPPORT, AUTOMOTIVE SAFETY, SECURITY DEVICES, OR OTHER CRITICAL APPLICATIONS. PRODUCTS IN SUCH APPLICATIONS ARE UNDERSTOOD TO BE FULLY AT THE CUSTOMER OR THE CUSTOMER’S RISK. Apex Microtechnology, Apex and Apex Precision Power are trademarks of Apex Microtechnology, Inc. All other corporate names noted herein may be trademarks of their respective holders. PA74MU Rev D 3
