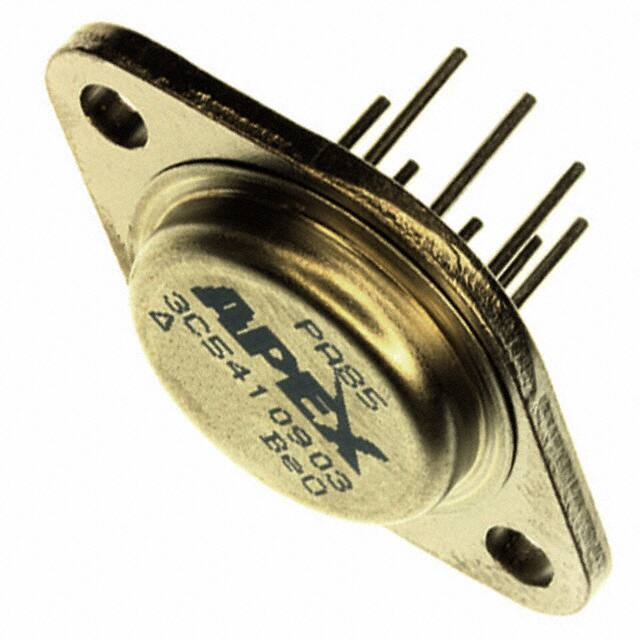

PA85

AN PA85 AN PA85 Power Amplifier Support Components EVALUATION KIT EK09 is an easy to use engineering platform for prototype evaluation. Provided items include: PC boards to make a five sided box, cage jacks and 200V ceramic bypass capacitors. The top board has pads for two TO-3 packages and one MO127 package. Two ends of the box are predrilled for banana jacks and BNC connectors (not supplied). Amplifiers and heatsinks are sold separately. HEATSINKS The following heatsinks are mechanically compatible with this amplifier. Thermal ratings are for optimum mounting in free air. HS03 1.7°C/W HS01 11.6°C/W HS04 0.95°C/W HS02 4.5°C/W HS05 0.85°C/W Copyright © Apex Microtechnology, Inc. 2012 www.apexanalog.com AN PA85U (All Rights Reserved) NOV 2012 AN PA85U REVB1 AN PA85 HS09 11.7°C/W HS14 2°C/W CAGE JACKS HS11 0.68°C/W With liquid cooling the HS11 thermal rating can be reduced to .1°C/W. MS02 Part number MS02 consists of a package of 8 cage jacks. These are mounted directly in a print circuit board. Use a spacer between the PCB and the heatsink to avoid short circuits. HS13 1.48°C/W 2 AN PA85U AN PA85 SOCKET MS03 NOTES: 1. Base material is aluminum, 0.002” thick. Do not allow the washer to touch pins of the amplifier. 2. For optimum thermal transfer, avoid abrasive handling of washers which can damage their 0.5mil thick layer of thermal compound with which each side is coated. 3. The dry thermal compound will flow filling header to heatsink voids as soon as the material reached 60°C. 4. Do not store unused thermal washers above 40°C. 5. A new washer must be used for each mounting. 6. Part number TW03 consists of a package of 10 washers. 7. Thermal resistance is 0.1°C/W. THERMAL WASHER TW03 NEED TECHNICAL HELP? CONTACT APEX SUPPORT! For all Apex Microtechnology product questions and inquiries, call toll free 800-546-2739 in North America. For inquiries via email, please contact apex.support@apexanalog.com. International customers can also request support by contacting their local Apex Microtechnology Sales Representative. To find the one nearest to you, go to www.apexanalog.com IMPORTANT NOTICE Apex Microtechnology, Inc. has made every effort to insure the accuracy of the content contained in this document. However, the information is subject to change without notice and is provided "AS IS" without warranty of any kind (expressed or implied). Apex Microtechnology reserves the right to make changes without further notice to any specifications or products mentioned herein to improve reliability. This document is the property of Apex Microtechnology and by furnishing this information, Apex Microtechnology grants no license, expressed or implied under any patents, mask work rights, copyrights, trademarks, trade secrets or other intellectual property rights. Apex Microtechnology owns the copyrights associated with the information contained herein and gives consent for copies to be made of the information only for use within your organization with respect to Apex Microtechnology integrated circuits or other products of Apex Microtechnology. This consent does not extend to other copying such as copying for general distribution, advertising or promotional purposes, or for creating any work for resale. APEX MICROTECHNOLOGY PRODUCTS ARE NOT DESIGNED, AUTHORIZED OR WARRANTED TO BE SUITABLE FOR USE IN PRODUCTS USED FOR LIFE SUPPORT, AUTOMOTIVE SAFETY, SECURITY DEVICES, OR OTHER CRITICAL APPLICATIONS. PRODUCTS IN SUCH APPLICATIONS ARE UNDERSTOOD TO BE FULLY AT THE CUSTOMER OR THE CUSTOMER’S RISK. Apex Microtechnology, Apex and Apex Precision Power are trademarks of Apex Microtechnolgy, Inc. All other corporate names noted herein may be trademarks of their respective holders. Copyright © Apex Microtechnology, Inc. 2012 www.apexanalog.com AN PA85U (All Rights Reserved) NOV 2012 AN PA85U REVB3
