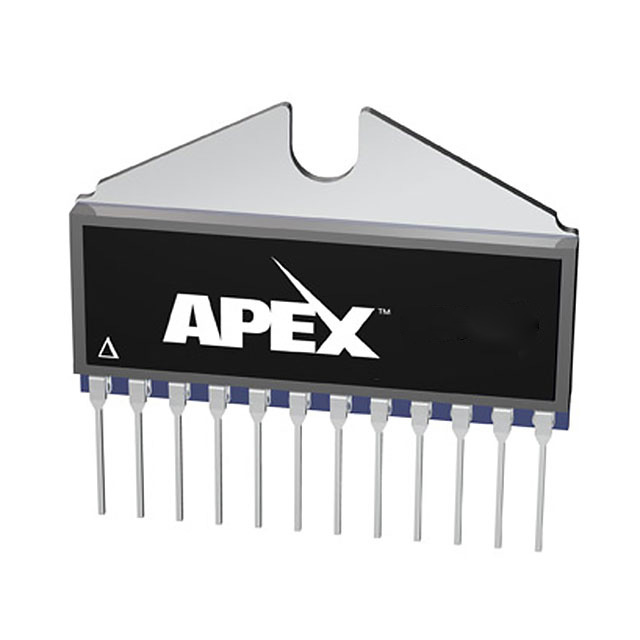

PB64DPA

PB64 • PB64A Dual Power Booster Amplifier RoHS COMPLIANT FEATURES • • • • • • • Wide Supply Range – ±20 V to ±75 V High Output Current – Up to 2 A Continuous Programmable Gain High Slew Rate – 800 V/µs Typical Programmable Output Current Limit High Power Bandwidth – 1 MHz Low Quiescent Current – 20 mA Typical (Total, Both Channels) PB64DP APPLICATIONS • • • • • • • LED Test Equipment LCD Test Equipment Semiconductor Test Equipment High Voltage Instrumentation Electrostatic Transducers and Deflection Piezoelectric Positioning and Actuation Programmable Power Supplies DESCRIPTION The PB64 is a dual high voltage, high current booster amplifier designed to provide voltage and current gain for a small signal, general purpose op amp. Including the power booster within the feedback loop of the driver amplifier results in a composite amplifier with the accuracy of the driver and the extended output current capability of the booster. The output stage utilizes complementary MOSFETs, providing symmetrical output impedance and eliminating second breakdown limitations imposed by Bipolar Junction Transistors. Although the booster can be configured quite simply, enormous flexibility is provided through the choice of driver amplifier, current limit and supply voltage. This hybrid circuit utilizes a Beryllia (BeO) substrate, thick film resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The PB64 is packaged in Apex Microtechnology’s 12-pin power SIP. The case is electrically isolated. www.apexanalog.com © Apex Microtechnology Inc. All rights reserved Jan 2020 PB64U Rev C PB64 • PB64A TYPICAL CONNECTION Figure 1: Typical Connection RI RF VIN +VS +15V 100nF 100nF Op Amp RCL IN VOUT +VS ½PB64 -15V 20μF 100nF GAIN -VS CL CC CC RL RGAIN 20μF 2 100nF -VS PB64U Rev C PB64 • PB64A PINOUT AND DESCRIPTION TABLE Figure 2: External Connections Pin Number Name Description 1 IN_A 2 CC_A 3 OUT_A 4 GAIN_A 5 CL_A The input for channel A. Compensation capacitor connection for channel A. Select value based on Phase Compensation. See applicable section. The output for channel A. Connect this pin to load and to the feedback resistors. Gain resistor pin for channel A. Connect RGAIN_A between GAIN_A and ground. This will specify the gain for the power booster itself, not the composite amplifier. See applicable section. Connect to the current limit resistor. Output current flows into/out of these pins through RCL. The output pin and the load are connected to the other side of RCL. 6 7 +Vs -Vs 8 CL_B 9 GAIN_B 10 OUT_B 11 CC_B 12 IN_B PB64U Rev C The positive supply rail for both channels. The negative supply rail for both channels. Connect to the current limit resistor. Output current flows into/out of these pins through RCL. The output pin and the load are connected to the other side of RCL. Gain resistor pin for channel B. Connect RGAIN_B between GAIN_B and ground. This will specify the gain for the power booster itself, not the composite amplifier. See applicable section. The output for channel B. Connect this pin to load and to the feedback resistors. Compensation capacitor connection for channel B. Select value based on Phase Compensation. See applicable section. The input for channel B. 3 PB64 • PB64A SPECIFICATIONS (PER AMPLIFIER) All Min/Max characteristics and specifications are guaranteed over the Specified Operating Conditions. Typical performance characteristics and specifications are derived from measurements taken at typical supply voltages and TC = 25°C. ABSOLUTE MAXIMUM RATINGS Parameter Symbol Max Units +Vs to -Vs 200 V Output Current, peak, per channel within SOA IO 2 A Power Dissipation, internal DC 1 PD 90 W Input Voltage, referred to common VIN Supply Voltage, total Min (-VS + 10V) / AV (+VS - 10V) / AV Temperature, pin solder, 10s max. Temperature, junction Temperature Range, storage TJ Operating Temperature Range, case TC 2 V 260 °C 150 °C -55 +125 °C -25 +85 °C 1. Each device in the package is capable of dissipating 45W internally. 2. Long term operation at the maximum junction temperature will result in reduced product life. Derate power dissipation to achieve high MTTF. CAUTION The PB64 is constructed from MOSFET devices. ESD handling procedures must be observed. The substrate contains beryllia (BeO). Do not crush, machine or subject to temperatures in excess of 850°C to avoid generating toxic fumes. INPUT Parameter Offset Voltage, initial Offset Voltage vs. Temperature Input Bias Current Input Resistance, DC Input Capacitance Noise DC Power Supply Rejection DC Common Mode Rejection 4 Test Conditions Full temp range Full temp range PB64 PB64A Min Typ Max Min Typ Max -20 ±5 +0.04 ±4 97 3 +20 -10 +10 +50 -25 * * * * * -50 f = 10 kHz 25 87 75 100 78 * * * * * +25 Units mV mV/°C µA MΩ pF nV/√Hz dB dB PB64U Rev C PB64 • PB64A GAIN (EACH CHANNEL) Parameter Open Loop Gain Bandwidth, -3db Power Bandwidth, 100Vp-p Test Conditions PB64 Min f = 10 kHz A V = 5V/V, RL = 50 Ω A V = 5V/V, RL = 50 Ω Typ PB64A Max Min Typ Max Units 83 * dB 600 * kHz 1 1 MHz PB64 PB64A OUTPUT (EACH CHANNEL) Parameter Test Conditions Voltage Swing IO = 2A Voltage Swing IO = 0.5A Current, peak, source Per Channel RL = 50 Ω, 10VP-P input step, AV = 10V/V Slew Rate Min Typ |Vs| 11V |Vs| 7.5V Max Max Units Min Typ * * V * V |Vs| 6.5V 2 2 * A 800 600 800 V/µs Capacitive Load, 25% Overshoot 4VP-P input step, A V = 5V/V, Comp = 10pF 470 * pF Settling Time to 0.1% RL = 50 Ω, 4VP-P input step, AV=5V/V 300 * ns PB64 PB64A POWER SUPPLY Parameter 1 Test Conditions Voltage,± VS Current, quiescent Units Min Typ Max Min Typ Max ±20 ±65 ±75 * * * V 20 24 * * mA Both Channels 1. +VS and −VS denote the positive and negative supply voltages. PB64U Rev C 5 PB64 • PB64A MATCHING SPECIFICATIONS, VS=±75V, TC =25°C UNLESS OTHERWISE NOTED. Parameter Test Conditions PB64 Min Input Offset Voltage Match Gain Match Typ PB64A Max Min Typ Max 5 0.2 3 * 15 PB64 PB64A Units mV % THERMAL Parameter Resistance, AC junction to case 1 Resistance, DC junction to case Resistance, junction to air Operating Temperature Range, case Test Conditions Min Full temp range, f ≥ 60 Hz Full temp range, f < 60 Hz Full temp range Typ Max 1.3 2.4 Min Max 1.5 * * °C/W 2.7 * * °C/W 30 -25 25 Units Typ * 85 * * °C/W * °C 1. Rating applies if the output current alternates between both output transistors at a rate faster than 60 Hz. 6 PB64U Rev C PB64 • PB64A TYPICAL PERFORMANCE GRAPHS Figure 3: Power Derating Figure 4: Pulse Response 60 70 VOUT 40 60 20 50 Volts (V) /ŶƚĞƌŶĂůWŽǁĞƌŝƐƐŝƉĂƟŽŶ͕W;tͿ 80 40 30 0 INPUT -20 20 -40 10 0 -25 0 25 50 75 -60 0 100 200 400 600 800 1000 Time (ns) Case Temperature, TC (°C) Figure 5: Output Voltage Swing Figure 6: THD vs. Frequency 4 7.0 6.5 6.0 THD (%) Vs-Vo (V) 3 5.5 Vs+ 5.0 2 Z>сϱϬɏ 1 4.5 4.0 Z>сϭŬɏ Vs0.01 0.1 Load Current (A) PB64U Rev C 1 0 1 10 100 1000 Frequency (kHz) 7 PB64 • PB64A Figure 8: Small Signal Closed Loop Phase 40 45 30 0 Closed Loop Phase (°) Closed Loop Gain (dB) Figure 7: Small Signal Closed Loop Gain 20 10 AVCL = 3 AVCL = 5 AVCL = 10 0 -10 -20 AVCL = 3 AVCL = 5 -45 -90 AVCL = 25 AVCL = 10 -135 -180 -225 -270 AVCL = 25 -30 -315 -40 0.001 0.01 0.1 1 10 -360 0.001 0.01 100 Frequency (MHz) 0.1 1 10 100 Frequency (MHz) Figure 9: Quiescent Current Figure 10: Current Limit vs. Temperature 2.0 27 Ϭ͘ϯϯё͕/Kн Vs = ±75 V 23 21 19 Vs = ±50 V 17 15 -40 0 20 40 60 Case Temperature (°C) 8 Ϭ͘ϯϯё͕/KͲ 1.6 ϭ͘ϰ Ϭ͘ϲϴё͕/Kн 1.2 Ϭ͘ϲϴё͕/KͲ 1.0 0.8 ϭ͘ϱё͕/KͲ 0.6 Vs = ±20 V -20 Output Current, A Quiescent Current (mA) 1.8 25 80 100 Ϭ͘ϰ ͲϰϬ ͲϮϬ ϭ͘ϱё͕/Kн 0 20 ϰϬ 60 80 100 120 Case Temperature, TC (°C) PB64U Rev C PB64 • PB64A Figure 11: Rise and Fall Time vs. Temperature 70 +Vs Fall 65 -Vs 135 60 PSRR (dB) Rise and Fall Time (ns) 145 Figure 12: Power Supply Rejection Ratio 125 Rise 115 55 50 105 45 95 85 -40 40 0.1 -20 0 20 40 60 80 1 10 100 Frequency (kHz) 100 Temperature (°C) Figure 13: VOS vs. Temperature Figure 14: Channel Separation -20 6.00 -30 5.00 -40 VS = ±20V 3.00 /ƐŽůĂƟŽŶ;ĚͿ VOS (mV) 4.00 VS = ±75V 2.00 VS = ±50V -60 AV = 3 -70 AV = 10 -90 -20 0 20 40 60 Case Temperature, TC (°C) PB64U Rev C -50 -80 1.00 0.00 -40 AV = 1 80 100 -100 1.0 10 100 1000 Frequency, F (Hz) 9 PB64 • PB64A SAFE OPERATING AREA (SOA) The MOSFET output stage of the PB64 is not limited by second breakdown considerations as in bipolar output stages. Only thermal considerations and current handling capabilities limit the SOA (see Safe Operating Area graph). The output stage is protected against transient flyback by the parasitic body diodes of the output stage MOSFET structure. However, for protection against sustained high energy flyback external fastrecovery diodes must be used. KƵƚƉƵƚƵƌƌĞŶƚ&ƌŽŵнsS ŽƌͲsS;Ϳ Figure 15: SOA (Per Channel) ϭϬ Ϭŵ Ɛ^ ^ƚ ŝŶ ĞĂ ĚLJ ŐůĞ WƵ ^ƚ ^ƚ ůƐĞ Ăƚ ĞĂ Ğ d ĚLJ d ^ƚ C= 25 C =25 Ăƚ °C °C Ğ d C = 85 °C 1 0.1 sZKW>/D/d 0.01 1 10 100 ^ƵƉƉůLJƚŽKƵƚƉƵƚŝīĞƌĞŶƟĂů͕sSͲsO;sͿ 10 PB64U Rev C PB64 • PB64A GENERAL Please read Application Note 1 “General Operating Considerations” which covers stability, supplies, heat sinking, mounting, current limit, SOA interpretation, and specification interpretation. Visit www.apexanalog.com for Apex Microtechnology’s complete Application Notes library, Technical Seminar Workbook, and Evaluation Kits. TYPICAL APPLICATION Figure 16: Typical Application (Inverting Composite Amplifier) RF +15V VIN +VS CF RCL RI OP AMP IN 1/2 PB64 OUT RL RG -15V CCOMP -VS COMPOSITE AMPLIFIER CONSIDERATIONS Cascading two amplifiers within a feedback loop has many advantages, but also requires careful consideration of several amplifier and system parameters. The most important of these are gain, stability, slew rate, and output swing of the driver. STABILITY Stability can be maximized by observing the following guidelines: 1. Keep gain-bandwidth product of the driver lower than the closed loop bandwidth of the booster. Use the lowest possible booster gain. 2. Minimize phase shift within the loop. A good compromise is to set total (composite) gain at least a factor of 3 times booster gain. Phase shift within the loop is minimized through use of loop compensation capacitor CF when required. Typical values are 5 pF to 33 pF. Stability is the most difficult to achieve in a configuration where driver effective gain is unity (i.e.; total gain = booster gain). PB64U Rev C 11 PB64 • PB64A BOOSTER GAIN The gain of each section may be set independently by selecting a value for the gain setting resistor RG according to the relation: GAIN = 1 + 2000 ---------------RG where RG is in ohms. Recommended gain range is A V = 3 V/V to A V = 25 V/V. SLEW RATE The slew rate of the composite amplifier is equal to the slew rate of the driver times the booster gain, with a maximum value equal to the booster slew rate. OUTPUT SWING The maximum output voltage swing required from the driver op amp is equal to the maximum output swing from the booster divided by the booster gain. The offset voltage of the booster over temperature must be taken into account. Note also that effects of booster gain accuracy should be considered when calculating maximum available driver swing. POWER SUPPLY BYPASSING Bypass capacitors to power supply terminals +VS and –VS must be connected physically close to the pins to prevent local parasitic oscillation in the output stage of the PB64. Use capacitors of at least 10 μF for each supply. Bypass the large capacitors with high quality ceramic capacitors (X7R) of 0.1 μF or greater. CURRENT LIMIT For proper operation, the current limit resistor (RLIM) must be connected as shown in the typical connection diagram. For optimum reliability the resistor value should be set as high as possible. The value is calculated as follows; with the maximum practical value of 30 ohms. The current limit function can be disabled by shorting the CL pin to the OUT pin. 0.7V R LIM    = ------------------I LIM  A  POWER SUPPLY PROTECTION Unidirectional zener diode transient suppressors are recommended as protection on the supply pins. The zeners clamp transients to voltages within the power supply rating and also clamp power supply reversals to ground. Whether the zeners are used or not, the system power supply should be evaluated for transient performance including power-on overshoot and power-off polarity reversal as well as line regulation. Conditions which can cause open circuits or polarity reversals on either power supply rail should be avoided or protected against. Reversals or opens on the negative supply rail is known to induce input stage failure. Unidirectional transzorbs prevent this, and it is desirable that they be both electrically and physically as close to the amplifier as possible. 12 PB64U Rev C PB64 • PB64A PACKAGE OPTIONS Part Number Apex Package Style Description PB64DP PB64DPA DP DP 12-pin Power Sip 12-pin Power Sip PACKAGE STYLE DP PB64U Rev C 13 PB64 • PB64A NEED TECHNICAL HELP? CONTACT APEX SUPPORT! For all Apex Microtechnology product questions and inquiries, call toll free 800-546-2739 in North America. For inquiries via email, please contact apex.support@apexanalog.com. International customers can also request support by contacting their local Apex Microtechnology Sales Representative. To find the one nearest to you, go to www.apexanalog.com IMPORTANT NOTICE Apex Microtechnology, Inc. has made every effort to insure the accuracy of the content contained in this document. However, the information is subject to change without notice and is provided "AS IS" without warranty of any kind (expressed or implied). Apex Microtechnology reserves the right to make changes without further notice to any specifications or products mentioned herein to improve reliability. This document is the property of Apex Microtechnology and by furnishing this information, Apex Microtechnology grants no license, expressed or implied under any patents, mask work rights, copyrights, trademarks, trade secrets or other intellectual property rights. Apex Microtechnology owns the copyrights associated with the information contained herein and gives consent for copies to be made of the information only for use within your organization with respect to Apex Microtechnology integrated circuits or other products of Apex Microtechnology. This consent does not extend to other copying such as copying for general distribution, advertising or promotional purposes, or for creating any work for resale. APEX MICROTECHNOLOGY PRODUCTS ARE NOT DESIGNED, AUTHORIZED OR WARRANTED TO BE SUITABLE FOR USE IN PRODUCTS USED FOR LIFE SUPPORT, AUTOMOTIVE SAFETY, SECURITY DEVICES, OR OTHER CRITICAL APPLICATIONS. PRODUCTS IN SUCH APPLICATIONS ARE UNDERSTOOD TO BE FULLY AT THE CUSTOMER OR THE CUSTOMER’S RISK. Apex Microtechnology, Apex and Apex Precision Power are trademarks of Apex Microtechnology, Inc. All other corporate names noted herein may be trademarks of their respective holders. 14 PB64U Rev C
