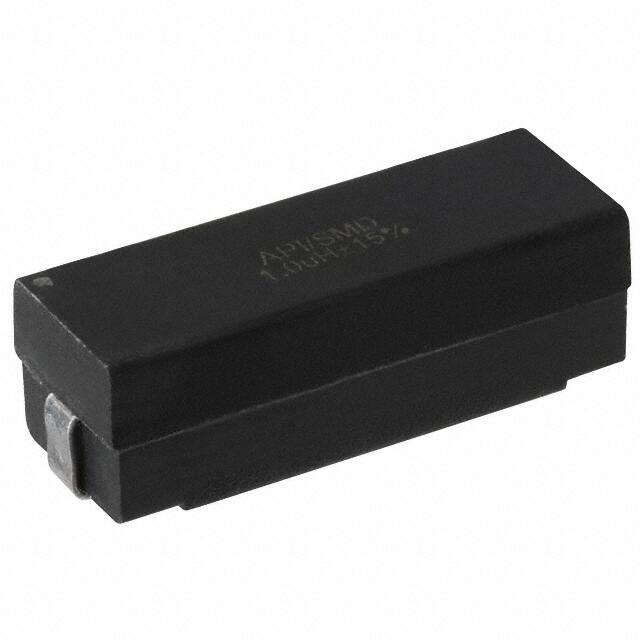

8532R-48L

Operating Temperature Range –55°C to +125°C Current Rating 40°C Rise over 85°C Ambient Maximum Power Dissipation at 85°C 0.50 Watts Inductance Measured at 1 VAC open circuit with no DC current. Incremental Current The current at which the inductance will decrease by a maximum of 5% from its initial zero DC value. Weight Max. (Grams) 2.5 SERIES 8532 FERRITE CORE 1.0 0.009 6.27 1.2 0.010 5.95 1.5 0.011 5.67 1.8 0.012 5.43 2.2 0.013 5.22 2.7 0.014 5.03 3.3 0.016 4.70 3.9 0.017 4.56 4.7 0.022 4.01 5.6 0.024 3.84 6.8 0.026 3.69 8.2 0.028 3.55 10.0 0.033 3.27 12.0 0.037 3.09 15.0 0.040 2.97 18.0 0.044 2.84 22.0 0.050 2.66 27.0 0.070 2.25 33.0 0.075 2.17 39.0 0.084 2.05 47.0 0.104 1.84 56.0 0.130 1.65 68.0 0.145 1.56 82.0 0.152 1.53 100.0 0.208 1.30 120.0 0.283 1.12 150.0 0.330 1.04 180.0 0.362 0.99 220.0 0.505 0.84 270.0 0.557 0.80 330.0 0.650 0.74 390.0 0.770 0.68 470.0 1.03 0.59 560.0 1.14 0.56 680.0 1.50 0.49 820.0 1.98 0.42 1000.0 2.30 0.39 1200.0 2.55 0.37 1500.0 3.00 0.34 1800.0 4.00 0.30 2200.0 4.40 0.28 2700.0 5.80 0.25 3300.0 6.56 0.23 3900.0 8.63 0.20 4700.0 10.1 0.19 5600.0 11.2 0.18 6800.0 15.0 0.15 8200.0 20.8 0.13 10000.0 23.4 0.12 12000.0 26.0 0.12 15000.0 36.0 0.10 18000.0 40.0 0.09 s or ct du In Physical Parameters Inches Millimeters A 0.840 to 0.880 21.34 to 22.35 B 0.310 to 0.330 7.87 to 8.38 C 0.266 to 0.286 6.76 to 7.26 D 0.050 Min. 1.27 Min. E 0.070 to 0.110 1.78 to 2.79 F 0.750 (Ref. only) 19.05 (Ref. only) G 0.120 (Ref. only) 3.05 (Ref. only) Dimensions “A” and “C” are over terminals. -01L -02L -03L -04L -05L -06L -07L -08L -09L -10L -11L -12L -13L -14L -15L -16L -17L -18L -19L -20L -21L -22L -23L -24L -25L -26L -27L -28L -29L -30L -31L -32L -33L -34L -35L -36L -37L -38L -39L -40L -41L -42L -43L -44L -45L -46L -47L -48L -49L -50L -51L -52L er w Po Mechanical Configuration Units are encapsulated in a Surface Mount package, using an epoxy molded case. High resistivity ferrite core, allows for high inductance with low DC resistance. L TA EN s) EM mp CR (A IN NT E RR CU NG TI ) RA s T mp EN (A RR UM CU XIM MA CE AN ) ST S SI HM RE M (O DC MU XI MA H) (µ CE kHz AN 1 CT @ DU % IN ±15 Actual Size R* High Current Surface Mount Power Inductors E MB NU 8532R 8532 SH DA SERIES 6.4 5.8 5.2 4.8 4.3 3.9 3.5 3.2 2.9 2.7 2.5 2.2 2.0 1.8 1.6 1.5 1.4 1.2 1.1 1.0 0.93 0.85 0.77 0.71 0.64 0.58 0.52 0.48 0.43 0.39 0.35 0.32 0.29 0.27 0.25 0.22 0.20 0.18 0.16 0.15 0.14 0.12 0.11 0.10 0.09 0.09 0.08 0.07 0.06 0.06 0.05 0.05 Marking Delevan; dash number; date code (YYWWL). Note: An R before the date code indicates a RoHS component. Example: 8532R-52L DELEVAN 52 R 0901B Optional Tolerances: Values < 10µH: K = 10% J = 5% Values ≥ 10µH: K = 10% J = 5% H = 3% *Complete part # must include series # PLUS the dash # Packaging Tape & reel (44mm): 13" reel, 480 pieces max.; 7" reel not available Made In the U.S.A. 270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com 8/2021
