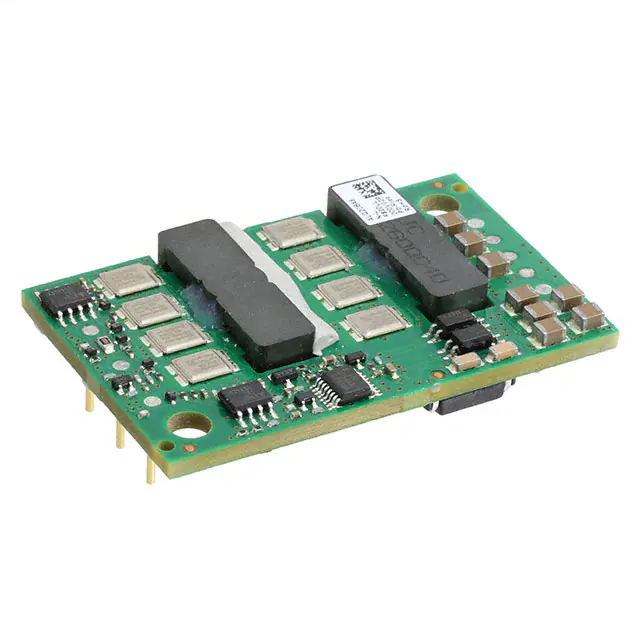

ALQ20B48N-L

Embedded Power for Business-Critical Continuity Rev. 01.17.07 ALQ/AEQ20B48 1 of 2 ALQ/AEQ20B48 20 Amps Total Power: 240 Watts Input Voltage: 48V # of Outputs: 1 Electrical Specifications Input Input range 36V to 75VDC Input surge 100V / 100ms Efficiency 93% (typical) Output Special Features Line regulation ± 0.1% (typical) • Quarter brick industry standard outline • Baseplate or openframe low profile construction • Industry Standard features : Input UVLO with hysteresis, Enable, OVP, OCP, OTP, output Voltage Trim, Differential Remote Sense • Fixed switching frequency for EMI predictability • Prebias startup capable • RoHS compliant • Meets Basic Insulation • EU directive 2002/95/EC compliant for RoHS Load regulation Noise/ripple1 Over current protection ± 0.1% (typical) 60mV (typical) 5% deviation (50% to 75% step load) 1 million hours Embedded Power for Business-Critical Continuity Ordering Information Input Voltage Output Voltage Output Current Efficiency2 Model Number 36 - 75V 12V 20A 93% Typ ALQ20B48(N)-(6)L Astec Power 20A 93% Typ AEQ20B48(N)-(6)L 36 - 75V 12V Options: (N) : "N" = designates Negative Logic Enable (default is Positive Enable with no suffix “N” required) (6) : “-6” = 3.7mm nominal pin length (default is 5mm nominal pin length with no suffix “-6” required) Notes: ALQ : = openframe constructioin AEQ : = baseplate contruction L : = RoHS Compliant (RoHS 6) Pin Assignments Single Output 1. +Vin 2. Enable on/off 3. -Vin 4. -Vout 5. - Sense 6. Trim 7. + Sense 8. +Vout Notes: 1. Measured at 20 MHz bandwidth with external 10 uF tant. capacitor in parallel with 1 uF ceramic capacitor placed across +Vout and Vout, TA = 25ºC. 2. Efficiency measurements taken at nominal line VIN = 48V input, Io = 100% load, TA = 25ºC. 3. All specifications are considered typical values unless otherwise noted and are subjuect to change without notice. 4. 2 year warranty. 5 Consult factory for further product technical details. Mechanical Drawing OPENFRAME PIN Length (inch [mm]) Std : 0.197 [5.0] “-6” : 0.146 [3.7] Rev. 01.17.07 ALQ/AEQ20B48 2 of 2 5810 Van Allen Way Carlsbad, CA 92008 USA Telephone: +1 760 930 4600 Facsimile: +1 760 930 0698 Technical Support: +1 888 41 ASTEC or +1 407 241 2752 Waterfront Business Park Merry Hill, Dudley West Midlands, DY5 1LX United Kingdom Telephone: +44 (0) 1384 842 211 Facsimile: +44 (0) 1384 843 355 Units 2111-2116, Level 21 Tower 1, Metroplaza 223, Hing Fong Road Kwai Fong, New Territories Hong Kong Telephone: +852 2437 9662 Facsimile: +852 2402 4426 For global contact, visit: www.astecpower.com technicalsupport@astec.com While every precaution has been taken to ensure accuracy and completeness in this literature, Astec Power assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions. Printed in US A Emerson Network Power. The global leader in enabling business-critical continuity. AC Power Connectivity DC Power Embedded Power Inbound Power Integrated Cabinet Solutions Outside Plant Precision Cooling Site Monitoring and Services EmersonNetworkPower. com * This is a Preliminary Data Sheet. Astec Power reserves the right to make changes to the information contained herein without notice and assumes no liability as a result of its use or application. Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co. ©2007 Emerson Electric Co.
