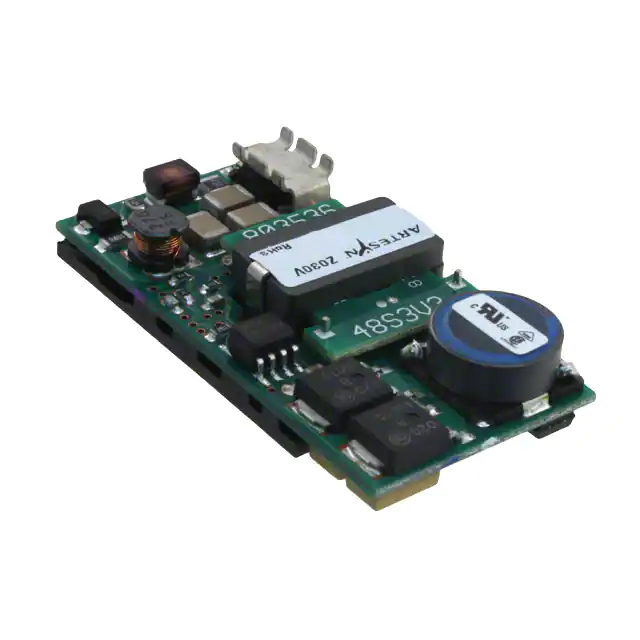

CXA10-48S3V3J

Embedded Power for Business-Critical Continuity Rev.12.04.07 cxa10 1 of 4 CXA10 Single output Total Power: 10W Input Voltage: 18 - 75VDC # of Outputs: Single Special Features • 4:1 input voltage range • Operating ambient temperature of -40°C to +70°C in still air • High demonstrated reliability with conservative component deratings • Complies with ETS 300 019-1-3/2-3 • Complies with ETS 300 132-2 input voltage and current requirements • Fully compliant with ETS 300 386-1 • Pin compatible with NFC10 and BXA10 series • Basic insulation system (input to output) • 2 year warranty Safety UL/cUL CAN/CSA 22.2 No. 60950-00 : UL 60950-1 File No. E132002 VDE Certificate No.112607. File No. 1040100-3336-0136 CB Report and Certificate to IEC60950-1, #DE 1-30686 The CXA10 series comprising of five different models delivers single and dual output voltages covering 3.3 V, 5 V, 12 V, ±5 V, ±12 V and ±15 V. The series has a wide 4:1 input voltage range of 18Vdc to 75 Vdc. The CXA10 has been designed as a competitive open-frame alternative for the communications market. The product is supplied in the industry standard footprint of 2.0 x 1.0 x 0.394 inches. Other product features include overvoltage protection, short-circuit protection and remote ON/OFF. All components are placed in a fully automated environment. Planar magnetics are used in the design to improve the reliability and reduce the profile of the dc-dc converter. The series has full international safety approvals reducing system compliance costs, and it has a basic insulation system from input to output making it suitable for a wide variety of applications. Embedded Power for Business-Critical Continuity Rev.12.04.07 cxa10 2 of 4 Specifications All specifications are typical at nominal input, full load at 25°C unless otherwise stated. OUTPUT SPECIFICATIONS EMC CHARACTERISTICS Voltage accuracy ±1.0% Line regulation (LL to HL) Singles/dual positives Dual negatives Load regulation (not incl. cross reg.) Full load to minimum load Min. load All outputs Ripple and noise 20 MHz bandwidth 3.3 V and 5.0 V All others All models ±0.1% ±0.2% ±0.15% 10% 30 mV pk-pk 60 mV pk-pk 12 mV rms Temperature coefficient ±0.01%/°C Overvoltage protection Clamp type (See table and Notes 3, 4) Short circuit protection Short
