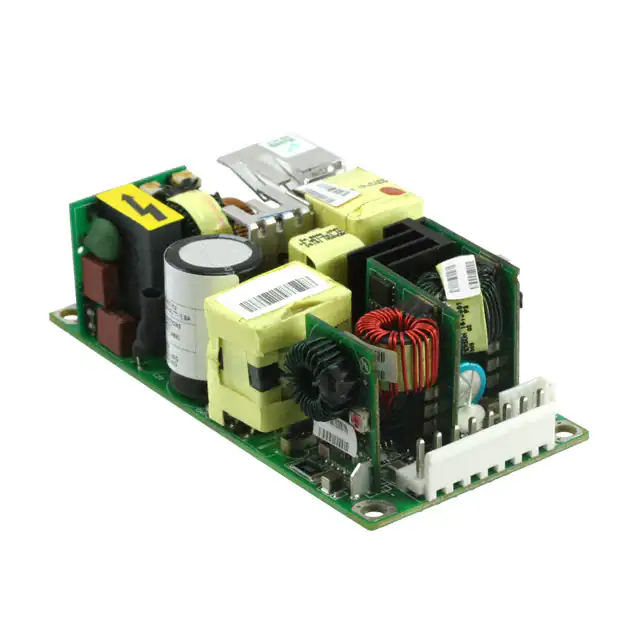

LPT104-M

ARTESYN LPT100-M Series 130 Watts Advanced Energy's Artesyn LPT100-M series of triple output open-frame AC-DC power supplies features ITE and medical safety approvals. There is a choice of four models, covering output voltages from 3.3 V to 24 V. The power supplies have a typical full load power conversion efficiency of 82% and with a height of only 1.28 inches offer a power density in excess of 12 watts per cubic inch. LPT100-M power supplies are primarily designed for use in information technology equipment (ITE) and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications. Special Features  Thermal overload protection  Medical and ITE safeties  RoHS compliant  Active power factor correction  2” x 4” footprint  Less than 1U high  EN61000-3-2 compliant  Remote sense  Power fail  Adjustable main output  Built-in Class B EMI filter  Overvoltage protection  Overload protection Data Sheet Total Power: 130 Watts Input Voltage: 90 - 264 Vac # of Outputs: Triple  LPX100 enclosure kit available Safety  TUV 62368, 60601-1  UL 62368, 60601-1  CSA 62368, 60601-1  NEMKO 62368, 60601-1  AUSTEL 62368, 60601-1  CB Certificate & report  CE Mark (LVD) ©2020 Advanced Energy Industries, Inc. LPT100-M ELECTRICAL SPECIFICATIONS Input Input ra­nge 90 - 264 Vac; 127 - 300 Vdc Frequency 47 - 63 Hz Inrush current 50 A max., cold start @ 25 °C Efficiency 82% typical at full load EMI/RFI FCC Class B conducted; CISPR22 Class B conducted; EN55022 Class B conducted; VDE0878PT3 Class B conducted Safety ground leakage current 275 µA @ 50/60 Hz, 264 Vac input Output Maximum power 130 W with 200 LFM forced air Adjustment range All outputs adjustable: -20%, +10%, except for +24V output on LPT104-M which will be -10%, +20% and 3.3 V output on the LPT101-M +10%, -15% Hold-up time 10 ms @ 130 W load, 120 Vac input Overload protection Short circuit protection on all outputs. Case overload protected @ 110 - 160% above rating for V1 & V2, 150 - 250% for V3 Overvoltage protection 15 - 35% above nominal output Logical Control Power failure Active LowTTL logic signal goes high 100 - 500 msec after main output; it goes low at least 6 msec before loss of regulation Remote sense Compensates for 0.5 V lead drop min. Will operate without remote sense connected. Reverse connection protected. Environmental Specifications Operating temperature 0 °C to 50 °C ambient derate each output as 2.5% per degree from 50 °C to 70 °C. -20 °C start up Storage temperature -40 °C to +85 °C Electromagnetic susceptibility: Designed to meet EN61000-4; -2, -3, -4, -5, -6, -8, -11 Level 3 Humidity Operating; non-condensing 10% to 90% RH, non-operating, non-condensing 10% - 95% Vibration IEC68-2-6 to the levels of IEC721-3-2 MTBF calculated 583,000 hours at full load and 25 °C ambient conditions. 230 Vac input, Bellcore 2 advancedenergy.com LPT100-M Mechanical Drawing ADJUST POT'S 1 GND SK2 PIN 1 (LIVE) 8 PIN 3 (NEUTRAL) 0.16 [4] 4 places mounting hole max screw head diameter 0.22"[5.6] 1.72 " [43,8] SK1 SK3 SEE DETAIL A 1 3.72 " [94,6] 4" [101,6] 4 POWER FAIL COMMON (+) REMOTE SENSE (-) REMOTE SENSE 0.1 " [2,5] max lead protrusion 1.29 " [32,7] SK3 DETAIL A 0.197 [5] min stand-off height 2" [50,8] OUTPUT VOLTAGE advancedenergy.com 3 LPT100-M Ordering Information Model Number LPT101-M LPT102-M LPT103-M LPT104-M Ripple 3 P/P (PARD) Output Voltage Minimum Load Maximum Load with 30CFM Forced Air +3.3 V 0A +5 V 0A +12 V +5 V +12 V 0A -12 V 0A 2A +5 V 0A 18 A +15 V 0A 7.2 A 8A -15 V 0A 1.5 A +5 V 0A 18 A +24 V 0A 3A 3.5 A ±7% 240 mV +12 V 0A 2.3 A 2.3 A ±5% 120 mV Peak Load Regulation 18 A 20 A ±2% 50 mV 9A 10 A ±5% 50 mV 0A 2.3 A 2.3 A ±5% 120 mV 0A 18 A 20 A ±2% 50 mV 9A 10 A ±5% 120 mV 2A ±5% 120 mV 20 A ±2% 50 mV ±5% 150 mV 2A ±5% 150 mV 20 A ±2% 50 mV 2 1. Peak current lasting < 15 seconds with a maximum 10% duty cycle. 2­. At 25 °C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings. 3­. Peak-to-peak with 20 mHz bandwidth and 10 µF (tantalum capacitor) in parallel with a 0.1 µF capacitor at rated line voltage and load ranges. 4. T his product is a Component Power Supply and is only for inclusion by professional installers within other equipment and must not be operated as a standalone product. EMC compliance to appropriate standards must be verified at the system level. This product is for sale to OEMs and System Integrators, including through Distribution Channels. It is not intended for sale to End Users. 4 advancedenergy.com LPT100-M Pin Assignments Connector LPT100-M SK1 PIN 1 Live PIN 3 Neutral PIN 1 V1out PIN 2 V1out PIN 3 GND PIN 4 GND PIN 5 GND PIN 6 GND PIN 7 V2out SK2 SK3 PIN 8 V3out PIN 1 Power Fail PIN 2 GND PIN 3 + Remote Sense PIN 4 - Remote Sense Mating Connectors AC Input (SK1) Molex 09-50-3031 PINS: 08-52-0072 AC Ground Molex 01-90020001 DC Output (SK2) JST VHR-8N PINS: SVH-21T-P1.1 Remote Sense (SK3) JST PHR-4; PINS: SPH-002T-PO.5S OR LANDWIN 2001S0400; PINS: 2005T Artesyn Embedded Power Connector Kit #70-841-026, includes all of the above Notes: 1. Specifications subject to change without notice. 2. All dimensions in inches (mm), tolerance is ±.02”. 3. All mounting holes should be grounded for EMI purpose 4. Mounting M1 is safety ground connection 5. This power supply requires mounting on metal standoffs 0.20” (5 m) in height. 6. For DC input an external DC safety rated fuse must be used. 7. Warranty: 2 year 8. Weight: 0.44 lb. / 0.20 kg advancedenergy.com 5 ABOUT ADVANCED ENERGY Advanced Energy (AE) has devoted more than three decades to perfecting power for its global customers. AE designs and manufactures highly engineered, precision power conversion, measurement and control solutions for mission-critical applications and processes. Our products enable customer innovation in complex applications for a wide range of industries including semiconductor equipment, industrial, manufacturing, telecommunications, data center computing, and medical. With deep applications know-how and responsive service and support across the globe, we build collaborative partnerships to meet rapid technological developments, propel growth for our customers, and innovate the future of power. For international contact information, visit advancedenergy.com. powersales@aei.com (Sales Support) productsupport.ep@aei.com (Technical Support) +1 888 412 7832 Specifications are subject to change without notice. Not responsible for errors or omissions. ©2020 Advanced Energy Industries, Inc. All rights reserved. Advanced Energy®, AE® and Artesyn™ are U.S. trademarks of Advanced Energy Industries, Inc. ENG-LPT100-M-235-01 12.30
