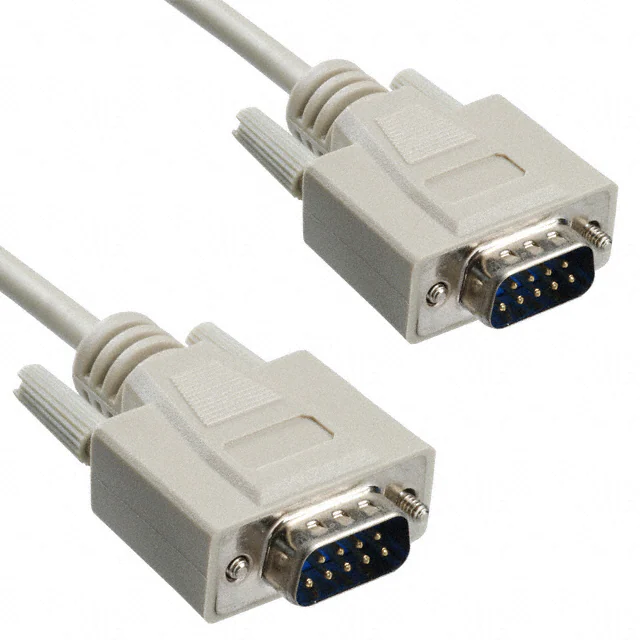

AK174-3

1 2 3 5 4 6 7 A A 6 5 1 9 P1 P2 B 9 B 1 5 2 3 4 5 6 3 1 2 6 5 4 6 C C PE Bag Packing seal 1 7 D 8 E ASSMANN WSW AK174-3 Date Code 1PC/PE Bag F PIN ASSIGNMENT P1 Electrical test: 1. 100% short, open, miss wire test 2. Conduct resistance: 2 Ohm max. 3. Insulator resistance: 5Mohm min. 4. Hi-Pot: 300V DC/10ms P2 1 2 3 4 5 6 7 8 9 Shell 1 2 3 4 5 6 7 8 9 Shell Scale Unit:mm E PE Bag Tie 1pcs Clear Print black "MADE IN CHINA"+ "1PC" 1pcs White tie Outermold NA PVC 45P Beige(BG002) Innermold NA LD-PE NO. RoHS compliant D Tube 2pcs Screw 4pcs Screw #4-40UNC D-E L=32.5mm Nickel plated Insulator color:Beige(BG002) CONN 2pcs DB 9Pin male,Pin:G/F Shell-Nickel Insulator color:Blue solder type F Cable 1pcs No UL 28AWG(7/0.12TC)*9C+D+AL/Mylar Jacket PVC,Beige(BG002) OD:5.0mm NAME. Q'TY SPECIFICATION Free TOLERANCE G Date Name Drawn 05.04.2016 Amy Approved 05.04.2016 Amy Customer-No. G ASSMANN WSW-No. AK174-3 DIM TOL H Angle 1 2 Drawing-No. 1 Update pin assignment 20.12.2018 Xavier 0 Drawn 05.04.2016 Amy ASS 7605 CA rev01 H Replace TOL Id. Modification 3 Date 4 Sheet Name 5 6 7
