AK3220-1.8

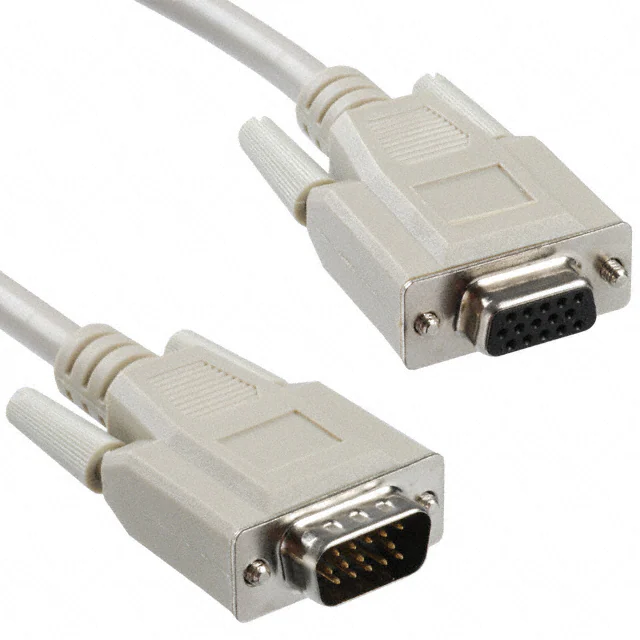

HDB 15 Male Plastic: Blue 6 11 HDB 15 Female Plastic: Blue 1,800MM±30MM Thumb Screw: #4-40*4 1 1 6 11 P2 P1 15 5 5 10 P2 1 1 6 2 7 3 8 4 5 RED GREEN BLUE BROWN BLACK = Assmann logo RoHS Compliant 6 2 7 3 8 15 Material: PIN OUT P1 10 P1 13 ORANGE 14 WHITE SHELL BRAID P2 13 14 SHELL CENTER SHIELDING 4 5 ITEM NO. AK3220-1.8-R TITLE Premium VGA Monitor extension cable HD D-Sub 15-pin Male Female, 1.8 Meters ASSMANN Electronics, Inc. 1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283 Toll Free: 1-877-277-6266 • Email: info@usa-assmann.com THIS DRAWING IS UNPUBLISHED ©Copyright 2010 by Assmann Electronic Components All International Rights Reserved
