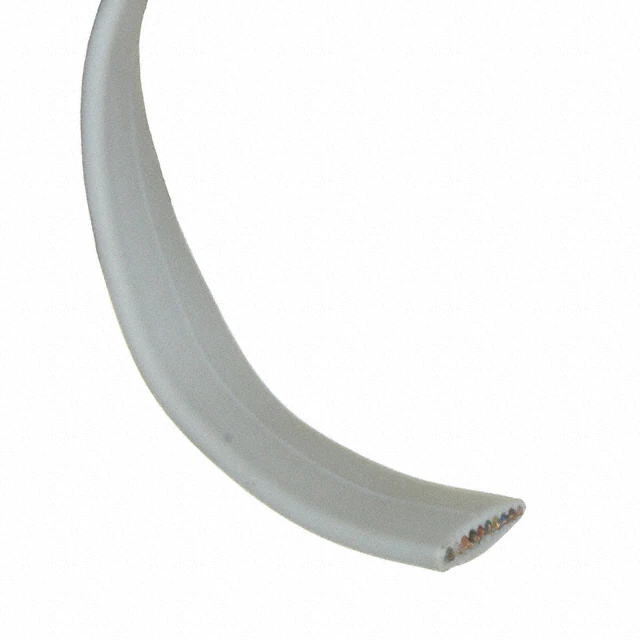

AT-K-26-10-W/1000

2 1 3 5 4 6 7 A A A A 1,000 Ft. B B Conductor: [26AWG (0.16x7) Bare Copper]x10C Insulation: (PP6331 ID: 0.95±0.03)x10C Jacket: PVC NOUL 65P C 10.8±0.2 D C Grey White Orange Black Red Green Yellow Blue Brown Pink E ø300 Grey Plastic D Paper ø80 Inner: 160 Pink E 4 2.4±0.2 1,000Ft/R. “PE” Foam Wrapped Sec: A - A F F Unit: MM Scale 1:1 Name TOLERANCE G RoHS H X.X ±0.40 X.XX ±0.25 X.XXX ±0.15 Angle ±3° 12.19.11 Drawn Approved Chappell Item No. AT-K-26-10-W/1000-R Title Modular Straight cable - Raw, 10 Contact, 26AWG, White, 1,000Ft. Drawing No. rev00 Complaint Modification 1 2 3 Date 4 Replace Name 5 6 G Sheet 7 H
