Data Sheet
6N135/6, HCNW135/6, HCPL-2502/0500/
0501
Single-Channel, High-Speed Optocouplers
Description
These diode-transistor optocouplers use an insulating layer
between a LED and an integrated photodetector to provide
electrical insulation between input and output. Separate
connections for the photodiode bias and output-transistor
collector increase the speed up to a hundred times that of a
conventional phototransistor coupler by reducing the
base-collector capacitance.
Features
UL Recognized – 3750 Vrms for 1 minute (5000 Vrms for
1 minute for HCNW and Option 020 devices) per
UL1577
These single channel optocoup-lers are available in 8-pin
DIP, SO-8, and Widebody package configurations.
CSA Approved
IEC/EN/DIN EN 60747-5-5 Approved
The 6N135, HCPL-0500, and HCNW135 are for use in
TTL/CMOS, TTL/LSTTL or wide-bandwidth analog
applications. Current transfer ratio (CTR) for these devices
is 7% minimum at IF = 16 mA.
The 6N136, HCPL-2502, HCPL-0501, and HCNW136 are
designed for high-speed TTL/TTL applications. A standard
16-mA TTL sink current through the input LED will provide
enough output current for 1 TTL load and a 5.6 k pull-up
resistor. CTR for these devices is 19% minimum at
IF = 16 mA.
High speed: 1 Mb/s
TTL compatible
Available in 8-pin DIP, SO-8, widebody packages
Open collector output
Safety approval
– VIORM = 567V peak for SO-8 devices
– VIORM = 630V peak for DIP 300 mil devices
– VIORM = 1414V peak for DIP 400 mil (widebody)
devices
Dual channel version available (253X/053X/0534)
Applications
High voltage insulation
Video signal isolation
Line receivers
Feedback element in switched mode power supplies
High speed logic ground isolation
– TTL/TTL, TTL/CMOS, TTL/LSTTL
Replaces pulse transformers
Replaces slow phototransistor isolators
Analog signal ground isolation
CAUTION! Take normal static precautions in handling and
assembly of this component to prevent damage
and/or degradation that may be induced by
ESD.
Broadcom
AV02-0171EN
January 30, 2019
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Functional Diagram
8 V CC
NC 1
7 VB
ANODE 2
CATHODE
Schematic
6 VO
3
TRUTH TABLE
(POSITIVE LOGIC)
LED
VO
ON
LOW
OFF
HIGH
ANODE
CATHODE
V0
ON
LOW
OFF
HIGH
IO
6
VCC
+
-
VO
3
5
SHIELD
Truth Table (Positive Logic)
LED
8
IF
VF
5 GND
NC 4
2
I CC
7
GND
IB
VB
A 0.1-µF bypass capacitor must be connected between pins
5 and 8.
Selection Guide
Minimum CMR
dV/dT
(V/µs)
1000
VCM (V)
10
Current
Transfer Ratio
(%)
7
8-Pin DIP (300 Mil)
Single Channel
Package
Dual Channel
Packagea
Small Outline SO-8
Single Channel
Package
Dual Channel
Packagea
Widebody
(400 Mil)
Single Channel
Package
6N135
HCPL-2530
HCPL-0500
HCPL-0530
HCNW135
19
6N136
HCPL-2531
HCPL-0501
HCPL-0531
HCNE136
15
HCPL-2502
a. Technical data for these products are on separate Broadcom publications.
Broadcom
AV02-0171EN
2
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Ordering Information
6N135, 6N136, HCPL-2502, HCPL-0500, HCPL-0501 are UL Recognized with 3750 Vrms for 1 minute per UL1577.
HCNW135 and HCNW136 are UL Recognized with 5000 Vrms for 1 minute per UL1577. All these devices are approved
under CSA Component Acceptance Notice #5, File CA 88324.
Option
Part
Number
RoHS
Compliant
Non RoHS
Compliant
6N135
6N136
HCPL-2502
-000E
No option
HCPL-0500
HCPL-0501
HCNW135
HCNW136
-300E
#300
-500E
#500
-020E
#020
-320E
Package
300mil
DIP-8
Surface
Mount
Gull
Wing
X
X
X
#320
X
X
-520E
#520
X
X
-060E
#060
#360
X
X
-560E
#560
X
X
-000E
No option
-500E
#500
SO-8
X
#060
X
-560E
#560
X
#300
-500E
#500
X
50 per tube
X
1000 per reel
X
400 mil
Widebody
DIP-8
X
X
-060E
No option
X
X
X
X
X
Quantity
50 per tube
X
50 per tube
X
50 per tube
X
X
-360E
-000E
UL 5000
Vrms/
IEC/EN/DIN
1 Minute
EN
Rating
60747-5-5
X
X
-300E
UL 3750
Vrms/
Tape and 1 Minute
Reel
Rating
1000 per reel
X
50 per tube
X
X
50 per tube
X
X
1000 per reel
X
100 per tube
X
X
1500 per reel
X
X
100 per tube
X
X
X
1500 per reel
X
X
42 per tube
X
X
42 per tube
X
X
750 per reel
X
To order, choose a part number from the part number column and combine with the desired option from the option column
to form an order entry.
Example 1:
HCPL-2502-560E to order product of 300 mil DIP Gull Wing Surface Mount package in Tape and Reel packaging with
IEC/EN/DIN EN 60747-5-5 Safety Approval in RoHS compliant.
Example 2:
HCPL-2502 to order product of 300 mil DIP package in tube packaging and non RoHS compliant.
Optional data sheets are available. Contact your Broadcom® sales representative or authorized distributor for information.
NOTE:
Broadcom
The notation ‘#XXX’ is used for existing products, while (new) products launched since 15th July 2001 and RoHS
compliant option will use ‘-XXXE‘.
AV02-0171EN
3
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Package Outline Drawings
8-Pin DIP Package (6N135/6, HCPL-2502)
7.62 ± 0.25
(0.300 ± 0.010)
9.65 ± 0.25
(0.380 ± 0.010)
TYPE NUMBER
8
7
6
A XXXXZ
YYWW
EEE
1
1.19 (0.047) MAX.
2
3
5
OPTION CODE*
6.35 ± 0.25
(0.250 ± 0.010)
DATE CODE
RU
4
UL RECOGNITION
LOT ID
1.78 (0.070) MAX.
5 q TYP.
3.56 ± 0.13
(0.140 ± 0.005)
4.70 (0.185) MAX.
0.254
+ 0.076
- 0.051
+ 0.003)
(0.010 - 0.002)
0.51 (0.020) MIN.
2.92 (0.115) MIN.
1.080 ± 0.320
(0.043 ± 0.013)
Broadcom
0.65 (0.025) MAX.
2.54 ± 0.25
(0.100 ± 0.010)
DIMENSIONS IN MILLIMETERS AND (INCHES).
*MARKING CODE LETTER FOR OPTION NUMBERS
"L" = OPTION 020
"V" = OPTION 060
OPTION NUMBERS 300 AND 500 NOT MARKED.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
AV02-0171EN
4
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers

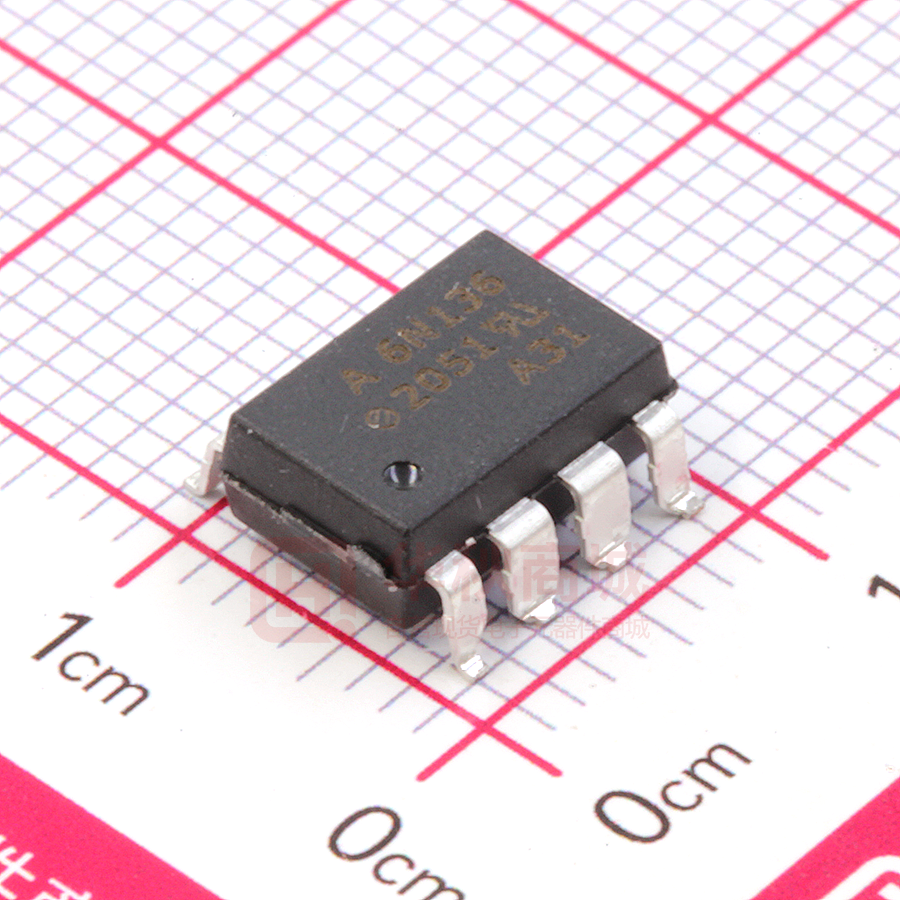

8-Pin DIP Package with Gull Wing Surface Mount Option 300 (6N135/6)
LAND PATTERN RECOMMENDATION
9.65 ± 0.25
(0.380 ± 0.010)
8
7
6
1.016 (0.040)
5
6.350 ± 0.25
(0.250 ± 0.010)
10.9 (0.430)
1
2
3
4
1.27 (0.050)
1.19
(0.047)
MAX.
9.65 ± 0.25
(0.380 ± 0.010)
1.780
(0.070)
MAX.
7.62 ± 0.25
(0.300 ± 0.010)
3.56 ± 0.13
(0.140 ± 0.005)
1.080 ± 0.320
(0.043 ± 0.013)
0.635 ± 0.130
(0.025 ± 0.005)
+ 0.076
0.254 - 0.051
+ 0.003)
(0.010 - 0.002)
0.635 ± 0.25
(0.025 ± 0.010)
2.54
(0.100)
BSC
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
2.0 (0.080)
12 q NOM.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
Broadcom
AV02-0171EN
5
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Small Outline SO-8 Package (HCPL-0500/1)
LAND PATTERN RECOMMENDATION
8
7
5
XXX
YWW
EEE
3.937 ± 0.127
(0.155 ± 0.005)
PIN ONE
6
1
2
3
0.406 ± 0.076
(0.016 ± 0.003)
5.994 ± 0.203
(0.236 ± 0.008)
TYPE NUMBER
(LAST 3 DIGITS)
DATE CODE
LOT ID
4
*
0.64 (0.025)
7q
1.524
(0.060)
TOTAL PACKAGE LENGTH (INCLUSIVE OF MOLD FLASH)
5.207 ± 0.254 (0.205 ± 0.010)
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES) MAX.
Broadcom
1.9 (0.075)
1.270 BSC
(0.050)
* 5.080 ± 0.127
(0.200 ± 0.005)
3.175 ± 0.127
(0.125 ± 0.005)
7.49 (0.295)
45 q X
0.432
(0.017)
0 ~ 7q
0.228 ± 0.025
(0.009 ± 0.001)
0.203 ± 0.102
(0.008 ± 0.004)
0.305 MIN.
(0.012)
AV02-0171EN
6
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
8-Pin Widebody DIP Package (HCNW135/6)
11.00 MAX.
(0.433)
11.23 ± 0.15
(0.442 ± 0.006)
8
7
6
TYPE NUMBER
A
HCNWXXXX
YYWW
EEE
1
9.00 ± 0.15
(0.354 ± 0.006)
5
DATE CODE
LOT ID
2
3
4
10.16 (0.400)
TYP.
1.55
(0.061)
MAX.
7 q TYP.
5.10 MAX.
(0.201)
3.10 (0.122)
3.90 (0.154)
2.54 (0.100)
TYP.
1.8 ± 0.15
(0.071 ± 0.006)
Broadcom
0.40 (0.016)
0.56 (0.022)
+ 0.076
0.254 - 0.0051
+ 0.003)
(0.010 - 0.002)
0.51 (0.021) MIN.
DIMENSIONS IN MILLIMETERS (INCHES).
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
AV02-0171EN
7
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
8-Pin Widebody DIP Package with Gull Wing Surface Mount Option 300
(HCNW135/6)
11.23 ± 0.15
(0.442 ± 0.006)
8
7
6
LAND PATTERN RECOMMENDATION
5
9.00 ± 0.15
(0.354 ± 0.006)
1
2
3
13.56
(0.534)
4
2.29
(0.09)
1.3
(0.051)
12.30 ± 0.30
(0.484 ± 0.012)
1.55
(0.061)
MAX.
11.00 MAX.
(0.433)
+ 0.003)
4.00 MAX.
(0.158)
1.80 ± 0.15
(0.071 ± 0.006)
0.75 ± 0.25
(0.030 ± 0.010)
2.54
(0.100)
BSC
+ 0.076
0.254 - 0.0051
(0.010 - 0.002)
1.00 ± 0.15
(0.039 ± 0.006)
7 q NOM.
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
Solder Reflow Profile
Recommended reflow conditions are as per JEDEC Standard, J-STD-020 (latest revision). Non-halide flux should be used.
Regulatory Information
The devices contained in this data sheet have been approved by the following organizations:
UL
Approval under UL 1577, Component Recognition Program, File E55361.
CSA
Approval under CSA Component Acceptance Notice #5, File CA 88324.
IEC/EN/DIN EN 60747-5-5
(HCNW and Option 060/360/560 only)
Broadcom
AV02-0171EN
8
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Insulation and Safety Related Specifications
Symbol
8-Pin DIP
(300 Mil)
Value
SO-8 Value
Widebody
(400 Mil)
Value
Units
Conditions
Minimum External Air Gap
(External Clearance)
L(101)
7.1
4.9
9.6
mm
Measured from input terminals to output
terminals, shortest distance through air.
Minimum External Tracking
(External Creepage)
L(102)
7.4
4.8
10.0
mm
Measured from input terminals to output
terminals, shortest distance path along
body..
Minimum Internal Plastic
Gap
(Internal Clearance)
0.08
0.08
1.0
mm
Through insulation distance conductor
to conductor, usually the direct distance
between the photoemitter and
photodetector inside the optocoupler
cavity.
Minimum Internal Tracking
(Internal Creepage)
N/A
N/A
4.0
mm
Measured from input terminals to output
terminals, along internal cavity.
200
200
200
V
IIIa
IIIa
IIIa
Parameter
Tracking Resistance
(Comparative Tracking
Index)
Isolation Group
CTI
DIN IEC 112/VDE 0303 Part 1
Material Group
(DIN VDE 0110, 1/89, Table 1)
Option 300 – Surface mount classification is Class A in accordance with CECC 00802.
Broadcom
AV02-0171EN
9
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
IEC/EN/DIN EN 60747-5-5 Insulation Characteristicsa (Option 060 Only)
Description
Symbol
Installation Classification per DIN VDE 0110/39, Table 1
for rated mains voltage 150 Vrms
for rated mains voltage 300 Vrms
for rated mains voltage 600 Vrms
Climatic Classification
Pollution Degree (DIN VDE 0110/39)
8-Pin DIP
SO-8
I – IV
I – IV
I – IV
I – IV
I – IV
I – III
0/70/21
0/70/21
Units
2
2
VIORM
630
567
Vpeak
Input to Output Test Voltage, Method ba
VIORM × 1.875 = VPR, 100% Production Test with tm = 1s, Partial Discharge < 5 pC
VPR
1181
1063
Vpeak
Input to Output Test Voltage, Method aa
VIORM x 1.6 = VPR, Type and Sample Test, tm = 10s, Partial Discharge < 5 pC
VPR
1008
907
Vpeak
VIOTM
8000
6000
Vpeak
TS
IS, INPUT
PS, OUTPUT
175
230
600
150
150
600
°C
mA
mW
RS
≥109
≥109
Maximum Working Insulation Voltage
Highest Allowable Overvoltagea (Transient Overvoltage tini = 60s)
Safety-limiting values – Maximum Values Allowed in the Event of a Failure
Case Temperature
Input Current
Output Power
Insulation Resistance at TS, VIO = 500V
a. Refer to the front of the optocoupler section of the current catalog, under Product Safety Regulations section IEC/EN/DIN EN 60747-5-5, for
a detailed description.
NOTE:
Broadcom
Isolation characteristics are guaranteed only within the safety maximum ratings, which must be ensured by
protective circuits in the application.
AV02-0171EN
10
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
IEC/EN/DIN EN 60747-5-5 Insulation Characteristicsa (HCNW135/6
Option 060 Only)
Description
Symbol
Installation Classification per DIN VDE 0110/39, Table 1
for rated mains voltage 150 Vrms
Characteristic
Units
I – IV
I – IV
I – IV
I – III
for rated mains voltage 300 Vrms
for rated mains voltage 600 Vrms
for rated mains voltage 1000 Vrms
Climatic Classification
0/70/21
Pollution Degree (DIN VDE 0110/39)
2
Maximum Working Insulation Voltage
VIORM
1414
Vpeak
ba
Input to Output Test Voltage, Method
VIORM × 1.875 = VPR, 100% Production Test with tm = 1s, Partial Discharge < 5 pC
VPR
2651
Vpeak
Input to Output Test Voltage, Method aa
VIORM x 1.6 = VPR, Type and Sample Test, tm = 10s, Partial Discharge < 5 pC
VPR
2262
Vpeak
VIOTM
8000
Vpeak
TS
IS, INPUT
PS, OUTPUT
150
400
700
°C
mA
mW
RS
≥109
Highest Allowable Overvoltagea (Transient Overvoltage tini = 60s)
Safety-limiting values – Maximum Values Allowed in the Event of a Failure
Case Temperature
Input Current
Output Power
Insulation Resistance at TS, VIO = 500V
a. Refer to the front of the optocoupler section of the current catalog, under Product Safety Regulations section IEC/EN/DIN EN 60747-5-5, for
a detailed description.
NOTE:
Broadcom
Isolation characteristics are guaranteed only within the safety maximum ratings, which must be ensured by
protective circuits in the application.
AV02-0171EN
11
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Absolute Maximum Rating
Parameter
Symbol
Storage Temperaturea
TS
Operating Temperaturea
TA
Average Forward Input Currenta
IF(AVG)
Peak Forward Input Currenta
(50% duty cycle, 1-ms pulse width)
IF(PEAK)
50% duty cycle, 1 ms pulse width
Peak Transient Input
Currenta
(1-µs pulse width, 300 pps)
Reverse LED Input Voltagea (Pin 3-2)
IF(TRANS)
VR
PIN
Input Power Dissipationa
Device
Min.
Max.
Units
–55
125
°C
8-Pin DIP SO-8
–55
100
°C
Widebody
–55
85
—
25
mA
b
8-Pin DIP SO-8
—
50
mA
c
Widebody
—
40
8-Pin DIP SO-8
—
1
Widebody
—
0.1
8-Pin DIP SO-8
—
5
Widebody
—
3
8-Pin DIP SO-8
—
45
Widebody
A
V
mW
—
40
IO(AVG)
—
8
mA
IO(PEAK)
—
16
mA
Emitter-Base Reverse Voltagea (Pin 5-7)
VEBR
—
5
V
Supply Voltage (Pin 8-5)
VCC
–0.5
30
V
Output Voltage (Pin 6-5)
VO
–0.5
20
V
Supply Voltagea (Pin 8-5)
VCC
–0.5
15
V
Output Voltagea (Pin 6-5)
VO
–0.5
15
V
Base Currenta (Pin 7)
IB
—
5
mA
Output Power Dissipationa
PO
—
100
mW
Lead Solder Temperaturea (Through-Hole Parts Only)
1.6 mm below seating plane, 10s up to seating plane, 10s
TLS
—
260
°C
260
°C
Reflow Temperature Profile
TRP
Average Output
Currenta
(Pin 6)
Peak Output Currenta
8-Pin DIP
Widebody
SO-8 and
Option 300
Note
d
e
See Package Outline Drawings
a. Data has been registered with JEDEC for the 6N135/6N136.
b. Derate linearly above 70°C free-air temperature at a rate of 0.8 mA/°C (8-Pin DIP). Derate linearly above 85°C free-air temperature at a rate
of 0.5 mA/°C (SO-8).
c. Derate linearly above 70°C free-air temperature at a rate of 1.6 mA/°C (8-Pin DIP). Derate linearly above 85°C free-air temperature at a rate
of 1.0 mA/°C (SO-8).
d. Derate linearly above 70°C free-air temperature at a rate of 0.9 mW/°C (8-Pin DIP). Derate linearly above 85°C free-air temperature at a rate
of 1.1 mW/°C (SO-8).
e. Derate linearly above 70°C free-air temperature at a rate of 2.0 mW/°C (8-Pin DIP). Derate linearly above 85°C free-air temperature at a rate
of 2.3 mW/°C (SO-8).
Broadcom
AV02-0171EN
12
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Electrical Specifications (DC)
Over recommended operating temperature (TA = 0°C to 70°C) and unless otherwise specified. See note.
Parameter
Current Transfer
Ratio
Symbol
b
CTR
Device
Min.
Typ.a
Max.
Units
6N135
HCPL-0500
HCNW135
7
18
50
%
5
19
—
VO = 0.5V
22
TA = 25°C VO = 0.4V
HCPL-2502
6N136
HCPL-0501
HCNW136
Logic Low
Output Voltage
VOL
6N135
HCPL-0500
HCNW135
6N136
HCPL-2502
HCPL-0501
HCNW136
Logic High
Output Current
IOHb
15
Test Conditions
TA = 25°C VO = 0.4V
15
25
—
VO = 0.5V
19
24
50
15
25
—
TA = 25°C VO = 0.4V
VO = 0.5V
—
0.1
0.4
—
0.1
0.5
—
0.1
0.4
—
0.1
0.5
—
0.003
0.5
—
0.01
1
TA = 25°C VO = VCC =
15V
—
—
50
VO = VCC =
15V
V
IF = 16 mA,
VCC = 4.5V
µA
TA = 25°C VO = VCC = IF = 0 mA
5.5V
—
50
200
µA
IF = 16 mA, VO = Open, VCC = 15V
Logic High
Supply Current
ICCHb
—
0.02
1
µA
TA = 25°C IF = 0 mA,
VO = Open
—
—
2
8-Pin DIP
—
1.5
1.7
SO-8
—
—
1.8
Widebody
1.45
1.68
1.85
1.35
—
1.95
5
—
—
Widebody
3
—
—
8-Pin DIP
—
–1.6
Widebody
—
–1.9
8-Pin DIP
—
60
—
—
90
—
Input Reverse
Breakdown
Voltage
Temperature
Coefficient of
Forward Voltage
Input
Capacitance
BVR
b
VF/TA
8-Pin DIP
7
VCC = 15V
V
TA = 25°C IF = 16 mA
3
TA = 25°C IF = 16 mA
V
IR = 10 µA
IR =
100 µA
mV/°C IF =
16 mA
pF
f = 1 MHz, VF = 0V
SO-8
Widebody
Broadcom
c, d
SO-8
SO-8
CIN
1, 2, 4
TA = 25°C IO = 3.0 mA
IO = 2.4 mA
ICCL
VFb
Note
TA = 25°C IO = 1.1 mA IF = 16 mA,
IO = 0.8 mA VCC = 4.5V
Logic Low
Supply Current
Input Forward
Voltage
Figure
AV02-0171EN
13
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Parameter
Transistor DC
Current Gain
Single-Channel, High-Speed Optocouplers
Symbol
Device
Min.
Typ.a
Max.
hFE
8-Pin DIP
—
150
—
VO = 5V, IO = 3 mA
Widebody
—
180
—
VO = 5V, IO = 3 mA
—
160
—
VO = 0.4V, IB = 20 µA
Units
Test Conditions
Figure
Note
a. All typicals at TA = 25°C.
b. For JEDEC registered parts.
c. CURRENT TRANSFER RATIO in percent is defined as the ratio of output collector current, IO, to the forward LED input current, IF, times 100.
d. The JEDEC registration for the 6N136 specifies a minimum CTR of 15%. Avago guarantees a minimum CTR of 19%.
NOTE:
Broadcom
Use of a 0.1-µf bypass capacitor connected between pins 5 and 8 is recommended.
AV02-0171EN
14
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Switching Specifications (AC)
Over recommended temperature (TA = 0°C to 70°C), VCC = 5V, IF = 16 mA unless otherwise specified.
Parameter
Symbol
Device
Min.
Typ.a
Max.
Units
Propagation Delay
Time to Logic Low at
Output
tPHLb
6N135
HCPL-0500
HCNW135
—
0.2
1.5
µs
6N136
HCPL-2502
HCPL-0501
HCNW136
—
0.2
0.8
—
—
1.0
6N135
HCPL-0500
HCNW135
—
1.3
1.5
—
—
2.0
Propagation Delay
Time to Logic High at
Output
Common Mode
Transient Immunity at
Logic High Level
Output
Common Mode
Transient Immunity at
Logic Low Level
Output
Bandwidth
tPLHb
|CMH|
|CML|
BW
6N136
HCPL-2502
HCPL-0501
HCNW136
—
0.6
0.8
—
—
1.0
6N135
1
—
—
HCPL-0500
HCNW135
—
1
—
6N136
1
—
—
HCPL-2502
HCPL-0501
—
1
—
6N135
1
—
—
HCPL-0500
HCNW135
—
1
—
6N136
1
—
—
HCPL-2502
HCPL-0501
—
1
—
6N135/6
HCPL-2502
HCPL-0500/1
—
9
—
HCNW135/6
—
11
—
Figure
Note
5, 6, 11
c, d
5, 6, 11
c, d
kV/µs RL = 4.1 k IF = 0 mA,
TA = 25°C,
VCM = 10 Vp-p,
RL = 1.9 k CL = 15 pF
12
c, d, e
kV/µs RL = 4.1 k IF = 16 mA,
TA = 25°C,
CL = 15 pF
12
c, d, e
8, 10
f
µs
Test Conditions
TA = 25°C
RL = 4.1 k
TA = 25°C
RL = 1.9 k
TA = 25°C
RL = 4.1 k
TA = 25°C
RL = 1.9 k
RL = 1.9 k
MHz
See Test
Circuit
a. All typicals at TA = 25°C.
b. For JEDEC registered parts.
c. The 1.9 k load represents 1 TTL unit load of 1.6 mA and the 5.6 k pull-up resistor.
d. The 4.1 k load represents 1 LSTTL unit load of 0.36 mA and 6.1 kpull-up resistor.
e. Common mode transient immunity in a Logic High level is the maximum tolerable (positive) dVCM/dt on the leading edge of the common mode
pulse signal, VCM, to assure that the output will remain in a Logic High state (that is, VO > 2.0V). Common mode transient immunity in a Logic
Low level is the maximum tolerable (negative) dVCM/dt on the trailing edge of the common mode pulse signal, VCM, to assure that the output
will remain in a Logic Low state (that is, VO < 0.8 V).
f. The frequency at which the ac output voltage is 3 dB below its mid-frequency value.
Broadcom
AV02-0171EN
15
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Package Characteristics
Over recommended temperature (TA = 0°C to 70°C) unless otherwise specified.
Parameter
Input-Output Momentary
Withstand Voltageb
Sym.
Device
Min.
Typ.a
Max.
Units
VISO
8-Pin DIP
SO-8
3750
—
—
Vrms
Widebody
5000
—
—
c e
8-Pin DIP
(Option 020)
5000
—
—
c e f
II-O
8-Pin DIP
—
—
1
µA
45% RH, t = 5s,
VI-O = 3 kVdc, TA = 25°C
RI-O
8-Pin DIP
SO-8
—
1012
—
VI-O = 500 Vdc
Widebody
1012
1013
—
TA = 25°C
1011
—
—
TA = 100°C
8-Pin DIP
SO-8
—
0.6
—
Widebody
—
0.5
0.6
Input-Output Resistance
Input-Output Capacitance
CI-O
Test Conditions
Figure
RH < 50%, t = 1 min., TA =
25°C
Note
c, d
,
, ,
pF
c, g
c
f = 1 MHz
c
a. All typicals at TA = 25°C.
b. The Input-Output Momentary Withstand Voltage is a dielectric voltage rating that should not be interpreted as an input-output continuous
voltage rating. For the continuous voltage rating refer to the IEC/EN/DIN EN 60747-5-5 Insulation Related Characteristics Table (if
applicable), your equipment level safety specification or Avago Application Note 1074, Optocoupler Input-Output Endurance Voltage,
publication number 5963-2203E.
c. Device considered a two-terminal device: Pins 1, 2, 3, and 4 shorted together and Pins 5, 6, 7, and 8 shorted together.
d. In accordance with UL 1577, each optocoupler is proof tested by applying an insulation test voltage ≥ 4500 Vrms for 1 second (leakage
detection current limit, II-O ≤ 5 µA). This test is performed before the 100% Production test shown in the IEC/EN/DIN EN 60747-5-5 Insulation
Related Characteristics Table if applicable.
e. In accordance with UL 1577, each optocoupler is proof tested by applying an insulation test voltage ≥ 6000 Vrms for 1 second (leakage
detection current limit, II-O ≤ 5 µA). This test is performed before the 100% Production test shown in the IEC/EN/DIN EN 60747-5-5 Insulation
Related Characteristics Table if applicable.
f. Refer to the Option 020 data sheet for more information.
g. This rating is equally validated by an equivalent ac proof test.
Broadcom
AV02-0171EN
16
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Figure 1: DC and Pulsed Transfer Characteristics
WIDEBODY
16
40 mA
T = 25q C
10 VA = 5.0 V
CC
IO Ð OUTPUT CURRENT Ð mA
IO Ð OUTPUT CURRENT - mA
8 PIN DIP, SO-8
35 mA
30 mA
25 mA
5
20 mA
15 mA
10 mA
0
TA = 25q C
VCC = 5.0 V
40 mA
12
35 mA
30 mA
25 mA
8
20 mA
15 mA
4
10 mA
IF = 5 mA
IF = 5 mA
0
10
0
20
0
10
VO - OUTPUT VOLTAGE - V
20
VO - OUTPUT VOLTAGE - V
Figure 2: Current Transfer Ratio vs. Input Current
6N135, HCPL-0500
6N136, HCPL-2502
HCPL-0501
1.0
0.5
NORMALIZED
I F = 16 mA
VO = 0.4 V
VCC = 5 V
TA = 25q C
0.1
0
1
10
100
WIDEBODY
NORMALIZED CURRENT TRANSFER RATIO
NORMALIZED CURRENT TRANSFER RATIO
8 PIN DIP, SO-8
1.5
1.5
HCNW135/6
1.0
0.5
NORMALIZED
IF = 16 mA
VO = 0.4 V
VCC = 4.5 V
TA = 25 q C
0
0
1
IF - INPUT CURRENT - mA
10
100
IF - INPUT CURRENT - mA
Figure 3: Input Current vs. Forward Voltage
8 PIN DIP, SO-8
WIDEBODY
1000
100
IF
TA = 25q C
+
VF
-
10
1.0
IF - FORWARD CURRENT - mA
IF - FORWARD CURRENT - mA
1000
0.1
0.01
0.001
1.1
1.2
1.3
1.4
1.5
VF - FORWARD VOLTAGE - VOLTS
Broadcom
1.6
TA = 25q C
100
10
1.0
IF
0.1
+
VF
-
0.01
0.001
1.2
1.3
1.4
1.5
1.6
1.7
1.8
VF - FORWARD VOLTAGE - VOLTS
AV02-0171EN
17
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
8 PIN DIP, SO-8
1.1
1.0
NORMALIZED
IF = 16 mA
VO = 0.4 V
VCC = 5 V
TA = 25q C
0.9
0.8
6N135, HCPL-0500
6N136, HCPL-2502,
HCPL-0501
0.7
0.6
-60 -40 -20
0
20
40
60
80 100
WIDEBODY
NORMALIZED CURRENT TRANSFER RATIO
NORMALIZED CURRENT TRANSFER RATIO
Figure 4: Current Transfer Ratio vs. Temperature
1.1
1.0
HCNW135/6
0.9
0.8
0.7
NORMALIZED
IF = 16 mA
VO = 0.4 V
VCC = 5 V
TA = 25q C
0.6
0.5
0.4
-60 -40 -20
TA - TEMPERATURE - q C
0
20
40
80 100
60
TA - TEMPERATURE - q C
Figure 5: Propagation Delay vs. Temperature
WIDEBODY
8 PIN DIP, SO-8
IF = 16 mA, VCC = 5.0 V
6N135, HCPL-0500 (RL = 4.1 k:
6N136, HCPL-0501, HCPL-2502
(RL = 1.9 k:)
1500
1000
tPLH
tPHL
500
0
-60
-20
20
60
1000
tp - PROPAGATION DELAY - ns
tp - PROPAGATION DELAY - ns
2000
IF = 16 mA, VCC = 5.0 V
HCNW135 (RL = 4.1 k:
HCNW136 (RL = 1.9 k:
800
600
t PLH
200
0
-60 -40 -20
100
t PHL
400
0
20
40
60
80 100
TA - TEMPERATURE - q C
TA - TEMPERATURE - q C
Figure 6: Propagation Delay Time vs. Load Resistance
WIDEBODY
8 PIN DIP, SO-8
2.0
10.0
I F = 10 mA
I F = 16 mA
VCC = 5.0 V
TA = 25q C
1.0
0.8
0.6
tPLH
0.4
t PHL
0.2
0.1
1
2
3
4
5
6 7 8 9 10
RL - LOAD RESISTANCE - (k:)
Broadcom
tP - PROPAGATION DELAY - μs
tP - PROPAGATION DELAY - μs
3.0
I F = 10 mA
I t = 16 mA
6.0
4.0 VCC = 5.0 V
TA = 25q C
t PLH
1.0
0.6
t PHL
0.4
0.2
0.1
1
2
4
10
40
100
RL - LOAD RESISTANCE - (k:)
AV02-0171EN
18
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
8 PIN DIP, SO-8
10+4
IF = 0
VO = VCC = 5.0 V
10+3
10+2
10+1
100
10 -1
10 -2
-75
-50
-25
0
+25 +50 +75 +100
IOH - LOGIC HIGH OUTPUT CURRENT - nA
IOH - LOGIC HIGH OUTPUT CURRENT - nA
Figure 7: Logic High Output Current vs. Temperature
WIDEBODY
+3
10
IF = 0
VO = VCC = 15 V
+2
10
+1
10
0
10
-60 -40 -20
0
20
40
60
80 100
TA - TEMPERATURE - q C
TA - TEMPERATURE - q C
8 PIN DIP, SO-8
0.30
IO
I F - SMALL SIGNAL CURRENT TRANSFER RATIO
IO
I F - SMALL SIGNAL CURRENT TRANSFER RATIO
Figure 8: Small-Signal Current Transfer Ratio vs. Quiescent Input Current
WIDEBODY
0.50
TA = 25q C, RL = 100 :, VCC = 5 V
TA = 25q C, RL = 100 :, VCC = 5 V
0.40
0.20
0.30
0.20
0.10
0.10
0
0
4
8
12
16
20
25
IF - QUIESCENT INPUT CURRENT - mA
0
0
4
8
12
16
20
25
IF - QUIESCENT INPUT CURRENT - mA
8-PIN DIP/S0-8
800
PS (mW)
IS (mA) For 8-PIN DIP
IS (mA) For S0-8
700
600
500
400
300
200
100
0
0
25
50
75 100 125 150 175 200
TS - CASE TEMPERATURE - q C
Broadcom
OUTPUT POWER - PS, INPUT CURRENT - IS
OUTPUT POWER - PS, INPUT CURRENT - IS
Figure 9: Thermal Derating Curve, Dependence of Safety Limiting Value with Case Temperature per IEC/EN/DIN EN 60747-5-5
HCNW135/6
1000
PS (mW)
900
IS (mA)
800
700
600
500
400
300
200
100
0
0
25
50
75
100 125 150 175
TS - CASE TEMPERATURE - q C
AV02-0171EN
19
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Single-Channel, High-Speed Optocouplers
Figure 10: Frequency Response
6N135/6, HCPL-0500/1, HCPL-2502
NORMALIZED RESPONSE - dB
+5
6N135/6, HCPL-0500/1, HCPL-2502
+12 V
TA = 25qC
1
0.1 μF
+12 V
8
2.1 K:
0
15 K:
2
1.2 K:
Q3
9.1 K:
-5
47 μF
VFF
100 :
3
1N4150
-20
0.1
1.0
10
5
22 :
TRIM FOR
UNITY GAIN
470:
100 :
RT
51 :
VO
Q2
0.1 μF
4
1 K:
-15
6
Q1
-10
0.1 μF
7
(1 M: 12 pF
TEST INPUT)
Q 1 , Q 2 , Q 3 : 2N3904
TYPICAL LINEARITY = ± 3% AT V IN = 1 V p-p
TYPICAL SNR = 50dB
TYPICAL R T = 375 :
TYPICAL VO dc = 3.8 V
TYPICAL I F = 9 mA
100
f - FREQUENCY - MHz
Figure 11: Switching Test Current
IF
0
5V
VO
1.5 V
PULSE
GEN.
ZO = 50 :
t r = 5 ns
IF
10% DUTY CYCLE
1/f < 100 μS
1.5 V
VOL
1
8
2
7
3
6
RL
VO
0.1μF
I F MONITOR
4
5
CL = 1.5 μF
RM
t PLH
t PHL
+5 V
Figure 12: Test Circuit for Transient Immunity and Typical Waveforms
IF
VCM
10%
0V
90% 90%
tr
1
8
2
7
3
6
+5 V
B
10%
tf
RL
A
VO
5V
VO
SWITCH AT B: I F = 16 mA
VO
0.1 μF
SWITCH AT A: I F = 0 mA
VFF
4
5
VOL
VCM
+
-
PULSE GEN.
Broadcom
AV02-0171EN
20
Broadcom, the pulse logo, Connecting everything, Avago Technologies, Avago, and the A logo are among the trademarks
of Broadcom and/or its affiliates in the United States, certain other countries, and/or the EU.
Copyright © 2014–2019 Broadcom. All Rights Reserved.
The term “Broadcom” refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com.
Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability,
function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does
not assume any liability arising out of the application or use of this information, nor the application or use of any product or
circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
6N135/6, HCNW135/6, HCPL-2502/0500/0501 Data Sheet
Broadcom
Single-Channel, High-Speed Optocouplers
AV02-0171EN
22
工商网监
湘ICP备2023018690号
