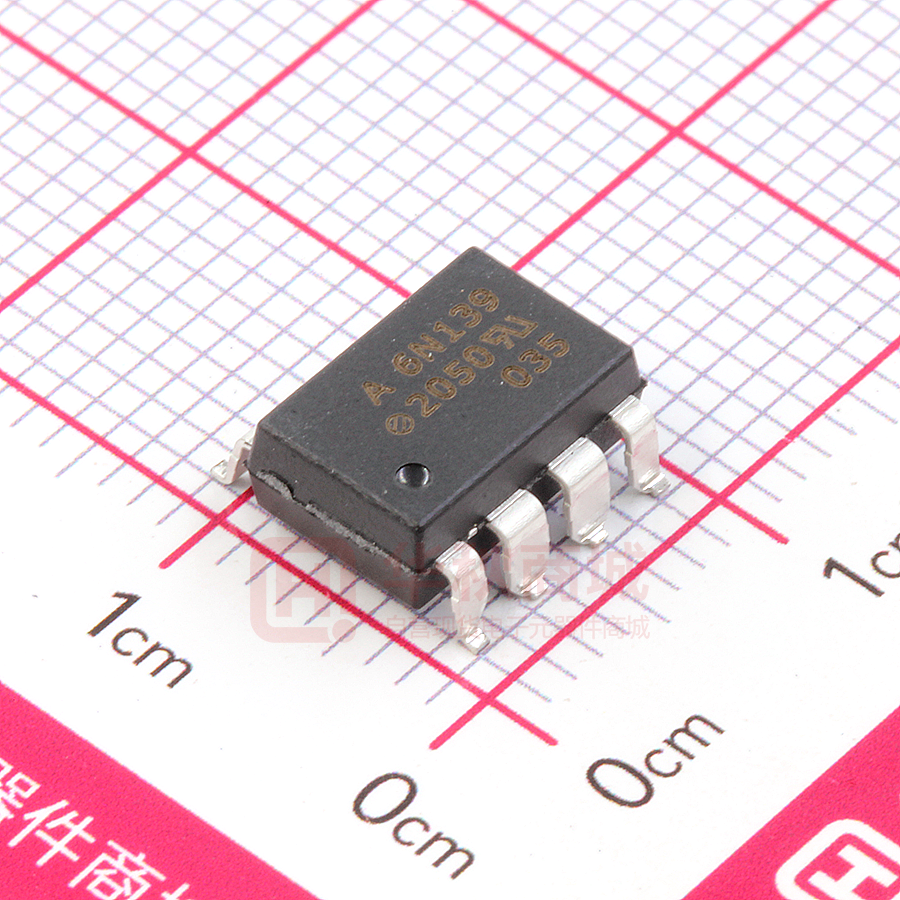

6N139-500E

HCPL-0700, HCPL-0701, HCNW138, HCNW139, 6N139, 6N138, Low Input Current, High Gain Optocouplers Data Sheet Lead (Pb) Free RoHS 6 fully compliant RoHS 6 fully compliant options available; -xxxE denotes a lead-free product Description Features These high gain series couplers use a Light Emitting Diode and an integrated high gain photodetec­tor to provide extremely high current transfer ratio between input and output. Separate pins for the photodiode and output stage result in TTL compatible saturation voltages and high speed operation. Where desired the VCC and VO terminals may be tied together to achieve conven­ tional photodarlington operation. A base access terminal allows a gain bandwidth adjustment to be made. • High current transfer ratio – 2000% typical (4500 % typical for HCNW139/138) • Low input current requirements – 0.5 mA • TTL compatible output – 0.1 V VOL typical • Performance guaranteed over temperature 0°C to 70°C • Base access allows gain bandwidth adjustment • High output current – 60 mA • Safetyapproval - UL recognized – 3750 V rms for 1 minute and 5000 V rms* for 1 minute per UL 1577 - CSA approved - IEC/EN/DIN EN 60747-5-5 approved with VIORM = 1414 Vpeak for HCNW139 and HCNW138 • Available in 8-Pin DIP or SOIC-8 footprint or widebody package • MIL-PRF-38534 hermetic version available (HCPL-5700/1) The 6N139, HCPL-0701, and HCNW139 are for use in CMOS, LSTTL or other low power appli­ca­tions. A 400% minimum current transfer ratio is guaranteed over 0 to 70°C operating range for only 0.5 mA of LED current. The 6N138, HCPL-0700, and HCNW138 are designed for use mainly in TTL applications. Current Transfer Ratio (CTR) is 300% minimum over 0 to 70°C for an LED current of 1.6 mA (1 T TL Unit load ). A 300% minimum CTR enables operation with 1 TTL Load using a 2.2 kΩ pull-up resistor. Functional Diagram NC 1 8 VCC ANODE 2 7 VB CATHODE 3 NC 4 6 VO TRUTH TABLE LED VO ON LOW OFF HIGH 5 GND Applications • Ground isolate most logic families – TTL/TTL, CMOS/ TTL, CMOS/CMOS, LSTTL/TTL, CMOS/LSTTL • Low input current line receiver • High voltage insulation (HCNW139/138) • EIA RS-232C line receiver • Telephone ring detector • 117 V ac line voltage status indicator – low input power dissipation • Low power systems – ground isolation * 5000 V rms/1 minute rating is for HCNW139/138 and Option 020 (6N139/138) products only. A 0.1 µF bypass capacitor connected between pins 8 and 5 is recommended. CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD. The components featured in this datasheet are not to be used in military or aerospace applications or environments. Selection for lower input current down to 250 µA is available upon request. The HCPL-0701 and HCPL-0700 are surface mount devices packaged in an industry standard SOIC-8 footprint. The SOIC-8 does not require “through holes” in a PCB. This package occupies approximately one-third the footprint area of the standard dual-in-line package. The lead profile is designed to be compatible with standard surface mount processes. The HCNW139 and HCNW138 are packaged in a widebody encapsulation that provides creep­age and clearance dimensions suitable for safety approval by regulatory agencies worldwide. Selection Guide 8-Pin DIP (300 Mil) Small Outline SO-8 Widebody (400 mil) Dual Channel Package Single Channel Package Dual Channel Package HCPL- HCPL- 6N139 [1] 2731 6N138 2730[1] Single Channel Package HCPL-4701 [1] 4731 [1] HCPL- Package Single Channel Package Minimum Input ON Current (IF) Minimum CTR Absolute Maximum VCC 0701 0731 HCNW139 0.5 mA 400% 18 V 0700 0730 HCNW138 1.6 mA 300% 7V 070A 073A 40 µA 800% 18 V 0.5 mA 300% 20 V [1] [1] Note: 1. Technical data are on separate Avago publications. Schematic V CC 8 I CC ANODE 2 IF + VF CATHODE – IO 3 6 5 SHIELD IB VB 2 Hermetic 7 VO GND Single and Dual Channel Packages HCPL- 5701[1] 5700[1] 5731[1] 5730[1] Ordering Information 6N138, 6N139, HCPL-0700 and HCPL-0701 are UL Recognized with 3750 Vrms for 1 minute per UL1577 and are approved under CSA Component Acceptance Notice #5, File CA 88324. Option Part Number 6N138 6N139 HCPL-0700 HCPL-0701 HCNW138 HCNW139 RoHS non RoHS Compliant Compliant Package Surface Mount Gull Wing -000E no option -300E #300 X X -500E #500 X X -020E #020 -320E #320 -520E #520 -060E #060 -360E #360 X X -560E #560 X X -000E no option X -500E #500 -060E #060 -560E #560 -000E no option -300E #300 -500E #500 Tape & Reel UL 5000 Vrms/ 1 Minute IEC/EN/DIN rating EN 60747-5-5 Quantity 50 per tube 300 mil DIP-8 SO-8 X X X X X X X 1000 per reel X 50 per tube X 50 per tube X 1000 per reel X 50 per tube X 50 per tube X 1000 per reel 100 per tube X X X X 400 mil Widebody DIP-8 50 per tube X 1500 per reel X 100 per tube X 1500 per reel 42 per tube X X X X 42 per tube X 750 per reel To order, choose a part number from the part number column and combine with the desired option from the option column to form an order entry. Example 1: 6N138-560E to order product of 300 mil DIP Gull Wing Surface Mount package in Tape and Reel packaging with IEC/EN/DIN EN 60747-5-5 Safety Approval and RoHS compliant. Example 2: HCPL-0700 to order product of 300 mil DIP package in Tube packaging and non RoHS compliant. Option datasheets are available. Contact your Avago sales representative or authorized distributor for information. Remarks: The notation ‘#XXX’ is used for existing products, while (new) products launched since July 15, 2001 and RoHS compliant will use ‘–XXXE.’ 3 Package Outline Drawings 8-Pin DIP Package (6N139/6N138)** 9.65 ± 0.25 (0.380 ± 0.010) 7.62 ± 0.25 (0.300 ± 0.010) DEVICE PART NUMBER 8 AVAGO 7 • LEAD FREE PIN 1 DOT 6 5 A NNNN YYWW EEE 1 2 Z 6.35 ± 0.25 (0.250 ± 0.010) TEST RATING CODE UL LOGO P 3 SPECIAL PROGRAM CODE 4 1.78 (0.070) MAX. 1.19 (0.047) MAX. DATE CODE LOT ID + 0.076 0.254 - 0.051 + 0.003) (0.010 - 0.002) 5° TYP. 3.56 ± 0.13 (0.140 ± 0.005) 4.70 (0.185) MAX. 0.51 (0.020) MIN. 0.65 (0.025) MAX. 1.080 ± 0.320 (0.043 ± 0.013) DIMENSIONS IN MILLIMETERS AND (INCHES). * MARKING CODE LETTER FOR OPTION NUMBERS "L" = OPTION 020 OPTION NUMBERS 300 AND 500 NOT MARKED. 2.92 (0.115) MIN. NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX. 2.54 ± 0.25 (0.100 ± 0.010) **JEDEC Registered Data. 8-Pin DIP Package with Gull Wing Surface Mount Option 300 (6N139/6N138) LAND PATTERN RECOMMENDATION 8 7 6 1.016 (0.040) 5 6.350 ± 0.25 (0.250 ± 0.010) 1 2 3 10.9 (0.430) 4 9.65 ± 0.25 (0.380 ± 0.010) 1.27 (0.050) 1.780 (0.070) MAX. 1.19 (0.047) MAX. 2.0 (0.080) 9.65 ± 0.25 (0.380 ± 0.010) 7.62 ± 0.25 (0.300 ± 0.010) + 0.076 0.254 - 0.051 + 0.003) (0.010 - 0.002) 3.56 ± 0.13 (0.140 ± 0.005) 1.080 ± 0.320 (0.043 ± 0.013) 2.54 (0.100) BSC 0.635 ± 0.130 (0.025 ± 0.005) 0.635 ± 0.25 (0.025 ± 0.010) 12° NOM. DIMENSIONS IN MILLIMETERS (INCHES). LEAD COPLANARITY = 0.10 mm (0.004 INCHES). NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX. 4 Small Outline SO-8 Package (HCPL-0701/HCPL-0700) LAND PATTERN RECOMMENDATION 8 DEVICE PART NUMBER 7 6 5 TEST RATING CODE 5.994 ± 0.203 (0.236 ± 0.008) DATE CODE NNNN Z YYWW EEE • 3.937 ± 0.127 LEAD FREE (0.155 ± 0.005) PIN 1 DOT 1 2 3 7.49 (0.295) LOT ID 4 1.9 (0.075) 0.406 ± 0.076 (0.016 ± 0.003) 1.270 BSC (0.050) 0.64 (0.025) * 5.080 ± 0.127 (0.200 ± 0.005) 7° 3.175 ± 0.127 (0.125 ± 0.005) 1.524 (0.060) * TOTAL PACKAGE LENGTH (INCLUSIVE OF MOLD FLASH) 5.207 ± 0.254 (0.205 ± 0.010) DIMENSIONS IN MILLIMETERS (INCHES). LEAD COPLANARITY = 0.10 mm (0.004 INCHES) MAX. 45° X 0.432 (0.017) 0 ~ 7° 0.228 ± 0.025 (0.009 ± 0.001) 0.203 ± 0.102 (0.008 ± 0.004) 0.305 MIN. (0.012) NOTE: FLOATING LEAD PROTRUSION IS 0.15 mm (6 mils) MAX. 8-Pin Widebody DIP Package (HCNW139/HCNW138) 11.00 MAX. (0.433) 11.23 ± 0.15 (0.442 ± 0.006) 7 8 5 A NNNNNNNN Z YYWW EEE DEVICE PART NUMBER • LEAD FREE PIN 1 DOT 6 1 2 3 9.00 ± 0.15 (0.354 ± 0.006) AVAGO TEST RATING CODE DATE CODE LOT ID 4 10.16 (0.400) TYP. 1.55 (0.061) MAX. 7° TYP. 5.10 MAX. (0.201) 3.10 (0.122) 3.90 (0.154) 2.54 (0.100) TYP. 1.80 ± 0.15 (0.071 ± 0.006) 5 0.40 (0.016) 0.56 (0.022) 0.51 (0.021) MIN. DIMENSIONS IN MILLIMETERS (INCHES). NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX. + 0.076 0.254 - 0.0051 + 0.003) (0.010 - 0.002) 8-Pin Widebody DIP Package with Gull Wing Surface Mount Option 300 (HCNW139/HCNW138) LAND PATTERN RECOMMENDATION 8 7 6 5 13.56 (0.534) 9.00 ± 0.15 (0.354 ± 0.006) 1 2 3 4 2.29 (0.09) 1.3 (0.051) 11.23 ± 0.15 (0.442 ± 0.006) 12.30 ± 0.30 (0.484 ± 0.012) 1.55 (0.061) MAX. 11.00 MAX. (0.433) 4.00 MAX. (0.158) 1.80 ± 0.15 (0.071 ± 0.006) 2.54 (0.100) BSC 0.75 ± 0.25 (0.030 ± 0.010) DIMENSIONS IN MILLIMETERS (INCHES). LEAD COPLANARITY = 0.10 mm (0.004 INCHES). NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX. 6 1.00 ± 0.15 (0.039 ± 0.006) 7° NOM. + 0.076 0.254 - 0.0051 + 0.003) (0.010 - 0.002) Solder Reflow Profile Recommended reflow condition as per JEDEC Standard, J-STD-020 (latest revision). Non-Halide Flux should be used. Regulatory Information The 6N139/138, HCNW139/138, and HCPL-0701/0700 have been approved by the following organizations: UL Recognized under UL 1577, Component Recognition Program, File E55361. CSA Approved under CSA Component Acceptance Notice #5, File CA 88324. IEC/EN/DIN EN 60747-5-5 HCNW139/138 and Option 060/360/560 only Insulation and Safety Related Specifications Parameter Symbol 8-Pin DIP (300 Mil) Value SO-8 Value Widebody (400 Mil) Value Units Conditions Minimum External Air Gap (External Clearance) L(101) 7.1 4.9 9.6 mm Measured from input terminals to output terminals, shortest distance through air. Minimum External Tracking (External Creepage) L(102) 7.4 4.8 10.0 mm Measured from input terminals to output terminals, shortest distance path along body. Minimum Internal Plastic Gap (Internal Clearance) 0.08 0.08 1.0 mm Through insulation distance, conductor to conductor, usually the direct distance between the photoemitter and photodetector inside the optocoupler cavity. Minimum Internal Tracking (Internal Creepage) NA NA 4.0 mm Measured from input terminals to output terminals, along internal cavity. 200 200 200 Volts DIN IEC 112/VDE 0303 Part 1 IIIa IIIa IIIa Tracking Resistance (Comparative Tracking Index) Isolation Group CTI Material Group (DIN VDE 0110, 1/89, Table 1) Option 300 - surface mount classification is Class A in accordance with CECC 00802. 7 IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCNW139 and HCNW138) Description Symbol Characteristic Installation classification per DIN VDE 0110, Table 1 for rated mains voltage ≤ 150 Vrms for rated mains voltage ≤ 300 Vrms for rated mains voltage ≤ 600 Vrms for rated mains voltage ≤ 1000 Vrms I – IV I – IV I – IV I – III Climatic Classification 0/70/21 Pollution Degree (DIN VDE 0110/39) 2 Unit Maximum Working Insulation Voltage VIORM 1414 Vpeak Input to Output Test Voltage, Method b* VIORM x 1.875 = VPR, 100% Production Test with tm=1 sec, Partial discharge < 5 pC VPR 2651 Vpeak Input to Output Test Voltage, Method a* VIORM x 1.6 = VPR, Type and Sample Test, tm=10 sec, Partial discharge < 5 pC VPR 2262 Vpeak Highest Allowable Overvoltage (Transient Overvoltage tini = 60 sec) VIOTM 8000 Vpeak Safety-limiting values – maximum values allowed in the event of a failure. Case Temperature Input Current Output Power TS IS, INPUT PS, OUTPUT 150 400 700 °C mA mW Insulation Resistance at TS, VIO = 500 V RS >109 Ω *Refer to the front of the optocoupler section of the current catalog, under Product Safety Regulations section, IEC/EN/DIN EN 60747-5-5, for a detailed description. Note: Isolation characteristics are guaranteed only within the safety maximum ratings which must be ensured by protective circuits in application. 8 Absolute Maximum Ratings* (No Derating Required up to 85°C) Parameter Symbol Min. Max. Units Storage Temperature TS -55 125 °C Operating Temperature** TA -40 85 °C Average Forward Input Current IF(AVG) 20 mA Peak Forward Input Current   (50% Duty Cycle, 1 ms Pulse Width) IFPK 40 mA Peak Transient Input Current   ( 2.0 V). Common mode transient immunity in a Logic Low level is the maximum tolerable (negative) dVCM /dt of the common mode pulse, VCM, to assure that the output will remain in a Logic Low state (i.e., VO  6000 V rms for 1 second (leakage detection current limit, II-O < 5 µA). This test is per­formed before the 100% production test for partial discharge (method b) shown in the IEC/EN/DIN EN 60747-5-5 Insulation Related Characteristics Table, if applicable. 12 A 2.5 m A 2.0 m A 1.5 m 25 1.0 mA 0.5 mA 0 1.0 2.0 1.0 1200 800 400 + VF – TA = 85°C TA = 70°C 0.1 TA = 25°C 0.001 1.1 TA = 0°C TA = -40°C 1.2 1.3 1.4 1.5 35 30 tPLH 1 tPHL 0 20 40 60 80 100 TA – TEMPERATURE – °C Figure 7. Propagation delay vs. temperature 13 1.0 tPLH 15 10 tPHL 5 20 40 60 0.1 10 1 IF – INPUT DIODE FORWARD CURRENT – mA Figure 3. 6N138/6N139 output current vs. input diode forward current 21 18 IF = 1.6 mA RL = 2.2 kΩ 1/f = 50 µs tPLH 15 12 9 6 tPHL 3 0 -60 -40 -20 80 100 Figure 5. Propagation delay vs. temperature TA = 70° C TA = 25° C TA = 0° C TA = -40° C 0.1 0 40 60 20 80 100 TA – TEMPERATURE – °C Figure 6. Propagation delay vs. temperature 1.6 2 0 -60 -40 -20 TA = 85° C TA – TEMPERATURE – °C VF – FORWARD VOLTAGE – V tP – PROPAGATION DELAY – µs 3 10 24 20 0 100 0.01 0.01 10 IF = 0.5 mA RL = 4.7 kΩ 1/f = 50 µs 0 -60 -40 -20 1.6 Figure 4. Input diode forward current vs. forward voltage IF = 12 mA RL = 270 kΩ 1/f = 50 µs 1.0 25 VF – FORWARD VOLTAGE – V 4 VCC = 5 V VO = 0.4 V 0 0.1 40 IF 0.01 -40°C Figure 2. Current transfer ratio vs. forward current 6N138/6N139 tP – PROPAGATION DELAY – µs IF – FORWARD CURRENT – mA 10 70°C IF – FORWARD CURRENT – mA Figure 1. 6N138/6N139 DC transfer characteristics 100 25°C 1600 VO – OUTPUT VOLTAGE – V 1000 70°C 100 IF = 1.6 mA TA = 25° C 1.5 TIME – µs 0 VCC = 5 V TA = 25° C 85°C tP – PROPAGATION DELAY – µs 4.0 mA 2000 IO – OUTPUT CURRENT – mA A 3.5 m A 3.0 m CTR – CURRENT TRANSFER RATIO – % IO – OUTPUT CURRENT – mA 5.0 mA 50 4.5 mA 1.4 tf tr 10 1.3 IF – ADJUSTED FOR VOL = 2 V 1.2 -60 -40 -20 0 20 40 60 80 100 TA – TEMPERATURE – °C Figure 8. Forward voltage vs. temperature 1 0.1 1.0 10 RL – LOAD RESISTANCE – kΩ Figure 9. Nonsaturated rise and fall times vs. load resistance OUTPUT POWER – PS, INPUT CURRENT – IS ICCL – LOGIC LOW SUPPLY CURRENT – mA 0.8 0.7 0.6 0.5 VCC = 18 V 0.4 VCC = 5 V 0.3 0.2 0.1 0 0 4 2 6 8 12 10 14 16 WIDEBODY 1000 PS (mW) 900 IS (mA) 800 700 600 500 400 300 200 100 0 0 25 50 75 100 125 150 175 TS – CASE TEMPERATURE – °C IF – FORWARD CURRENT Figure 10. Logic low supply current vs. forward current Figure 11. Thermal derating curve, dependence of safety limiting value with case temperature per IEC/EN/DIN EN 60747-5-5 IF 0 5V VO (SATURATED RESPONSE) 1.5 V 1.5 V VOL t PHL t PLH IF PULSE GEN. ZO = 50 Ω tr = 5 ns 10% DUTY CYCLE I/f < 100 µs 1 8 2 7 3 6 +5 V RL VO 0.1 µF IF MONITOR 5 4 CL = 15 pF* RM VO 90% (NON-SATURATED RESPONSE) 5V 90% 10% * INCLUDES PROBE AND FIXTURE CAPACITANCE 10% tf tr Figure 12. Switching test circuit VCM 10 V 0V 90% 90% 10% tr VO tf A SWITCH AT A: I F = 0 mA SWITCH AT B: I F = 1.6 mA 1 8 R CC (SEE NOTE 6) +5 V 2 7 RL 3 6 4 5 B 10% 5V VO IF tr, tf = 16 ns VFF VCM + – VOL PULSE GEN. Figure 13. Test circuit for transient immunity and typical waveforms For product information and a complete list of distributors, please go to our website: www.avagotech.com Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries. Data subject to change. Copyright © 2005-2015 Avago Technologies. All rights reserved. Obsoletes AV01-0543EN AV02-1359EN - March 4, 2015 VO
