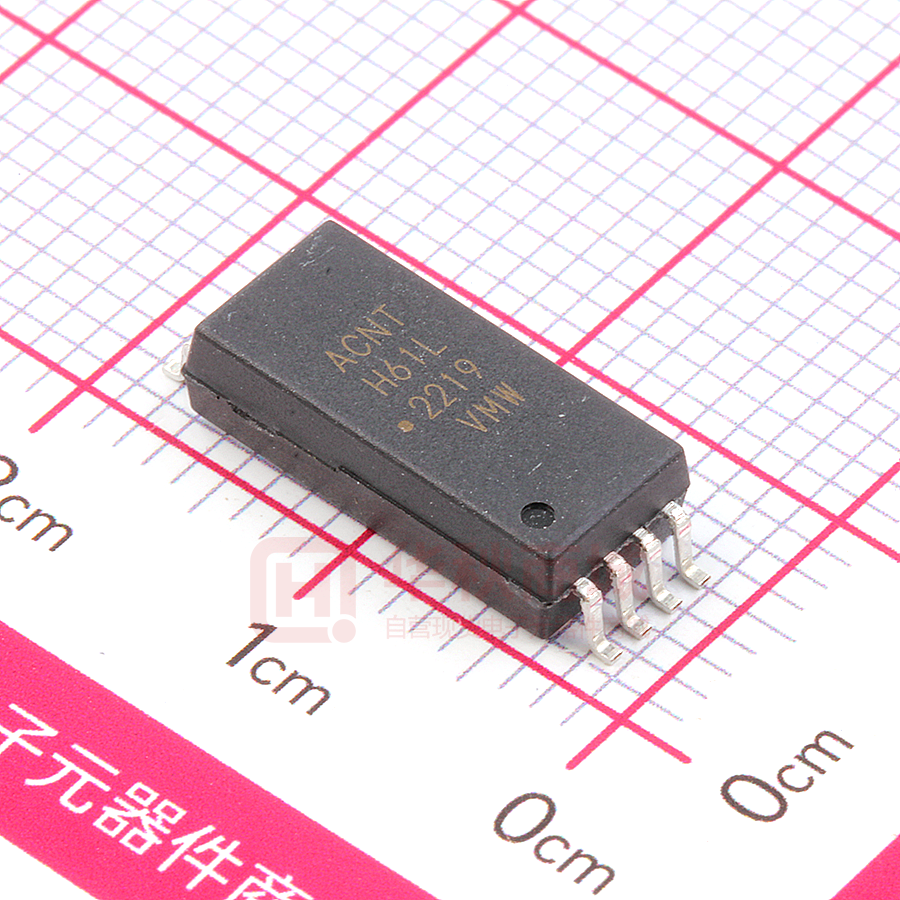

ACNT-H61L
Low Power 10-MBd Digital CMOS Optocoupler in
15-mm Stretched SO8 Package
Data Sheet
Description
Features
The ACNT-H61L is a stretched wide optically coupled
optocoupler that combines a light-emitting diode and an
integrated high gain photo detector to address the low power
need for isolated interface. The optocoupler consumes
extremely low power, at maximum 2 mA across temperature.
The LED forward current operates from 4.5 mA.
This optocoupler supports both a 3.3V and a 5V supply voltage
with guaranteed AC and DC operational parameters from
temperature range –40°C to +105°C. The output of the detector
IC is a CMOS output. The internal Faraday shield provides a
guaranteed common-mode transient immunity specification
of 20 kV/μs.
The ACNT-H61L with 15-mm stretched SO-8 package and high
voltage insulation capability is suitable for isolated
communicate logic interface and control in high-voltage
power systems such as 690VAC drives, renewable inverters, and
medical equipment.
Applications
Functional Diagram
NC 1
8 VDD
Anode 2
7 NC
Cathode 3
6 Vo
NC 4
Low IDD power supply consumption: 2 mA max.
Input current capability: 4.5 mA min.
Package: 15-mm stretched SO-8.
20 kV/μs minimum common-mode rejection (CMR) at
VCM = 1000 V.
High speed: 10 MBd min.
Guaranteed AC and DC performance over wide
temperature range: –40°C to +105°C.
Safety approval:
— UL 1577 recognized: 7500 Vrms for 1 minute
— CSA approval
— IEC/EN 60747-5-5 VIORM = 2262 Vpeak for reinforced
insulation
Communication Interface: RS-485, CAN bus
Digital isolation for A/D, D/A conversion
High-voltage power systems, e.g., 690V drives
Renewable energy inverters
Medical imaging and patient monitoring
5 GND
Shield
CAUTION
Truth Table (Positive Logic)
LED
Output VO
ON
OFF
L
H
A 0.1-μF bypass capacitor must be connected between pins
VCC and GND.
Broadcom
-1-
It is advised that normal static precautions be
taken in handling and assembly of this
component to prevent damage and/or
degradation that may be induced by ESD. The
components featured in this data sheet are not
to be used in military or aerospace applications
or environments.
ACNT-H61L
Data Sheet
Ordering Information
Ordering Information
ACNT-H61L is UL Recognized with 7500 Vrms for 1 minute per UL 1577.
Part Number
Option
RoHS
Compliant
ACNT-H61L
-000E
-500E
Package
Surface Mount
15-mm
Stretched S08
X
Tape & Reel
X
X
UL 1577
IEC/EN
60747-5-5
Quantity
X
X
80 per tube
X
X
1000 per reel
To order, choose a part number from the Part Number column and combine with the desired option from the Option column to
form an order entry.
Package Outline Drawing
ACNT-H61L Stretched SO-8 Package
Lead Free
0.457 ±0.100
0.018 ±0.004
Device Part Number
NNNN
NNNN
Ɣ YYWW
EEE
1.270
0.05
BSC
Lot ID
Land Pattern Recommendation
17.857 Ref
0.703
Date Code
15.01
0.591
14.047
0.553
13.600 ± 0.127
0.535 ± 0.005
7°
0.254 ±0.050
0.010 ±0.002
3.607 ± 0.127
0.142 ± 0.005
0.20 ±0.10
0.008 ± 0.004
7°
0.635 Min
0.025
0.630
0.025
6.248 ±0.127
0.246 ±0.005
8° Nom
16.61 ±0.25
0.654 ±0.010
1.905 Ref
0.075
7°
7°
Dimensions in mm [inch]
Maximum Mold Flash on each side is 0.127 mm [0.005 inch]
Note: Floating Lead Protusion is 0.15 mm [0.006 inch] Max if applicable
Solder Reflow Profile
Recommended reflow condition as per JEDEC Standard, J-STD-020 (latest revision). Non-Halide Flux should be used.
Regulatory Information
The ACNT-H61L is pending approval by the following organizations:
IEC/EN 60747-5-5
UL
Approval under UL 1577, component recognition program up to VISO = 7500 VRMS File E55361.
CSA
Approval under CSA Component Acceptance Notice #5, File CA 88324.
Broadcom
-2-
ACNT-H61L
Data Sheet
Insulation and Safety Related Specifications
Insulation and Safety Related Specifications
Parameter
Symbol
ACNT-H61L
Unit
Minimum External Air Gap
(External Clearance)
L(101)
14.2
mm
Measured from input terminals to output terminals, shortest
distance through air.
Minimum External Tracking
(External Creepage)
L(102)
15
mm
Measured from input terminals to output terminals, shortest
distance path along body.
0.5
mm
Through insulation distance conductor to conductor, usually the
straight line distance thickness between the emitter and detector.
>300
V
Minimum Internal Plastic Gap
(Internal Clearance)
Tracking Resistance
(Comparative Tracking Index)
CTI
Isolation Group
IIIa
Conditions
DIN IEC 112/VDE 0303 Part 1.
Material Group (DIN VDE 0110, 1/89, Table 1.)
IEC/EN 60747-5-5 Insulation Characteristicsa
Description
Symbol
Installation Classification per DIN VDE 0110/39, Table 1
for rated mains voltage ≤ 600 Vrms
Characteristic
Unit
I – IV
I – IV
for rated mains voltage ≤ 1000 Vrms
Climatic Classification
40/105/21
Pollution Degree (DIN VDE 0110/39)
2
VIORM
2262
Vpeak
Input to Output Test Voltage, Method ba
VIORM x 1.875 = VPR, 100% Production Test with tm = 1 sec, Partial Discharge < 5 pC
VPR
4241
Vpeak
Input to Output Test Voltage, Method aa
VIORM x 1.6 = VPR, Type and Sample Test, tm=10 sec, Partial Discharge < 5 pC
VPR
3619
Vpeak
VIOTM
12000
Vpeak
TS
IS, INPUT
PS, OUTPUT
150
400
1000
°C
mA
mW
RS
>109
Ω
Maximum Working Insulation Voltage
Highest Allowable Overvoltage
(Transient Overvoltage tini = 60 sec)
Safety-limiting Values – Maximum Values Allowed in the Event of a Failure
Case Temperature
Input Current
Output Power
Insulation Resistance at TS, VIO = 500V
a.
Refer to the optocoupler section of the Isolation and Control Components Designer’s Catalog, under Product Safety Regulations section, (IEC/EN 60747-5-5)
for a detailed description of Method a and Method b partial discharge test profiles.
Broadcom
-3-
ACNT-H61L
Data Sheet
Absolute Maximum Ratings
Absolute Maximum Ratings
Parameter
Symbol
Min
Max
Unit
Conditions
TS
–55
125
°C
—
Operating Temperature
TA
–40
105
°C
—
Reverse Input Voltage
VR
—
5
V
—
VDD
—
6.5
V
—
IF
—
10
mA
—
IF(TRAN)
1
80
10
A
mA
mA
Storage Temperature
Supply Voltage
Average Forward Input Current
