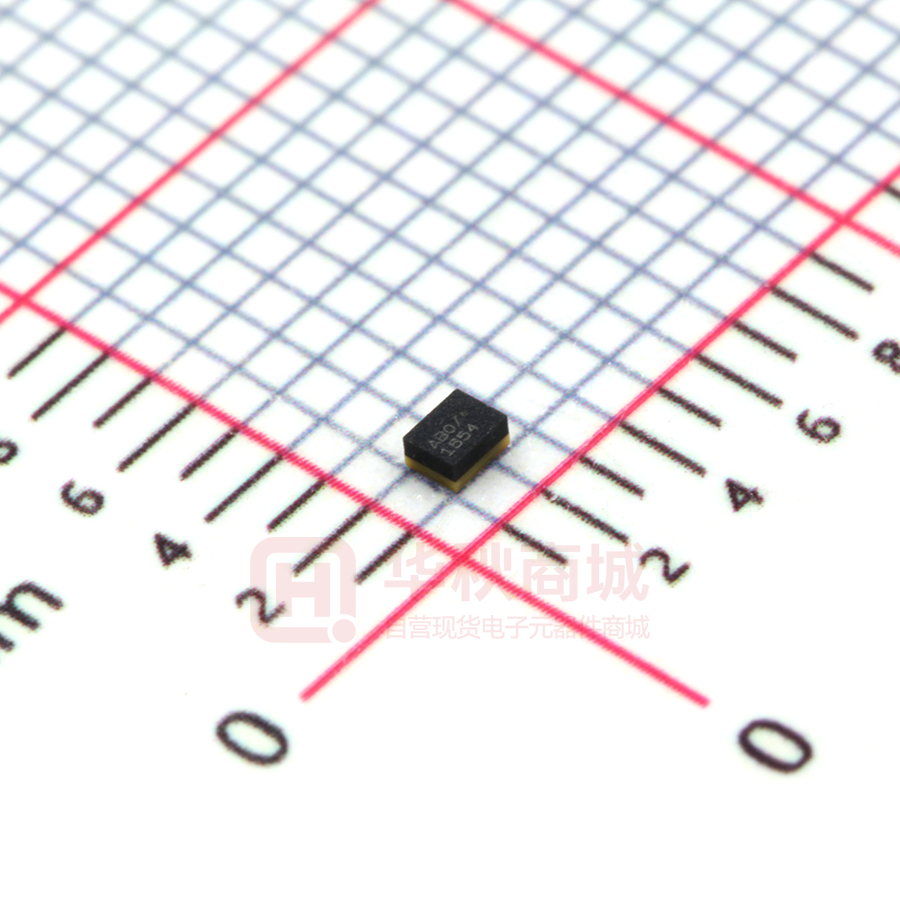

ACPF-7124 ISM Bandpass Filter (2401 – 2482 MHz) Product Brief Description Features The Avago ACPF-7124 is a miniaturized Bandpass Filter designed for use in the 2.4 GHz Industrial, Scientific and Medical (ISM) band. • 50 Ω Input/Output The ACPF-7124 is designed to enable concurrent operation of Wireless LAN and Bluetooth applications that coexist with other wireless standards, such as 2.5 GHz WiMAX, PCS, and LTE Bands 7 and 40, without performance degradations due to interference. The ACPF-7124 is designed with Avago Technologies’ innovative Film Bulk Acoustic Resonator (FBAR) technology, which makes possible ultra-small, high-Q filters at a fraction of their usual size. The ACPF-7124 also utilizes Avago Technologies’ advanced Microcap bonded-wafer technology. This chip scale miniaturization process results in a package size of only 1.4 x 1.1 mm and maximum height of 0.80 mm. The ACPF-7124 is compatible with high volume, lead-free SMT soldering processes and can be direct surface mounted to a PCB or a transfer molded module. Functional Block Diagram Port 1 Port 2 TX/RX (Pin 1) ANT (Pin 4) • No external matching required • Low Insertion Loss, High Interference Rejection - Enables concurrent use of other 2.5 GHz Bands • Subminiature Size - 1.1 x 1.4 mm Footprint - 0.80 mm Max Height • High Power Rating - +27 dBm Abs Max Input Power • Environmental - RoHS 6 Compliant - Halogen free - TBBPA Free Specifications • Performance guaranteed –30 °C to +85 °C • Low Insertion Loss • High Interferer Rejection Applications 802.11 b/g/n WLAN or Bluetooth datacom in handsets, mobile and portable communications devices. Package Dimension 1.40 (1.48 MAX) GND (3) 0.69 (0.80 MAX) 0.500 0.500 GND (2) BYW XXXX ANT (4) PIN 1 MARK (2) TX/RX (1) (3) (1) 1.10 (1.18 MAX) 0.575 0.288 GND (5) (5) (4) 0.075 TOP VIEW SIDE VIEW BOTTOM VIEW Notes: Pin Connections: 0.325 1. Dimensions in millimeters 2. Tolerance: X.XX ± 0.05 X.XXX ± 0.025 3. Dimensions nominal unless otherwise noted 4. Contact areas are gold plated 5. Package marking: A = Avago logo B = ACPF-7124 Y = Year (last digit) W = Work Week (Work Week Cross Reference in Appendix A) XXXX = Lot number 1 Port 1 (TX/RX) 2, 3, 5 GND 4 Port 2 (ANT) 0.250 PAD DETAIL Figure 1. Package Outline Drawing and Marking Ordering Information Part Number No. of Devices Container ACPF-7124-BLK 100 Tape strip or Gel-Pack ACPF-7124-TR1 3000 7-inch (178 mm) Reel For product information and a complete list of distributors, please go to our web site: www.avagotech.com Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries. Data subject to change. Copyright © 2005-2012 Avago Technologies. All rights reserved. AV02-3938EN - December 6, 2012 0.100
