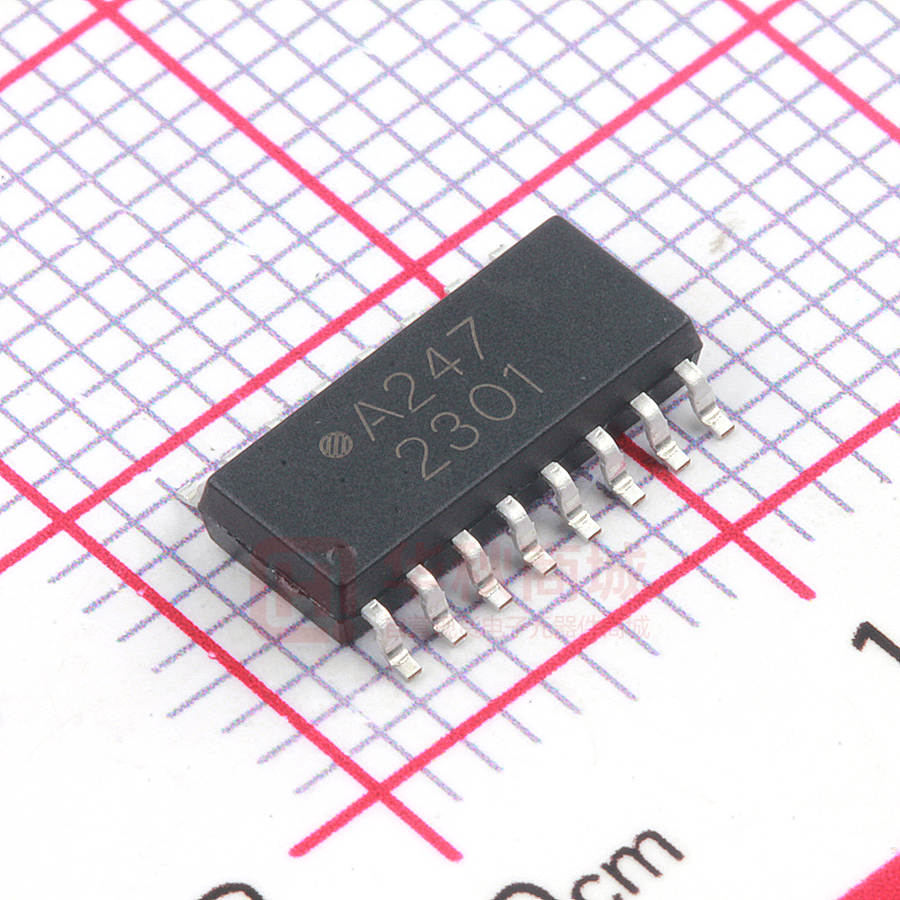

ACPL-247-500E

Data Sheet ACPL-227/ACPL-247 DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler Description The ACPL-227 is a DC-input dual-channel half-pitch phototransistor optocoupler that contains two light-emitting diodes optically coupled to two separate phototransistors. It is packaged in an 8-pin SO package. Likewise, the ACPL-247 is a DC-input quad-channel halfpitch phototransistor optocoupler that contains four lightemitting diodes optically coupled to four separate phototransistors. It is packaged in a 16-pin SO package. Features  (CTR: 50% (min) at IF = 5 mA, VCE = 5V)  CAUTION! It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD. The components featured in this data sheet are not to be used in military or aerospace applications or environments. The components are not AECQ100 qualified and are not recommended for automotive applications. Broadcom High input-output isolation voltage (VISO = 3750Vrms)  Non-saturated response time (tr: 2 µs (typ) at VCC = 10V, IC = 2 mA, RL= 100Ω)    For both devices, the input-output isolation voltage is rated at 3750Vrms. Response time, tr, is 2 µs typically, while minimum CTR is 50 percent at input current of 5 mA. Current transfer ratio  SO package CMR 10 kV/µs (typical) Safety and regulatory approvals – cUL – IEC/EN/DIN EN 60747-5-5 Options available: – CTR Ranks 0, B, and C for ACPL-227 and Rank 0 only for ACPL-247 Applications     I/O Interface for programmable controllers, computers Sequence controllers System appliances, measuring instruments Signal transmission between circuits of different potentials and impedances AV02-0752EN March 30, 2021 ACPL-227/ACPL-247 Data Sheet DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler ACPL-227 and ACPL-247 Pin Layout 8 7 6 5 16 15 14 13 12 11 10 9 1 2 3 4 1 2 3 4 5 6 7 8 Pin 1 Anode Pin 1, 3, 5, 7 Anode Pin 2 Cathode Pin 2, 4, 6, 8 Cathode Pin 3 Emitter Pin 9, 11, 13, 15 Emitter Pin 4 Collector Pin 10, 12, 14, 16 Collector Ordering Information ACPL-2x7-xxxx is UL Recognized with 3750Vrms for 1 minute per UL1577 and Canadian Component Acceptance Notice #5. RoHS Compliant Option Part Number ACPL-227 Rank 0 Rank 0 Rank B Rank C 50% < 100% < 130% < 200% < CTR < CTR < CTR < CTR < 600%, 600%, 260%, 400%, IF = 5 mA, IF = 5 mA, IF = 5 mA, IF = 5 mA, Number of Surface VCE = 5V VCE = 5V VCE = 5V VCE = 5V Package Channels Mount -500E -560E ACPL-247 -50BE -50CE -56BE -56CE SO-8 Dual X Tape and Reel IEC/EN/ DIN EN 60747-5-5 X SO-8 Dual X X -500E SO-16 Quad X X -560E SO-16 Quad X X Quantity 2000 pcs per reel X 2000 pcs per reel 2000 pcs per reel X 2000 pcs per reel To order, choose a part number from the part number column and combine with the desired option from the option column to form an order entry. Example 1: ACPL-227-56CE to order product of Dual Channel SO-8 Surface Mount package in Tape and Reel with IEC/EN/DIN EN 60747-5-5 Safety Approval, 200% < CTR < 400% and RoHS compliant. Example 2: ACPL-247-500E to order product of Quad Channel SO-16 Surface Mount package in Tape and Reel packaging with 100% < CTR < 600% and RoHS compliant. Option data sheets are available. Contact your Broadcom sales representative or authorized distributor for information. Broadcom AV02-0752EN 2 ACPL-227/ACPL-247 Data Sheet DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler Package Outline Drawings ACPL-227 Package Outline 1.27 ±0.25 0.050 ±0.010 LEAD FREE VDE option only 0.75 0.030 A227V YYWWA 2.00 ±0.20 0.079 ±0.008 5.20 ±0.30 0.205 ±0.012 0.40 ±0.10 0.016 ±0.004 5.30±0.3 [0.208 ±0.012] 0.20 ±0.05 0.008 ±0.002 RANK 0.75 0.030 0.12 ±0.10 0.005 ±0.004 PIN ONE 4.40 ±0.20 0.173 ±0.008 DATE CODE 0.7 ±0.2 [0.028 ±0.008] 7.00 ±0.40 0.276 ±0.016 DIMENSIONS IN MILLIMETERS [INCHES] Broadcom AV02-0752EN 3 ACPL-227/ACPL-247 Data Sheet DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler ACPL-247 Package Outline 1.27 ±0.25 0.050 ±0.010 LEAD FREE VDE option only A247V YYWWA 0.75 0.030 0.75 0.030 RANK 5.30 ±0.3 [0.208 ±0.012] 2.00 ±0.20 0.079 ±0.008 0.12 ±0.10 0.005 ±0.004 10.28 ±0.30 0.405 ±0.012 0.40 ±0.10 0.016 ±0.004 DIMENSIONS IN MILLIMETERS[INCHES] 0.7±0.2 [0.028 ±0.008] 7.00 ±0.40 0.276 ±0.016 0.20 ±0.05 0.008 ±0.002 PIN ONE 4.40 ±0.20 0.173 ±0.008 DATE CODE Solder Reflow Temperature Profile Recommended reflow condition as per JEDEC Standard, J-STD-020 (latest revision). Non-Halide Flux should be used. Broadcom AV02-0752EN 4 ACPL-227/ACPL-247 Data Sheet DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler Absolute Maximum Ratings Parameter Symbol ACPL-227 ACPL-247 Unit Storage Temperature TS –55~125 °C Operating Temperature TA –55~110 °C IF(AVG) 50 mA IFSM 1 A Reverse Voltage VR 6 V LED Power Dissipation (1 channel) PI 65 mW Collector Current IC 50 mA Collector-Emitter Voltage VCEO 80 V Emitter-Collector Voltage VECO 7 V Isolation Voltage (AC for 1 minute, R.H. 40%~60%) VISO 3750 Vrms Collector Power Dissipation (1 channel) PC 150 100 mW PTOT 200 170 mW Average Forward Current Pulse Forward Current Total Power Dissipation Lead Solder Temperature Broadcom Note 1 minute 260°C for 10 seconds AV02-0752EN 5 ACPL-227/ACPL-247 Data Sheet DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler Electrical Specifications Over recommended ambient temperature at 25°C unless otherwise specified. Parameter Symbol Min. Typ. Max. Unit Forward Voltage VF — 1.2 1.4 V IF = 20 mA Reverse Current IR — — 10 µA VR = 5V Terminal Capacitance Ct — 30 — pF V = 0, f = 1 MHz Collector Dark Current ICEO — — 100 nA VCE = 48V, IF = 0 mA Collector-Emitter Breakdown Voltage BVCEO 80 — — V IC = 0.5 mA, IF = 0 mA Emitter-Collector Breakdown Voltage BVECO 7 — — V IE = 100 µA, IF = 0 mA Current Transfer Ratio (ACPL-227 Only) CTR 50 — 600 % IF = 5 mA, VCE = 5V CTR = (IC / IF) × 100% Current Transfer Ratio (ACPL-247 Only) CTR 100 — 600 % IF = 5 mA, VCE = 5V CTR = (IC / IF) × 100% Saturated CTR CTR(sat) — 60 — % IF = 1 mA, VCE = 0.4V Collector-Emitter Saturation Voltage VCE(sat) — — 0.4 V IF = ±8 mA, IC = 2.4 mA Isolation Resistance Riso 5 × 1010 1 × 1011 — Ω DC500V, R.H. 40%~60% Floating Capacitance CF — 0.6 1 pF V = 0, f = 1 MHz Cut-off Frequency (–3 dB) FC — 80 — kHz VCC = 5V, IC = 2 mA, Figure 2, Figure 19 RL = 100Ω Response Time (Rise) tr — 2 — µs Response Time (Fall) tf — 3 — µs Turn-on Time ton — 3 — µs Turn-off Time toff — 3 — µs Turn-ON Time tON — 2 — µs Storage Time TS — 25 — µs Turn-OFF Time tOFF — 40 — µs Common Mode Rejection Voltage CMR — 10 — kV/µs Broadcom Test Conditions VCC = 10V, IC = 2 mA, RL = 100Ω Note Figure 6 Figure 12 Figure 14 Figure 1 VCC = 5V, IF = 16 mA, Figure 1, Figure 17 RL = 1.9 kΩ TA = 25°C, RL = 470Ω, VCM = 1.5 kV(peak), IF = 0 mA, VCC = 9V, Vnp = 100 mV Figure 20 AV02-0752EN 6 ACPL-227/ACPL-247 Data Sheet DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler Figure 1: Switching Time Test Circuit IF RL V CC V CE IF tr V CE tf 90 % ts ton RL 10 % t o ff V CC O utput RD Figure 2: Frequency Response Test Circuit R L V CC O utput R D Broadcom AV02-0752EN 7 ACPL-227/ACPL-247 Data Sheet DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler Figure 3: Forward Current vs. Ambient Temperature Figure 4: Collector Power Dissipation vs. Ambient Temperature 60 160 140 Collector Power Dissipation Pc (mW) Forward Current IF (mA) 50 40 ACPL-227 ACPL-247 30 20 10 0 –25 –5 15 35 55 75 Ambient Temperature TA (ºC) 95 120 ACPL-227 100 80 ACPL-247 60 40 20 115 0 –25 0 25 50 75 100 125 Ambient Temperature TA (ºC) Figure 5: Pulse Forward Current vs. Duty Cycle Ratio Figure 6: Forward Current vs. Forward Voltage 10000 100 Forward Current, IF(mA) Peak Forward Current, IFP (mA) Pulse width ≤ 100 μs T A = 25°C 1000 100 10 0.0001 0.0010 0.0100 0.1000 50°C 75°C T A = 110°C 10 1 1.0000 –30°C 0°C 25°C 0.4 0.6 0.8 Duty Ratio 1.0 1.2 1.4 1.6 1.8 2.0 Forward Voltage, VF(V) Figure 7: Forward Voltage Temperature Coefficient vs. Forward Current Figure 8: Pulse Forward Current vs. Pulse Forward Voltage 1000 Forward voltage temperature coeffcient 'VF / 'Ta (mV/ºC) –3.2 Pulse Forward Current, IFP (mA) –2.8 –2.4 –2.0 –1.6 –1.2 –0.8 –0.4 0.1 Broadcom 1 0.3 0.5 10 1 3 5 10 Forward current IF (mA) Forward current IF (mA) 30 50 100 Pulse Width ≤10 μs Repetitive Frequency = 100 Hz TA = 25˚C 10 1 0.5 1 1.5 2 Pulse Forward Voltage, VFP (V) 2.5 3 AV02-0752EN 8 ACPL-227/ACPL-247 Data Sheet DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler Figure 9: Collector Current vs. Collector-Emitter Voltage Figure 10: Collector Current vs. Small Collector-Emitter Voltage 50 50 TA = 25˚C 50 mA 40 45 40 20 mA 30 PC(max)=100 mW ACPL-247 20 PC(max)=150 mW ACPL-227 10 mA 10 0 Collector Currrent, Ic( mA) Collector Current, Ic(mA) 30 mA IF=5 mA 0 5 Collector-Emitter Voltage, VCE(V) 30 30 mA 25 20 20 mA 15 10 mA 5 mA 10 5 10 0 Figure 11: Collector Current vs. Forward Current 50 mA 35 IF = 2 mA 0 0.5 Collector-Emitter Voltage, VCE(V) 1 Figure 12: Collector Dark Current vs. Ambient Temperature 0.1 5V 10V Collector Dark Current, ICEO (A) Collector Current, IC (A) 1.E-06 VCE = 0.4V 0.01 0.001 0.0001 0.0001 0.001 0.01 Forward Current, IF(A) 0.1 Figure 13: Current Transfer Ratio vs. Forward Current 1.E-10 –25 Collector-Emitter Saturation Voltage VCE(sat) (V) Current Transfer Ratio, CTR (%) 10V 35 55 15 75 Ambient Temperature, Ta (ºC) 5V 95 0.18 10V 5V VCE = 0.4V 100 Broadcom –5 24V Figure 14: Collector-Emitter Saturation Voltage vs. Ambient Temperature 1000 10 0.0001 VCE = 48V 1.E-08 0.001 0.01 Forward Current, IF(A) 0.1 . 0.16 0.14 0.12 IF = 8 mA, IC = 2.4 mA IF = 20 mA, IC =1 mA 0.10 0.08 IF = 1 mA, IC = 0.2 mA 0.06 0.04 0.02 0.00 –30 5 40 75 Ambient Temperature, TA (˚ C) 110 AV02-0752EN 9 ACPL-227/ACPL-247 Data Sheet DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler Figure 15: Collector Current vs. Ambient Temperature Figure 16: Switching Time vs. Load Resistance 100 Collector Current, IC (mA) 25 mA 10 10 mA 5 mA 1 1 mA IF = 0.5 mA 0.1 –25 0 25 50 Ambient Temperature, T A (˚C) 75 100 Figure 17: Switching Time vs. Ambient Temperature Figure 18: Collector-Emitter Saturation Voltage vs. Forward Current tOFF Switching time, t (μs) tS 10 tON 1 IF = 16 mA VCC = 5V R = 1.9 kΩ 0.1 L –20 0 20 40 60 Ambient Temperature, TA (˚C) 80 100 Figure 19: Frequency Response Collector-Emitter Saturation Voltage, VCE(sat) (V) 5 TA = 25˚C 4 3 2 1 0 0.5 mA 1 mA 3 mA 5 mA 7 mA IC = 10 mA 100 0 5 10 Forward Current, IF (mA) 15 20 Figure 20: CMR Test Circuit 0 RL = 100Ω dV/dt V CM Vo, (dB) –2 RL 470Ω 1 kΩ Vo –4 V CM –6 Vcc = 5V IC = 2 mA –8 T A = 25˚C 1 Broadcom (High Voltage Pulse) 10 Frequency, f (kHz) Vcc 9V V np Vo Vcp Vcp≈ (dV/dt)xCfxRL Vcp : Voltage that is generated by the displacement current in floating capacitance between primary and secondary sides. 100 AV02-0752EN 10 Broadcom, the pulse logo, Connecting everything, Avago Technologies, Avago, and the A logo are among the trademarks of Broadcom and/or its affiliates in the United States, certain other countries, and/or the EU. Copyright © 2010-2021 Broadcom. All Rights Reserved. The term “Broadcom” refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com. Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability, function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does not assume any liability arising out of the application or use of this information, nor the application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
