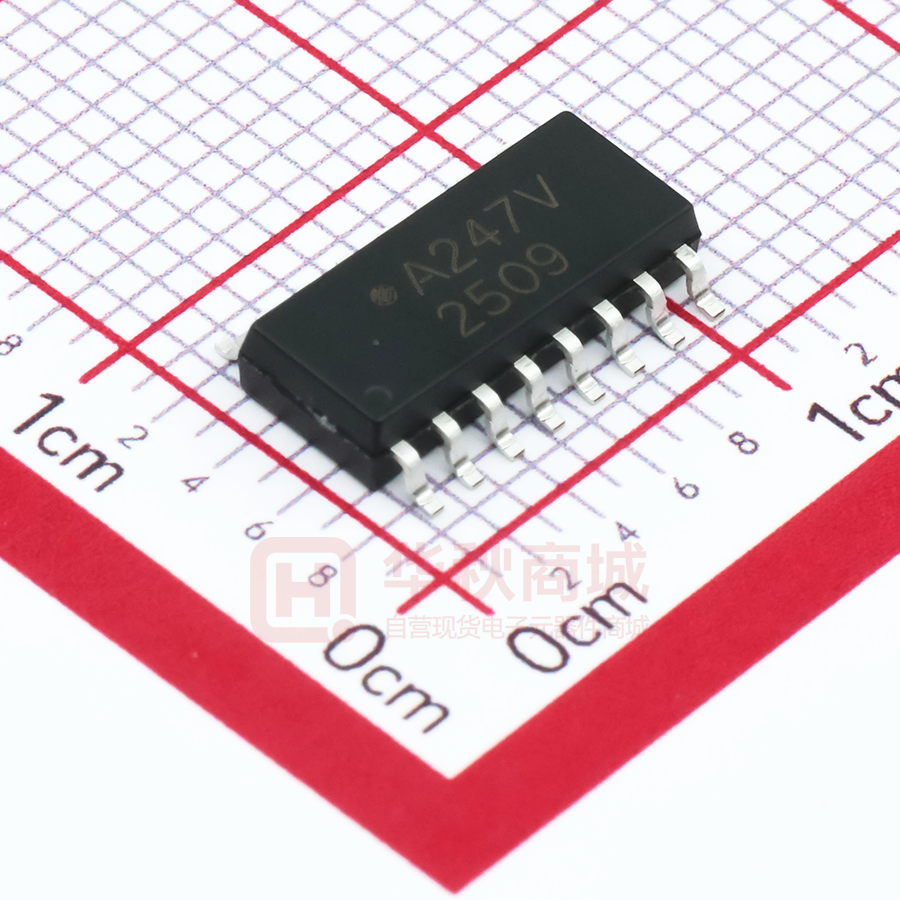

ACPL-227 / ACPL-247 DC Input Multi-Channel Half-Pitch Phototransistor Optocoupler Data Sheet Lead (Pb) Free RoHS 6 fully compliant RoHS 6 fully compliant options available; -xxxE denotes a lead-free product Description Features The ACPL-227 is a DC-input dual channel half-pitch phototransistor optocoupler which contains two light emitting diodes optically coupled to two separate phototransistors. It is packaged in an 8-pin SO package. x Current transfer ratio (CTR: 50% (min) at IF = 5mA, VCE = 5V) Likewise, the ACPL-247 is a DC-input quad channel halfpitch phototransistor optocoupler which contains four light emitting diodes optically coupled to four separate phototransistors. It is packaged in a 16-pin SO package. x SO package For both devices, the input-output isolation voltage is rated at 3,000 Vrms. Response time, tr, is 2μs typically, while minimum CTR is 50% at input current of 5 mA. ACPL-227 pin layout ACPL-247 pin layout             x High input-output isolation voltage (VISO = 3,000VRMS) x Non-saturated Response time (tr: 2μs (typ) at VCC = 10V, IC = 2mA, RL= 100:) x CMR 10kV/μs (typical) x Safety and regulatory approvals - cUL - IEC/EN/DIN EN 60747-5-2 x Options available: – CTR Ranks 0, B & C for ACPL-227 and Rank 0 only for ACPL-247 Applications x I/O Interface for Programmable controllers, computers. x Sequence controllers           Pin 1, 3 Anode Pin 1, 3, 5, 7 Anode Pin 2, 4 Cathode Pin 2, 4, 6, 8 Cathode Pin 5, 7 Emitter Pin 9,11,13,15 Emitter Pin 6, 8 Collector Pin 10,12,14,16 Collector   x System appliances, measuring instruments x Signal transmission between circuits of different potentials and impedances. Ordering Information ACPL-2x7-xxxx is UL recognized at 3,000 Vrms for 1 minute per UL1577 and Canadian Component Acceptance Notice #5. RoHS Compliant Option Part number ACPL-227 ACPL-247 Rank ‘0’ 50%
