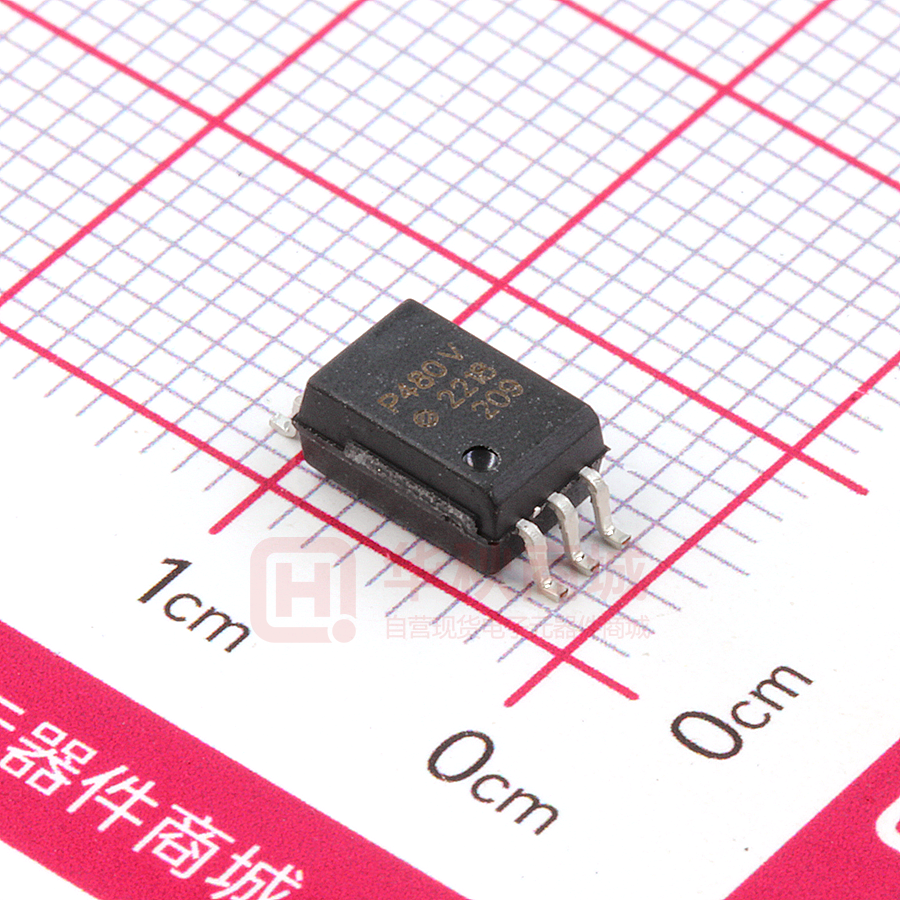

ACPL-P480-560E

Data Sheet ACPL-P480 and ACPL-W480 High CMR Intelligent Power Module and Gate Drive Interface Optocoupler Description Features The Broadcom® high-speed ACPL-P480/W480 optocoupler contains a GaAsP LED, a photo detector, and a Schmitt trigger that eliminates the requirement for external waveform conditioning circuits. The totem pole output eliminates the need for a pull-up resistor and allows for a direct-drive Intelligent Power Module or gate drive. Propagation delay difference between devices has been minimized to maximize inverter efficiency through reduced switching dead time. Applications               IPM interface isolation Isolated IGBT/MOSFET gate drive AC and brushless DC motor drives Industrial inverters General digital isolation Functional Diagram Performance specified for common IPM applications over industrial temperature range Short maximum propagation delays Minimized pulse width distortion (PWD) Very high common mode rejection (CMR) Hysteresis Totem pole output (no pull-up resistor required) Available in stretched SO-6 package Package clearance/creepage at 8 mm (ACPL-W480) Safety approvals: – UL recognized with 3750Vrms for 1 minute (5000Vrms for 1 minute for all ACPL-W480 devices and Option 020 device for ACPL-P480) per UL1577 – CSA approved – IEC/EN/DIN EN 60747-5-5 approved with VIORM = 891Vpeak for ACPL-P480 and VIORM = 1140Vpeak for ACPL-W480 Specifications ANODE 1 6 VCC N.C. 2 5 VO CATHODE 3 SHIELD    4 Ground  NOTE: A 0.1-µF bypass capacitor must be connected between pins 4 and 6. Truth Table (Non-Inverting Logic) Broadcom LED VO ON HIGH OFF LOW   Wide operating temperature range: –40°C to 100°C Maximum propagation delay tPHL/tPLH = 350 ns Maximum pulse width distortion (PWD) = 250 ns Propagation delay difference: minimum –100 ns, maximum – 250 ns Wide operating VCC range: 4.5V to 20V 20 kV/µs minimum common mode rejection (CMR) at VCM = 1000V CAUTION! It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD. AV02-1305EN August 25, 2022 ACPL-P480 and ACPL-W480 Data Sheet High CMR Intelligent Power Module and Gate Drive Interface Optocoupler Ordering Information ACPL-P480 is UL Recognized with 3750Vrms for 1 minute and ACPL-W480 is UL Recognized with 5000Vrms for 1 minute per UL1577. Both are approved under CSA Component Acceptance Notice #5, File CA 88324. Option Part Number RoHS Compliant Package Surface Mount ACPL-P480 -000E 7 mm Stretched SO-6 X -500E ACPL-W480 X -520E X -060E X -560E X -000E 8 mm Stretched SO-6 IEC/EN/DIN EN 60747-5-5 X -020E -500E Tape and Reel 100 per tube X 1000 per reel X 1000 per reel 100 per tube X X 100 per tube X 1000 per reel X X -060E X -560E X Quantity 100 per tube X X 1000 per reel X 100 per tube X 1000 per reel To order, choose a part number from the part number column and combine with the desired option from the option column to form an ordering part number. Example 1: ACPL-P480-560E to order product of Stretched SO-6 package in Tape and Reel packaging with IEC/EN/DIN EN 607475-5 Safety Approval in RoHS compliant. Example 2: ACPL-P480-000E to order product of Stretched SO-6 package in tube packaging and RoHS compliant. Option data sheets are available. Contact your Broadcom sales representative or authorized distributor for information. Solder Reflow Profile The recommended reflow profile is per JEDEC Standard, J-STD-020 (latest revision). Non-halide flux should be used. Regulatory Information The ACPL-P480 and ACPL-W480 are approved by the following organizations:    IEC/EN/DIN EN 60747-5-5 (Option 060 only): – IEC 60747-5-5: 2007 – EN 60747-5-5: 2011 – DIN EN 60747-5-5 (VDE 0884-5): 2011-11 UL: – ACPL-P480: Approval under UL 1577, component recognition program up to VISO = 3750Vrms. File E55361. – ACPL-W480 and ACPL-P480 (option 020): Approval under UL 1577, component recognition program up to VISO = 5000Vrms. File E55361. CSA: Approval under CSA Component Acceptance Notice #5, File CA 88324. Broadcom AV02-1305EN 2 ACPL-P480 and ACPL-W480 Data Sheet High CMR Intelligent Power Module and Gate Drive Interface Optocoupler Package Outline Drawings ACPL-P480 Stretched SO-6 Package (7 mm Clearance) 1.27 BSG 0.050 0.381 ±0.127 0.015 ±0.005 0.45 0.018 10.7 0.421 1.27 0.050 7.62 0.300 6.81 0.268 45° +0.254 0 +0.010 0.180 - 0.000 *4.580 1.590 ±0.127 0.063 ±0.005 7° 0.76 0.030 2.16 0.085 3.180 ±0.127 0.125 ±0.005 7° 7° 0.20 ±0.10 0.008 ±0.004 7° 5 NOM. 1±0.250 0.040 ±0.010 Broadcom 9.7 ±0.250 0.382 ±0.010 0.254 ±0.050 0.010 ±0.002 Floating Lead protusion max. = 0.25 mm [0.01 inches] Lead Coplanarity = 0.1 mm [0.004 inches] Dimensions in millimeters [inches] *Total Package Width = 4.834 ±0.254 mm (inclusive of mold flash) AV02-1305EN 3 ACPL-P480 and ACPL-W480 Data Sheet High CMR Intelligent Power Module and Gate Drive Interface Optocoupler ACPL-W480 Stretched SO-6 Package (8 mm Clearance) 0.381 ±0.127 0.015 ±0.005 1 12.650 0.498 0.760 0.030 6 2 5 3 4 7.62 [0.300] +0.127 -0.000 +0.005 0.268 - 0.000 6.807 0.45 0.018 +0.254 0 +0.010 0.180 - 0.000 *4.580 1.27 BSG 0.050 7° 45° 1.905 0.075 1.270 0.050 1.590 ±0.127 0.063 ±0.005 3.180 ±0.127 0.125 ±0.005 7° 0.20 ±0.10 0.008 ±0.004 7° 0.750 ±0.250 [0.0295 ±0.010] 35° NOM. 11.500 ±0.25 0.453 ±0.010 Broadcom 7° 0.254 ±0.050 0.010 ±0.002 Floating Lead protusion max. = 0.25 mm [0.01 inches] Lead Coplanarity = 0.1 mm [0.004 inches] Dimensions in millimeters [inches] *Total Package Width = 4.834 ±0.254 mm (inclusive of mold flash) AV02-1305EN 4 ACPL-P480 and ACPL-W480 Data Sheet High CMR Intelligent Power Module and Gate Drive Interface Optocoupler IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (Option 060) Description Symbol ACPL-P480 ACPL-W480 I– IV I – IV I – III I – IV I – IV I – IV Installation Classification per DIN VDE 0110/39, Table 1 For rated mains voltage ≤ 150Vrms For rated mains voltage ≤ 300Vrms For rated mains voltage ≤ 600Vrms Climatic Classification Units 55/100/21 Pollution Degree (DIN VDE 0110/39) 2 Maximum Working Insulation Voltage VIORM 891 1140 Vpeak Input to Output Test Voltage, Method ba VIORM x 1.875 = VPR, 100% Production Test with tm = 1 sec, Partial Discharge < 5 pC VPR 1670 2137 Vpeak Input to Output Test Voltage, Method aa VIORM x 1.6=VPR, Type and Sample Test, tm = 10s, VPR 1426 1824 Vpeak VIOTM 6000 8000 Vpeak Partial Discharge < 5 pC Highest Allowable Overvoltage (Transient Overvoltage tini = 60s) Safety-limiting Values – maximum values allowed in the event of a failure TS 175 °C Input Current IS, INPUT 230 mA Output Power PS, OUTPUT 600 mW RS >109 Ω Case Temperature Insulation Resistance at TS, VIO = 500V a. Refer to the optocoupler section of the Isolation and Control Components Designer’s Catalog, under the Product Safety Regulations section, (IEC/EN/DIN EN 60747-5-5), for a detailed description of Method a and Method b partial discharge test profiles. Insulation and Safety Related Specifications Parameter Symbol ACPL-P480 ACPL-W480 Unit Condition Minimum External Air Gap (External Clearance) L(101) 7.0 8.0 mm Measured from input terminals to output terminals, shortest distance through air. Minimum External Tracking (External Creepage) L(102) 8.0 8.0 mm Measured from input terminals to output terminals, shortest distance path along body. Minimum Internal Plastic Gap (Internal Clearance) 0.08 mm Through insulation distance conductor to conductor, usually the straight line distance thickness between the emitter and detector. Minimum Internal Tracking (Internal Creepage) N/A mm Measured from input terminals to output terminals, along internal cavity. >175 V Tracking Resistance (Comparative Tracking Index) Isolation Group Broadcom CTI IIIa DIN IEC 112/VDE 0303 Part 1. Material Group (DIN VDE 0110, 1/89, Table 1). AV02-1305EN 5 ACPL-P480 and ACPL-W480 Data Sheet High CMR Intelligent Power Module and Gate Drive Interface Optocoupler UL 1577 Specification Sheet Current, mA Power, mW Model Package Type Emitter Sensor Emitter Sensor Isolation Voltage 1 min, Vrms P480 3 10 25 15 560 5000 Maximum Operating Temperature, °C Maximum Junction Temperature, °C Maximum Storage Temperature, °C 110 125 125 Absolute Maximum Ratings Parameter Symbol Min. Max. Units Storage Temperature TS –55 +125 °C Operating Temperature TA –40 +100 °C Average Input Current IF(AVG) — 10 mA Peak Transient Input Current (
