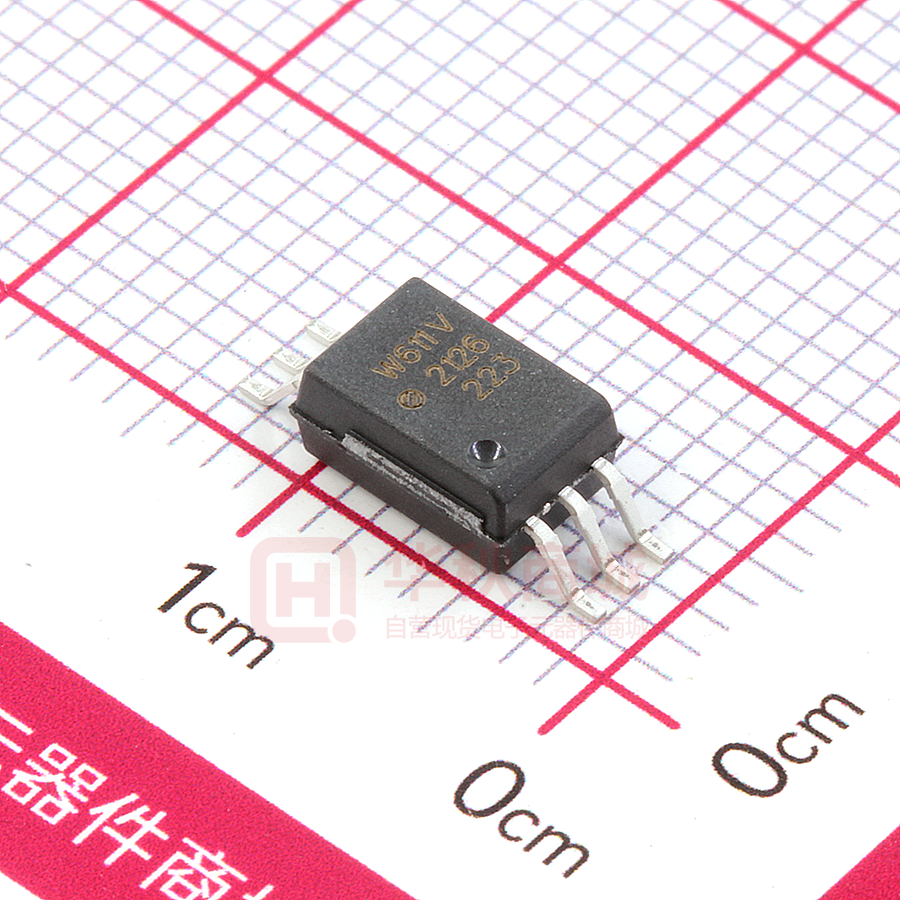

ACPL-W611-560E

ACPL-W611/ACPL-P611 High CMR, High-Speed TTL Compatible Optocoupler Data Sheet Description Features The ACPL-W611/ACPL-P611 is an optically coupled gate that combines a GaAsP light emitting diode and an integrated high gain photo detector. The output of the detector IC is an open collector Schottky clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 10,000 V/μs for the ACPL-W611.  This unique design provides maximum AC and DC circuit isolation while achieving TTL compatibility. The optocoupler AC and DC operational parameters are guaranteed from –40°C to +100°C, allowing trouble-free system performance.       The ACPL-W611/ACPL-P611 is suitable for high-speed logic interfacing, input/output buffering, as line receivers in environments that conventional line receivers cannot tolerate and are recommended for use in extremely high ground or induced noise environments. CAUTION It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD. The components featured in this data sheet are not to be used in military or aerospace applications or environments. 10 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1000V High speed: 10 MBd typical LSTTL/TTL compatible Low input current capability: 5 mA Guaranteed ac and dc performance over temperature: – 40°C to +100°C Stretched SO-6 package Safety Approval: — UL Recognized: 5000Vrms for 1 minute for ACPL-W611 and ACPL-P611-020E per UL1577 — CSA — IEC/EN/DIN EN 60747-5-5 Applications           Broadcom -1- Isolated line receiver Computer-peripheral interfaces Microprocessor system interfaces Digital isolation for A/D, D/A conversion Switching power supply Instrument input/output isolation Ground loop elimination Pulse transformer replacement Power transistor isolation in motor drives Isolation of high speed logic systems ACPL-W611/ACPL-P611 Data Sheet Functional Diagram ACPL-W611/ACPL-P611 ANODE CATHODE 1 6 V CC 2 5 VO 4 GND 3 SHIELD TRUTH TABLE (POSITIVE LOGIC) LED ON OFF NOTE OUTPUT L H Bypassing of the power supply line is required with a 0.-μF ceramic disc capacitor adjacent to each optocoupler. The total lead length between both ends of the capacitor and the isolator pins should not exceed 10 mm. Schematic Diagram IF ICC 6 1+ IO 5 VCC VO VF – 3 4 SHIELD Broadcom -2- GND ACPL-W611/ACPL-P611 Data Sheet Ordering Information ACPL-P611 is UL Recognized with 3750 Vrms for 1 minute and ACPL-W611 is UL recognized with 5000 Vrms for 1 minute per UL1577. They are approved under CSA Component Acceptance Notice #5, File CA 88324. Option Part Number ACPL-P611 ACPL-W611 RoHS Compliant Package -000E Stretched SO-6 Surface Mount Tape and Reel Quantity 100 per tube X -060E X -500E X X -520E X X -560E X X Stretched S0-6 IEC/EN/DIN EN 60747-5-5 X -020E -000E UL 5000 Vrms/ 1 Minute Rating X 100 per tube X X 100 per tube 1000 per reel X 1000 per reel X X -060E X -500E X X X X -560E X X X 1000 per reel 100 per tube X 100 per tube 1000 per reel X 1000 per reel To order, choose a part number from the part number column and combine with the desired option from the option column to form an order entry. Combination of Option 020 and Option 060 is not available. Example 1: ACPL-P611-500E to order product of Surface Mount Stretched SO-6 package in Tape and Reel packaging with RoHS compliant. Option data sheets are available. Contact your Broadcom sales representative or authorized distributor for information. Broadcom -3- ACPL-W611/ACPL-P611 Data Sheet Package Outline Drawings ACPL-W611 Stretched SO-6 Package * 4.580±0.254 (0.180±0.010) LAND PATTERN RECOMMENDATION 1.27 (0.050) BSG 12.65 (0.498) 6 5 4 RoHS-COMPLIANCE INDICATOR 0.76 (0.030) NNNN YYWW EEE PART NUMBER DATE CODE Lot ID 1.91 (0.075) 1 2 3 0.381±0.127 (0.015±0.005) 7° +0.127 0 +0.005 0.268 - 0.000 6.807 ( 0.45 (0.018) 7° ) 45° 3.180±0.127 (0.125±0.005) 0.20±0.10 (0.008±0.004) * Total package width (inclusive of mold flash) 4.834 ± 0.254 mm Dimensions in Millimeters (Inches). Lead coplanarity = 0.1 mm (0.004 inches). 1.590±0.127 (0.063±0.005) 0.750±0.250 (0.0295±0.010) 11.50±0.250 (0.453±0.010) Broadcom -4- ACPL-W611/ACPL-P611 Data Sheet ACPL-P611 Stretched SO-6 Package * 4.580 ± 0.254 (0.180 ± 0.010) 1.27 (0.050) BSG 6 5 4 RoHS-COMPLIANCE INDICATOR 2 10.7 (0.421) DATE CODE YYWW EEE 1 LAND PATTERN RECOMMENDATION PART NUMBER NNNN Lot ID 3 0.381 ± 0.127 (0.015 ± 0.005) 2.16 (0.085) 7.62 (0.300) 1.590 ± 0.127 (0.063 ± 0.005) 6.81 (0.268) 0.20 ± 0.10 (0.008 ± 0.004) 7° 7.00° 0.450 (0.018) 45.00° 0.20 (0.008) A 1 ± 0.250 (0.040 ± 0.010) 7.00° 3.180 ± 0.127 (0.125 ± 0.005) 7° DETAIL A * Total package width (inclusive of mold flash) 4.834 ± 0.254 mm DIMENSIONS IN MILLIMETERS AND (INCHES). COPLANARITY = 0.10 mm (0.004 INCHES). 9.7 ± 0.250 (0.382 ± 0.010) Broadcom -5- ACPL-W611/ACPL-P611 Data Sheet Reflow Soldering Profile The recommended reflow soldering conditions are per JEDEC Standard J-STD-020 (latest revision). Non-halide flux should be used. Regulatory Information The ACPL-W611 and ACPL-P611 is approved/pending approval by the following organizations: IEC/EN/DIN EN 60747-5-5 (Option 060 only) Approval UL Approval under UL 1577, component recognition program up to VISO = 5000 VRMS. File E55361. CSA Approval under CSA Component Acceptance Notice #5, File CA 88324. Insulation and Safety-Related Specifications Parameter Symbol ACPL-P611 ACPL-W611 Units Minimum External Air Gap (External Clearance) L(101) 7 8 mm Measured from input terminals to output terminals, shortest distance through air. Minimum External Tracking (External Creepage) L(102) 8 8 mm Measured from input terminals to output terminals, shortest distance path along body. 0.08 0.08 mm Through insulation distance conductor to conductor, usually the straight line distance thickness between the emitter and detector. 175 175 V IIIa IIIa Minimum Internal Plastic Gap (Internal Clearance) Tracking Resistance (Comparative Tracking Index) Isolation Group CTI Broadcom -6- Conditions DIN IEC 112/VDE 0303 Part 1 Material Group (DIN VDE 0110, 1/89, Table 1) ACPL-W611/ACPL-P611 Data Sheet IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (option x60, See Note a) Description Symbol ACPL-P611 ACPL-W611 for rated mains voltage ≤ 150 Vrms I - IV I - IV for rated mains voltage ≤ 300 Vrms I - IV I - IV for rated mains voltage ≤ 600 Vrms I - III I - III Units Installation classification per DIN VDE 0110/39, Table 1 I - III for rated mains voltage ≤ 1000 Vrms Climatic Classification 55/100/21 55/100/21 2 2 VIORM 891 1140 Vpeak Input to Output Test Voltage, Method ba VIORM × 1.875 = VPR, 100% Production Test with tm=1s, Partial discharge < 5 pC VPR 1671 2137 Vpeak Input to Output Test Voltage, Method aa VIORM × 1.6 = VPR, Type and Sample Test, tm=10s, Partial discharge < 5 pC VPR 1426 1824 Vpeak VIOTM 6000 8000 Vpeak TS 175 175 °C Input Currentb IS, INPUT 230 230 mA Output Powerb PS, OUTPUT 600 600 mW RS >109 > 109  Pollution Degree (DIN VDE 0110/39) Maximum Working Insulation Voltage Highest Allowable Overvoltage (Transient Overvoltage tini = 60s) Safety-limiting values - maximum values allowed in the event of a failure. Case Temperature Insulation Resistance at TS, VIO = 500V a. Refer to the optocoupler section of the Isolation and Control Components Designer’s Catalog, under Product Safety Regulations section, (IEC/EN/DIN EN 60747-5-2) for a detailed description of Method a and Method b partial discharge test profiles. b. Refer to Figure 1 for dependence of PS and IS on ambient temperature. NOTE These optocouplers are suitable for "safe electrical isolation" only within the safety limit data. Maintenance of the safety data shall be ensured by means of protective circuits. POWER OUTPUT – PS (mW), INPUT CURRENT – IS (mA) Figure 1 Power Output vs. Case Temperature 700 PS (mW) IS (mA) 600 500 400 300 200 100 0 0 25 50 75 100 125 150 175 200 TS – CASE TEMPERATURE – °C Broadcom -7- ACPL-W611/ACPL-P611 Data Sheet Absolute Maximum Ratings Parameter Symbol Min. Max. Units Storage Temperature TS –55 125 °C Operating Temperature TA –40 100 °C Average Input Current IF(AVG) — 20 mA Reverse Input Voltage VR — 5 V Input Power Dissipation PI — 45 mW VCC — 7 V Output Collector Current IO — 50 mA Output Collector Voltage VO — 7 V Output Collector Power Dissipation PO — 85 mW Lead Solder Temperature TLS — Supply Voltage (1 Minute Maximum) Solder Reflow Temperature Profile a. Note a 260°C for 10s, 1.6 mm below seating plane See Package Outline Drawings Peaking circuits may produce transient input currents up to 50 mA, 50-ns maximum pulse width, provided average current does not exceed 20 mA. Recommended Operating Conditions Parameter Symbol Min. Max. Units Input Current, Low Level IFL 0 250 μA Input Current, High Level IFH 5 15 mA Power Supply Voltage VCC 4.5 5.5 V Operating Temperature TA –40 100 °C Fan Out (at RL = 1 k) N — 5 TTL Loads Output Pull-up Resistor RL 330 4k  Broadcom -8- ACPL-W611/ACPL-P611 Data Sheet Electrical Specifications (DC) Over recommended operating conditions unless otherwise specified. All typicals at VCC = 5V, TA = 25°C. Parameter Symbol Min. Typ. Max. Units High Level Output Current IOH — 5.5 100 μA VCC = 5.5V, VO = 5.5V, IF = 250 μA 2 Input Threshold Current ITH — 2.0 5.0 mA VCC = 5.5V, VO = 0.6V, IOL > 13 mA 14 Low Level Output Voltage VOL — 0.35 0.6 V VCC = 5.5V, IF = 5 mA, IOL(Sinking) = 13 mA High Level Supply Current ICCH — 4 7.5 mA VCC = 5.5V, IF = 0 mA, Low Level Supply Current ICCL — 6 10.5 mA VCC = 5.5V, IF = 10 mA, Input Forward Voltage VF 1.4 1.5 1.75 V TA = 25°C, IF = 10 mA 1.3 — 1.8 Input Reverse Breakdown Voltage BVR 5 — — V IR = 10 μA Input Capacitance CIN — 60 — pF f = 1 MHz, VF = 0V VF/TA — –1.6 — Input Diode Temperature Test Conditions mV/°C IF = 10 mA Figure Note 3, 5, 6, 14 4 13 Switching Specifications (AC) Over recommended operating conditions TA = –40°C to 100°C, VCC = 5V, IF = 7.5 mA unless otherwise specified. All typicals at VCC = 5V, TA = 25 °C. Parameter Symbol Min. Typ. Max. Units Propagation Delay Time to High Output Level tPLH 20 48 75 ns — — 100 Propagation Delay Time to Low Output Level tPHL 25 50 75 — — 100 |tPHL – tPLH| — 3.5 35 ns tPSK — — 40 ns Output Rise Time (10%–90%) tR — 24 — ns Output Fall Time (10%–90%) tF — 10 — ns Output High Level Common Mode Transient Immunity |CMH| 10 15 — kV/μs VCC = 5V, IF = 0 mA, VO(MIN) = 2V, RL = 350, TA = 25°C, VCM = 1000V Output Low Level Common Mode Transient Immunity |CML| 10 15 — kV/μs VCC = 5V, IF = 7.5 mA, VO(MAX) = 0.8V, RL = 350, TA = 25°C, VCM = 1000V Pulse Width Distortion Propagation Delay Skew Test Conditions Figure Note TA = 25°C, RL = 350, CL = 15 pF a RL = 350, CL = 15 pF ns TA = 25°C, RL = 350, CL = 15 pF b RL = 350, CL = 15 pF RL = 350, CL = 15 pF c c d , 8, 10 e f, g a. The tPLH propagation delay is measured from 3.75 mA point on the falling edge of the input pulse to the 1.5-V point on the rising edge of the output pulse. b. The tPHL propagation delay is measured from 3.75 mA point on the rising edge of the input pulse to the 1.5-V point on the falling edge of the output pulse. c. See the application section, "Propagation Delay, Pulse-Width Distortion and Propagation Delay Skew," for more information. d. tPSK is equal to the worst case differ­ence in tPHL and/or tPLH that will be seen between units at any given temperature within the worst case operating condition range. e. CMH is the maximum tolerable rate of rise of the common mode voltage to assure that the output will remain in a high logic state (that is, VOUT > 2.0V). f. CML is the maximum tolerable rate of fall of the common mode voltage to assure that the output will remain in a low logic state (that is, VOUT > 0.8V). g. For sinusoidal voltages, (|dVCM|/dt)max = fCMVCM(p-p). Broadcom -9- ACPL-W611/ACPL-P611 Data Sheet Package Characteristics All typicals at TA = 25°C. Parameter Input-Output Insulation Symbol Device Min. Typ. Max. Units VISO ACPL-P611 3750 — — Vrms ACPL-W611 5000 Test Conditions RH < 50% for 1 min., TA = 25°C Figure Note a b c , , Input-Output Resistance RI-O — 1012 —  VI-O = 500V a Input-Output Capacitance CI-O — 0.6 — pF f = 1 MHz, TA = 25°C a a. The device considered a two terminal device: pins 1, 2, and 3 shorted together, and pins 4, 5, and 6 shorted together. b. In accordance with UL 1577, for VISO = 3750 Vrms, each optocoupler is proof-tested by applying an insulation test voltage ≥ 4500 VRMS for 1 second (leakage detection current limit, II-O ≤ 5 μA). For VISO 5000 Vrms, each optocoupler is proof-tested by applying an insulation test voltage ≥ 6000 VRMS for 1 second (leakage detection current limit, II-O ≤ 5 μA). c. ACPL- P611 (non -020E, -520E option) is UL Recognized 3750 Vrms. The -020E and -520E option is Recognized 5000 Vrms. Broadcom - 10 - ACPL-W611/ACPL-P611 Data Sheet Figure 2 High Level Output Current vs. Temperature Figure 3 Low Level Output Voltage vs. Temperature 0.5 VCC = 5.5V VO = 5.5V IF = 250A VOL – LOW LEVEL OUTPUT VOLTAGE – V IOH – HIGH LEVEL OUTPUT CURRENT – A 15 10 5 0 -60 -40 -20 0 20 60 40 80 VCC = 5.5V IF = 5.0 mA 0.4 IO = 12.8 mA IO = 6.4 mA 0.2 IO = 9.6 mA 0.1 -60 100 IO = 16 mA 0.3 -40 -20 0 20 40 Figure 4 Input Diode Forward Characteristic Figure 5 Output Voltage vs. Forward Input Current 6 100 VCC = 5V TA = 25°C TA = 25°C 10 IF VO – OUTPUT VOLTAGE – V IF – FORWARD CURRENT – mA 5 + VF – 1.0 0.1 0.01 4 RL = 350 : 3 RL = 1 K: 2 RL = 4 K: 1 0 0.001 1.10 1.20 1.30 1.40 1.50 1.60 Figure 6 Low Level Output Current vs. Temperature 80 VCC = 5.0 V VOL = 0.6 V 60 IF = 10 mA, 15 mA 40 IF = 5.0 mA 20 -40 -20 0 20 40 60 0 1 2 3 4 5 IF – FORWARD INPUT CURRENT – mA VF – FORWARD VOLTAGE – VOLTS IOL – LOW LEVEL OUTPUT CURRENT – mA 100 TA – TEMPERATURE – °C TA – TEMPERATURE – °C 0 -60 80 60 80 100 TA – TEMPERATURE – °C Broadcom - 11 - 6 ACPL-W611/ACPL-P611 Data Sheet Figure 7 Test Circuit for tPHL and tPLH PULSE GEN. ZO = 50 : tf = tr = 5 ns +5 V IF VCC 6 1 RL 0.1μF BYPASS OUTPUT VO MONITORING NODE 5 *CL INPUT MONITORING NODE 3 GND 4 RM *CL IS APPROXIMATELY 15 pF WHICH INCLUDES PROBE AND STRAY WIRING CAPACITANCE. IF = 7.5 mA INPUT IF IF = 3.75 mA tPHL tPLH OUTPUT VO 1.5 V Figure 8 Propagation Delay vs. Temperature 105 VCC = 5.0 V IF = 7.5 mA VCC = 5.0 V TA = 25C tPLH , RL = 4 K: 80 60 tPHL , RL = 350 : 1 K: 4 K: tPLH , RL = 1 K: 40 20 0 -60 tPLH , RL = 4 K: 90 tP – PROPAGATION DELAY – ns tP – PROPAGATION DELAY – ns 100 Figure 9 Propagation Delay vs. Pulse Input Current tPLH , RL = 350 : 75 tPLH , RL = 350 : 60 tPLH , RL = 1 K: 45 tPHL , RL = 350 : 1 K: 4 K: 30 -40 -20 0 20 40 60 80 5 100 7 9 11 13 IF – PULSE INPUT CURRENT – mA TA – TEMPERATURE – °C Broadcom - 12 - 15 ACPL-W611/ACPL-P611 Data Sheet Figure 10 Pulse Width Distortion vs. Temperature Figure 11 Rise and Fall Time vs. Temperature 30 VCC = 5.0 V IF = 7.5 mA 20 RL = 350 k: 10 tRISE tFALL VCC = 5.0 V IF = 7.5 mA RL = 4 k: tr, tf – RISE, FALL TIME – ns PWD – PULSE WIDTH DISTORTION – ns 40 0 RL = 4 k: 300 290 60 RL = 1 k: 40 RL = 350 : 20 RL = 1 k: -10 -60 -20 -40 20 0 40 80 60 0 -60 100 RL = 350 :, 1 k:, 4 k: -40 Figure 12 Test Circuit for Common Mode Transient Immunity and Typical Waveforms IF +5 V B VCC 6 1 A 5 VFF 3 GND 0.1 μF BYPASS 350 : OUTPUT VO MONITORING NODE 4 _ PULSE GENERATOR ZO = 50 : VCM (PEAK) VCM 0V 5V SWITCH AT A: IF = 0 mA VO CMH VO (MIN.) SWITCH AT B: IF = 7.5 mA VO (MAX.) VO 0.5 V 0 20 40 TA – TEMPERATURE – °C TA – TEMPERATURE – °C + -20 CML Broadcom - 13 - 60 80 100 ACPL-W611/ACPL-P611 Data Sheet Figure 13 Temperature Coefficient for Forward Voltage vs. Input Current Figure 14 Input Threshold Current vs. Temperature 6 ITH – INPUT THRESHOLD CURRENT – mA dVF/dT – FORWARD VOLTAGE TEMPERATURE COEFFICIENT – mV/°C -2.4 -2.2 -2.0 -1.8 -1.6 -1.4 -1.2 0.1 1 10 5 4 3 RL = 350 : RL = 1 k: 2 1 0 -60 100 VCC = 5.0 V VO = 0.6 V RL = 4 k: -40 -20 0 20 40 TA – TEMPERATURE – °C IF – PULSE INPUT CURRENT – mA Broadcom - 14 - 60 80 100 For product information and a complete list of distributors, please go to our web site: www.broadcom.com. Broadcom, the pulse logo, Connecting everything, Avago Technologies, Avago, and the A logo are among the trademarks of Broadcom and/or its affiliates in the United States, certain other countries and/or the EU. Copyright © 2011–2017 by Broadcom. All Rights Reserved. The term "Broadcom" refers to Broadcom Limited and/or its subsidiaries. For more information, please visit www.broadcom.com. Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability, function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does not assume any liability arising out of the application or use of this information, nor the application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others. AV02-0942EN – May 11, 2017
