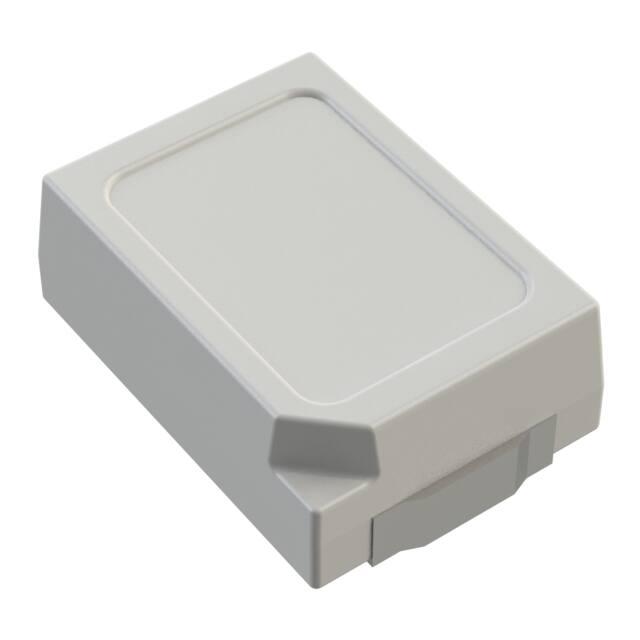

ASMY-CWG0-NX7D2

Data Sheet ASMY-CWG0-Nxxx2 Low Power 2216 DFN2 Surface Mount LED Overview Features The Broadcom® ASMY-CWG0 surface mount LEDs use InGaN chip technology with superior package design to enable them to produce higher light output with better intensity performance. They are able to dissipate the heat more efficiently resulting in better performance with higher reliability.  To facilitate easy pick and place assembly, the LEDs are packed in tape and reel. Every reel is shipped in single intensity and color bin, to provide close uniformity.    High reliability package with enhanced silicone resin encapsulation Available in 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K 6200K, 6500K, and 8000K CCT only Wide viewing angle at 120° Low package profile and large emitting area for better uniformity in linear lighting Applications    Indicators Electronic signs and displays – Channel lettering – Contour lighting – Indoor variable message sign Office automations, home appliances, industrial equipment – Front panel backlighting – Push button backlighting – Display backlighting – Keypad backlighting – Symbol backlighting – Scanner lighting CAUTION! This LED is ESD sensitive. Please observe appropriate precautions during handling and processing. Refer to application note AN-1142 for additional detail. Broadcom ASMY-CWG0-Nxxx2-DS April 29, 2020 ASMY-CWG0-Nxxx2 Data Sheet Low Power 2216 DFN2 Surface Mount LED Figure 1: Package Drawing NOTE: 1. 2. 3. 4. 5. All dimensions in millimeters (mm). Tolerance is ±0.20mm unless otherwise specified. Encapsulation = silicone. Terminal finish = silver plating. Dimensions in brackets are for reference only. Device Selection Guide (TJ = 25°C, IF = 20mA) Part Number Correlated Color Temperature, CCT (Kelvin) Luminous Intensity, IV (mcd) a, b Luminous Flux, ΦV (lm) c Typ. Min. Typ. Max. Typ. ASMY-CWG0-NX7A2 8000 2240 2500 4500 7.8 ASMY-CWG0-NX7B2 6500 2240 2500 4500 7.8 ASMY-CWG0-NX7C2 5700 2240 2500 4500 7.8 ASMY-CWG0-NX7D2 5000 2240 2600 4500 8.1 ASMY-CWG0-NX7E2 4500 2240 2600 4500 8.1 ASMY-CWG0-NX7F2 4000 2240 2600 4500 8.1 ASMY-CWG0-NX7G2 3500 2240 2600 4500 8.1 ASMY-CWG0-NX7H2 3000 2240 2600 4500 8.1 ASMY-CWG0-NX7J2 2700 2240 2500 4500 7.8 a. The luminous intensity, IV is measured at the mechanical axis of the package and it is tested with a single current pulse condition. The actual peak of the spatial radiation pattern may not be aligned with the axis. b. Tolerance is ±12% c. For reference only. Broadcom ASMY-CWG0-Nxxx2-DS 2 ASMY-CWG0-Nxxx2 Data Sheet Low Power 2216 DFN2 Surface Mount LED Absolute Maximum Ratings Parameters DC Forward Current a Peak Forward Current b Power Dissipation Reverse Voltage ASMY-CWG0-Nxxx2 Unit 25 mA 100 mA 90 mW Not designed for reverse bias operation LED Junction Temperature 110 °C Operating Temperature Range -40 to +100 °C Storage Temperature Range -40 to +100 °C a. Derate linearly as shown in Figure 16 and Figure 17. b. Duty factor = 10%, frequency = 1kHz. Optical and Electrical Characteristics (TJ = 25°C, IF = 20mA) Parameters Viewing Angle, 2θ½ Min. Typ. Max. Unit − 120 − ° a Forward Voltage, VF b 2.60 2.83 3.60 V Reverse Current, IR at VR = 5V c − − 10 μA Color Rendering Index, CRI 80 − − − − 80 − °C/W Thermal Resistance, RθJ-S a. d θ½ is the off-axis angle where the luminous intensity is half of the peak intensity. b. Forward voltage tolerance is ±0.1V. c. Indicates product final test condition. Long term reverse bias is not recommended. d. Thermal resistance from LED junction to solder point. Broadcom ASMY-CWG0-Nxxx2-DS 3 ASMY-CWG0-Nxxx2 Data Sheet Low Power 2216 DFN2 Surface Mount LED Part Numbering System A S M Y – C W G 0 – N x2 x3 x4 2 Code Description Option x1 Minimum Intensity Bin X x2 Number of sub-bins 7 3 sub-bins, starting from bin X2 A 8000K B 6500K C 5700K D 5000K E 4500K x3 Color Correlated Temperature F 4000K G 3500K H 3000K J 2700K Part Number Example ASMY-CWG0-NX7D2 x1 : X ˗̶ Minimum Intensity bin X x2 : 7 ˗̶ Three intensity sub-bins, starting from sub-bin X2 x3 : D ˗̶ CCT 5000K with bin ID 4A1, 4A2, 4B1, 4B2, 4C1, 4C2, 4D1, 4D2 Bin Information Flux Bin Limits (CAT) Bin ID Forward Voltage Bin Limits (VF) Luminous Intensity, IV (mcd) Min. Max. X2 2240 2850 Y1 2850 3550 Y2 3550 4500 Tolerance = ±12% Bin ID Forward Voltage, VF (V) Min. Max. F04 2.6 2.8 F05 2.8 3.0 F06 3.0 3.2 F07 3.2 3.4 F08 3.4 3.6 Tolerance = ±0.1V Broadcom ASMY-CWG0-Nxxx2-DS 4 ASMY-CWG0-Nxxx2 Data Sheet Low Power 2216 DFN2 Surface Mount LED Example of bin information on reel and packaging label: CAT : X2 ˗̶ Intensity bin X2 BIN : 4B1 ˗̶ Color bin 4B1 VF : F06 ˗̶ VF bin F06 Color Bin Limits (BIN) CCT Bin ID 1A1 1A2 1B1 1B2 8000K 1C1 1C2 1D1 1D2 Broadcom Chromaticity Coordinates x y CCT Bin ID Chromaticity Coordinates x y CCT Bin ID Chromaticity Coordinates x y 0.3218 0.3298 0.3293 0.3364 0.3294 0.3306 0.3222 0.3243 0.3058 0.3161 0.3137 0.3238 0.3145 0.3187 0.3068 0.3113 0.3015 0.3048 0.3209 0.3214 0.3352 0.3060 0.3131 0.3290 0.3293 0.3423 0.3137 0.3238 0.3293 0.3364 0.2935 0.3015 0.2997 0.3088 0.3009 0.3042 0.2950 0.2970 0.2935 0.2920 0.2984 0.3133 2A1 2A2 3A1 3A2 0.2997 0.3088 0.3058 0.3161 0.3218 0.3298 0.2920 0.3060 0.3038 0.3256 0.3210 0.3407 0.2908 0.3098 0.3123 0.3341 0.3292 0.3481 0.2973 0.3177 0.3131 0.3290 0.3293 0.3423 0.2984 0.3133 0.3048 0.3209 0.3214 0.3352 0.2908 0.3098 0.3028 0.3304 0.3206 0.3461 0.2973 0.3177 0.3117 0.3393 0.3292 0.3539 0.2962 0.3220 0.3123 0.3341 0.3292 0.3481 0.2895 0.3135 0.3038 0.3256 0.3210 0.3407 0.2984 0.3133 0.2973 0.3177 0.3038 0.3256 2B1 2B2 6500K 2C1 0.3123 0.3341 0.3209 0.3426 0.3213 0.3371 3B1 3B2 5700K 3C1 0.3292 0.3481 0.3374 0.3554 0.3371 0.3493 0.3048 0.3207 0.3131 0.3290 0.3293 0.3423 0.2973 0.3177 0.3117 0.3393 0.3292 0.3481 0.2962 0.3220 0.3205 0.3481 0.3374 0.3554 0.3028 0.3304 0.3209 0.3426 0.3376 0.3616 0.3038 0.3256 0.3123 0.3341 0.3292 0.3539 0.3009 0.3042 0.3137 0.3238 0.3293 0.3364 0.2997 0.3088 0.3217 0.3316 0.3369 0.3431 0.3058 0.3160 0.3221 0.3261 0.3366 0.3369 0.3068 0.3113 0.3145 0.3187 0.3294 0.3306 0.2997 0.3088 0.3131 0.3290 0.3293 0.3423 0.2984 0.3133 0.3213 0.3371 0.3371 0.3493 0.3048 0.3207 0.3217 0.3316 0.3369 0.3431 0.3058 0.3160 0.3137 0.3238 0.3293 0.3364 2C2 2D1 2D2 3C2 3D1 3D2 ASMY-CWG0-Nxxx2-DS 5 ASMY-CWG0-Nxxx2 Data Sheet CCT Bin ID 4A1 4A2 4B1 4B2 5000K 4C1 4C2 4D1 4D2 Broadcom Low Power 2216 DFN2 Surface Mount LED Chromaticity Coordinates x y CCT Bin ID Chromaticity Coordinates x y CCT Bin ID Chromaticity Coordinates x y 0.3369 0.3431 0.3521 0.3533 0.3670 0.3578 0.3446 0.3493 0.3604 0.3592 0.3686 0.3649 0.3441 0.3428 0.3591 0.3522 0.3744 0.3685 0.3366 0.3369 0.3512 0.3465 0.3726 0.3612 0.3371 0.3493 0.3530 0.3601 0.3686 0.3649 0.3452 0.3558 0.3617 0.3663 0.3702 0.3722 0.3446 0.3493 0.3604 0.3592 0.3763 0.3760 0.3369 0.3431 0.3521 0.3533 0.3744 0.3685 0.3374 0.3554 0.3539 0.3668 0.3744 0.3685 0.3458 0.3623 0.3629 0.3734 0.3763 0.3760 0.3452 0.3558 0.3617 0.3663 0.3825 0.3798 5A1 5A2 5B1 6A1 6A2 6A3 0.3371 0.3493 0.3530 0.3601 0.3804 0.3721 0.3374 0.3554 0.3548 0.3736 0.3726 0.3612 0.3458 0.3623 0.3642 0.3805 0.3744 0.3685 0.3464 0.3688 0.3629 0.3734 0.3804 0.3721 0.3376 0.3616 0.3539 0.3668 0.3783 0.3646 0.3542 0.3692 0.3629 0.3734 0.3702 0.3722 0.3533 0.3623 0.3720 0.3800 0.3719 0.3797 0.3452 0.3558 0.3703 0.3726 0.3782 0.3837 0.3458 0.3623 0.3617 0.3663 0.3763 0.3760 0.3458 0.3623 0.3642 0.3805 0.3719 0.3797 0.3542 0.3692 0.3736 0.3874 0.3736 0.3874 0.3551 0.3760 0.3720 0.3800 0.3802 0.3916 5B2 4500K 5C1 5C2 6A4 4000K 6B1 6B2 0.3464 0.3688 0.3629 0.3734 0.3782 0.3837 0.3446 0.3493 0.3604 0.3592 0.3782 0.3837 0.3524 0.3555 0.3687 0.3652 0.3802 0.3916 0.3515 0.3487 0.3670 0.3578 0.3869 0.3958 0.3441 0.3428 0.3591 0.3522 0.3847 0.3877 0.3452 0.3558 0.3617 0.3663 0.3763 0.3760 0.3533 0.3623 0.3703 0.3726 0.3782 0.3837 0.3524 0.3555 0.3687 0.3652 0.3847 0.3877 0.3446 0.3493 0.3604 0.3592 0.3825 0.3798 5D1 5D2 6B3 6B4 ASMY-CWG0-Nxxx2-DS 6 ASMY-CWG0-Nxxx2 Data Sheet CCT Bin ID 6C1 6C2 6C3 6C4 4000K 6D1 6D2 6D3 6D4 Broadcom Low Power 2216 DFN2 Surface Mount LED Chromaticity Coordinates x y CCT Bin ID Chromaticity Coordinates x y CCT Bin ID Chromaticity Coordinates x y 0.3825 0.3798 0.3889 0.3690 0.4080 0.3916 0.3847 0.3877 0.3915 0.3768 0.4113 0.4001 0.3912 0.3917 0.3981 0.3800 0.4186 0.4037 0.3887 0.3836 0.3953 0.3720 0.4150 0.3950 0.3847 0.3877 0.3915 0.3768 0.4113 0.4001 0.3869 0.3958 0.3941 0.3848 0.4146 0.4089 0.3937 0.4001 0.4010 0.3882 0.4222 0.4127 0.3912 0.3917 0.3981 0.3800 0.4186 0.4037 0.3912 0.3917 0.3981 0.3800 0.4186 0.4037 0.3937 0.4001 0.4010 0.3882 0.4222 0.4127 0.4006 0.4044 0.4080 0.3916 0.4299 0.4165 7A1 7A2 7A3 7C1 7C2 7C3 0.3978 0.3958 0.4048 0.3832 0.4259 0.4073 0.3887 0.3836 0.3953 0.3720 0.4150 0.3950 0.3912 0.3917 0.3981 0.3800 0.4186 0.4037 0.3978 0.3958 0.4048 0.3832 0.4259 0.4073 0.3950 0.3875 0.4017 0.3751 0.4221 0.3984 0.3783 0.3646 0.3941 0.3848 0.4017 0.3751 0.3804 0.3721 0.3968 0.3930 0.4048 0.3832 0.3863 0.3758 0.4040 0.3966 0.4116 0.3865 0.3840 0.3681 0.4010 0.3882 0.4082 0.3782 0.3804 0.3721 0.3968 0.3930 0.4048 0.3832 0.3825 0.3798 0.3996 0.4015 0.4080 0.3916 0.3887 0.3836 0.4071 0.4052 0.4150 0.3950 7A4 3500K 7B1 7B2 7C4 3500K 7D1 7D2 0.3863 0.3758 0.4040 0.3966 0.4116 0.3865 0.3863 0.3758 0.4040 0.3966 0.4116 0.3865 0.3887 0.3836 0.4071 0.4052 0.4150 0.3950 0.3950 0.3875 0.4146 0.4089 0.4221 0.3984 0.3924 0.3794 0.4113 0.4001 0.4183 0.3898 0.3840 0.3681 0.4010 0.3882 0.4082 0.3782 0.3863 0.3758 0.4040 0.3966 0.4116 0.3865 0.3924 0.3794 0.4113 0.4001 0.4183 0.3898 0.3898 0.3716 0.4080 0.3916 0.4147 0.3814 7B3 7B4 7D3 7D4 ASMY-CWG0-Nxxx2-DS 7 ASMY-CWG0-Nxxx2 Data Sheet CCT Bin ID 8A1 8A2 8A3 8A4 3000K 8B1 8B2 8B3 8B4 Broadcom Low Power 2216 DFN2 Surface Mount LED Chromaticity Coordinates x y CCT Bin ID Chromaticity Coordinates x y CCT Bin ID Chromaticity Coordinates x y 0.4147 0.3814 0.4342 0.4028 0.4373 0.3893 0.4183 0.3898 0.4385 0.4119 0.4418 0.3981 0.4242 0.3919 0.4449 0.4141 0.4475 0.3994 0.4203 0.3833 0.4403 0.4049 0.4428 0.3906 0.4183 0.3898 0.4385 0.4119 0.4418 0.3981 0.4221 0.3984 0.4430 0.4212 0.4465 0.4071 0.4281 0.4006 0.4496 0.4236 0.4523 0.4085 0.4242 0.3919 0.4449 0.4141 0.4475 0.3994 0.4242 0.3919 0.4449 0.4141 0.4475 0.3994 0.4281 0.4006 0.4496 0.4236 0.4523 0.4085 0.4342 0.4028 0.4562 0.4260 0.4582 0.4099 8C1 8C2 8C3 9A1 9A2 9A3 0.4300 0.3939 0.4513 0.4164 0.4532 0.4008 0.4203 0.3833 0.4403 0.4049 0.4428 0.3906 0.4242 0.3919 0.4449 0.4141 0.4475 0.3994 0.4300 0.3939 0.4513 0.4164 0.4532 0.4008 0.4259 0.3853 0.4465 0.4071 0.4483 0.3919 0.4221 0.3984 0.4259 0.3853 0.4465 0.4071 0.4259 0.4073 0.4300 0.3939 0.4513 0.4164 0.4322 0.4096 0.4359 0.3960 0.4573 0.4178 0.4281 0.4006 0.4316 0.3873 0.4523 0.4085 0.4259 0.4073 0.4300 0.3939 0.4513 0.4164 0.4299 0.4165 0.4342 0.4028 0.4562 0.4260 0.4364 0.4188 0.4403 0.4049 0.4624 0.4274 8C4 3000K 8D1 8D2 9A4 2700K 9B1 9B2 0.4322 0.4096 0.4359 0.3960 0.4573 0.4178 0.4322 0.4096 0.4359 0.3960 0.4573 0.4178 0.4364 0.4188 0.4403 0.4049 0.4624 0.4274 0.4430 0.4212 0.4465 0.4071 0.4687 0.4289 0.4385 0.4119 0.4418 0.3981 0.4634 0.4193 0.4281 0.4006 0.4316 0.3873 0.4523 0.4085 0.4322 0.4096 0.4359 0.3960 0.4573 0.4178 0.4385 0.4119 0.4418 0.3981 0.4634 0.4193 0.4342 0.4028 0.4373 0.3893 0.4582 0.4099 8D3 8D4 9B3 9B4 ASMY-CWG0-Nxxx2-DS 8 ASMY-CWG0-Nxxx2 Data Sheet CCT Bin ID 9C1 9C2 9C3 9C4 2700K 9D1 9D2 9D3 9D4 Low Power 2216 DFN2 Surface Mount LED Chromaticity Coordinates x y 0.4582 0.4099 0.4634 0.4193 0.4695 0.4207 0.4641 0.4112 0.4634 0.4193 0.4687 0.4289 0.4750 0.4304 0.4695 0.4207 0.4695 0.4207 0.4750 0.4304 0.4813 0.4319 0.4756 0.4221 0.4641 0.4112 0.4695 0.4207 0.4756 0.4221 0.4700 0.4126 0.4483 0.3919 0.4532 0.4008 0.4589 0.4021 0.4538 0.3931 0.4532 0.4008 0.4582 0.4099 0.4641 0.4112 0.4589 0.4021 0.4589 0.4021 0.4641 0.4112 0.4700 0.4126 0.4646 0.4034 0.4538 0.3931 0.4589 0.4021 0.4646 0.4034 0.4593 0.3944 Tolerance = ±0.01 Broadcom ASMY-CWG0-Nxxx2-DS 9 ASMY-CWG0-Nxxx2 Data Sheet Low Power 2216 DFN2 Surface Mount LED Figure 2: Chromaticity Diagram (4500K-8000K) 0.40 4500K 0.39 5000K 0.38 5C2 5B2 0.37 4C2 5700K 4B2 0.36 3C2 4B1 4D2 3B2 3C1 4A2 4D1 2C2 3B1 3D2 4A1 2C1 3A2 3D1 6500K 0.35 0.34 y 8000K 2B2 0.33 2B1 1C2 0.32 1C1 1B2 2D2 5A2 5D2 5D1 5A1 3A1 2D1 2A1 1D2 1B1 0.31 2A2 4C1 5B1 5C1 1D1 1A2 1A1 0.30 0.29 0.28 0.27 0.28 0.29 0.3 0.31 0.32 0.33 0.34 0.35 0.36 0.37 0.38 0.39 x Broadcom ASMY-CWG0-Nxxx2-DS 10 ASMY-CWG0-Nxxx2 Data Sheet Low Power 2216 DFN2 Surface Mount LED Figure 3: Chromaticity Diagram (2700K-4000K) 0.45 2700K 0.44 3000K 0.43 3500K 0.42 0.41 4000K y 0.40 7B2 6C3 6C2 0.39 6B3 6B2 0.38 6B4 6B1 6A2 0.37 6A1 0.36 0.35 0.35 0.36 0.37 6D2 6A3 6D1 7B1 6C4 6C1 7A2 6D3 6D4 7A1 7A3 7A4 7D3 7D2 7D4 7D1 8A2 8A1 8A4 8A3 8D1 8D4 9A1 9B4 9B3 9C2 9C1 9C4 9D2 9C3 9D3 9D4 9A4 9D1 6A4 0.38 0.39 0.40 0.41 0.42 x Figure 4: Spectral Power Distribution 0.43 0.44 0.45 0.46 0.47 0.48 0.49 Figure 5: Forward Current vs. Forward Voltage 1.0 120 0.9 3000K 0.7 FORWARD CURRENT - mA 0.8 RELATIVE INTENSITY 9A2 9A3 8D3 8D2 9B1 8C4 8C1 8B4 8B1 7C4 7C1 7B4 7C3 7C2 7B3 8B2 8C3 8C2 8B3 9B2 4500K 0.6 0.5 6500K 0.4 0.3 0.2 100 80 60 40 20 0.1 0 0.0 380 Broadcom 430 480 530 580 630 WAVELENGTH - nm 680 730 780 0.0 1.0 2.0 3.0 FORWARD VOLTAGE - V 4.0 5.0 ASMY-CWG0-Nxxx2-DS 11 ASMY-CWG0-Nxxx2 Data Sheet Low Power 2216 DFN2 Surface Mount LED Figure 6: Relative Luminous Intensity vs. Mono Pulse Current Figure 7: Radiation Pattern 1.0 0.9 1.2 0.8 1.0 RELATIVE INTENSITY RELATIVE LUMINOUS INTENSITY mcd (NORMALIZED AT 20mA) 1.4 0.8 0.6 0.4 0.2 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 0.0 0 5 10 15 MONO PULSE CURRENT- mA 20 25 Figure 8: Chromaticity Coordinate Shift vs. Mono Pulse Current (3000K) -90 CHROMATICITY COORDINATE SHIFT (NORMALIZED AT 20mA) CHROMATICITY COORDINATE SHIFT (NORMALIZED AT 20mA) 90 0.010 x 0.005 y 0.000 -0.005 x y 0.005 0.000 -0.005 -0.010 -0.010 0 5 10 15 20 MONO PULSE CURRENT - mA 0 25 Figure 10: Chromaticity Coordinate Shift vs. Mono Pulse Current (6500K) 5 10 15 20 MONO PULSE CURRENT - mA 25 Figure 11: Forward Voltage Shift vs. Junction Temperature 0.010 0.30 0.25 x 0.005 FORWARD VOLTAGE SHIFT - V (NORMALIZED AT 25°C) CHROMATICITY COORDINATE SHIFT (NORMALIZED AT 20mA) -30 0 30 60 ANGULAR DISPLACEMENT - DEGREE Figure 9: Chromaticity Coordinate Shift vs. Mono Pulse Current (4500K) 0.010 y 0.000 -0.005 -0.010 0 Broadcom -60 5 10 15 20 MONO PULSE CURRENT - mA 25 0.20 0.15 0.10 0.05 0.00 -0.05 -0.10 -0.15 -50 -25 0 25 50 75 100 125 JUNCTION TEMPERATURE, TJ - °C ASMY-CWG0-Nxxx2-DS 12 ASMY-CWG0-Nxxx2 Data Sheet Low Power 2216 DFN2 Surface Mount LED Figure 12: Relative Luminous Intensity vs. Junction Temperature Figure 13: Chromaticity Coordinate Shift vs. Junction Temperature (3000K) 0.008 CHROMATICITY COORDINATE SHIFT (NORMALIZED AT 25°C) 120 RELATIVE LIGHT OUTPUT - % (NORMALIZED AT 25°C) 100 80 60 40 0.002 0.000 -0.006 -50 -25 0 25 50 75 JUNCTION TEMPERATURE, TJ - °C 100 -50 125 -25 0 25 50 75 100 125 JUNCTION TEMPERATURE, TJ - °C Figure 14: Chromaticity Coordinate Shift vs. Junction Temperature (4500K) Figure 15: Chromaticity Coordinate Shift vs. Junction Temperature (6500K) 0.015 0.008 CHROMATICITY COORDINATE SHIFT (NORMALIZED AT 25°C) 0.010 CHROMATICITY COORDINATE SHIFT (NORMALIZED AT 25°C) y 0.004 -0.004 0 x 0.006 y 0.004 0.002 0.000 -0.002 -0.004 x 0.010 y 0.005 0.000 -0.005 -0.006 -0.010 -0.008 -50 -25 0 25 50 75 JUNCTION TEMPERATURE, TJ - °C 100 -50 125 -25 0 25 50 75 100 125 JUNCTION TEMPERATURE, TJ - °C Figure 16: Maximum Forward Current vs. Ambient Temperature. Derated based on TJMAX = 110°C Figure 17: Maximum Forward Current vs. Solder Point Temperature. Derated based on TJMAX = 110°C, RθJ-S = 80°C/W 30 MAX ALLOWABLE DC CURRENT - mA 30 MAX ALLOWABLE DC CURRENT - mA x -0.002 20 25 20 RθJ-A = 280°C/W RθJ-A = 380°C/W 15 RθJ-A = 480°C/W 10 5 25 20 15 10 5 0 0 0 Broadcom 0.006 20 40 60 80 AMBIENT TEMPERATURE, TA - °C 100 120 0 20 40 60 80 100 120 SOLDER POINT TEMPERATURE, TS - °C ASMY-CWG0-Nxxx2-DS 13 ASMY-CWG0-Nxxx2 Data Sheet Low Power 2216 DFN2 Surface Mount LED Figure 18: Recommended Soldering Land Pattern MAXIMIZE CATHODE COPPER PAD AREA FOR BETTER HEAT DISSIPATION COPPER PAD SOLDER MASK NOTE: All dimensions are in millimeters (mm). Figure 19: Carrier Tape Dimensions F P0 P1 P2 D0 E1 W 3.5±0.10 4.0±0.1 4.0±0.1 2.0±0.05 1.55±0.05 1.75±0.1 8.0±0.3 T B0 K0 A0 0.23±0.05 2.3±0.1 1.0±0.1 1.75±0.1 NOTE: 1. All dimensions in millimeters (mm). Broadcom ASMY-CWG0-Nxxx2-DS 14 ASMY-CWG0-Nxxx2 Data Sheet Low Power 2216 DFN2 Surface Mount LED Figure 20: Reel Dimensions 9.0 178.5 60.0 PRODUCT LABEL USER FEED DIRECTION NOTE: All dimensions are in millimeters (mm). Precautionary Notes      Do not perform reflow soldering more than twice. Observe necessary precautions of handling moisturesensitive device as stated in the following section. Do not apply any pressure or force on the LED during reflow and after reflow when the LED is still hot. Use reflow soldering to solder the LED. Use hand soldering only for rework if unavoidable, but it must be strictly controlled to following conditions: ─ Soldering iron tip temperature = 315°C max. ─ Soldering duration = 3sec max. ─ Number of cycles = 1 only ─ Power of soldering iron = 50W max. Do not touch the LED package body with the soldering iron except for the soldering terminals, as it may cause damage to the LED. Confirm beforehand whether the functionality and performance of the LED is affected by soldering with hand soldering. Broadcom Figure 21: Recommended Lead-Free Reflow Soldering Profile 10 to 30 SEC. TEMPERATURE Soldering 217°C 200°C 255 – 260°C 3°C/SEC. MAX. 6°C/SEC. MAX. 150°C 3°C/SEC. MAX. 100 SEC. MAX. 60 – 120 SEC. TIME ASMY-CWG0-Nxxx2-DS 15 ASMY-CWG0-Nxxx2 Data Sheet Figure 22: Recommended Board Reflow Direction Low Power 2216 DFN2 Surface Mount LED Handling of Moisture-Sensitive Devices This product has a Moisture Sensitive Level 3 rating per JEDEC J-STD-020. Refer to Broadcom Application Note AN5305, Handling of Moisture Sensitive Surface Mount Devices for additional details and a review of proper handling procedures. REFLOW DIRECTION  Handling Precautions The encapsulation material of the LED is made of silicone for better product reliability. Compared to epoxy encapsulant, which is hard and brittle, silicone is softer and flexible. Observe special handling precautions during assembly of silicone encapsulated LED products. Failure to comply might lead to damage and premature failure of the LED. Refer to Broadcom Application Note AN5288, Silicone Encapsulation for LED: Advantages and Handling Precautions, for additional information.      Do not poke sharp objects into the silicone encapsulant. Sharp objects, such as tweezers or syringes, might apply excessive force or even pierce through the silicone and induce failures to the LED die or wire bond. Do not touch the silicone encapsulant. Uncontrolled force acting on the silicone encapsulant might result in excessive stress on the wire bond. Hold the LED only by the body. Do not stack assembled PCBs together. Use an appropriate rack to hold the PCBs. Surface of silicone material attracts dust and dirt easier than epoxy due to its surface tackiness. To remove foreign particles on the surface of silicone, use a cotton bud with isopropyl alcohol (IPA). During cleaning, rub the surface gently without putting too much pressure on the silicone. Ultrasonic cleaning is not recommended. For automated pick and place, Broadcom has tested a nozzle size with OD 1.5mm to work with this LED. However, due to the possibility of variations in other parameters such as pick and place machine maker/model, and other settings of the machine, verify that the selected nozzle will not cause damage to the LED. Broadcom   Before use: ─ An unopened moisture barrier bag (MBB) can be stored at
