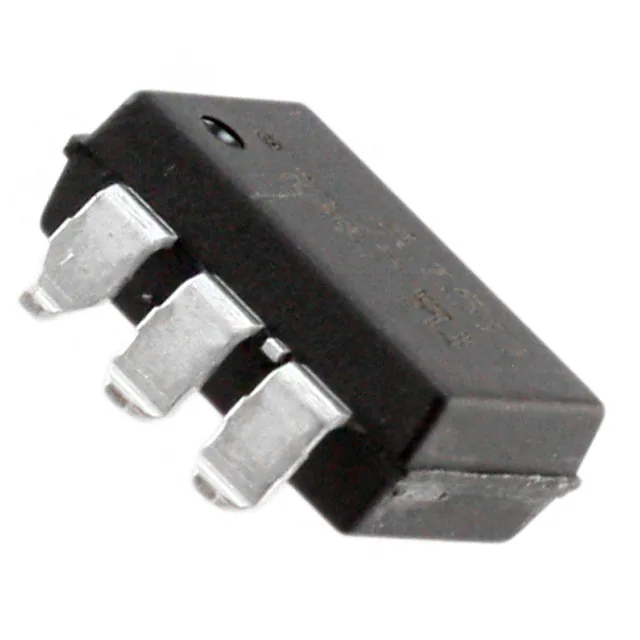

ASSR-1611-501E

ASSR-1611 High Current, 1 Form A, Solid State Relay (MOSFET) (60V/2.5A/0.1) Data Sheet Description Features The ASSR-1611 is specifically designed for high current applications, commonly found in the industrial equipments. The relay is a solid-state replacement for singlepole, normally-open, (1 Form A) electromechanical relays.  Compact Solid-State Bi-directional Signal Switch The ASSR-1611 consists of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a highvoltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs. The relay turns on (contact closes) with a minimum input current of 5mA through the input LED. The relay turns off (contact opens) with an input voltage of 0.8V or less.  2.5A or 5A Current Rating The ASSR-1611 connection A, as shown in the schematic, allows the relay to switch either ac or dc loads. The connection B, with its advantages of reduced on-resistance and higher output current, allows the relays to switch dc loads only.  Single Channel Normally-off Single-Pole-Single-Throw (SPST) Relay  60V Output Withstand Voltage  Low Input Current: CMOS Compatibility  Low On-Resistance: 20mΩ Typical for DC-only, 65mΩ Typical for AC/DC  High Speed Switching: 3.2ms (Ton), 0.1ms (Toff ) Typical  High Transient Immunity: >1kV/μs  High Input-to-Output Insulation Voltage - (Safety and Regulatory Approvals) UL recognized - 3750 VRMS and 5000 VRMS* for 1 min per UL1577 - CSA Component Acceptance The electrical and switching characteristics are specified over the temperature range of -40°C to +85°C. *5000 VRMS/1 Minute rating is for Option X21 only. (Please consult your regional Avago representatives) Functional Diagram Applications Opto-isolation 6 1 3 Turn-off Circuit 2  Industrial Controls Truth Table 5  Factory Automation LED Output  Data Acquisition Off Open  Measuring Instrument On Close  Medical System  Security System 4  EMR / Reed Relay Replacement CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD. Ordering Information ASSR-1611 is UL Recognized with 3750 VRMS and 5000 VRMS (option X21*) for 1 minute per UL1577 and is approved under CSA Components Acceptance Notice #5. Option Part Number RoHS Compliant Package Surface Mount Gullwing 300mil DIP-6 X X X X Tape & Reel -001E ASSR-1611 -301E -501E Quantity 50 units per tube X 1000 units per reel To order, choose a part number from the part number column and combine with the desired option from the option column to form an order entry. Example 1: ASSR-1611-501E to order product of 300mil DIP-6 Gull Wing Surface Mount package in Tape and Reel packaging and RoHS Compliant. x021* - 'Please consult your regional Avago representatives' Schematic ASSR-1611 Opto-isolation Opto-isolation 6 1 Turn-off Circuit 2 5 Vo Equivalent Relay Diagram 1 6 2 4 4 3 Connection A – AC/DC Opto-isolation Opto-isolation 1 6 + Turn-off Circuit 2 Vo Equivalent 5 Relay Diagram 3 4 Connection B – DC Only 2 1 4 and 6 2 5 Package Outline Drawings ASSR-1611 6-Pin DIP Package 7.36 (0.290) 7.88 (0.310) 9.40 (0.370) 9.90 (0.390) 6 5 TYPE NUMBER DATE CODE UL RECOGNITION 4 LEAD FREE A XXXX PIN ONE DOT YYWW 1 2 RU 0.20 (0.008) 0.33 (0.013) 5¡ TYP. 3 6.10 (0.240) 6.60 (0.260) 1.78 (0.070) MAX. 4.70 (0.185) MAX. (0.020) (0.040) 2.66 (0.105) MIN. 2.16 (0.085) 2.54 (0.100) 0.45 (0.018) 0.65 (0.025) 2.28 (0.090) 2.80 (0.110) DIMENSIONS IN MILLIMETERS AND (INCHES). ASSR-1611 6-Pin DIP Package with Gull Wing Surface Mount Option 300 9.65 ± 0.25 (0.380 ± 0.010) LAND PATTERN RECOMMENDATION 6.35 ± 0.25 (0.250 ± 0.010) 10.9 (0.430) 1.27 (0.050) 1.78 (0.070) MAX. 0.635 ± 0.130 (0.025 ± 0.005) 2.0 (0.080) 9.65 ± 0.25 (0.380 ± 0.010) 7.62 ± 0.25 (0.300 ± 0.010) 0.20 (0.008) 0.30 (0.013) 4.19 (0.165) MAX. 2.29 (0.090) 2.54 (0.100) TYP. NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX. 3 0.635 ± 0.25 (0.025 ± 0.010) 12¡ NOM. Solder Reflow Temperature Profile Recommended reflow condition as per JEDEC Standard, J-STD-020 (latest revision). Non-Halide Flux should be used. Regulatory Information The ASSR-1611 is approved by the following organizations: UL Approved under UL 1577, component recognition program up to VISO = 3750 VRMS and 5000 VRMS (option x21). CSA Approved under CSA Component Acceptance Notice #5. Insulation and Safety Related Specifications Parameter Symbol ASSR-1611 Units Conditions Minimum External Air Gap (Clearance) L(101) 7.1 mm Measured from input terminals to output terminals, shortest distance through air. Minimum External Tracking (Creepage) L(102) 7.4 mm Measured from input terminals to output terminals, shortest distance path along body. mm Through insulation distance conductor to conductor, usually the straight line distance thickness between the emitter and detector. V DIN IEC 112/VDE 0303 Part 1 Minimum Internal Plastic Gap (Internal Clearance) 0.08 Tracking Resistance (Comparative Tracking Index) Isolation Group (DIN VDE0109) 4 CTI 175 IIIa Material Group (DIN VDE 0109) Absolute Maximum Ratings Parameter Symbol Min. Max. Units Storage Temperature TS -55 125 °C Operating Temperature TA -40 85 °C Junction Temperature TJ 125 °C 260 °C 10 sec 25 mA Surge 50 mA Transient 1000 mA Lead Soldering Cycle Temperature Time Input Current Average IF Note Reversed Input Voltage VR 5 V Input Power Dissipation PIN 40 mW Output Power Dissipation PO 625 mW 880 mW 2.5 A 1 5 A 1 - 60 60 V 2 0 60 V Connection A Connection B Average Output Connection A Current (TA=25°C, TC ≤ 100°C) Connection B Output Voltage (TA=25°C) IO Connection A VO Connection B Solder Reflow Temperature Profile See Lead Free IR Profile Recommended Operating Conditions Parameter Symbol Min. Max. Units Input Current (ON) IF(ON) 5 20 mA Input Voltage (OFF) VF(OFF) 0 0.8 V Operating Temperature TA -40 +85 °C Note Package Characteristics Unless otherwise specified, operating temperature TA = 25°C. Parameter Sym. Input-Output Momentary Withstand Voltage VISO Input-Output Resistance RI-O 1014 Ω VI-O=500 Vdc Input-Output Capacitance CI-O 0.8 pF VI-O=0Vdc, f=1MHz 5 Min. Typ. Max. Units 3750 Conditions Note RH ≤ 50%, t=1min, TA=25°C VRMS 5000 RH ≤ 50%, t=1min, TA=25°C, option X21 3, 4 3 Electrical Specifications (DC) Over recommended operating TA = - 40°C to 85°C, IF = 5mA to 10mA, unless otherwise specified. Parameter Sym. Min. Output Withstand Voltage | VO(OFF)| 60 Typ. Max. Units Conditions V VF=0.8V, IO=250μA, TA=25°C 3 V VF=0.8V, IO=250μA 3 0.1 μA VF=0.8V, VO=60V, TA=25°C 5 5 μA VF=0.8V, VO=55V 4 pF VF=0.8V, VO=0V, f=1MHz 6 68 55 Output Leakage Current 0.01 IO(OFF) 1400 Output Off-Capacitance C(OFF) Output Offset Voltage | V(OS)| Input Reverse Breakdown Voltage VR 5 Input Forward Voltage VF 1.1 Output Onresistance 1 μV IF=5mA, IO=0mA V IR=10μA Fig. 1.3 1.7 V IF=5mA 7, 8 Connection A R(ON) 0.065 0.1 Ω 9, 10 Connection B 0.02 0.035 Ω IF=5mA, IO=2.5A, Pulse ≤30ms, TA=25°C Note 5 11 Switching Specifications (AC) Over recommended operating TA = - 40°C to 85°C, IF = 5mA to 10mA, unless otherwise specified. Parameter Sym. Turn On Time TON Min. Typ. Max. Units Conditions Fig. 3.2 5.0 ms IF=5mA, IO=1.0A, TA=25°C 12, 13 10.0 ms IF=5mA, IO=1.0A 2.5 ms IF=10mA, IO=1.0A, TA=25°C 5.0 ms IF=10mA, IO=1.0A 0.5 ms IF=5mA, IO=1.0A, TA=25°C 1 ms IF=5mA, IO=1.0A 0.2 ms IF=10mA, IO=1.0A, TA=25°C 0.5 ms IF=10mA, IO=1.0A 7 kV/μs ΔVO=60V, RM ≥ 1MΩ, CM=1000pF, TA=25°C 6 ≥10 kV/μs VDD=5V, ΔVI-O=1000V, RL=1kΩ, CL=25pF, TA=25°C 6 1.6 Turn Off Time 0.1 TOFF 0.06 Output Transient Rejection dVO/dt 1 Input-Output Transient Rejection dVI-O/dt 1 Note 12, 14 15, 16 15, 17 Notes: 1. For derating, refer to Figure 1 and 2. 2. The voltage across the output terminals of the relay should not exceed this rated withstand voltage. Over-voltage protection circuits should be added in some applications to protect against over-voltage transients. 3. Device is considered as a two terminal device: pins 1, 2, and 3 shorted together and pins 5, 6, and 7 shorted together. 4. The Input-Output Momentary Withstand Voltage is a dielectric voltage rating that should not be interpreted as an input-output continuous voltage rating. For the continuous voltage rating refer to the IEC/EN/DIN EN 60747-5-2 Insulation Characteristics Table (if applicable), your equipment level safety specification, or Avago Application Note 1074, “Optocoupler Input-Output Endurance Voltage.” 5. During the pulsed R(ON) measurement ( IO duration ≤30ms), ambient (TA) and case temperature (TC) are equal. 6. For the transient rejection measurements, refer to Avago whitepaper, AV01-0610EN, “Solid State Relay Transient Immunity”. 6 IF= 10mA, 4-Layer 2 1.5 Safe Operating Area 1 0.5 0 20 40 60 TA-TEMPERATURE-˚C 80 100 -40 IO(OFF) - OUTPUT LEAKAGE CURRENT-A NORMALIZED OUTPUT WITHSTAND VOLTAGE Safe Operating Area 2 1.05 1 0.95 0.9 -40 -20 0 20 40 60 TA-TEMPERATURE-˚C 80 100 Figure 2. Maximum Output Current rating vs Ambient Temperature (DC Connection) 1.1 1.E-05 1.E-06 1.E-07 1.E-08 1.E-09 1.E-10 1.E-11 -20 0 20 40 60 TA-TEMPERATURE-˚C 80 -40 100 Figure 3. Normalized Typical Output Withstand Voltage vs Ambient Termperature -15 10 35 TA-TEMPERATURE-˚C 60 85 Figure 4. Typical Output Leakage vs Ambient Temperature 50 1500 COUT - OUTPUT CAPACITANCE - pF IO(OFF) - OUTPUT LEAKAGE CURRENT-nA 3 0 -20 Figure 1. Maximum Output Current rating vs Ambient Temperature (AC/DC Connection) 40 30 20 10 1300 1100 900 700 500 300 100 0 10 20 30 40 V0(OFF)-OUTPUT VOLTAGE - V Figure 5. Typical Output Leakage vs Output Voltage 7 4 1 0 -40 0 IF= 10mA, 4-Layer 5 IO-OUTPUT CURRENT-A IO-OUTPUT CURRENT-A 2.5 50 60 0 10 20 30 40 50 V0(OFF)-OUTPUT VOLTAGE - V Figure 6. Typical Output Capacitance vs Output Voltage 60 20 1.6 18 IF - FORWARD CURRRENT - mA VF - FORWARD VOLTAGE - V 1.7 IF = 10mA 1.5 1.4 1.3 IF = 5mA 1.2 1.1 -20 0 20 40 60 TA - TEMPERATURE - ˚C 80 TA = 25˚C 10 8 TA = 85˚C 6 2.5 2 1.5 1 0.5 0 -0.5 -1 -1.5 -2 -2.5 0.8 100 Figure 7. Typical Forward Voltage vs Temperature 1 1.2 1.4 VF - FORWARD VOLTAGE -V 1.6 1.8 Figure 8. Typical Forward Current vs Forward Voltage over Temperature 120 TA = -40˚C RON(AC) - ON-RESISTANCE - mΩ IO - OUTPUT CURRENT - A 12 2 -40 TA = 25˚C TA = 85˚C -0.3 -0.2 -0.1 0 0.1 VO - OUTPUT VOLTAGE - V 0.2 IF = 5mA and 10mA 80 60 -25 0 25 50 75 TA - TEMPERATURE - ˚C 100 125 Figure 10. Typical Ron (AC/DC Connection) vs Temperature 50 5 TON - TURN ON TIME - ms 40 IF= 5mA and 10mA 30 20 10 0 -50 100 40 -50 0.3 Figure 9. Typical Output Current vs Typical Output Voltage over Temperature RON(DC)- ON-RESISTANCE - mΩ TA = 0˚C 14 4 1 -25 0 25 50 75 TA - TEMPERATURE - ˚C Figure 11. Typical Ron (DC Connection) vs Temperature 8 TA = -40˚C 16 100 125 4 TA = 25˚C 3 2 1 0 0 5 10 15 IF (ON) - INPUT CURRENT - mA Figure 12. Typical Turn On Time vs Input Current 20 100 4 TOFF -TURN ON TIME - μs TON -TURN ON TIME - ms 5 IF = 5mA 3 2 1 0 -20 0 20 40 60 TA - TEMPERATURE - ˚C TA = 25˚C 60 40 20 IF = 10mA -40 80 80 100 Figure 13. Typical Turn On Time vs Ambient Temperature 0 0 5 10 15 IF(ON) - INPUT CURRENT - mA 20 Figure 14. Typical Turn Off Time vs Input Current TOFF -TURN ON TIME - μs 100 80 IF = 5mA 60 IF = 10mA 40 20 0 -40 -20 0 20 40 60 TA - TEMPERATURE - ˚C 80 100 Figure 15. Typical Turn Off Time vs Ambient Temperature PULSE GEN. Zo = 50Ω tf=tr=5ns VDD RL IF 1 INPUT MONITORING NODE R 200ohm 9 6 2 5 3 4 Figure 16. Switching Circuit 50% 50% ASSR-1611 C L* OUTPUT Vo MONITORING NODE (*CLIS APPROXIMATELY 25pF WHICH INCLUDES PROBE AND STRAY WIRING CAPACITANCE) OUTPUT IF P.W. = 10ms 90% OUTPU T Vo 10% tON tOFF OUTPUT Vo MONITORING NODE ASSR-1611 1 INPUT OPEN 6 5 2 VPEAK CM=1nF 4 3 RM=1Mohm + PULSE GEN Zo = 50 CM INCLUDES PROBE AND FIXTURE CAPACITANCE RM INCLUDES PROBE AND FIXTURE RESISTANCE 90% 90% VPEAK 10% 10% tR tF VO(MAX)< 0.6V dV0 = dt ( 0 . 8 ) VPEAK OR ( 0 . 8 ) VPEAK tR OVER SHOOT ON VPEAK IS TO BE 10% Figure 17. Output Transient Rejection Test Circuit 10 tF VDD = 5V IF ASSR-1611 B 1 RL = 1koh m 6 CL* A 2 5 3 4 OUTPUT Vo MONITORING NODE (*CLIS APPROXIMATELY 25pF WHICH INCLUDES PROBE AND STRAY WIRING CAPACITANCE) + V FF VI-O + PULSE GEN. Zo = 50Ω 90% 90% VI-O(PEAK) 10% 10% tR tF VO(OFF) VO(OFF) (min)> 4V SWITCH AT POSITION ‘A’: IF = 0mA VO(ON) (min)> 0.8V VO(ON) SWITCH AT POSITION ‘B’: IF = 5mA Figure 18. Input-Output Transient Rejection Test Circuit For product information and a complete list of distributors, please go to our web site: www.avagotech.com Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries. Data subject to change. Copyright © 2005-2012 Avago Technologies. All rights reserved. AV02-1181EN - March 19, 2012
