CNY17-3-000E

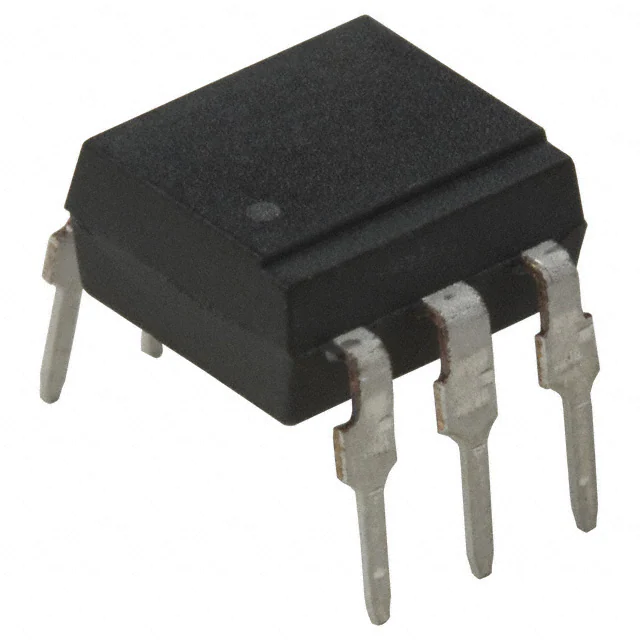

CNY17-x Phototransistor Optocoupler High Collector-Emitter Voltage Type Data Sheet Description The CNY17 contains a light emitting diode optically coupled to a photo-transistor. It is packaged in a 6-pin DIP package and available in wide-lead spacing option and lead bend SMD option. Collector-emitter voltage is above 70 V. Response time, tr, is typically 5 µs and minimum CTR is 40% at input current of 10 mA. Applications • System appliances, measuring instruments • Signal transmission between circuits of different potentials and impedances • Feedback circuit in power supply Functional Diagram PIN NO. AND INTERNAL CONNECTION DIAGRAM 6 5 4 Features • High collector-emitter voltage (VCEO = 70 V) • High input-output isolation voltage (Viso = 5000 Vrms) • Current Transfer Ratio (CTR: min. 40% at IF = 10 mA, VCE = 5 V) • Response time (tr: typ., 5 µs at VCC = 10 V, IC = 2 mA, RL = 100 Ω) • Dual-in-line package • UL approved • CSA approved • IEC/EN/DIN EN 60747-5-2 approved • Options available: – Leads with 0.4" (10.16 mm) spacing (W00) – Leads bend for surface mounting (300) – Tape and reel for SMD (500) – IEC/EN/DIN EN 60747-5-2 approvals (060) Schematic ANODE 1 IF 6 + BASE VF CATHODE 1 2 1. ANODE 2. CATHODE 3. NC – 2 IC 5 3 4. EMITTER 5. COLLECTOR 6. BASE 4 COLLECTOR EMITTER CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD. Ordering Information CNY17-x is UL Recognized with 5000 Vrms for 1 minute per UL1577 and is approved under CSA Component Acceptance Notice #5, File CA 88324.           RoHS Compliant Option Part Number -1 40%
