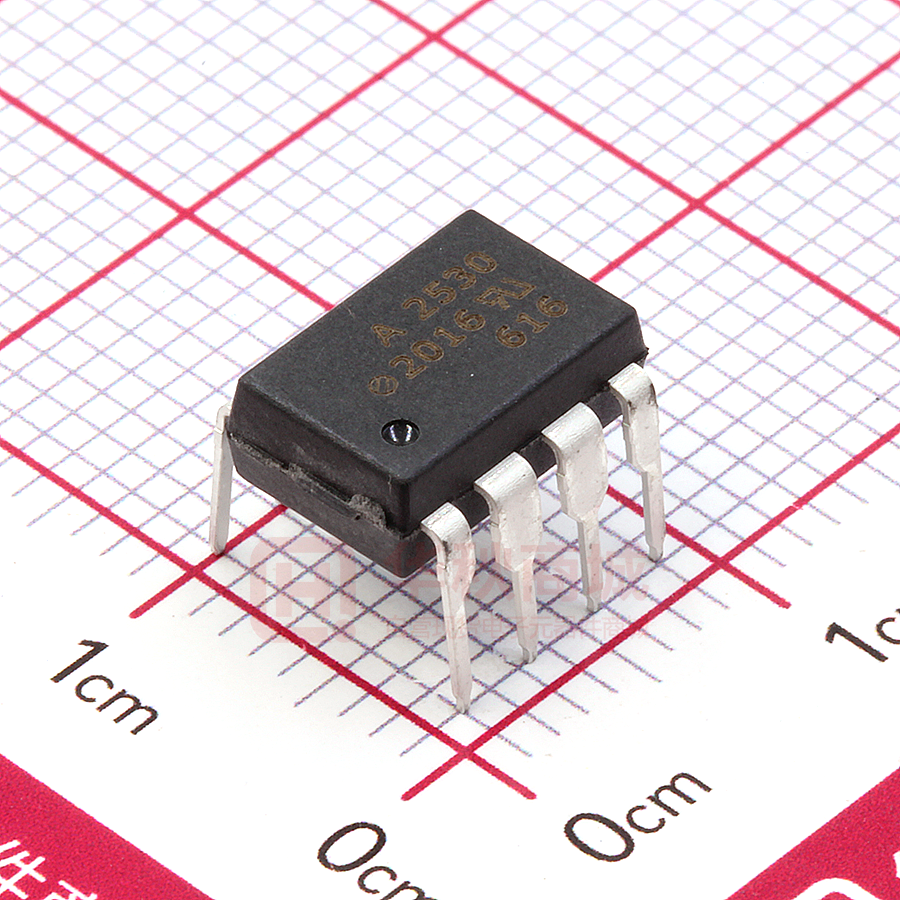

HCPL-2530, HCPL-2531, HCPL-4534
HCPL-0530, HCPL-0531, HCPL-0534
Dual Channel, High Speed Optocouplers
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
Features
These dual channel optocouplers contain a pair of light
emitting diodes and integrated photo-detectors with
electrical insulation between input and output. Separate
connection for the photodiode bias and output transistor collectors increase the speed up to a hundred times
that of a conventional phototransistor coupler by
reducing the base-collector capacitance.
• 15 kV/µs minimum common mode transient immunity
at VCM = 1500 V (HCPL‑4534/0534)
• TTL compatible
• Available in 8 pin DIP, SO-8, and 8 pin DIP – gull wing
surface mount (option 020) packages
• High density packaging
• 3 MHz bandwidth
• Open collector outputs
• Safety approval
UL Recognized – 3750 V rms for 1 minute (5000 V rms
for 1 minute for Option 020) per UL1577
CSA Approved
IEC/EN/DIN EN 60747-5-5
– VIORM = 630 Vpeak for HCPL-2530/2531/4534
0ption 060
– VIORM = 567 Vpeak for HCPL-0530/0531/0534
0ption 060
• Single channel version available (4502/3, 0452/3)
• MIL-PRF-38534 hermetic version available
(55XX/65XX/4N55)
These dual channel optocouplers are available in an 8
Pin DIP and in an industry standard SO-8 package. The
following is a cross reference table listing the 8 Pin DIP
part number and the electrically equivalent SO-8 part
number.
8 Pin DIP
SO-8
Package
HCPL-2530
HCPL-0530
HCPL-2531
HCPL-0531
HCPL-4534
HCPL-0534
Functional Diagram
Applications
ANODE 1 1
8 VCC
CATHODE 1 2
7 VO1
CATHODE 2 3
6 VO2
ANODE 2 4
TRUTH TABLE
(POSITIVE LOGIC)
LED
VO
ON
LOW
OFF
HIGH
5 GND
A 0.1 µF bypass capacitor between
pins 5 and 8 is recommended.
HCPL-2530 Functional Diagram
• Line receivers – high common mode transient immunity (>1000 V/µs) and low input-output capacitance
(0.6 pF)
• High speed logic ground isolation – TTL/TTL, TTL/LTTL,
TTL/CMOS, TTL/LSTTL
• Replace pulse transformers – save board space and
weight
• Analog signal ground isolation – integrated photon
detector provides improved linearity over phototransistor type
• Polarity sensing
• Isolated analog amplifier – dual channel packaging
enhances thermal tracking
CAUTION: It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.
The SO-8 does not require “through holes” in a PCB. This package occupies approximately one-third the footprint
area of the standard dual-in-line package. The lead profile is designed to be compatible with standard surface mount
processes.
The HCPL-2530/0530 is for use in TTL/CMOS, TTL/LSTTL or wide bandwidth analog applications. Current transfer ratio
(CTR) for the HCPL-2530/0530 is 7% minimum at IF = 16 mA.
The HCPL-2531/0531 is designed for high speed TTL/TTL applications. A standard 16 mA TTL sink current through the
input LED will provide enough output current for 1 TTL load and a 5.6 kΩ pull-up resistor. CTR of the HCPL-2531/0531
is 19% minimum at IF = 16 mA.
The HCPL-4534/0534 is an HCPL-2531/0531 with increased common mode transient immunity of 15,000 V/µs
minimum at VCM = 1500 V guaranteed.
Selection Guide
Minimum CMR
8-pin DIP (300 Mil)
Small-Outline SO-8
Widebody
(400 Mil)
Hermetic
Single and
Dual Channel
Packages*
dV/dt
(V/µs)
VCM
(V)
Current
Transfer
Ratio (%)
Dual
Channel
Package
Single
Channel
Package*
Dual
Channel
Package
Single
Channel
Package*
Single
Channel
Package*
1,000
10
7
HCPL-2530
6N135
HCPL-0530
HCPL-0500
HCNW135
19
HCPL-2531
6N136
HCPL-4502
HCPL-0531
HCPL-0501
HCPL-0452
HCNW136
HCNW4502
15,000 1500
19
HCPL-4534
HCPL-4503
HCPL-0534
HCPL-0453
HCNW4503
1,000
9
10
* Technical data for these products are on separate Avago publications.
2
HCPL-55XX
HCPL-65XX
4N55
Ordering Information
HCPL-2530, HCPL-2531, HCPL-4534, HCPL-0530, HCPL-0531 and HCPL-0534 are UL Recognized with 3750 Vrms for
1 minute per UL1577 and are approved under CSA Component Acceptance Notice #5, File CA 88324.
Option
Part
number
HCPL-2530
HCPL-2531
HCPL-4534
HCPL-0530
HCPL-0531
HCPL-0534
RoHS
Compliant
Non RoHS
Compliant
Surface
Mount
Gull
Wing
-000E
No option
-300E
#300
X
X
-500E
#500
X
X
-020E
#020
-320E
#320
X
X
-520E
#520
X
X
-060E
#060
-360E
#360
X
X
-560E
#560
X
X
-000E
No option
-500E
#500
Package
Tape
& Reel
UL 5000
Vrms/
1 Minute
rating
IEC/EN/DIN
EN 60747-5-5 Quantity
50 per tube
300mil
DIP-8
SO-8
50 per tube
X
X
X
1000 per reel
X
50 per tube
X
50 per tube
X
1000 per reel
X
50 per tube
X
50 per tube
X
1000 per reel
100 per tube
X
X
X
1500 per reel
To order, choose a part number from the part number column and combine with the desired option from the option
column to form an order entry.
Example 1:
HCPL-2530-560E to order product of 300mil DIP Gull Wing Surface Mount package in Tape and Reel packaging with
IEC/EN/DIN EN 60747-5-5 Safety Approval in RoHS compliant.
Example 2:
HCPL-2530 to order product of 300mil DIP package in tube packaging and non RoHS compliant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for information.
Remarks: The notation ‘#XXX’ is used for existing products, while (new) products launched since 15th July 2001 and
RoHS compliant option will use ‘-XXXE‘.
3
Schematic
1
I CC
I F1
+
8
VF1
I O1
–
7
VCC
V O1
2
3
I F2
–
I O2
6
VF2
V O2
+
4
5
GND
HCPL-4534/0534 SHIELD
USE OF A 0.1 µF BYPASS CAPACITOR CONNECTED
BETWEEN PINS 5 AND 8 IS RECOMMENDED.
Package Outline Drawings
8-Pin DIP Package (HCPL-2530/2531/4534)
7.62 ± 0.25
(0.300 ± 0.010)
9.65 ± 0.25
(0.380 ± 0.010)
TYPE NUMBER
8
6
5
1
2
3
OPTION CODE*
UL
RECOGNITION
A XXXXZ
YYWW RU
EEE
DATE CODE
1.19 (0.047) MAX.
7
4
6.35 ± 0.25
(0.250 ± 0.010)
LOT ID
1.78 (0.070) MAX.
5° TYP.
3.56 ± 0.13
(0.140 ± 0.005)
4.70 (0.185) MAX.
+ 0.076
- 0.051
+ 0.003)
(0.010 - 0.002)
0.254
0.51 (0.020) MIN.
2.92 (0.115) MIN.
1.080 ± 0.320
(0.043 ± 0.013)
4
0.65 (0.025) MAX.
2.54 ± 0.25
(0.100 ± 0.010)
DIMENSIONS IN MILLIMETERS AND (INCHES).
*MARKING CODE LETTER FOR OPTION NUMBERS.
"V" = OPTION 060
OPTION NUMBERS 300 AND 500 NOT MARKED.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
Package Outline Drawings, continued
8-Pin DIP Package with Gull Wing Surface Mount Option 300 (HCPL-2530/2531/4534)
LAND PATTERN RECOMMENDATION
9.65 ± 0.25
(0.380 ± 0.010)
6
7
8
1.016 (0.040)
5
10.9
(0.430)
6.350 ± 0.25
(0.250 ± 0.010)
1
3
2
4
2.0 (0.080)
1.27 (0.050)
9.65 ± 0.25
(0.380 ± 0.010)
1.780
(0.070)
MAX.
1.19
(0.047)
MAX.
7.62 ± 0.25
(0.300 ± 0.010)
+ 0.076
- 0.051
+ 0.003)
(0.010 - 0.002)
0.254
3.56 ± 0.13
(0.140 ± 0.005)
1.080 ± 0.320
(0.043 ± 0.013)
0.635 ± 0.25
(0.025 ± 0.010)
12° NOM.
0.635 ± 0.130
(0.025 ± 0.005)
2.54
(0.100)
BSC
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
Small Outline SO-8 Package (HCPL-0530/0531/0534)
LAND PATTERN RECOMMENDATION
8
7
6
5
5.994 ± 0.203
(0.236 ± 0.008)
XXX
YWW
EEE
3.937 ± 0.127
(0.155 ± 0.005)
1
2
3
TYPE NUMBER
(LAST 3 DIGITS)
DATE CODE
LOT ID
4
0.406 ± 0.076
(0.016 ± 0.003)
1.9 (0.075)
1.270 BSC
(0.050)
3.175 ± 0.127
(0.125 ± 0.005)
* TOTAL PACKAGE LENGTH (INCLUSIVE OF MOLD FLASH)
5.207 ± 0.254 (0.205 ± 0.010)
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES) MAX.
0.64 (0.025)
7°
* 5.080 ± 0.127
(0.200 ± 0.005)
5
7.49 (0.295)
45° X
0.432
(0.017)
0.228 ± 0.025
(0.009 ± 0.001)
1.524
(0.060)
0.305 MIN.
(0.012)
0.203 ± 0.102
(0.008 ± 0.004)
NOTE: FLOATING LEAD PROTRUSION IS 0.15 mm (6 mils) MAX.
Regulatory Information
The devices contained in this data sheet have been approved by the following organizations:
UL
CSA
IEC/EN/DIN
Recognized under UL 1577, Component Recognition Program, File E55361.
Approved under CSA Component Acceptance Notice #5, File CA 88324.
IEC/EN/DIN EN 60747-5-5 Approved under: (Option 060 only)
Insulation and Safety Related Specifications
Parameter
Symbol
8-Pin DIP
(300 Mil)
Value
Minimum External
Air Gap (External
Clearance)
L(101)
7.1
4.9
mm
Measured from input terminals to output terminals,
shortest distance through air.
Minimum External
Tracking (External
Creepage)
L(102)
7.4
4.8
mm
Measured from input terminals to output terminals,
shortest distance path along body.
Minimum Internal
Plastic Gap
(Internal Clearance)
0.08
0.08
mm
Through insulation distance, conductor to conductor,
usually the direct distance between the photoemitter
and photodetector inside the optocoupler cavity.
Minimum Internal
Tracking (Internal
Creepage)
NA
NA
mm
Measured from input terminals to output
terminals, along internal cavity.
200
200
Volts
DIN IEC 112/VDE 0303 Part 1
IIIa
IIIa
Tracking Resistance
(Comparative Tracking
Index)
Isolation Group
CTI
SO-8
Value
Units
Conditions
Material Group (DIN VDE 0110, 1/89, Table 1)
Option 300 – surface mount classification is Class A in accordance with CECC 00802.
6
IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (OPTION 060)
Characteristic HCPLDescription
Symbol
Installation classification per DIN VDE 0110, Table 1
for rated mains voltage ≤ 150 Vrms
for rated mains voltage ≤ 300 Vrms
for rated mains voltage ≤ 600 Vrms
Climatic Classification
Pollution Degree (DIN VDE 0110/39)
2530/2531/4534 0530/0531/0534 Unit
I – IV
I – IV
I – IV
I – IV
I – IV
I – III
0/70/21
0/70/21
2
2
Maximum Working Insulation Voltage
VIORM
630
567
Vpeak
Input to Output Test Voltage, Method b*
VIORM x 1.875 = VPR, 100% Production Test
tm=1 sec, Partial discharge < 5 pC
VPR
1181
1063
Vpeak
Input to Output Test Voltage, Method a*
VIORM x 1.6 = VPR, Type and Sample Test,
tm=10 sec, Partial discharge < 5 pC
VPR
1008
907
Vpeak
Highest Allowable Overvoltage (Transient Overvoltage tini = 60 sec)
VIOTM
8000
6000
Vpeak
Safety-limiting values – max. values allowed in the event of a failure.
Case Temperature
Input Current**
Output Power**
TS
IS, INPUT
PS, OUTPUT
175
230
600
150
230
600
°C
mA
mW
Insulation Resistance at TS, VIO = 500 V
RS
>109
>109
W
* Refer to the optocoupler section of the Isolation and Control Components Designer's Catalog, under Product Safety Regulations section,
IEC/EN/DIN EN 60747-5-5, for a detailed description of Method a and Method b partial discharge test profiles.
** Refer to the following figure for dependence of PS and IS on ambient temperature.
Note: Isolation characteristics are guaranteed only within the safety maximum ratings, which must be ensured by protective circuits in application.
OUTPUT POWER – PS, INPUT CURRENT – IS
800
PS (mW)
IS (mA)
700
600
500
400
300
200
100
0
0
25
50
75
100
125 150 175 200
TS – CASE TEMPERATURE – C
7
Absolute Maximum Ratings
Parameter
Symbol
Min.
Max.
Units
Storage Temperature
TS
-55
125
°C
Operating Temperature
TA
-55
100
°C
Average Forward Input Current
(each channel)
IF(AVG)
25
mA
Peak Forward Input Current (each channel)
(50% duty cycle, 1 ms pulse width)
IF(PEAK)
50
mA
Peak Transient Input Current (each channel)
(≤ 1 µs pulse width, 300 pps)
IF(TRANS)
1
A
Reverse LED Input Voltage (each channel)
VR
5
V
Input Power Dissipation (each channel)
PIN
45
mW
Average Output Current (each channel)
IO(AVG)
8
mA
Peak Output Current
IO(PEAK)
16
mA
Supply Voltage (Pin 8-5)
VCC
-0.5
30
V
Output Voltage (Pins 7-5, 6-5)
VO
-0.5
20
V
Output Power Dissipation (each channel)
PO
35
mW
Lead Solder Temperature
(Through-Hole Parts Only)
1.6 mm below seating plane, 10 seconds
TLS
260
°C
8
Device
8 Pin DIP
Note
13
Electrical Specifications (DC)
Over recommended temperature (TA = 0°C to 70°C) unless otherwise specified. See note 9.
Parameter
Sym.
Device
Min. Typ.* Max. Units Test Conditions
Current
CTR
HCPL-2530/
7
18
50
%
TA = 25°C
Transfer 0530
Ratio 5
HCPL-2531/
0531
HCPL-4534/
0534
19
24
50
%
Fig. Note
IF = 16 mA,
VCC = 4.5 V
VO = 0.5 V
1, 2
4
1, 2
IF = 16 mA,
VCC = 4.5 V
1
1
TA = 25°C
15
Logic Low
VOL HCPL-2530/ 0.1 0.5 V TA = 25°C IO = 1.1 mA
Output 0530
Voltage 0.5
IO = 0.8 mA
HCPL-2531/ 0.1 0.5 V
TA = 25°C
0531
HCPL-4534/ 0.5
0534
IO = 3.0 mA
IO = 2.4 mA
Logic High
IOH 0.003 0.5 µA TA = 25°C VCC = VO = 5.5V, IF = 0 mA
6
1
Output
IF = 0 mA
Current
50
TA = 25°C VCC = VO = 15V,
IF = 0 mA
Logic Low
ICCL 100 400 µA IF = 16 mA, VO = Open,
Supply
VCC = 15 V
Current
Logic High
ICCH 0.05 4 µA IF = 0 mA, VO = Open,
Supply
VCC = 15 V
Current
Input
VF
1.5 1.7 V TA = 25°C
Forward
IF = 16 mA
Voltage
1.8
1
V IR =10 µA
1
Input
Reverse
Breakdown
Voltage
BVR
Temperature
Coefficient
of Forward
Voltage
ΔVF -1.6 mV/
IF = 16 mA
ΔTA °C
Input
Capacitance
CIN
*All typicals at TA = 25°C.
9
5
3
60
pF
f = 1 MHz, VF = 0 V
1
Switching Specifications (AC)
Over recommended temperature (TA = 0°C to 70°C), VCC = 5 V, IF = 16 mA unless otherwise specified.
Parameter
Sym.
Device
HCPL-
Min. Typ.* Max. Units Test Conditions
Fig. Note
Propagation
tPHL 2530/0530 0.2 1.5 µs TA = 25°C
RL = 4.1 kΩ
5, 9,
6, 7
Delay Time
2.0
11
to Logic Low
2531/0531/
0.2
0.8
TA = 25°C
RL = 1.9 kΩ
at Output 4534/0534 1.0
Propagation
tPLH 2530/0530 1.3 1.5 µs TA = 25°C
RL = 4.1 kΩ
Delay Time
2.0
High to Logic
2531/0531/
0.6
0.8
TA = 25°C
RL = 1.9 kΩ
at Output 4534/0534 1.0
5, 9,
11
6, 7
Common
|CMH| 2530/0530 1 10 kV/µs RL = 4.1 kΩ IF = 0 mA,
10
Mode Transient
2531/0531
1
10
RL = 1.9 kΩ TA = 25°C,
Immunity at
4534/0534
15
30
RL = 1.9 kΩ VCM = 10 Vp-p
Logic High
Level Output
5, 6,
7
Common
|CML| 2530/0530 1 10 kV/µs RL = 4.1 kΩ IF = 0 mA,
10
Mode Transient
2531/0531
1
10
RL = 1.9 kΩ TA = 25°C,
Immunity at
4534/0534
15
30
RL = 1.9 kΩ VCM = 10 Vp-p
Logic Low
Level Output
5, 6,
7
Bandwidth
BW 3 MHz
RL = 100 kΩ
7, 8
*All typicals at TA = 25°C.
Package Characteristics
Parameter
Sym.
Device
Min.
Typ.*
Max.
Units
Test Conditions
Fig.
Note
Input-Output
VISO
3750
V rms RH < 50%,
HCPL-2530/2531 5000
Momentary With-
t = 1 min.,
/4534 Option 020
stand Voltage**
3, 10
3, 11
Resistance
RI-O 1012 Ω RH ≤45%
(Input-Output)
VI-O = 500 Vdc,
t = 5 s
3
Capacitance
CI-O
0.6
pF f = 1 MHz,
(Input-Output)
TA = 25°C
12
Input-Input
II-I 0.005 µA RH ≤45%,
Insulation t = 5 s,
Leakage Current
VI-I = 500 Vdc
4
Resistance
(Input-Input)
RI-I 1011 Ω
Capacitance
CI-I
(Input-Input)
HCPL-2530/
2531/4534
0.03
pF f = 1 MHz
4
4
HCPL-0530/ 0.25
0531/0534
*All typicals at TA = 25°C.
**The Input-Output Momentary Withstand Voltage is a dielectric voltage rating that should not be interpreted as an input-output continuous voltage rating. For the continuous voltage rating refer to the IEC/EN/DIN EN 60747-5-5 Insulation Characteristics Table (if applicable), your equipment
level safety specification or Avago Application Note 1074 entitled “Optocoupler Input-Output Endurance Voltage,” publication number 5963-2203E.
10
IO – OUTPUT CURRENT – mA
35 mA
30 mA
25 mA
5
20 mA
15 mA
10 mA
0
IF = 5 mA
0
20
10
1.5
1000
HCPL-2530/0530
HCPL-2531/0531/4534/0534
IF – FORWARD CURRENT – mA
40 mA
TA = 25°C
10 VCC = 5.0 V
NORMALIZED CURRENT TRANSFER RATIO
Notes:
1. Each channel.
2. CURRENT TRANSFER RATIO is defined as the ratio of output collector current, IO, to the forward LED input current, IF, times 100%.
3. Device considered a two-terminal device: pins 1, 2, 3, and 4 shorted together and pins 5, 6, 7, and 8 shorted together.
4. Measured between pins 1 and 2 shorted together, and pins 3 and 4 shorted together.
5. Common mode transient immunity in a Logic High level is the maximum tolerable (positive) dVCM/dt on the rising edge of the common mode
pulse, VCM, to assure that the output will remain in a Logic High state (i.e., VO > 2.0 V). Common mode transient immunity in a Logic Low level
is the maximum tolerable (negative) dVCM /dt on the falling edge of the common mode pulse signal, VCM, to assure that the output will remain
in a Logic Low state (i.e., VO < 0.8 V).
6. The 1.9 kΩ load represents 1 TTL unit load of 1.6 mA and the 5.6 kΩ pull-up resistor.
7. The 4.1 kΩ load represents 1 LSTTL unit load of 0.36 mA and the 6.1 kΩ pull-up resistor.
8. The frequency at which the ac output voltage is 3 dB below the low frequency asymptote.
9. Use of a 0.1 µF bypass capacitor connected between pins 5 and 8 is recommended.
10. In accordance with UL 1577, each optocoupler is proof tested by applying an insulation test voltage ≥4500 V rms for 1 second (leakage detection
current limit, II-O ≤5 µA).
11. In accordance with UL 1577, each optocoupler is proof tested by applying an insulation test voltage ≥6000 V rms for 1 second (leakage detection current limit, II-O ≤5 µA).
12. Measured between the LED anode and cathode shorted together and pins 5 through 8 shorted together.
13. Derate linearly above 90°C free-air temperature at a rate of 3.0 mW/ °C for the SOIC-8 package.
1.0
0.5
0.1
NORMALIZED
I F = 16 mA
VO = 0.5 V
VCC = 5 V
TA = 25°C
0
1
10
100
10
1.0
0.01
0.001
1.1
100
Figure 1. DC and pulsed transfer characteristics.
TA = 25°C
0.1
IF – INPUT CURRENT – mA
VO – OUTPUT VOLTAGE – V
IF
+
VF
–
1.2
1.3
1.4
1.5
1.6
VF – FORWARD VOLTAGE – VOLTS
Figure 2. Current transfer ratio vs. input current.
Figure 3. Input current vs. forward voltage.
HCPL-2530 Figure 2
HCPL-2530 fig 1
2000
1.0
0.9
0.8
0.7
NORMALIZED
IF = 16 mA
VO = 0.5 V
VCC = 5 V
TA = 25°C
HCPL-2530/0530
HCPL-2531/0531/4534/0534
0.6
-60 -40 -20
0
20
40
60
80 100
TA – TEMPERATURE – °C
Figure 4. Current transfer ratio vs. temperature.
HCPL-2530 Figure 4
11
1500
IF = 16 mA, VCC = 5.0 V
HCPL-2530/0530 (RL = 4.1 kΩ)
HCPL-2531/0531/4534/0534
(RL = 1.9 kΩ)
1000
t PLH
t PHL
500
0
-60
-20
20
60
100
TA – TEMPERATURE – C
Figure 5. Propagation delay vs. temperature.
IOH – LOGIC HIGH OUTPUT CURRENT – nA
1.1
tP – PROPAGATION DELAY – ns
NORMALIZED CURRENT TRANSFER RATIO
HCPL-2530 fig 3
10+4
10+3
IF = 0
VO = VCC = 5.0 V
10+2
10+1
10 0
10 -1
10 -2
-50
-25
0
+25
+50
+75
+100
TA – TEMPERATURE – °C
Figure 6. Logic high output current vs. temperature.
HCPL-2530 fig 6
∆ IO
∆ I F – SMALL SIGNAL CURRENT TRANSFER RATIO
0.30
TA = 25°C, RL = 100 Ω, VCC = 5 V
0.20
0.10
0
0
4
8
12
24
20
16
IF – QUIESCENT INPUT CURRENT – mA
Figure 7. Small-signal current transfer ratio vs.
quiescent input current.
HCPL-2530 Figure 7
NORMALIZED RESPONSE –dB
0
-5
TA = 25 C
IF = 16 mA
+5 V
SET I F
RL = 100 Ω
RL = 220 Ω
RL = 470 Ω
RL = 1 kΩ
-10
-15
20 kΩ
AC INPUT
1
8
2
7
3
6
+5 V
RL
2N3053
0.1 µF
560 Ω
100 Ω
4
-20
VO
0.1 µF
5
-25
-30
0.01
1.6 V dc
0.25 Vp-p ac
0.1
1.0
10
f – FREQUENCY – MHz
Figure 8. Frequency response.
IF
PULSE
GEN.
Z O
= 50
Ω
t r = 5 ns
IF
0
5V
VO
1.5 V
1.5 V
VOL
t PHL
Figure 9. Switching test circuit.
12
10% DUTY CYCLE
1/f < 100 µs
t PLH
1
8
2
7
3
6
+5 V
RL
VO
0.1µF
I F MONITOR
4
RM
5
CL = 1.5 pF
B
IF
VCM
0V
10%
90% 90%
10%
V FF
tf
tr
VO
1
8
2
7
3
6
+5 V
A
VO
0.1 µF
5
4
5V
RL
SWITCH AT A: I F = 0 mA
VO
VOL
SWITCH AT B: I F = 16 mA
VCM
+
–
PULSE GEN.
Figure 10. Test circuit for transient immunity and typical waveforms
tP – PROPAGATION DELAY – µs
3.0
2.0
1.0
0.8
0.6
I F = 10 mA
I F = 16 mA
VCC = 5.0 V
TA = 25 °C
tPLH
0.4
t PHL
0.2
0.1
1
2
3
4
5
6 7 8 9 10
RL – LOAD RESISTANCE – kΩ
Figure 11. Propagation delay time vs. load resistance
HCPL-2530 Figure 11
For product information and a complete list of distributors, please go to our website:
www.avagotech.com
Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries.
Data subject to change. Copyright © 2005-2015 Avago Technologies. All rights reserved. Obsoletes AV01-0370EN
AV02-2333EN - June 23, 2015
