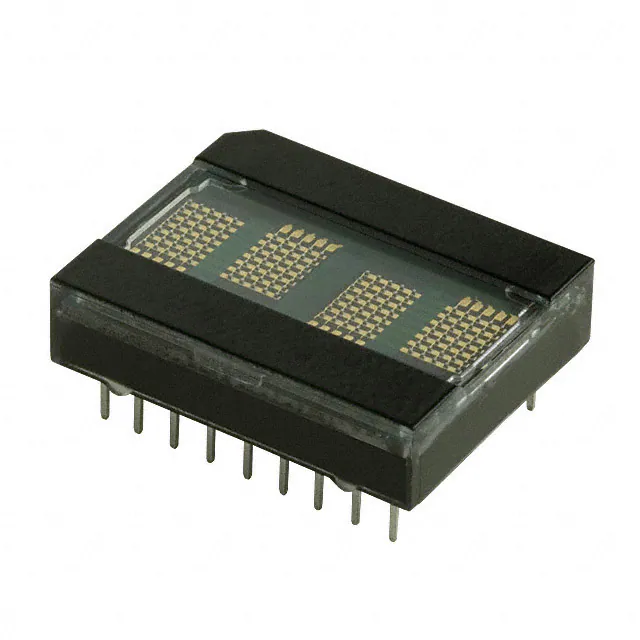

HDLx-2416 Series
Four Character 5.0 mm (0.2 inch) Smart 5×7
Alphanumeric Displays
Data Sheet
Description
Features
These are 5.0 mm (0.2 inch) four character 5×7 dot matrix
displays driven by an onboard CMOS IC. These displays are
pin-for-pin compatible with the HPDL-2416. The IC stores and
decodes 7-bit ASCII data and displays it using a 5×7 font.
Multiplexing circuitry, and drivers are also part of the IC. The IC
has fast setup and hold times that makes it easy to interface to
a microprocessor.
Absolute Maximum Ratings
Supply Voltage, VDD to Grounda
–0.5V to 7.0V
Input Voltage, Any Pin to Ground
–0.5V to VDD
+0.5V
Free Air Operating Temperature Range, TA
–40°C to +85°C
Storage Temperature, TS
–40°C to +100°C
CMOS IC Junction Temperature, TJ (IC)
+150°C
Relative Humidity (non-condensing) at 65°C
85%
Soldering Temperature [1.59 mm (0.063 in.)
Below Body]
Solder Dipping
Wave Soldering
260°C for 5 sec.
250°C for 3 sec.
ESD Protection, R = 1.5 k, C = 100 pF
a.
Enhanced drop-in replacement to HPDL-2416
Smart alphanumeric display
Built-in RAM, ASCII decoder, and LED drive circuitry
CMOS IC for low-power consumption
Software controlled dimming levels and blank
128 ASCII character set
End-stackable
Categorized for luminous intensity; Yellow and Green
categorized for color
Low-power and sunlight-viewable AlInGaP versions
Wide operating temperature range, –40°C to +85°C
Excellent ESD protection
Wide viewing angle (50° typ.)
ESD WARNING: Standard CMOS handling precautions should be
observed with the HDLX-2416.
VZ = 2 kV (each
pin)
Maximum Voltage with no LEDs illuminated.
Broadcom
-1-
HDLx-2416 Series
Data Sheet
Devices
Deep Red
High Efficiency Red
HDLS-2416
HDLO-2416
HDLU-2416
HDLO-2416-EF000
Orange
HDLA-2416
Yellow
HDLY-2416
Green
HDLG-2416
HDLG-2416-FG000
The address and data inputs can be directly connected to the
microprocessor address and data buses.
The HDLX-2416 has several enhancements over the
HPDL-2416. These features include an expanded character set,
internal 8-level dimming control, external dimming capability,
and individual digit blanking. Finally, the extended functions
can be disabled which allows the HDLX-2416 to operate
exactly like an HPDL-2416 by disabling all of the enhancements
except the expanded character set.
The difference between the sunlight viewable HDLS-2416 and
the low power HDLU-2416 occurs at power-on or at the default
brightness level. Following power up, the HDLS-2416 operates
at the 100% brightness level, while the HDLU-2416 operates at
the 27% brightness level. Power on sets the internal brightness
control (bits 3–5) in the control register to binary code (000).
For the HDLS-2416 binary code (000) corresponds to a 100%
brightness level, and for the HDLU-2416 binary code (000)
corresponds to a 27% brightness level. The other seven
brightness levels are identical for both parts.
Broadcom
-2-
HDLx-2416 Series
Data Sheet
Package Dimensions
25.15
(0.990)
3.05
(0.120)
0.38 REF.
(0.015)
0.25 ± 0.13 TYP.
(0.010 ± 0.005)
6.35 TYP.
(0.250)
10.03
(0.395)
10.16 REF.
(0.400)
5.08
(0.200)
20.07
(0.790)
PIN 1 IDENTIFIER
IMAGE PLANE
1.52 REF.
(0.060)
3.43
(0.135)
PART NUMBER
DATE CODE (YEAR, WEEK)
LUMINOUS INTENSITY
6.60
(0.260)
COLOR BIN (3)
HDLX-2416
YYWW X Z
4.06
(0.160) REF.
NOTES:
1. UNLESS OTHERWISE SPECIFIED, THE TOLERANCE
ON ALL DIMENSIONS IS 0.254 mm ( 0.010).
0.51 ± 0.13 TYP.
(0.020 ± 0.005)
2.41
(0.095)
2. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
2.54 TYP.
(0.100)
3. FOR YELLOW AND GREEN DISPLAYS ONLY.
Broadcom
-3-
15.24
(0.600)
2.41
(0.095)
TYP.
HDLx-2416 Series
Data Sheet
Pin Numbering and Location
CE1
CE2
CLR
CUE
CU
WR
A1
A0
VDD
18
17
16
15
14
13
12
11
10
1
2
3
4
5
6
7
8
9
Pin No.
Function
BL
D4
D5
D6
D3
D2
D1
D0
GND
Pin No.
Function
1
CE1 Chip Enable
10
GND
2
CE2 Chip Enable
11
D0 Data Input
3
CLR Clear
12
D1 Data Input
4
CUE Cursor Enable
13
D2 Data Input
5
CU Cursor Select
14
D3 Data Input
6
WR Write
15
D6 Data Input
7
A1 Address Input
16
D5 Data Input
8
A0 Address Input
17
D4 Data Input
9
VDD
18
BL Display Blank
Broadcom
-4-
HDLx-2416 Series
Data Sheet
Character Set
ASCII
CODE
D0
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
D1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
D2
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
D3
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
D6
D5
D4
HEX
0
0
0
0
0
0
1
1
0
1
0
2
0
1
1
3
1
0
0
4
1
0
1
5
1
1
0
6
1
1
1
7
NOTES: 1 = HIGH LEVEL
0 = LOW LEVEL
Broadcom
-5-
HDLx-2416 Series
Data Sheet
Recommended Operating Conditions
Parameter
Supply Voltage
Symbol
VDD
Min.
4.5
Typ.
Max.
5.0
5.5
Unit
V
Electrical Characteristics over Operating Temperature Range
4.5V < VDD < 5.5V (unless otherwise specified)
All Devices
Parameter
Symbol
25°Ca
Min.
Typ.
IDD Blank
IDD (blank)
Input Current
II
Max.
Unit
Test Conditions
Max.
1.0
–40
4.0
mA
+10
μA
All Digits Blanked
VIN = 0V to VDD
VDD = 5.0V
Input Voltage High
VIH
2.0
VDD
V
Input Voltage Low
VIL
GND
0.8
V
a.
VDD = 5.0V.
HDLO/HDLA/HDLY/HDLG-2416
Parameter
Symbol
25°Ca
Min.
Typ.
IDD 4 digits 20
Max.
Unit
Test Conditions
Max.
IDD(#)
110
135
160
mA
“#” ON in All Four Locations
IDD (CU)
92
110
135
mA
Cursor ON in All Four
Locations
Dots/Characterb, c
IDD Cursor All Dots ON at
50%
a.
VDD = 5.0V.
b.
Average IDD measured at full brightness. Peak IDD = 28/15 × Average IDD(#).
c.
IDD(#) max. = 135 mA for HDLO/HDLA/HDLY/HDLG-2416, 146 mA for HDLS-2416, and 42 mA for HDLU-2416 at default brightness, 150°C IC junction
temperature and VDD = 5.5V.
Broadcom
-6-
HDLx-2416 Series
Data Sheet
HDLS/HDLU-2416
Part Number
Parameter
25°Ca
Symbol
Typ.
HDLS-2416
IDD 4 digits
HDLU-2416
20 dots/characterb, c
HDLS-2416
IDD Cursor all dots ON @
50%
HDLU-2416
a.
IDD(#)
IDD(CU)
Max.
Unit
Test Conditions
Max.
125
146
180
34
42
52
105
124
154
29
36
45
mA
Four “#” ON in All Four
Locations
mA
Four Cursors ON in All
Four Locations
VDD = 5.0 V.
b.
Average IDD measured at full brightness. Peak IDD = 28/15 × Average IDD(#).
c.
IDD(#) max. = 135 mA for HDLO/HDLA/HDLY/HDLG-2416, 146 mA for HDLS-2416, and 42 mA for HDLU-2416 at default brightness, 150 °C IC junction
temperature and VDD = 5.5 V.
Optical Characteristics at 25°C (see Note)
VDD = 5.0 V at Full Brightness
NOTE
Refers to the initial case temperature of the device immediately prior to the light measurement.
HDLS/HDLU-2416
Part Number
HDLS-2416
HDLU-2416
All
a.
Parameter
Symbol
Average Luminous Intensity per IV
Digit, Character Average
Min.
Typ.
4.0
12.7
1.2
Unit
mcd
3.1
mcd
Peak Wavelength
PEAK
645
nm
Dominant Wavelengtha
d
637
nm
Test Conditions
‘’*’’ Illuminated in All Four Digits,
19 Dots ON per Digit
Dominant wavelength, d, derived from the CIE chromaticity diagram, and represents the single wavelength which defines the color of the device.
HDLO-2416
Parameter
Symbol
Unit
mcd
PEAK
635
nm
d
626
nm
IV
Peak Wavelength
Dominant Wavelengtha
1.2
Typ.
3.5
Average Luminous Intensity per Digit,
Character Average
a.
Min.
Test Conditions
‘’*’’ Illuminated in All Four Digits.
19 Dots ON
Dominant wavelength, d, derived from the CIE chromaticity diagram, and represents the single wavelength which defines the color of the device.
Broadcom
-7-
HDLx-2416 Series
Data Sheet
HDLA-2416
Parameter
Symbol
Unit
mcd
PEAK
600
nm
d
602
nm
IV
Peak Wavelength
Dominant Wavelengtha
1.2
Typ.
3.5
Average Luminous Intensity per Digit,
Character Average
a.
Min.
Test Conditions
‘’*’’ Illuminated in All Four Digits.
19 Dots ON
Dominant wavelength, d, derived from the CIE chromaticity diagram, and represents the single wavelength which defines the color of the device.
HDLY-2416
Parameter
Symbol
Unit
mcd
PEAK
583
nm
d
585
nm
IV
Peak Wavelength
Dominant Wavelengtha
1.2
Typ.
3.75
Average Luminous Intensity per Digit,
Character Average
a.
Min.
Test Conditions
‘’*’’ Illuminated in All Four Digits.
19 Dots ON
Dominant wavelength, d, derived from the CIE chromaticity diagram, and represents the single wavelength which defines the color of the device.
HDLG-2416
Parameter
Symbol
Average Luminous Intensity per Digit,
Character Average
IV
Peak Wavelength
Dominant Wavelengtha
a.
Min.
1.2
Typ.
Unit
5.6
mcd
PEAK
568
nm
d
574
nm
Test Conditions
‘’*’’ Illuminated in All Four Digits.
19 Dots ON
Dominant wavelength, d, derived from the CIE chromaticity diagram, and represents the single wavelength which defines the color of the device.
Broadcom
-8-
HDLx-2416 Series
Data Sheet
AC Timing Characteristics Over Operating Temperature Range at VDD = 4.5V
Parameter
Symbol
Min.
Unit
Address Setup
tAS
10
ns
Address Hold
tAH
40
ns
Data Setup
tDS
50
ns
Data Hold
tDH
40
ns
Chip Enable Setup
tCES
0
ns
Chip Enable Hold
tCEH
0
ns
Write Time
tW
75
ns
Clear
tCLR
10
μs
Clear Disable
tCLRD
1
μs
Timing Diagram
CE1
2.0V
CE2
0.8V
tCES
tCEH
2.0V
A0 – A1, CU
0.8V
tAS
tAH
2.0V
WR
0.8V
tW
2.0V
D0 – D6
0.8V
tDS
tCLR
tDH
tCLRD
2.0V
CLR
0.8V
Broadcom
-9-
HDLx-2416 Series
Data Sheet
Enlarged Character Font
3.43 (0.135)
0.80 (0.031)
TYP.
5.08
(0.200)
0.25 (0.010)
TYP.
0.80 (0.031)
TYP.
NOTE
1.
2.
Unless otherwise specified, the tolerance on all dimensions is ± 0.254 mm (0.010 inch).
Dimensions are in mm (inches).
Electrical Description
Pin Function
Description
Chip Enable (CE1 and CE2, pins 1 and 2)
CE1 and CE2 must be a logic 0 to write to the display.
Clear (CLR, pin 3)
When CLR is a logic 0 the ASCII RAM is reset to 20hex (space) and the Control Register/Attribute
RAM is reset to 00hex.
Cursor Enable (CUE pin 4)
CUE determines whether the IC displays the ASCII or the Cursor memory. (1 = Cursor, 0 = ASCII).
Cursor Select (CU, pin 5)
CU determines whether data is stored in the ASCII RAM or the Attribute RAM/Control Register. (1
= ASCII, 0 = Attribute RAM/Control Register).
Write (WR, pin 6)
WR must be a logic 0 to store data in the display.
Address Inputs (A1 and A0, Pins 8 and 7)
A0–A1 selects a specific location in the display memory.
Address 00 accesses the far right display location.
Address 11 accesses the far left location.
Data Inputs (D0–D6, Pins 11-17)
D0–D6 are used to specify the input data for the display.
VDD (pin 9)
VDD is the positive power supply input.
GND (pin 10)
GND is the display ground.
Blanking Input (BL, pin 18)
BL is used to flash the display, blank the display or to dim the display.
Broadcom
- 10 -
HDLx-2416 Series
Data Sheet
Display Internal Block Diagram
Figure 1 shows the HDLX-2416 display internal block diagram.
The CMOS IC consists of a 4×7 Character RAM, a 2×4 Attribute
RAM, a 5-bit Control Register, a 128 character ASCII decoder
and the refresh circuitry necessary to synchronize the decoding
and driving of four 5×7 dot matrix displays.
Four 7-bit ASCII words are stored in the Character RAM. The IC
reads the ASCII data and decodes it via the 128 character ASCII
decoder. The ASCII decoder includes the 64 character set of the
HPDL-2416, 32 lower case ASCII symbols, and 32 foreign
language symbols.
For each display digit location, two bits are stored in the
Attribute RAM. One bit is used to enable a cursor character at
each digit location. A second bit is used to individually disable
the blanking features at each digit location.
The display is blanked and dimmed through an internal
blanking input on the row drivers. Logic within the IC allows
the user to dim the display either through the BL input or
through the brightness control in the control register. Similarly
the display can be blanked through the BL input, the Master
Blank in the Control Register, or the Digit Blank Disable in the
Attribute RAM.
A 5-bit word is stored in the Control Register. Three fields
within the Control Register provide an 8-level brightness
control, master blank, and extended functions disable.
Broadcom
- 11 -
HDLx-2416 Series
Data Sheet
Figure 1 Internal Block Diagram
CHARACTER RAM
A0 – A1
CE1
CE2
D0 – D6
2
WRITE
ADDRESS
7
DATA IN
CHARACTER/CURSOR
MULTIPLEXER
ASCII DECODER
DATA
OUT
7
CHARACTER
SELECT
5
COLUMN
DATA
0
CHARACTER/
CURSOR
MULTIPLEXER
WRITE
WR
(4 x 7)
CU
2
READ
ADDRESS
3 ROW
SELECT
CURSOR
CHARACTER
5
1
CLR
SELECT
CLR
ATTRIBUTE RAM
CUE
D0
DIGIT CURSOR
D1
DIGIT BLANK
DISABLE
A0 – A1
DCn
WRITE ADDRESS
(2 x 4)
WRITE
2
READ ADDRESS
CLR
CLR
CONTROL REGISTER
ROW
DRIVERS
MB
EFD
MASTER
BLANK
D2
COLUMN
DRIVERS
BL
ROW
SELECT
DBDn
D3 – D5
D6
CE1
CE2
3
BRIGHTNESS
LEVELS
BLANK
EFD
EFD
EXTENDED
FUNCTIONS
DISPLAY
1x5
3
WRITE
WR
CU
CLR
CLR
3
DIGITAL
DUTY
CONTROL
4 (LSBs)
OSC
+ 32
+7
2 (MSBs)
Broadcom
- 12 -
DISPLAY
HDLx-2416 Series
Data Sheet
Display Clear
Cursor
Data stored in the Character RAM, Control Register, and
Attribute RAM will be cleared if the clear (CLR) is held low for a
minimum of 10 μs. Note that the display will be cleared
regardless of the state of the chip enables (CE1, CE2). After the
display is cleared, the ASCII code for a space (20hex) is loaded
into all character RAM locations and 00hex is loaded into all
Attribute RAM/Control Register memory locations.
When cursor enable (CUE) is a logic 1, a cursor will be displayed
in all digit locations where a logic 1 has been stored in the Digit
Cursor memory in the Attribute RAM. The cursor consists of all
35 dots ON at half brightness. A flashing cursor can be
displayed by pulsing CUE. When CUE is a logic 0, the ASCII data
stored in the Character RAM will be displayed regardless of the
Digit Cursor bits.
Data Entry
Blanking
Figure 2 shows a truth table for the HDLX-2416 display. Setting
the chip enables (CE1, CE2) to logic 0 and the cursor select (CU)
to logic 1 will enable ASCII data loading. When cursor select
(CU) is set to logic 0, data will be loaded into the Control
Register and Attribute RAM. Address inputs A0–A1 are used to
select the digit location in the display. Data inputs D0–D6 are
used to load information into the display. Data will be latched
into the display on the rising edge of the WR signal. D0–D6, A0–
A1, CE1, CE2, and CU must be held stable during the write cycle
to ensure that correct data is stored into the display. Data can
be loaded into the display in any order. Note that when A0 and
A1 are logic 0, data is stored in the right most display location.
Blanking of the display is controlled through the BL input, the
Control Register and Attribute RAM. The user can achieve a
variety of functions by using these controls in different
combinations, such as full hardware display blank, software
blank, blanking of individual characters, and synchronized
flashing of individual characters or entire display (by strobing
the blank input). All of these blanking modes affect only the
output drivers, maintaining the contents and write capability
of the internal RAMs and Control Register, so that normal
loading of RAMs and Control Register can take place even with
the display blanked.
Broadcom
- 13 -
HDLx-2416 Series
Data Sheet
Figure 2 Display Truth Table
Broadcom
- 14 -
HDLx-2416 Series
Data Sheet
Table 1 shows how the Extended Function Disable (bit D6 of
the Control Register), Master Blank (bit D2 of the Control
Register), Digit Blank Disable (bit D1 of the Attribute RAM), and
BL input can be used to blank the display.
When the Extended Function Disable is a logic 1, the display
can be blanked only with the BL input. When the Extended
Function Disable is a logic 0, the display can be blanked
through the BL input, the Master Blank, and the Digit Blank
Disable. The entire display will be blanked if either the BL input
is logic 0 or the Master Blank is logic 1, providing all Digit Blank
Disable bits are logic 0. Those digits with Digit Blank Disable
bits a logic 1 will ignore both blank signals and remain ON. The
Digit Blank Disable bits allow individual characters to be
blanked or flashed in synchronization with the BL input.
Table 1 Display Blanking Truth Table
EFD
MB
DBDn
BL
0
0
0
0
0
0X
1
Display ON
0
X
1
0
Display blanked by PL. Individual
characters "ON" based on "1" being
stored in DBDn
Dimming
Dimming of the display is controlled through either the BL
input or the Control Register. A pulse width modulated signal
can be applied to the BL input to dim the display. A three bit
word in the Control Register generates an internal pulse width
modulated signal to dim the display. The internal dimming
feature is enabled only if the Extended Function Disable is a
logic 0.
Bits 3–5 in the Control Register provide internal brightness
control. These bits are interpreted as a three bit binary code,
with code (000) corresponding to the maximum brightness
and code (111) to the minimum brightness. In addition to
varying the display brightness, bits 3–5 also vary the average
value of IDD. IDD can be specified at any brightness level as
shown in Table 2.
Display Blanked by BL
0
1
0
X
Display Blanked by MB
0
1
1
1
Display Blanked by MB. Individual
characters "ON" based on "1" being
stored in DBDn
1
X
X
0
Display Blanked by BL
1
X
X
1
Display ON
Table 2 Current Requirements at Different Brightness Levels
D5
Symbol
IDD(#)
D4
D3
Brightness
25°C Typ.
25°C Max.
Max. over Temp.
Unit
0
0
0
100%
110
130
160
mA
0
0
1
60%
66
79
98
mA
0
1
0
40%
45
53
66
mA
0
1
1
27%
30
37
46
mA
1
0
0
17%
20
24
31
mA
1
0
1
10%
12
15
20
mA
1
1
0
7%
9
11
15
mA
1
1
1
3%
4
6
9
mA
Broadcom
- 15 -
HDLx-2416 Series
Data Sheet
package. This package construction makes the display highly
tolerant to temperature cycling and allows wave soldering.
Figure 3 Intensity Modulation Control using an Astable
Multivibrator (reprinted with permission from Electronics
magazine, Sept.19, 1974, VNU Business pub. Inc.)
The inputs to the CMOS IC are protected against static
discharge and input current latchup. However, for best results
standard CMOS handling precautions should be used. Prior to
use, the HDLX-2416 should be stored in anti-static tubes or
conductive material. During assembly a grounded conductive
work area should be used, and assembly personnel should
wear conductive wrist straps. Lab coats made of synthetic
material should be avoided since they are prone to static
charge build-up.
+ VDD
1k
4
8
3
7
1k
1N914
BL
(PIN 18)
10 kHz
OUTPUT
555
Input current latchup is caused when the CMOS inputs are
subjected either to a voltage below ground (Vin < ground) or
to a voltage higher than VDD (Vin > VDD) and when a high
current is forced into the input. To prevent input current
latchup and ESD damage, unused inputs should be connected
either to ground or to VDD. Voltages should not be applied to
the inputs until VDD has been applied to the display. Transient
input voltages should be eliminated.
6
250 k
LOG
2
1
400 pF
Figure 3 shows a circuit designed to dim the display from 98%
to 2% by pulse width modulating the BL input. A logarithmic or
a linear potentiometer may be used to adjust the display
intensity. However, a logarithmic potentiometer matches the
response of the human eye and therefore provides better
resolution at low intensities. The circuit frequency should be
designed to operate at 10 kHz or higher. Lower frequencies
may cause the display to flicker.
Extended Function Disable
Extended Function Disable (bit D6 of the Control Register)
disables the extended blanking and dimming functions in the
HDLX-2416. If the Extended Function Disable is a logic 1, the
internal brightness control, Master Blank, and Digit Blank
Disable bits are ignored. However the BL input and Cursor
control are still active. This allows downward compatibility to
the HPDL-2416.
Mechanical and Electrical Considerations
The HDLX-2416 is an 18 pin DIP package that can be stacked
horizontally and vertically to create arrays of any size. The
HDLX-2416 is designed to operate continuously from –40°C to
+85°C for all possible input conditions.
The HDLX-2416 is assembled by die attaching and wire
bonding 140 LEDs and a CMOS IC to a high temperature
printed circuit board. A polycarbonate lens is placed over the
PC board creating an air gap environment for the LED wire
bonds. Backfill epoxy environmentally seals the display
Soldering and Post Solder Cleaning
Instructions for the HDLX-2416
The HDLX-2416 may be hand soldered or wave soldered with
SN63 solder. When hand soldering it is recommended that an
electronically temperature controlled and securely grounded
soldering iron be used. For best results, the iron tip
temperature should be set at 315°C (600°F). For wave soldering,
a rosin-based RMA flux can be used. The solder wave
temperature should be set at 245°C ±5°C (473°F ±9°F), and
dwell in the wave should be set between 1.5 to 3 seconds for
optimum soldering. The preheat temperature should not
exceed 110°C (230°F) as measured on the solder side of the PC
board.
For further information on soldering and post solder cleaning,
see Application Note 1027, Soldering LED Components.
Contrast Enhancement
The objective of contrast enhancement is to provide good
readability in the end user’s ambient lighting conditions. The
concept is to employ both luminance and chrominance
contrast techniques. These enhance readability by having the
OFF-dots blend into the display background and the ON-dots
vividly stand out against the same background. For additional
information on contrast enhancement, see Application Note
1015.
Broadcom
- 16 -
HDLx-2416 Series
Data Sheet
Intensity Bin Limits for
HDLS-2416
Intensity Bin Limits for
HDLX-2416
Color Bin Limits
Color Range (nm)
Intensity Range (mcd)
Intensity Range (mcd)
Bin
Color
Bin
Min.
Bin
Min.
Max.
Min.
Max.
Yellow
Max.
3
581.5
585.0
E
3.97
6.79
A
1.20
1.77
4
584.0
587.5
F
5.55
9.50
B
1.25
2.47
5
586.5
590.0
G
7.78
13.30
C
2.02
3.46
6
589.0
592.5
H
10.88
18.62
D
2.83
4.85
1
576.0
580.0
I
15.24
26.07
E
3.97
6.79
2
573.0
577.0
J
21.33
36.49
F
5.55
9.50
3
570.0
574.0
G
7.78
13.30
4
567.0
571.5
NOTE
Test conditions as
specified in Optical
Characteristic table.
NOTE
Test conditions as
specified in Optical
Characteristic table.
Broadcom
- 17 -
Green
NOTE
Test conditions as
specified in Optical
Characteristic table.
For product information and a complete list of distributors, please go to our web
site: www.broadcom.com.
Broadcom, the pulse logo, Connecting everything, Avago Technologies, Avago,
and the A logo are among the trademarks of Broadcom and/or its affiliates in the
United States, certain other countries and/or the EU.
Copyright © 2017 by Broadcom. All Rights Reserved.
The term "Broadcom" refers to Broadcom Limited and/or its subsidiaries. For
more information, please visit www.broadcom.com.
Broadcom reserves the right to make changes without further notice to any
products or data herein to improve reliability, function, or design.
Information furnished by Broadcom is believed to be accurate and reliable.
However, Broadcom does not assume any liability arising out of the application
or use of this information, nor the application or use of any product or circuit
described herein, neither does it convey any license under its patent rights nor
the rights of others.
AV02-0662EN – May 15, 2017
工商网监
湘ICP备2023018690号
