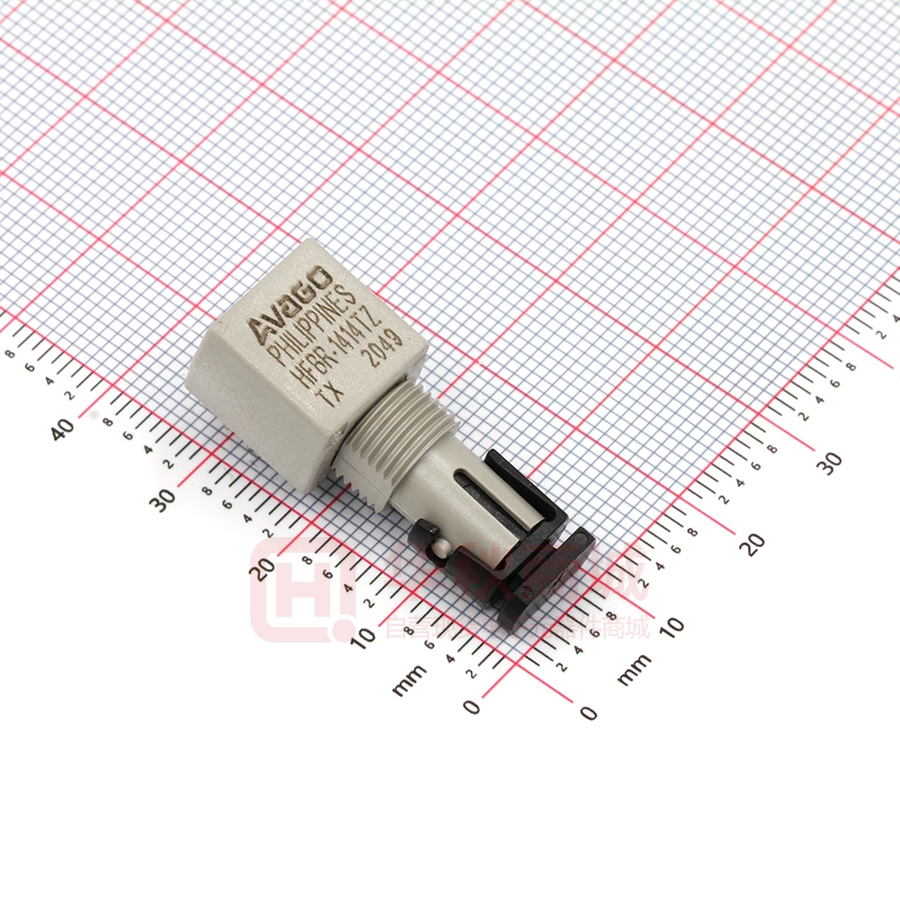

HFBR-1414TZ

HFBR-14xxZ and HFBR-24xxZ Series Low-Cost, 820 nm Miniature Link Fiber Optic Components with ST®, SMA, SC and FC Ports Data Sheet Description Features The 820 nm Miniature Link Series of components is designed to provide cost-effective, high performance fiber optic communication links for information systems and industrial applications with link distances of several kilometers. With the HFBR-24x6Z, the 125 MHz analog receiver, data rates of up to 160 MBd can be attained. • RoHS compliant • Meets IEEE 802.3 Ethernet and 802.5 token ring standards • Meets TIA/EIA-785 100Base-SX standard • Low-cost transmitters and receivers • Choice of ST®, SMA, SC or FC ports • 820 nm wavelength technology • Signal rates up to 160 MBd • Link distances up to several kilometers • Compatible with 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm Plastic-Clad Silica (PCS) Fiber • Repeatable ST connections within 0.2 dB typical • Unique optical port design for efficient coupling • Pick and place, and wave solderable • No board mounting hardware required • Wide operating temperature range -40 °C to +85 °C • Conductive port option Transmitters and receivers are directly compatible with popular “industry-standard” connectors: ST®, SMA, SC and FC. They are completely specified with multiple fiber sizes; including 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm. Products are available in various options. For example, transmitters with the improved protection option “P” show an increased ESD resistance to the pins. This “HFBR-141xPxZ” integrated solution is realized by including a Zener diode parallel to the LED. The HFBR-14x4Z high power transmitter and HFBR-24x6Z 125 MHz receiver pair up to provide a duplex solution optimized for 100 Base-SX. 100Base-SX is a Fast Ethernet Standard (100 Mbps) at 850 nm on multimode fiber. Evaluation kits are available for ST products, including transmitter, receiver, eval board and technical literature. ST® is a registered trademark of AT&T. Applications • 100Base-SX Fast Ethernet on 850 nm • Media/fiber conversion, switches, routers, hubs and NICs on 100Base-SX • Local area networks • Computer-to-peripheral links • Computer monitor links • Digital cross connect links • Central office switch/PBX links • Video links • Modems and multiplexers • Suitable for Tempest systems • Industrial control links Part Number Guide HFBR - x 4 x x aa Z 1 Transmitter 2 Receiver 4 820 nm Transmitter and Receiver products 0 SMA, housed 1 ST, housed 2 FC, housed E SC, housed RoHS Compliant P Protection improved option T Threaded port option C Conductive port receiver option M Metal port option 2 TX, standard power 4 TX, high power 2 RX, 5 MBd, TTL output 5 TX, high light output power 6 RX, 125 MHz, Analog Output Available Options HFBR-1402Z HFBR-1404Z HFBR-1412PTZ HFBR-1412PZ HFBR-1412TMZ HFBR-1412TZ HFBR-1412Z HFBR-1414PTZ HFBR-1414PZ HFBR-1414MZ HFBR-1414TZ HFBR-1414Z HFBR-1415TZ HFBR-1415Z HFBR-1424Z HFBR-14E4Z HFBR-2402Z HFBR-2406Z HFBR-2412TCZ HFBR-2412TZ HFBR-2412Z HFBR-2416MZ HFBR-2416TCZ HFBR-2416TZ HFBR-2416Z HFBR-2422Z HFBR-24E2Z HFBR-24E6Z Note: For better readability of the electrical and optical specifications, all available options (P, T, C and M) are covered by the “HFBR-x4xxZ” product name; exceptions are explicitly noted. Link Selection Guide Data rate (MBd) Distance (m) Transmitter Receiver Fiber Size (µm) Evaluation Kit 5 1500 HFBR-14x2Z HFBR-24x2Z 62.5/125 HFBR-0410Z 20 2700 HFBR-14x4Z/14x5Z HFBR-24x6Z 62.5/125 HFBR-0416Z 32 2200 HFBR-14x4Z/14x5Z HFBR-24x6Z 62.5/125 HFBR-0416Z 55 1400 HFBR-14x4Z/14x5Z HFBR-24x6Z 62.5/125 HFBR-0416Z 125 700 HFBR-14x4Z/14x5Z HFBR-24x6Z 62.5/125 HFBR-0416Z 155 600 HFBR-14x4Z/14x5Z HFBR-24x6Z 62.5/125 HFBR-0416Z 160 500 HFBR-14x4Z/14x5Z HFBR-24x6Z 62.5/125 HFBR-0416Z For additional information about specific links, see the individual link descriptions. The HFBR-1415Z can be used for increased power budget or for lower driving current for the same Data-Rates and Link-Distances. 2 Options In addition to the various port styles available for the HFBR- 0400Z series products, there are also several extra options that can be ordered. To order an option, simply place the corresponding option number at the end of the part number. See page 2 for available options. Option P (Protection improved option) • Designed to withstand electrostatic discharge (ESD) of 2 kV (HBM) to the pins • Available on TX with non-conductive ST and non-conductive threaded ST ports Option T (Threaded Port Option) • Allows ST style port components to be panel mounted • Compatible with all current makes of ST® multimode connectors • Mechanical dimensions are compliant with MIL-STD- 83522/13 • Maximum wall thickness when using nuts and washers from the HFBR-4411Z hardware kit is 2.8 mm (0.11 inch) • Available on all ST ports Option C (Conductive Port Receiver Option) • Designed to withstand electrostatic discharge (ESD) of 25 kV to the optical port • Significantly reduces effect of electromagnetic interference (EMI) on receiver sensitivity • Allows designer to separate the signal and conductive port grounds • Recommended for use in noisy environments • Available on threaded ST port style receivers only • The conductive port is connected to Pins 1, 4, 5 and 8 through the Port Grounding Path Insert Option M (Metal Port Option) • Nickel plated aluminum connector receptacle • Designed to withstand electrostatic discharge (ESD) of 15 kV to the optical port • Significantly reduces effect of electromagnetic interference (EMI) on receiver sensitivity • Allows designer to separate the signal and metal port grounds • Recommended for use in very noisy environments • Available on ST and threaded ST ports • The metal port is connected to Pins 1, 4, 5 and 8 through the Port Grounding Path Insert 3 Applications Support Guide This section gives the designer information necessary to use the 820 nm Miniature Link Series components to make a functional optical transmission link. Avago offers evaluation kits for hands-on experience with fiber optic products as well as a wide range of application notes complete with circuit diagrams and board layouts. Furthermore, Avago’s application support group is always ready to assist with any design consideration. Application Literature Title Description Application Note 1065 Complete Solutions for IEEE 802.5J Fiberoptic Token Ring Application Note 1121 DC to 32 MBd Fiberoptic Solutions Application Note 1122 2 to 70 MBd Fiberoptic Solutions Application Note 1123 20 to 160 MBd Fiberoptic Solutions Application Note 1137 Generic Printed Circuit Layout Rules Evaluation Kits Avago offers fiber optic kits that facilitate a simple means to evaluate and experience our products. These fiber optic kits contain all the components and tools required for customers to quickly evaluate and access the value of our products within their respective applications. HFBR-0410Z ST Evaluation Kit HFBR-0416Z Evaluation Kit Contains the following: Contains the following: • • • • • • • • DC to 5 MBd 820 nm Fiber Optic Eval Kit 4 One HFBR-1412Z transmitter One HFBR-2412Z receiver Eval board Related literature 125 MBd 820 nm Fiber Optic Eval Kit One HFBR-1414Z transmitter One HFBR-2416Z receiver Eval board Related literature Package and Handling Information Package Information All transmitters and receivers of the 820 nm Miniature Link Series are housed in a low-cost, dual-inline package that is made of high strength, heat resistant, chemically resistant, and UL 94V-O flame retardant plastic (UL File #E121562). The transmitters are easily identified by the light grey color connector port. The receivers are easily identified by the dark grey color connector port. (Black color for conductive port). The package is designed for pick and place and wave soldering so it is ideal for high volume production applications. Handling and Design Information Each part comes with a protective port cap or plug covering the optics. Note: This plastic or rubber port cap is made to protect the optical path during assembly. It is not meant to remain on the part for a long period. These caps/plugs will vary by port style. When soldering, it is advisable to leave the protective cap on the unit to keep the optics clean. Good system performance requires clean port optics and cable ferrules to avoid obstructing the optical path. Clean compressed air often is sufficient to remove particles of dirt; methanol on a cotton swab also works well. 5 Recommended Chemicals for Cleaning/Degreasing 820 nm Miniature Link Products Alcohols: methyl, isopropyl, isobutyl. Aliphatics: hexane, heptane, Other: soap solution, naphtha. Do not use partially halogenated hydrocarbons (such as 1.1.1 trichloroethane), ketones (such as MEK), acetone, chloroform, ethyl acetate, methylene dichloride, phenol, methylene chloride, or N-methylpyrolldone. Also, Avago does not recommend the use of cleaners that use halogenated hydrocarbons because of their potential environmental harm. Mechanical Dimensions - SMA Port HFBR-x40xZ 12.7 (0.50) Rx/Tx COUNTRY OF ORIGIN A YYWW HFBR-X40XZ 1/4 - 36 UNS 2A THREAD 22.2 (0.87) 6.35 (0.25) 12.7 (0.50) 6.4 (0.25) DIA. 3.81 (0.15) 5 2.54 (0.10) 6 4 10.2 (0.40) 8 2 7 1 PINS 2,3,6,7 0.46 DIA. (0.018) 5.1 (0.20) 1.27 (0.05) 2.54 (0.10) 3 PINS 1,4,5,8 0.51 X 0.38 (0.020 X 0.015) 3.6 (0.14) PIN NO. 1 INDICATOR Dimensions in mm (inches) Mechanical Dimensions - ST Port 12.7 (0.50) Rx/Tx COUNTRY OF ORIGIN A YYWW HFBR-X41XZ HFBR-x41xZ 4.9 max. (0.193) 8.2 (0.32) 27.2 (1.07) 6.35 (0.25) 12.7 (0.50) 7.0 DIA. (0.28) 3.81 (0.15) 4 5 3 6 1 8 PINS 2,3,6,7 0.46 ∅ (0.018) Dimensions in mm (inches) 6 5.1 (0.20) 1.27 (0.05) 2.54 (0.10) 2 7 PINS 1,4,5,8 0.51 X 0.38 (0.020 X 0.015) 2.54 (0.10) 3.6 (0.14) PIN NO. 1 INDICATOR 10.2 (0.40) Mechanical Dimensions - Metal ST Port HFBR-x41xMZ 12.7 (0.50) Rx/Tx COUNTRY OF ORIGIN A YYWW HFBR-x41xMZ 4.9 MAX. (0.193) 8.4 (0.33) 27.2 (1.07) 6.35 (0.25) 12.7 (0.50) 7.0 DIA. (0.28) 3.81 (0.15) 3.6 (0.14) 5.1 (0.20) 1.27 (0.05) 2.54 (0.10) 7 6 2 3 4 5 2.54 (0.10) 1 8 PINS 1,4,5,8 0.51 × 0.38 (0.020 × 0.015) PINS 2,3,6,7 0.46 DIA. (0.018) DIA. 10.2 (0.40) PIN NO. 1 INDICATOR Dimensions in mm (inches) Mechanical Dimensions - Threaded ST Port HFBR-x41xTZ 12.7 (0.50) 4.9 MAX. (0.193) Rx/Tx COUNTRY OF ORIGIN A YYWW HFBR-x41xTZ 5.1 (0.20) 8.4 (0.33) 27.2 (1.07) 7.6 (0.30) 6.35 (0.25) 12.7 (0.50) 7.1 DIA. (0.28) 2.54 DIA. (0.10) 4 5 2 3 7 6 PIN NO. 1 INDICATOR Dimensions in mm (inches) 7 1.27 (0.05) 2.54 (0.10) 1 8 PINS 2,3,6,7 0.46 DIA. (0.018) 5.1 (0.20) 3/8 - 32 UNEF - 2A 3.81 (0.15) PINS 1,4,5,8 0.51 × 0.38 (0.020 × 0.015) 3.6 (0.14) 10.2 (0.40) Mechanical Dimensions - FC Port HFBR-x42xZ 12.7 (0.50) Rx/Tx COUNTRY OF ORIGIN A YYWW HFBR-X42XZ M8 x 0.75 6G THREAD (METRIC) 19.6 (0.77) 12.7 (0.50) 7.9 (0.31) 3.6 (0.14) 5.1 (0.20) 10.2 (0.40) 3.81 (0.15) PINS 1,4,5,8 0.51 X 0.38 (0.020 X 0.015) 2 3 7 6 4 5 2.54 (0.10) PINS 2,3,6,7 ∅ 0.46 (0.018) 1 8 2.54 (0.10) PIN NO. 1 INDICATOR Dimensions in mm (inches) Mechanical Dimensions - SC Port Rx/Tx COUNTRY OF ORIGIN A YYWW HFBR-X4EXZ HFBR-x4ExZ 28.65 (1.128) 6.35 (0.25) 12.7 (0.50) 10.0 (0.394) Dimensions in mm (inches) 8 1.27 (0.05) 2.54 (0.10) 3 4 5 7 6 8 2.54 (0.10) 2 PINS 1,4,5,8 0.51 × 0.38 (0.020 × 0.015) PINS 2,3,6,7 ∅ 0.46 (0.018) 5.1 (0.20) 15.95 (0.628) 1 3.81 (0.15) 10.38 (0.409) 3.60 (0.14) 12.7 (0.50) PIN NO. 1 INDICATOR Cross-Sectional View LED OR DETECTOR IC LENS–SPHERE (ON TRANSMITTERS ONLY) HOUSING LENS–WINDOW CONNECTOR PORT HEADER EPOXY BACKFILL PORT GROUNDING PATH INSERT Figure 1. HFBR-x41xTZ ST Series Cross-Sectional View Panel Mount Hardware HFBR-4401Z: for SMA Ports HFBR-4411Z: for ST Ports 1/4 - 36 UNEF 2B THREAD PART NUMBER 3/8 - 32 UNEF 2B THREAD 0.2 IN. 7.87 DIA. (0.310) HEX-NUT 12.70 DIA. (0.50) 1.65 (0.065) HEX-NUT 0.14 (0.005) WASHER 14.27 TYP. (0.563) DIA. 10.41 MAX. (0.410) DIA. WASHER (Each HFBR-4401Z and HFBR-4411Z kit consists of 100 nuts and 100 washers). Dimensions in mm (inches) Port Cap Hardware HFBR-4402Z: 500 SMA Port Caps HFBR-4120Z: 500 ST Port Plugs 9 1.65 (0.065) 3/8 - 32 UNEF 2A THREADING 1 THREAD AVAILABLE 7.87 TYP. (0.310) DIA. 6.61 DIA. (0.260) Rx/Tx COUNTRY OF ORIGIN A YYWW HFBR-X40XZ DATE CODE 0.46 (0.018) WALL NUT WASHER Typical Link Data The following technical data is taken from 5MBd and 155MBd link using the 820nm Miniature Link Series. This data is meant to be regarded as an example of typical link performance for a given design and does not call out any link limitations. 5 MBd Link (HFBR-14xxZ/24x2Z) Link Performance -40 °C to +85 °C unless otherwise specified Parameter Symbol Min. Typ. Optical Power Budget with 50/125 µm fiber OPB50 4.2 Optical Power Budget with 62.5/125 µm fiber OPB62.5 Optical Power Budget with 100/140 µm fiber Optical Power Budget with 200 µm fiber Units Conditions Reference 9.6 dB HFBR-14x4Z/24x2Z NA = 0.2 Note 1 8.0 15 dB HFBR-14x4Z/24x2Z NA = 0.27 Note 1 OPB100 8.0 15 dB HFBR-14x2Z/24x2Z NA = 0.30 Note 1 OPB200 13.0 20 dB HFBR-14x2Z/24x2Z NA = 0.37 Note 1 Data Rate dc Max. 5 MBd Propagation Delay LOW to HIGH tPLH 72 ns Propagation Delay HIGH to LOW tPHL 46 ns System Pulse Width Distortion tPLH tPHL 26 ns Bit Error Rate BER Notes: 1. 2. 10 10-9 Note 2 TA = +25 °C PR = -21 dBm peak Fiber cable length =1m Data rate < 5 MBd PR > -24 dBm peak Optical Power Board at TA = -40 to +85 °C, VCC = 5.0 V dc, IF ON = 60 mA. PR = -24 dBm peak. Data rate limit is based on these assumptions: a. 50% duty factor modulation, e.g., Manchester I or BiPhase Manchester II b. Continuous data c. PLL Phase Lock Loop demodulation d. TTL threshold. Figures 6, 7, 8 5 MBd Logic Link Design The resistor R1 is the only significant element in the drive circuit (see Figure 2) that limits the current through the LED, apart from the gate´s output port. Depending on the actual gate used, the voltage drop on the output port Vport could be neglected. The forward voltage value, VF, of the LED depends on the desired LED current and on the temperature (see Figure 9). Make sure you take this behavior into account for the calculations. The curves in Figure 3, Figure 4, and Figure 5 are constructed assuming no inline splice or any additional system loss. Besides fiber attenuation, for correct power budget calculation, make sure you take into account the effect of bending, humidity, ambient temperature, aging and other relevant influences. All these additional losses reduce the achievable link distance accordingly. For calculating the LED´s aging effect, an additional loss of about 1.5 dB is recognized. The following example will illustrate the technique for selecting the appropriate value of IF and R1: R1 = VCC - VF IF Maximum distance required = 2000 meters by using HFBR-14x4Z/24x2Z logic link with 62.5/125 µm fiber. Figure 4 shows the “worst-case” drive current of about 43 mA for reaching a distance of about 2000 meters. Figure 9 shows the transmitter forward voltage of about VF = 1.62 V. If the typical circuit configuration (Figure 2) is used at Vcc = 5.0 V, the resistor value “R1” should be choosen to 78.6 Ω (3.38 V/43 mA) for reaching driver current of about 43 mA. Page 16 shows the guaranteed HFBR-14x4Z´s optical output power limit of -16.0 dBm (for driver current of 60 mA) over the entire temperature range. Figure 10 shows the normalized typical output power. When the transmitter will be driven with 43 mA the optical output power is about 0.70 or -1.55 dB lower than at 60 mA. With an assumed fiber attenuation of 3.2 dB/km and the reduced driver current of 43 mA, the minimum optical output power at fiber end is about -24 dBm, which is equal to the receiver sensitivity over the entire temperature range. For balancing the individual additional system losses, the driver current must be increased accordingly. +5 V R1 1K IF 2 6 7 3 TTL DATA OUT HFBR-24x2Z RECEIVER HFBR-14xxZ TRANSMITTER SELECT R1 TO SET IF 2 T R 6 7&3 RL VCC 0.1 µF DATA IN ½ 75451 TRANSMISSION DISTANCE = Note: A bypass capacitor (0.01 µF to 0.1 µF ceramic) must be connected from pin 2 to pin 7 of the receiver. Total lead length between both ends of the capacitor and the pins should not exceed 20 mm. Figure 2. Typical Circuit Configuration The following diagrams (Figure 3 to Figure 5) serve as an aid in Link Design and are based on theoretical calculations. For broad use, no additional effects such as aging were taken into account. The additional losses and the individual safety buffer values should be added separately. These diagrams reflect the pure viewing of power budget and do not allows conclusions about the actual link quality. 11 Overdrive: Maximum optical output power of Tx combined with receiver sensitivity of -10 dBm over the entire temperature range. Typical 25 °C: Typical optical output power of Tx combined with receiver sensitivity of -25.4 dBm at TA = 25 °C. Worst Case: Minimum optical output power of Tx combined with receiver sensitivity of -24 dBm over the entire temperature range. 100 90 90 80 Typical Transmitter current (mA) Typical Transmitter current (mA) 100 OVERDRIVE Worst Case TYPICAL, 25 °C 70 60 50 40 30 20 10 0 0 1 2 3 Fiber Length (km) (Fiber Attenuation: 4 dB/km) 70 OVERDRIVE Worst Case TYPICAL, 25 °C 60 50 40 30 20 10 0 4 Figure 3. Typical HFBR-14x4xZ/HFBR-24x2xZ Link with 100/140 µm Fiber 80 0 1 2 3 Fiber Length (km) (Fiber Attenuation: 3.2 dB/km) 4 Figure 4. Typical HFBR-14x4xZ/HFBR-24x2xZ Link with 62.5/125 µm Fiber 100 Typical Transmitter current (mA) 90 Worst Case TYPICAL, 25 °C 80 70 60 50 40 30 20 10 0 0 1 2 3 4 Fiber Length (km) (Fiber Attenuation: 2.7 dB/km) Figure 5. Typical HFBR-14x4xZ/HFBR-24x2xZ Link with 50/125 µm Fiber 55 75 tPLH (TYP) @ 25°C 65 50 60 tD – NRZ DISTORTION – ns tPLH OR tPHL - PROPOGATION DELAY –ns 70 55 50 45 tPHL (TYP) @ 25°C 40 35 30 45 40 35 30 25 25 20 20 -22 -21 -20 -19 -18 -17 -16 -15 -14 -13 -12 PR – RECEIVER POWER – dBm Figure 6. Typical Propagation Delay Times of Link (HFBR-14x4Z/HFBR-24x2Z) measured at TA=25°C, 5 MBd and with 1 m of Cable 12 -22 -21 -20 -19 -18 -17 -16 -15 -14 -13 -12 PR – RECEIVER POWER – dBm Figure 7. Typical Pulse Width Distortion of Link (HFBR-14x4Z/HFBR-24x2Z) measured at TA=25 °C, 5 MBd and with 1 m of Cable PULSE GEN +15 V ½ 75451 RS 1N4150 2, 6, 7 RS RESISTOR VALUE AS NEEDED FOR SETTING OPTICAL POWER OUTPUT FROM RECEIVER END OF TEST CABLE 100 ns INPUT IF 3 INPUT (IF) FROM 1-METER PT - TEST CABLE +5 V RL 560 6 0.1 µF 7&3 OUTPUT + 15 pF 100 ns 50% tPHLT tPHLT TRANSMITTER 2 PULSE REPETITION FREQ = 1 MHz PT 50% TIMING ANALYSIS EQUIPMENT eg. SCOPE VO tPHL MAX VO tPHL MIN tPHL MAX tPHL MIN 5V 1.5 V 0 HFBR-2412Z RECEIVER Figure 8. System Propagation Delay Test Circuit and Waveform Timing Definitions 155 MBd Link (HFBR-14x4Z/24x6Z) Typical Link Performance Typ. [1, 2] Max. Units Conditions Reference OPB50 13.9 dB NA = 0.2 Note 2 Optical Power Budget with 62.5/125 µm fiber OPB62 17.7 dB NA = 0.27 Optical Power Budget with 100/140 µm fiber OPB100 17.7 dB NA = 0.30 Optical Power Budget with 200 µm PCS fiber OPB200 22.0 dB NA = 0.35 Parameter Symbol Optical Power Budget with 50/125 µm fiber Data Format 20% to 80% Duty Factor Min. 20 160 System Pulse Width Distortion |tPLH - tPHL| 1 Bit Error Rate BER 10-9 Notes: MBd ns PR = -7 dBm peak 1 m 62.5/125 µm fiber Data rate < 100 MBd PR > -31 dBm peak Note 2 1. Typical data at TA = +25 °C, VCC = 5.0 Vdc, PECL serial interface. 2. Typical OPB was determined at a probability of error (BER) of 10-9. Lower probabilities of error can be achieved with short fibers that have less optical loss. 13 HFBR-14x2Z/14x4Z/14x5Z Low-Cost High-Speed Transmitters Housed Product Description The HFBR-14xxZ fiber optic transmitter contains an 820 nm AlGaAs emitter capable of efficiently launching optical power into four different optical fiber sizes: 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm Plastic-Clad Silica (PCS). This allows the designer flexibility in choosing the fiber size. The HFBR-14xxZ is designed to operate with the Avago Technologies HFBR-24xxZ fiber optic receivers. The HFBR-14xxZ transmitter’s high coupling efficiency allows the emitter to be driven at low current levels resulting in low power consumption and increased reliability of the transmitter. The HFBR-14x4Z high power transmitter is optimized for small size fiber and typically can launch -15.8 dBm optical power at 60 mA into 50/125 µm fiber and -12 dBm into 62.5/125 µm fiber. The HFBR14x2Z standard transmitter typically can launch -12 dBm of optical power at 60 mA into 100/140 µm fiber cable. It is ideal for large size fiber such as 100/140 µm. The high launched optical power level is useful for systems where star couplers, taps, or inline connectors create large fixed losses. ANODE PIN 11 2 32 41 51 6 72 81 2, 6, 7 CATHODE 3 4 3 2 1 BOTTOM VIEW 5 6 7 8 FUNCTION NC ANODE CATHODE NC NC ANODE ANODE NC PIN 1 INDICATOR NOTES: 1. PINS 1, 4, 5 AND 8 ARE ELECTRICALLY CONNECTED. 2. PINS 2, 6 AND 7 ARE ELECTRICALLY CONNECTED TO THE HEADER. Consistent coupling efficiency is assured by the doublelens optical system (Figure 1 on page 9). Power coupled into any of the three fiber types varies less than 5 dB from part to part at a given drive current and temperature. Consistent coupling efficiency reduces receiver dynamic range requirements, which allows for longer link lengths. For 820 nm Miniature Link transmitters with protection improved option “P” a Zener diode parallel to the LED was implemented. Therefore, a higher ESD capability could be attained. Note: Parameters “reverse input voltage” and “diode capacitance” for “HFBR-141xPxZ” transmitters deviate from the non P-parts. Regulatory Compliance - Targeted Specifications Feature Performance Reference Electrostatic Discharge (ESD) Class 1B (>500 V, 100 mA, the time duration should not exceed 2 ns. Only valid for HFBR-141xPxZ (Protection improved option). Note 3 Electrical/Optical Specifications -40 °C to +85 °C unless otherwise specified. Parameter Symbol Min. Typ. [2] Max. Units Conditions Reference Forward Voltage VF 1.48 1.70 V IF = 60 mA dc Figure 9 2.09 1.84 Forward Voltage Temperature Coefficient DVF/DT Reverse Input Voltage VBR IF = 100 mA dc -0.22 mV/K -0.18 IF = 60 mA dc IF = 100 mA dc 1.8 3.8 V IF = -100 µA dc 0.3 0.7 V IF = -100 µA dc 792 820 Peak Emission Wavelength lP Diode Capacitance CT Optical Power Temperature Coefficient DPT/DT Thermal Resistance qJA 490 14x2Z Numerical Aperture NA 0.49 14x4Z Numerical Aperture NA 0.31 14x2Z Optical Port Diameter D 14x4Z Optical Port Diameter D Figure 9 865 Note 10 nm 55 pF V = 0, f = 1 MHz 70 pF V = 0, f = 1 MHz -0.006 dB/K I = 60 mA dc -0.010 Note 10 I = 100 mA dc K/W Notes 3, 8 290 µm Note 4 150 µm Note 4 HFBR-14x2Z Output Power Measured Out of 1 Meter of Cable Parameter Symbol Min. Typ. Max. Units Conditions Reference 50/125 mm Fiber Cable PT50 -18.8 -16.8 dBm peak TA = +25 °C, IF = 60 mA Notes 5, 6, 9 -15.8 dBm peak TA = -40 °C to +85 °C, IF = 60 mA -14.4 dBm peak TA = +25 °C, IF = 100 mA -13.8 dBm peak TA = -40 °C to +85 °C, IF = 100 mA -14.0 dBm peak TA = +25 °C, IF = 60 mA -13.0 dBm peak TA = -40 °C to +85 °C, IF = 60 mA -11.6 dBm peak TA = +25 °C, IF = 100 mA -11.0 dBm peak TA = -40 °C to +85 °C, IF = 100 mA -10 dBm peak TA = +25 °C, IF = 60 mA -9.0 dBm peak TA = -40 °C to +85 °C, IF = 60 mA -7.6 dBm peak TA = +25 °C, IF = 100 mA -7.0 dBm peak TA = -40 °C to +85 °C, IF = 100 mA -5.0 dBm peak TA = +25 °C, IF = 60 mA -4.0 dBm peak TA = -40 °C to +85 °C, IF = 60 mA -2.6 dBm peak TA = +25 °C, IF = 100 mA -2.0 dBm peak TA = -40 °C to +85 °C, IF = 100 mA -21.8 -22.8 -20.3 -16.8 -21.9 62.5/125 mm Fiber Cable PT62 -19.0 -16.0 -20.0 -17.5 -14.0 -19.1 100/140 mm Fiber Cable PT100 -15.0 -12.0 -16.0 -13.5 -10.0 -15.1 200 mm PCS Fiber Cable PT200 -10.0 -7.0 -11.0 -8.5 -10.1 -5.0 Figure 10 CAUTION: The small junction sizes inherent to the design of these components increase the components’ susceptibility to damage from electrostatic discharge (ESD). It is advised that normal static precautions be taken in handling and assembly of these components to prevent damage and/or degradation which may be induced by ESD. 15 HFBR-14x4Z Output Power Measured out of 1 Meter of Cable Parameter Symbol Min. Typ. [2] Max. Units Conditions Reference 50/125 µm Fiber Cable NA = 0.2 PT50 -15.8 -13.8 dBm peak TA = +25 °C, IF = 60 mA Notes 5, 6, 9 -12.8 dBm peak TA = -40 °C to +85 °C, IF = 60 mA -11.4 dBm peak TA = +25 °C, IF = 100 mA -10.8 dBm peak TA = -40 °C to +85 °C, IF = 100 mA -10.0 dBm peak TA = +25 °C, IF = 60mA -9.0 dBm peak TA = -40 °C to +85 °C, IF = 60 mA -7.6 dBm peak TA = +25 °C, IF = 100 mA -7.0 dBm peak TA = -40 °C to +85 °C, IF = 100 mA -6.5 dBm peak TA = +25 °C, IF = 60 mA -5.5 dBm peak TA = -40 °C to +85 °C, IF = 60 mA -4.1 dBm peak TA = +25 °C, IF = 100 mA -3.5 dBm peak TA = -40 °C to +85 °C, IF = 100 mA -2.5 dBm peak TA = +25 °C, IF = 60mA -1.5 dBm peak TA = -40 °C to +85 °C, IF = 60 mA -0.1 dBm peak TA = +25 °C, IF = 100 mA 0.5 dBm peak TA = -40 °C to +85 °C, IF = 100 mA -18.8 -19.8 -17.3 -13.8 -18.9 62.5/125 µm Fiber Cable PT62 NA = 0.275 -15.0 -12.0 -16.0 -13.5 -10.0 -15.1 100/140 µm Fiber Cable NA = 0.3 PT100 -11.5 -8.5 -12.5 -10.0 -6.5 -11.6 200 µm PCS Fiber Cable NA = 0.37 PT200 -7.5 -4.5 -8.5 -6.0 -2.5 -7.6 Figure 10 HFBR-14x5Z Output Power Measured out of 1 Meter of Cable Parameter Symbol Min. Typ. Max. Units Conditions Reference 50/125 µm Fiber Cable NA = 0.2 PT50 -14.3 -11.5 dBm peak TA = +25 °C, IF = 60 mA Notes 5, 6, 9 -10.5 dBm peak TA = -40 °C to 85 °C, IF = 60 mA 62.5/125 µm Fiber Cable NA = 0.275 PT62 -8.0 dBm peak TA = +25 °C, IF = 60 mA -7.0 dBm peak TA = -40 °C to 85 °C, IF = 60 mA 200 µm Fiber Cable NA = 0.37 PT200 0.0 dBm peak TA = +25 °C, IF = 60 mA 1.0 dBm peak TA = -40 °C to 85 °C, IF = 60 mA Conditions -16.5 -17.5 -12.0 -10.5 -13.0 -6.0 -3.6 -7.0 Figure 10 14x2Z/14x4Z/14x5Z Dynamic Characteristics Parameter Symbol Min. Typ. [2] Max. Units Rise Time, Fall Time (10% to 90%) tr, tf 4.0 6.5 ns IF = 60 mA No pre-bias Figure 11 Note 7 Rise Time, Fall Time (10% to 90%) tr, tf 3.0 ns Figure 12 Pulse Width Distortion PWD 0.5 ns Notes: 1. 2. 3. 4. 5. IF = 10 to 100 mA Reference Figure 12 For IFPK > 100 mA, the time duration should not exceed 2 ns. Typical data at TA = +25 °C. Thermal resistance is measured with the transmitter coupled to a connector assembly and mounted on a printed circuit board. D is measured at the plane of the fiber face and defines a diameter where the optical power density is within 10 dB of the maximum. PT is measured with a large area detector at the end of 1 meter of mode stripped cable, with an ST® precision ceramic ferrule (MILSTD83522/13) for HFBR-141xZ, and with an SMA 905 precision ceramic ferrule for HFBR-140xZ. 6. When changing mW to dBm, the optical power is referenced to 1 mW. Optical Power P(dBm) = 10log (P(mW) / 1mW) 7. Pre-bias is recommended if signal rate >10 MBd, see recommended drive circuit in Figure 11. 8. Pins 2, 6 and 7 are welded to the anode header connection to minimize the thermal resistance from junction to ambient. To further reduce the thermal resistance, the anode trace should be made as large as is consistent with good RF circuit design. 9. Fiber NA is measured at the end of 2 meters of mode stripped fiber, using the far-field pattern. NA is defined as the sine of the half angle, determined at 5% of the peak intensity point. When using other manufacturer’s fiber cable, results will vary due to differing NA values and specification methods. 10. Only valid for HFBR-141xPxZ (Protection improved option). 16 All HFBR-14XXZ LED transmitters are classified as IEC 825-1 Accessible Emission Limit (AEL) Class 1 based upon the current proposed draft scheduled to go in to effect on January 1, 1997. AEL Class 1 LED devices are considered eye safe. Contact your Avago Technologies sales representative for more information. CAUTION: The small junction sizes inherent to the design of these components increase the components’ susceptibility to damage from electrostatic discharge (ESD). It is advised that normal static precautions be taken in handling and assembly of these components to prevent damage and/or degradation which may be induced by ESD. Recommended Drive Circuits The circuit used to supply current to the LED transmitter can significantly influence the optical switching characteristics of the LED. The optical rise/fall times and propagation delays can be improved by using the appropriate circuit techniques. The LED drive circuit shown in Figure 11 uses frequency compensation to reduce the typical rise/fall times of the LED and a small pre-bias voltage to minimize propagation delay differences that cause pulse- RY (VCC - VF) + 3.97(VCC - VF - 1.6V) I F ON (A) RX1 = ( ) 1 RY 2 3.97 REQ2 ( Ω ) = RX1 - 1 RX2 = RX3 = RX4 = 3(REQ2) 2000 ps C(pF) = RX1( Ω ) width distortion. The circuit will typically produce rise/fall times of 3 ns, and a total jitter including pulse-width distortion of less than 1 ns. This circuit is recommended for applications requiring low edge jitter or high-speed data transmission at signal rates of up to 155 MBd. Component values for this circuit can be calculated for different LED drive currents using the equations shown as follows. Example for I F ON = 100 mA: VF can be obtained from Figure 9 ( = 1.84 V). RY = (5 - 1.84) + 3.97(5 - 1.84 - 1.6) 0.100 RY = 3.16 + 6.19 = 93.5 Ω 0.100 RX1 = ( ) 1 93.5 = 11.8 Ω 2 3.97 REQ2 = 11.8 - 1 = 10.8 Ω RX2 = RX3 = RX4 = 3 (10.8) = 32.4 Ω C= 17 2000 ps = 169 pF 11.8 Ω 90 1.8 FORWARD CURRENT (mA) 80 70 60 50 40 30 85°C 25°C - 40°C 20 10 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 1.6 2.0 1.4 1.2 0.8 0 1 -1.0 0.8 0.6 0.4 -4.0 0.2 -7.0 0 2.1 2.2 3.0 0 10 20 FORWARD VOLTAGE (V) + 2 1 +5 V 0.1 µF 4.7 µF Ry 12, 13 3 4, 5 15 16 14 R X2 R X1 R X3 C ¼ 74F3037 10 9 11 ¼ 74F3037 8 HFBR-14x2Z/x4Z/x5Z 5 7 R X4 ¼ 74F3037 Figure 11. Recommended Drive Circuit Agilent 81130A PULSE/PATTERN GENERATOR GND OUT SMA measuring cable (50 Ω) O/E CONVERTER Silicon PIN photo diode (50 Ω terminated) Figure 12. Test Circuit for Measuring tr, tf 18 80 90 100 Figure 10. Normalized Typical Transmitter Output vs. Forward Current Figure 9. Typical Forward Voltage and Current Characteristics ¼ 74F3037 30 40 50 60 70 FORWARD CURRENT (mA) P(If) - P(60mA) RELATIVE POWER RATIO (dB) 2 P(If) -P(60mA) - RELATIVE POWER RATIO 100 HIGH SPEED OSCILLOSCOPE (50 Ω terminated) HFBR-24x2Z Low-Cost 5 MBd Receiver Housed Product Description 2 6 The HFBR-24x2Z fiber optic receiver is designed to operate with the Avago Technologies HFBR-14xxZ fiber optic transmitter and 50/125 µm, 62.5/125 µm, 100/ 140 µm, and 200 µm Plastic-Clad Silica (PCS) fiber optic cable. Consistent coupling into the receiver is assured by the lensed optical system (Figure 1). Response does not vary with fiber size ≤ 0.100 µm. The HFBR-24x2Z receiver incorporates an integrated photo IC containing a photodetector and dc amplifier driving an open-collector Schottky output transistor. The HFBR-24x2Z is designed for direct interfacing to popular logic families. The absence of an internal pull-up resistor allows the open-collector output to be used with logic families such as CMOS requiring voltage excursions much higher than VCC. 7&3 4 3 2 1 BOTTOM VIEW Vcc DATA COMMON 5 6 7 8 PIN 11 2 32 41 51 6 72 81 PIN 1 INDICATOR NOTES: 1. PINS 1, 4, 5 AND 8 ARE ELECTRICALLY CONNECTED. 2. PINS 3 AND 7 ARE ELECTRICALLY CONNECTED TO THE HEADER. Both the open-collector “Data” output Pin 6 and VCC Pin 2 are referenced to “Com” Pin 3, 7. The “Data” output allows busing, strobing and wired “OR” circuit configurations. The transmitter is designed to operate from a single +5 V supply. It is essential that a bypass capacitor (100 nF ceramic) be connected from Pin 2 (VCC) to Pin 3 (circuit common) of the receiver. Absolute Maximum Ratings Parameter Symbol Min. Max. Units Storage Temperature TS -55 +85 °C Operating Temperature TA -40 +85 °C +260 10 °C sec 7.0 V 25 mA 18.0 V mW Lead Soldering Cycle Temp Time Supply Voltage VCC Output Current IO Output Voltage VO Output Collector Power Dissipation PO AV 40 Fan Out (TTL) N 5 Notes: 1. 2.0 mm from where leads enter case. 2. 8 mA load (5 x 1.6 mA), RL = 560 Ω. 19 -0.5 -0.5 FUNCTION NC V CC (5 V) COMMON NC NC DATA COMMON NC Reference Note 1 Note 2 Electrical/Optical Characteristics -40 °C to + 85 °C unless otherwise specified Fiber sizes with core diameter ≤ 100 µm and NA ≤ 0.35, 4.75 V ≤ VCC ≤ 5.25 V Parameter Symbol Min. Typ. [3] Max. Units Conditions High Level Output Current IOH 5 250 µA VO = 18, PR < -40 dBm Low Level Output Voltage VOL 0.4 0.5 V IO = 8 m, PR > -24 dBm High Level Supply Current ICCH 3.5 6.3 mA VCC = 5.25 V, PR < -40 dBm Low Level Supply Current ICCL 6.2 10 mA VCC = 5.25 V, PR > -24 dBm Equivalent NA NA 0.50 Optical Port Diameter D 400 µm Reference Note 4 Dynamic Characteristics -40 °C to + 85 °C unless otherwise specified; 4.75 V ≤ VCC ≤ 5.25 V; BER ≤ 10-9 Parameter Symbol Min. Peak Optical Input Power Logic Level HIGH PRH Peak Optical Input Power Logic Level LOW PRL Typ. [3] Max. Units Conditions Reference -40 0.1 dBm peak lP = 820 nm µW peak Note 5 -25.4 2.9 -9.2 120 dBm peak TA = +25 °C, µW peak IOL = 8 mA Note 5 -24.0 4.0 -10.0 100 dBm peak TA = -40 °C to +85 °C, µW peak IOL = 8 mA Propagation Delay LOW to HIGH tPLHR 65 ns Propagation Delay HIGH to LOW tPHLR 49 ns TA = +25 °C, PR = -21 dBm, Data Rate = 5 MBd Note 6 Notes: 1. 2. 3. 4. 2.0 mm from where leads enter case. 8 mA load (5 x 1.6 mA), RL = 560 Ω. Typical data at TA = +25 °C, VCC = 5.0 Vdc. D is the effective diameter of the detector image on the plane of the fiber face. The numerical value is the product of the actual detector diameter and the lens magnification. 5. Measured at the end of 100/140 µm fiber optic cable with large area detector. 6. Propagation delay through the system is the result of several sequentially-occurring phenomena. Consequently it is a combination of datarate-limiting effects and of transmission-time effects. Because of this, the data-rate limit of the system must be described in terms of time differentials between delays imposed on falling and rising edges. As the cable length is increased, the propagation delays increase at 5 ns per meter of length. Data rate, as limited by pulse width distortion, is not affected by increasing cable length if the optical power level at the receiver is maintained. CAUTION: The small junction sizes inherent to the design of these components increase the components’ susceptibility to damage from electrostatic discharge (ESD). It is advised that normal static precautions be taken in handling and assembly of these components to prevent damage and/or degradation which may be induced by ESD. 20 HFBR-24x6Z Low-Cost 125 MHz Receiver Description The HFBR-24x6Z fiber optic receiver is designed to operate with the Avago Technologies HFBR-14xxZ fiber optic transmitters and 50/ 125 µm, 62.5/125 µm, 100/140 µm and 200 µm Plastic-Clad Silica (PCS) fiber optic cable. Consistent coupling into the receiver is assured by the lensed optical system (Figure 1). Response does not vary with fiber size for core diameters of 100 µm or less. follower. Because the signal amplitude from the HFBR24x6Z receiver is much larger than from a simple PIN photodiode, it is less susceptible to EMI, especially at high signaling rates. For very noisy environments, the conductive or metal port option is recommended. A receiver dynamic range of 23 dB over temperature is achievable, assuming a Bit Error Rate (BER) of 10-9. The receiver output is an analog signal which allows follow-on circuitry to be optimized for a variety of distance/data rate requirements. Low-cost external components can be used to convert the analog output to logic compatible signal levels for various data formats and data rates up to 175 MBd. This distance/data rate tradeoff results in increased optical power budget at lower data rates which can be used for additional distance or splices. The frequency response is typically dc to 125 MHz. Although the HFBR-24x6Z is an analog receiver, it is compatible with digital systems. The HFBR-24x6Z receiver contains a PIN photodiode and low noise transimpedance preamplifier integrated circuit. The HFBR-24x6Z receives an optical signal and converts it to an analog voltage. The output is a buffered emitter 6 BIAS & FILTER CIRCUITS VCC POSITIVE SUPPLY The recommended ac coupled receiver circuit is shown in Figure 14. A10 Ω resistor must be connected between pin 6 and the power supply, and a 100 nF ceramic bypass capacitor must be connected between the power supply and ground. In addition, pin 6 should be filtered to protect the receiver from noisy host systems. Refer to AN 1065 for details. Housed Product 6 2 ANALOG SIGNAL 3&7V 300 pF EE 2 4 3 2 1 ANALOG VOUT SIGNAL 5 6 7 8 BOTTOM VIEW 5.0 mA 3, 7 VEE Figure 13. Simplified Schematic Diagram. Vcc NEGATIVE SUPPLY PIN 11 2 32 41 51 6 72 81 FUNCTION NC SIGNAL VEE NC NC VCC VEE NC PIN 1 INDICATOR NOTES: 1. PINS 1, 4, 5 AND 8 ARE ISOLATED FROM THE INTERNAL CIRCUITRY, BUT ARE CONNECTED TO EACH OTHER. 2. PINS 3 AND 7 ARE ELECTRICALLY CONNECTED TO THE HEADER. CAUTION: The small junction sizes inherent to the design of these components increase the components’ susceptibility to damage from electrostatic discharge (ESD). It is advised that normal static precautions be taken in handling and assembly of these components to prevent damage and/or degradation which may be induced by ESD. 21 Absolute Maximum Ratings Parameter Symbol Min. Max. Units Storage Temperature TS -55 +85 °C Operating Temperature TA -40 +85 °C +260 10 °C sec 6.0 V 25 mA VCC V Lead Soldering Cycle Temp Time Supply Voltage VCC Output Current IO Signal Pin Voltage VSIG -0.5 -0.5 Reference Note 1 Electrical/Optical Characteristics -40 °C to +85 °C; 4.75 V ≤ Supply Voltage ≤ 5.25 V, RLOAD = 511 Ω, Fiber sizes with core diameter ≤ 100 µm, and N.A. ≤ 0.35 unless otherwise specified. Parameter Symbol Min. Typ. [2] Max. Units Conditions Reference Responsivity RP 7 9.6 mV/µW TA = +25 °C @ 820 nm, 50 MHz 11.5 mV/µW TA= -40°C to +85°C @ 820nm, 50MHz Note 3, 4 Figure 18 0.59 mV Bandwidth filtered @ 75 MHz PR = 0 µW 0.70 mV Unfiltered bandwidth PR = 0 µW -41.4 0.065 dBm µW Bandwidth filtered @ 75 MHz -7.6 175 dBm peak µW peak TA = +25 °C -8.2 150 dBm peak µW peak TA = -40 °C to +85 °C 30 W Test Frequency = 50 MHz Vcc - 3.1 Vcc -2.4 V PR = 0 µW mA RLOAD = 510 W 5.3 4.5 RMS Output Noise Voltage VNO Equivalent Input Optical Noise Power (RMS) PN Optical Input Power (Overdrive) PR 0.40 -43.0 0.050 Output Impedance ZO dc Output Voltage VO dc Power Supply Current IEE 9 Equivalent NA NA 0.35 Equivalent Diameter D 324 Vcc - 4.2 15 µm Note 5 Figure 15 Note 6 Figure 16 Note 7 CAUTION: The small junction sizes inherent to the design of these components increase the components’ susceptibility to damage from electrostatic discharge (ESD). It is advised that normal static precautions be taken in handling and assembly of these components to prevent damage and/or degradation which may be induced by ESD. 22 Dynamic Characteristics -40 °C to +85 °C; 4.75 V ≤ Supply Voltage ≤ 5.25 V; RLOAD = 511 Ω, CLOAD = 5 pF unless otherwise specified Typ. [2] Max. Units Conditions Reference tr, tf 3.3 6.3 ns PR = 100 µW peak Figure 17 PWD 0.4 2.5 ns PR = 150 µW peak Note 8, Figure 16 2 % PR = 5 µW peak, tr = 1.5 ns Note 9 125 MHz -3 dB Electrical 0.41 Hz • s Note 10 Parameter Symbol Rise/Fall Time 10% to 90% Pulse Width Distortion Min. Overshoot Bandwidth (Electrical) BW Bandwidth - Rise Time Product Notes: 1. 2. 3. 4. 5. 6. 7. 2.0 mm from where leads enter case. Typical specifications are for operation at TA = +25 °C and VCC = +5 V dc. For 200 µm PCS fibers, typical responsivity will be 6 mV/mW. Other parameters will change as well. Pin #2 should be ac coupled to a load 510 Ω. Load capacitance must be less than 5 pF. Measured with a 3 pole Bessel filter with a 75 MHz, -3 dB bandwidth. Overdrive is defined at PWD = 2.5 ns. D is the effective diameter of the detector image on the plane of the fiber face. The numerical value is the product of the actual detector diameter and the lens magnification. 8. Measured with a 10 ns pulse width, 50% duty cycle, at the 50% amplitude point of the waveform. 9. Percent overshoot is defined as: (V ) − V 100% x 100% V 100% PK 10. The conversion factor for the rise time to bandwidth is 0.41 since the HFBR-24x6Z has a second order bandwidth limiting characteristic. 0.1 µF +5 V 10 Ω 6 30 pF 2 3&7 POST AMP LOGIC OUTPUT R LOADS 500 Ω MIN. Figure 14. Recommended AC Coupled Receiver Circuit CAUTION: The small junction sizes inherent to the design of these components increase the components’ susceptibility to damage from electrostatic discharge (ESD). It is advised that normal static precautions be taken in handling and assembly of these components to prevent damage and/or degradation which may be induced by ESD. 23 3.0 PWD – PULSE WIDTH DISTORTION – ns SPECTRAL NOISE DENSITY – nV/ H Z 150 125 100 75 50 25 0 0 50 100 150 200 250 2.5 2.0 1.5 1.0 0.5 0 300 0 FREQUENCY – MH Z 5.0 1.00 NORMALIZED RESPONSE t r, t f – RESPONSE TIME – ns 1.25 4.0 tf tr 2.0 -60 -40 -20 0 20 40 30 40 50 70 60 80 Figure 16. Typical Pulse Width Distortion vs. Peak Input Power 6.0 1.0 20 P R – INPUT OPTICAL POWER – µW Figure 15. Typical Spectral Noise Density vs. Frequency 3.0 10 60 80 100 TEMPERATURE – °C Figure 17. Typical Rise and Fall Times vs. Temperature For product information and a complete list of distributors, please go to our web site: 0.75 0.50 0.25 0 400 480 560 640 720 800 880 960 1040 λ – WAVELENGTH – nm Figure 18. Typical Receiver Spectral Response Normalized to 820 nm www.avagotech.com Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries. Data subject to change. Copyright © 2005-2013 Avago Technologies. All rights reserved. Obsoletes AV01-0264EN AV02-0176EN - December 9, 2013
