HLMP-Pxxx Series, HLMP-Qxxx Series,
HLMP-6xxx Series, HLMP-70xx Series
Subminiature LED Lamps
Data Sheet
Description
Features
Flat Top Package
Subminiature flat top package
The HLMP-Pxxx Series flat top lamps use an untinted, non
diffused, truncated lens to provide a wide radiation pattern
that is necessary for use in backlighting applications. The flat
top lamps are also ideal for use as emitters in light pipe
applications.
Dome Packages
—— Ideal for backlighting and light piping applications
Subminiature dome package
—— Diffused dome for wide viewing angle
—— Non-diffused dome for high brightness
TTL and LSTTL compatible 5V resistor lamps
Available in six colors
The HLMP-6xxx Series dome lamps for use as indicators use
a tinted, diffused lens to provide a wide viewing angle with a
high on-off contrast ratio. High brightness lamps use an untinted, nondiffused lens to provide a high luminous intensity
within a narrow radiation pattern.
Ideal for space limited applications
Axial leads
Available with lead configurations for surface mount
and through hole PCB mounting
Resistor Lamps
The HLMP-6xxx Series 5 volt subminiature lamps with built
in current limiting resistors are for use in applications where
space is at a premium.
Lead Configurations
All of these devices are made by encapsulating LED chips on
axial lead frames to form molded epoxy subminiature lamp
packages. A variety of package configuration options is
available. These include special surface mount lead configura
tions, gull wing, yoke lead or Z-bend. Right angle lead bends at
2.54 mm (0.100 inch) and 5.08 mm (0.200 inch) center spacing
are available for through hole mounting. For more information
refer to Standard SMT and Through Hole Lead Bend Options
for Subminiature LED Lamps data sheet.
Broadcom Confidential
-1-
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Device Selection Guide
Part Number: HLMP-xxxx
High
Efficiency
Red
Orange
Yellow
High Perf.
Green
Emerald
Green
Device
Description
Device
Outline
Drawing
P105
P205
P405
P305
P505
P605
Untinted, Non-diffused,
Flat Top
A
P102
P202
P402
P302
P502
Untinted, Diffused,
Flat Top
A
Q100
6300
Q400
6400
6500
Q600
Tinted, Diffused
B
Q105
6305
Q405
6405
6505
Q605
Untinted, Nondiffused,
High Brightness
B
Q150
7000
7019
7040
Tinted, Diffused, Low
Current
B
Nondiffused,
Low Current
B
6800
Tinted, Diffused, Resistor,
5V, 10 mA
B
6820
Diffused, Resistor, 5V,
4 mA
B
Standard
DH AS
Red
AlGaAs Red
P005
6000
Q155
6600
6620
6720
Package Dimensions
Flat Top Lamps
Diffused and Nondiffused
0.50 (0.020) REF.
0.50 (0.020) REF.
1.40 (0.055)
1.65 (0.065)
11.68 (0.460)
10.67 (0.420)
BOTH SIDES
11.68 (0.460)
10.67 (0.420)
BOTH SIDES
CATHODE
CATHODE
0.46 (0.018)
0.56 (0.022)
ANODE
0.46 (0.018)
0.56 (0.022)
ANODE
1.65 (0.065)
DIA.
1.91 (0.075)
0.20 (0.008) MAX.
1.65 (0.065)
DIA.
1.91 (0.075)
0.25 (0.010) MAX.
NOTE 2
0.20 (0.008) MAX.
2.21 (0.087)
1.96 (0.077)
1.14 (0.045)
1.40 (0.055)
0.18 (0.007)
0.23 (0.009)
0.25 (0.010) MAX.
NOTE 2
2.21 (0.087)
1.96 (0.077)
0.76 (0.030) R.
0.89 (0.035)
0.94 (0.037)
1.24 (0.049)
2.03 (0.080)
1.78 (0.070)
0.63 (0.025)
0.38 (0.015)
2.44 (0.096)
1.88 (0.074)
0.18 (0.007)
0.23 (0.009)
2.92 (0.115)
MAX.
0.79 (0.031) MAX.
0.79 (0.031)
0.53 (0.021)
2.08 (0.082)
2.34 (0.092)
0.63 (0.025)
0.38 (0.015)
2.08 (0.082)
2.34 (0.092)
CATHODE
STRIPE
CATHODE
STRIPE
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETRES (INCHES).
2. PROTRUDING SUPPORT TAB IS CONNECTED TO CATHODE LEAD.
3. LEAD POLARITY FOR AlGaAs LAMPS IS OPPOSITE TO THE LEAD
POLARITY OF SUBMINIATURE LAMPS USING OTHER TECHNOLOGIES.
Broadcom Confidential
-2-
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Figure 1: Proper Right Angle Mounting to a PCB to Prevent Protruding Cathode Tab from Shorting to Anode Connection
CATHODE
TAB
NO. ANODE DOWN.
YES. CATHODE DOWN.
Absolute MaximumHLMP-PXXX
Ratings
(TA = 25°C)
Anode/Cathode
Parameter
DC Forward Current[1]
Peak Forward Current[2]
Standard
Red
DH AS
AlGaAs
Red
High Eff.
Red
Orange
Yellow
High Perf.
Green
Emerald
Green
Unit
50
30
30
30
20
30
30
mA
1000
300
90
90
60
90
90
mA
6
6
6
V
DC Forward Voltage
(Resistor Lamps Only)
Reverse Voltage (IR = 100 µA)
Transient Forward Current
(10 µs Pulse)
6
5
5
5
5
5
5
5
V
2000
500
500
500
500
500
500
mA
–55 to +100
–40 to +100
–40 to +100
–20 to +100
Operating Temperature Range
Non-Resistor Lamps
Resistor Lamps
–55 to +100
–40 to +85
Storage Temperature Range
–55 to +100
For Thru Hole Devices:
Wave Soldering Temperature
[1.6 mm (0.063 in.) from body]
260°C for 5 seconds
For Surface Mount Devices:
Reflow Soldering Temperature
260°C for 20 seconds
–20 to +85
°C
Notes:
1. See Figure 5 for current derating vs. ambient temperature. Derating is not applicable to resistor lamps.
2. Refer to Figure 6 showing Max. Tolerable Peak Current vs. Pulse Duration to establish pulsed operating conditions.
3. The transient peak current is the maximum non-recurring peak current the device can withstand without failure. Do not operate these lamps at this high current.
Broadcom Confidential
-3-
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Electrical/Optical Characteristics (TA = 25°C)
Standard Red
Device
HLMP-
Parameter
Symbol

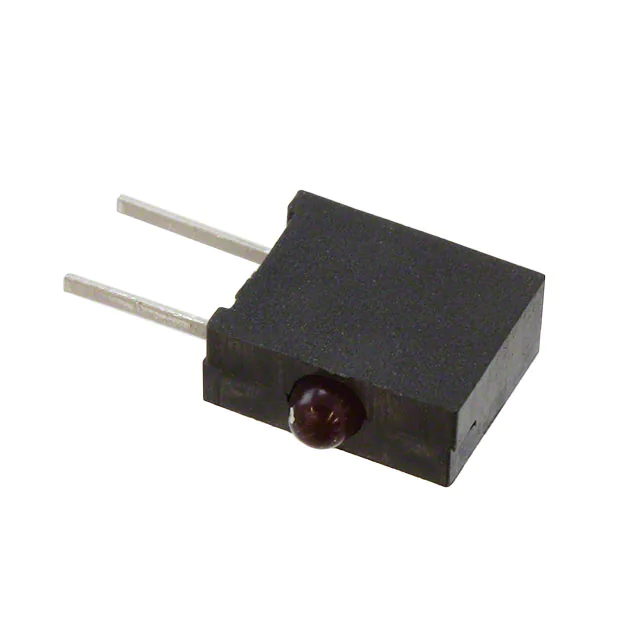

6000-E00xx
6000-G00xx
Luminous Intensity[1]
IV
P005-F00xx
All
6000
P005
All
Min.
Typ.
0.63
1.2
1.60
3.2
1.0
2.5
Forward Voltage
VF
1.4
1.6
Reverse Breakdown Voltage
VR
5.0
12.0
90
Max.
2.0
Unit
Test Conditions
mcd
IF = 10 mA
V
IF = 10 mA
V
IR = 100 µA
Included Angle Between
Half Intensity Points[2]
2θ½
Peak Wavelength
λPEAK
655
nm
Dominant Wavelength[3]
λd
640
nm
Spectral Line Half Width
Δλ1/2
24
nm
Speed of Response
τs
15
ns
Capacitance
C
100
pF
VF = 0; f = 1 MHz
Thermal Resistance
RθJ-PIN
170
°C/W
Junction-to-Cathode Lead
Luminous Efficacy[4]
ηv
65
lm/W
Broadcom Confidential
-4-
125
Deg.
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
DH AS AlGaAs Red
Device
HLMP-
Min.
Typ.
P102-F00xx
1.0
20.0
P105-L00xx
10.0
30.0
P105-NP000
25
Q100-M00xx
16
45
25.0
45.0
Q100-N00xx
Q100-PQ000
Parameter
Luminous Intensity[1]
Symbol
IV
40
Q105-ST000
160
Q150-F00xx
1.0
1.8
Q155-F00xx
1.0
4.0
Q150/Q155
All
VF
Reverse Breakdown Voltage
VR
5.0
P105
Q100/Q150
mcd
200
500
IF = 1 mA
1.8
2.2
1.6
1.8
15.0
V
V
IF = 20 mA
IF = 1 mA
IR = 100 µA
125
Included Angle Between
Half Intensity Points[2]
2θ½
Q105/Q155
90
Deg.
28
Peak Wavelength
All
Test Conditions
IF = 20 mA
125
40
Forward Voltage
Unit
80
Q105-P00xx
Q100
Max.
λPEAK
645
nm
Dominant Wavelength[3]
λd
637
nm
Spectral Line Half Width
Δλ1/2
20
nm
Speed of Response
τs
30
ns
Exponential Time Constant;
e-t/ts
Capacitance
C
30
pF
VF = 0; f = 1 MHz
Thermal Resistance
RθJ-PIN
170
°C/W
Luminous Efficacy[4]
ηv
80
lm/W
Broadcom Confidential
-5-
Measured at Peak
Junction-to-Cathode Lead
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
High Efficiency Red
Device
HLMP-
Min.
Typ.
P202-F00xx
1.0
5.0
P205-F00xx
1.0
8.0
6300-F00xx
1.0
10.0
6300-KL000
6305-L00xx
Parameter
Luminous Intensity[1]
Symbol
IV
6.3
Max.
Unit
Test Conditions
IF = 10 mA
20.0
mcd
10.0
40.0
7000-D00xx
0.4
1.0
IF = 2 mA
6600-G00xx
1.6
5.0
VF = 5.0V
6620-F00xx
1.0
2.0
1.5
1.8
3.0
9.6
13.0
3.5
5.0
All
6600
5620
All
Forward Voltage
(Nonresistor Lamps)
VF
Forward Current
(Resistor Lamps)
IF
Reverse Breakdown Voltage
VR
5.0
P205
6305
IF = 10 mA
mA
VF = 5.0V
V
IR = 100 µA
125
Included Angle Between
Half Intensity Points[2]
2θ½
All Diffused
28
Deg.
90
Peak Wavelength
All
30.0
V
λPEAK
635
nm
Dominant Wavelength[3]
λd
626
nm
Spectral Line Half Width
Δλ1/2
40
nm
Speed of Response
τs
90
ns
Capacitance
C
11
pF
Thermal Resistance
RθJ-PIN
170
°C/W
Luminous Efficacy[4]
ηv
145
lm/W
Broadcom Confidential
-6-
Measured at Peak
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Orange
Device
HLMP-
Min.
Typ.
P402-F00xx
1.0
4.0
P405-F00xx
1.0
6
P405-JK000
Parameter
Luminous Intensity
Symbol
IV
4.0
Q400-F00xx
1.0
8
Q405-H00xx
2.5
14
All
P40x
Q40x
All
Forward Voltage
VF
1.5
1.9
Reverse Breakdown Voltage
VR
5.0
30.0
125
Max.
Unit
12.5
mcd
IF = 10 mA
3.0
V
IF = 10 mA
V
IR = 100 µA
Included Angle Between
Half Intensity Points[2]
2θ½
Peak Wavelength
λPEAK
600
nm
Dominant Wavelength[3]
λd
602
nm
Spectral Line Half Width
Δλ1/2
40
nm
Speed of Response
τs
260
ns
Capacitance
C
4
pF
Thermal Resistance
RθJ-PIN
170
°C/W
Luminous Efficacy[4]
ηv
380
lm/W
Broadcom Confidential
-7-
90
Test Conditions
Deg.
Measured at Peak
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Yellow
Device
HLMP-
Min.
Typ.
P302-F00xx
1.0
3.0
P305-F00xx
1.0
4.0
6400-F00xx
1.0
9.0
6400-JK000
4.0
6405-J00xx
Parameter
Luminous Intensity
Symbol
IV
3.6
Max.
12.5
16
7019-D00xx
0.4
0.6
6720-F00xx
0.9
2.0
IF = 10 mA
50
IF = 2 mA
All
Forward Voltage
(Nonresistor Lamps)
VF
2.0
2.4
V
6720
Forward Current
(Resistor Lamps)
IF
3.5
5.0
mA
All
Reverse Breakdown Voltage
VR
5.0
P305
6405
50.0
IF = 10 mA
VF = 5V
V
125
Included Angle Between
Half Intensity Points[2]
2θ½
All Diffused
28
Deg.
90
Peak Wavelength
All
Test Conditions
mcd
20
6405-MN0xx
Unit
λPEAK
583
nm
Dominant Wavelength[3]
λd
585
nm
Spectral Line Half Width
Δλ1/2
36
nm
Speed of Response
τs
90
ns
Capacitance
C
15
pF
Thermal Resistance
RθJ-PIN
170
°C/W
Luminous Efficacy[4]
ηv
500
lm/W
Broadcom Confidential
-8-
Measured at Peak
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
High Performance Green
Device
HLMP-
Min.
Typ.
P502-F00xx
1.0
3.0
P505-F00xx
1.6
6.3
6500-F00xx
1.0
7.0
10.0
40.0
7040-D00xx
0.4
0.6
IF = 2 mA
6800-G00xx
1.6
5.0
VF = 5V
6820-F00xx
1.0
2.0
6505-L00xx
All
6800
6820
All
Parameter
Luminous Intensity
Symbol
IV
Forward Voltage
(Nonresistor Lamps)
VF
Forward Current
(Resistor Lamps)
IF
Reverse Breakdown Voltage
VR
5.0
P505
6505
Test Conditions
IF = 10 mA
mcd
2.1
2.7
9.6
13.0
3.5
5.0
50.0
Unit
V
mA
V
IF = 10 mA
VF = 5V
IR = 100 µA
125
Included Angle Between
Half Intensity Points[2]
2θ½
All Diffused
28
Deg.
90
Peak Wavelength
All
Max.
λPEAK
565
nm
Dominant Wavelength[3]
λd
569
nm
Spectral Line Half Width
Δλ1/2
28
nm
Speed of Response
τs
500
ns
Capacitance
C
18
pF
Thermal Resistance
RθJ-PIN
170
°C/W
Luminous Efficacy[4]
ηv
595
lm/W
Broadcom Confidential
-9-
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
High Performance Green[1]
Device
HLMP-
Parameter
Symbol
P605-F00xx
Q600-F00xx
Luminous Intensity
IV
Q605-F00xx
All
P605
Q60x
All
Forward Voltage
VF
Reverse Breakdown Voltage
VR
Min.
Typ.
1.0
1.5
1.0
1.5
1.0
7.5
2.2
5.0
125
Max.
3.0
Unit
mcd
IF = 10 mA
V
IF = 10 mA
V
IR = 100 µA
Included Angle Between
Half Intensity Points[2]
2θ½
Peak Wavelength
λPEAK
558
nm
Dominant Wavelength[3]
λd
560
nm
Spectral Line Half Width
Δλ1/2
24
nm
Speed of Response
τs
3100
ns
Capacitance
C
35
pF
Thermal Resistance
RθJ-PIN
170
°C/W
Luminous Efficacy[4]
ηv
656
lm/W
90
Deg.
Note:
1. Please refer to Application Note 1061 for information comparing standard green and emerald green light output degradation.
Broadcom Confidential
- 10 -
Test Conditions
Measued at Peak
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Figure 2: Relative Intensity vs. Wavelength
Figure 3: Forward Current vs. Forward Voltage (Non-Resistor Lamp)
Standard Red and DH AS AlGaAs Red
High Efficiency Red, Orange, Yellow, High Performance Green,
and Emerald Green
100
90
HIGH EFFICIENCY
RED/ORANGE
FORWARD CURRENT – mA
80
70
60
YELLOW
50
40
30
HIGH
PERFORMANCE
GREEN,
EMERALD
GREEN
20
10
0
0
0.5
1
1.5
2
2.5
3
3.5
FORWARD VOLTAGE – V
HLMP-PXXX fig 2b
Figure 4: Relative Luminous Intensity vs. Forward Current (non-resistor lamp)
Standard Red, DH As AlGaAs Red
Low Current
Broadcom Confidential
- 11 -
HER, Orange, Yellow, and High Performance
Green, and Emerald Green
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Figure 5: Relative Efficiency (Luminous Intensity per Unit Current) vs. Peak Current (Non-Resistor Lamps)
Standard Red
DH As AlGaAs Red
HER, Orange, Yellow, and High Performance
Green, and Emerald Green
Figure 6: Maximum Forward DC Current vs. Ambient Temperature (Derating based on TJ Max. = 110°C [non-resistor lamps])
Figure 7: Maximum Tolerable Peak Current vs. Pulse Duration (IDC Max. as per Max. ratings) (non-resistor lamps)
Standard Red
HER, Orange, Yellow, and High
DH As AlGaAs Red
Performance Green
Broadcom Confidential
- 12 -
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Figure 8: Resistor Lamp Forward Current vs. Forward Voltage
Data Sheet
Figure 9: Resistor Lamp Luminous Intensity vs. Forward Voltage
Figure 10: Relative Intensity vs. Angular Displacement
Broadcom Confidential
- 13 -
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Ordering Information
Data Sheet
Color Bin Limits
HLMx-XXXX-X X X X X
Package
Emerald Green
Packaging
Option
Color Bin
Selection
Green
Max. Iv Bin
Min. Iv Bin
4 x 4 Prod.
Part
Number
Yellow
Intensity Bin Limits
Bin
Min.
Max.
Bin
Min.
Max.
0
Full Distribution
9
552
556
8
555
559
7
558
562
6
561
565
0
Full Distribution
6
561
565
5
564
568
4
567
571
3
570
574
2
573
577
0
Full Distribution
1
581.5
585.0
2
584.0
587.5
3
586.5
590.0
4
589.0
592.5
A
0.10
0.20
5
591.5
593.5
B
0.16
0.32
6
591.5
595.0
C
0.25
0.50
7
594.0
597.5
D
0.40
0.80
0
Full Distribution
E
0.63
1.25
1
596.5
600.0
F
1.00
2.00
2
599.0
602.5
G
1.60
3.20
3
601.5
604.0
H
2.50
5.00
4
603.8
608.2
J
4.00
8.00
5
606.8
611.2
K
6.30
12.50
6
609.8
614.2
L
10.00
20.00
7
612.8
617.2
M
16.00
32.00
8
615.8
620.2
N
25.00
50.00
P
40.00
80.00
Q
63.00
125.00
R
100.00
200.00
S
160.00
320.00
T
250.00
500.00
U
400.00
800.00
V
630.00
1250.00
W
1000.00
2000.00
X
1600.00
3200.00
Y
2500.00
5000.00
Orange
Broadcom Confidential
- 14 -
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Mechanical Option
00
Straight Leads, Bulk Packaging, Quantity of 500 Parts
10
Right Angle Housing, Bulk Packaging, Quantity of 500 Parts
11
Gull Wing Leads, 12 mm Tape on 7 in. Dia. Reel, 1500 Parts per Reel
12
Gull Wing Lead, Bulk Packaging, Quantity of 500 Parts
14
Gull Wing Leads, 12 mm Tape on 13 in. Dia. Reel, 6000 Parts per Reel
21
Yoke Leads, 12 mm Tape on 7 in. Dia. Reel, 1500 Parts per Reel
22
Yoke Leads, Bulk Packaging, Quantity of 500 Parts
24
Yoke Leads, 12 mm Tape on 13 in. Dia. Reel, 6000 Parts per Reel
31
Z-Bend Leads, 12 mm Tape on 7 in. Dia. Reel, 1500 Parts per Reel
32
Z-Bend Leads, Bulk Packaging, Quantity of 500 Parts
34
Z-Bend Leads, 12 mm Tape on 13 in. Dia. Reel, 6000 Parts per Reel
1L
2.54 mm (0.100 inch) Center Lead Spacing, Long Leads; 10.4 mm (0.410 in.)
1S
2.54 mm (0.100 inch) Center Lead Spacing, Short Leads; 3.7 mm (0.145 in.)
2L
5.08 mm (0.200 inch) Center Lead Spacing, Long Leads; 10.4 mm (0.410 in.)
2S
5.08 mm (0.200 inch) Center Lead Spacing, Short Leads; 3.7 mm (0.145 in.)
Note: All Categories are established for classification of products. Products may not be available in all categories. Please contact your local Avago representative for
further clarification/information.
Broadcom Confidential
- 15 -
For product information and a complete list of distributors, please go to our web site:
www.broadcom.com.
Broadcom, the pulse logo, Connecting everything, Avago Technologies, Avago, the A logo, and R2Coupler are
among the trademarks of Broadcom and/or its affiliates in the United States, certain other countries and/or the
EU.
Broadcom Proprietary and Confidential. Copyright © 2017 Broadcom. All Rights Reserved. The term
“Broadcom” refers to Broadcom Limited and/or its subsidiaries.
Broadcom reserves the right to make changes without further notice to any products or data herein to
improve reliability, function, or design. Information furnished by Broadcom is believed to be accurate and
reliable. However, Broadcom does not assume any liability arising out of the application or use of this
information, nor the application or use of any product or circuit described herein, neither does it convey any
license under its patent rights nor the rights of others.
AV02-3609EN – April 12, 2017
