Data Sheet
HLMP-Pxxx Series, HLMP-Qxxx Series,
HLMP-6xxx Series, HLMP-70xx Series
Subminiature LED Lamps
Description
Flat Top Package
The Broadcom® HLMP-Pxxx Series flat top lamps use an
untinted, nondiffused, truncated lens to provide a wide
radiation pattern that is necessary for use in backlighting
applications. The flat top lamps are also ideal for use as
emitters in light pipe applications.
Dome Packages
The Broadcom HLMP-6xxx Series dome lamps for use as
indicators use a tinted, diffused lens to provide a wide
viewing angle with a high on-off contrast ratio. High
brightness lamps use an untinted, nondiffused lens to
provide a high luminous intensity within a narrow radiation
pattern.
Features
Subminiature flat top package
– Ideal for backlighting and light piping applications
Subminiature dome package
– Diffused dome for wide viewing angle
– Nondiffused dome for high brightness
TTL and LSTTL compatible 5V resistor lamps
Available in six colors
Ideal for space limited applications
Axial leads
Available with lead configurations for surface mount
and through hole PCB mounting
Resistor Lamps
The Broadcom HLMP-6xxx Series 5 volt subminiature
lamps with built-in current limiting resistors are for use in
applications where space is at a premium.
Lead Configurations
All of these devices are made by encapsulating LED chips
on axial lead frames to form molded epoxy subminiature
lamp packages. A variety of package configuration options
is available. These include special surface mount lead
configurations, gull wing, yoke lead, or Z-bend. Right angle
lead bends at 2.54 mm (0.100 inch) and 5.08mm (0.200
inch) center spacing are available for through hole
mounting. For more information, refer to the Standard SMT
and Through Hole Lead Bend Options for Subminiature
LED Lamps data sheet.
Broadcom
AV02-3609EN
July 13, 2020
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
Device Selection Guide
Part Number: HLMP-xxxx
Standard
Red
DH AS
High Efficiency
Orange
AlGaAs Red
Red
P005
6000
Yellow
High Perf.
Green
Emerald
Green
Device
Description
Device Outline
Drawing
P605
Untinted, Nondiffused,
Flat Top
Untinted, Diffused,
Flat Top
Tinted, Diffused
Untinted, Nondiffused,
High Brightness
Tinted, Diffused,
Low Current
Nondiffused,
Low Current
Tinted, Diffused,
Resistor, 5V, 10 mA
Diffused, Resistor, 5V,
4 mA
A
P105
P205
P405
P305
P505
P102
P202
P402
P302
P502
Q100
Q105
6300
6305
Q400
Q405
6400
6405
6500
6505
Q150
7000
7019
7040
Q600
Q605
Q155
6600
6800
6620
6720
6820
A
B
B
B
B
B
B
Package Dimensions
A. Flat Top Lamps
B. Diffused and Nondiffused
0.50 (0.020) REF.
0.50 (0.020) REF.
1.40 (0.055)
1.65 (0.065)
11.68 (0.460)
10.67 (0.420)
BOTH SIDES
11.68 (0.460)
10.67 (0.420)
BOTH SIDES
CATHODE
CATHODE
0.46 (0.018)
0.56 (0.022)
ANODE
0.46 (0.018)
0.56 (0.022)
ANODE
1.65 (0.065)
DIA.
1.91 (0.075)
0.20 (0.008) MAX.
1.65 (0.065)
DIA.
1.91 (0.075)
0.25 (0.010) MAX.
NOTE 2
0.20 (0.008) MAX.
2.21 (0.087)
1.96 (0.077)
1.14 (0.045)
1.40 (0.055)
0.18 (0.007)
0.23 (0.009)
0.25 (0.010) MAX.
NOTE 2
2.21 (0.087)
1.96 (0.077)
0.76 (0.030) R.
0.89 (0.035)
0.94 (0.037)
1.24 (0.049)
2.03 (0.080)
1.78 (0.070)
0.63 (0.025)
0.38 (0.015)
2.44 (0.096)
1.88 (0.074)
0.18 (0.007)
0.23 (0.009)
0.79 (0.031) MAX.
2.08 (0.082)
2.34 (0.092)
CATHODE
STRIPE
2.92 (0.115)
MAX.
0.79 (0.031)
0.53 (0.021)
0.63 (0.025)
0.38 (0.015)
2.08 (0.082)
2.34 (0.092)
CATHODE
STRIPE
Notes:
All dimensions are in millimeters (inches).
Protruding support tab is connected to cathode lead.
Lead polarity for ALGaAs lamps is opposite to the lead polarity of subminiature lamps using other technologies.
Broadcom
AV02-3609EN
2
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
Figure 1: Proper Right Angle Mounting to a PCB to Prevent Protruding Cathode Tab from Shorting to Anode Connection
CATHODE
TAB
NO. ANODE DOWN.
YES. CATHODE DOWN.
Absolute Maximum Ratings (TA = 25°C)
Standard
Red
DH AS
AlGaAs
Red
High Eff.
Red
Orange
Yellow
High Perf.
Green
Emerald
Green
Unit
50
30
30
30
20
30
30
mA
1000
300
90
90
60
90
90
mA
DC Forward Voltage
(Resistor Lamps Only)
—
—
6
—
6
6
6
V
Reverse Voltage (IR = 100 µA)
5
5
5
5
5
5
5
V
2000
500
500
500
500
500
500
mA
Parameter
a
DC Forward Current
Peak Forward Current
b
Transient Forward Currentc
(10 µs Pulse)
Operating Temperature Range
°C
Nonresistor Lamps
–55 to +100 –40 to +100 –55 to +100 –55 to +100 –55 to +100 –40 to +100 –20 to +100
Resistor Lamps
–40 to +85
–40 to +85
–40 to +85
–40 to +85
–40 to +85
Storage Temperature Range
–55 to +100
For Through Hole Devices:
Wave Soldering Temperature
[1.6 mm (0.063 in.) from body]
260°C for 5 seconds
For Surface Mount Devices:
Reflow Soldering Temperature
260°C for 20 seconds
–20 to +85
–20 to +85
a. See Figure 6 for current derating vs. ambient temperature. Derating is not applicable to resistor lamps.
b. Refer to Figure 7 showing Maximum Tolerable Peak Current vs. Pulse Duration to establish pulsed operating conditions.
c. The transient peak current is the maximum nonrecurring peak current the device can withstand without failure. Do not operate these lamps
at this high current.
Broadcom
AV02-3609EN
3
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
Electrical/Optical Characteristics (TA = 25°C)
Standard Red
Device
HLMP6000-E00xx
Parameter
Typ.
Max.
Unit
mcd
IF = 10 mA
0.63
1.2
—
1.60
3.2
—
P005-F00xx
1.0
2.5
—
6000
Test Conditions
Forward Voltage
VF
1.4
1.6
2.0
V
IF = 10 mA
Reverse Breakdown Voltage
VR
5.0
12.0
—
V
IR = 100 µA
Deg.
P005
Included Angle Between
Half Intensity Points
All
Peak Wavelength
Dominant Wavelength
Spectral Line Half Width
2θ½
—
90
—
—
125
—
λPEAK
—
655
—
nm
λd
—
640
—
nm
Δλ1/2
—
24
—
nm
Speed of Response
τs
—
15
—
ns
Capacitance
C
—
100
—
pF
RθJ-PIN
—
170
—
°C/W
ηv
—
65
—
lm/W
Thermal Resistance
Luminous Efficacy
Broadcom
IV
Min.
6000-G00xx
All
Luminous Intensity
Symbol
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
AV02-3609EN
4
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
DH AS AlGaAs Red
Device
HLMPP102-F00xx
Parameter
Luminous Intensity
Symbol
IV
Min.
Typ.
Max.
Unit
mcd
1.0
20.0
—
P105-L00xx
10.0
30.0
—
P105-NP000
25
—
80
Q100-M00xx
16
45
—
Q100-N00xx
25.0
45.0
Q100-PQ000
40
Test Conditions
IF = 20 mA
—
125
Q105-P00xx
40
Q105-ST000
160
Q150-F00xx
1.0
1.8
—
Q155-F00xx
1.0
4.0
—
—
1.8
2.2
—
1.6
1.8
VR
5.0
15.0
—
V
2θ½
—
125
—
Deg.
—
90
—
—
28
—
λPEAK
—
645
—
nm
λd
—
637
—
nm
Δλ1/2
—
20
—
nm
τs
—
30
—
ns
Exponential Time
Constant; e-t/ts
VF = 0; f = 1 MHz
Q100
Forward Voltage
VF
Q150/Q155
All
Reverse Breakdown Voltage
P105
Included Angle Between
Half Intensity Points
Q100/Q150
Q105/Q155
All
Peak Wavelength
Dominant Wavelength
Spectral Line Half Width
Speed of Response
Capacitance
Thermal Resistance
Luminous Efficacy
Broadcom
200
—
500
IF = 1 mA
V
IF = 20 mA
IF = 1 mA
C
—
30
—
pF
RθJ-PIN
—
170
—
°C/W
ηv
—
80
—
lm/W
IR = 100 µA
Measured at Peak
Junction-to-Cathode Lead
AV02-3609EN
5
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
High Efficiency Red
Device
HLMP-
Symbol
Min.
Typ.
Max.
Unit
IV
1.0
5.0
—
mcd
1.0
8.0
—
6300-F00xx
1.0
10.0
6300-KL000
6.3
6305-L00xx
10.0
40.0
—
7000-D00xx
0.4
1.0
—
IF = 2 mA
6600-G00xx
1.6
5.0
—
VF = 5.0V
P202-F00xx
Parameter
Luminous Intensity
P205-F00xx
6620-F00xx
All
Forward Voltage
(Nonresistor Lamps)
VF
6600
Forward Current
(Resistor Lamps)
IF
5620
All
Reverse Breakdown Voltage
VR
P205
Included Angle Between
Half Intensity Points
6305
2θ½
All Diffused
All
—
20.0
1.0
2.0
—
1.5
1.8
3.0
V
IF = 10 mA
mA
VF = 5.0V
—
9.6
13.0
—
3.5
5.0
5.0
30.0
—
V
—
125
—
Deg.
—
28
—
—
90
—
—
635
—
nm
λd
—
626
—
nm
Δλ1/2
—
40
—
nm
Speed of Response
τs
—
90
—
ns
Capacitance
C
—
11
—
pF
RθJ-PIN
—
170
—
°C/W
ηv
—
145
—
lm/W
Dominant Wavelength
Spectral Line Half Width
Thermal Resistance
Luminous Efficacy
Broadcom
IF = 10 mA
λPEAK
Peak Wavelength
Test Conditions
IR = 100 µA
Measured at Peak
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
AV02-3609EN
6
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
Orange
Device
HLMP-
Symbol
Min.
Typ.
Max.
Unit
IV
1.0
4.0
—
mcd
IF = 10 mA
P405-F00xx
1.0
6
P405-JK000
4.0
P402-F00xx
Parameter
Luminous Intensity
—
12.5
Q400-F00xx
1.0
8
—
Q405-H00xx
2.5
14
—
All
P40x
Forward Voltage
VF
1.5
1.9
3.0
V
IF = 10 mA
Reverse Breakdown Voltage
VR
5.0
30.0
—
V
IR = 100 µA
—
125
—
Deg.
—
90
—
Q40x
Included Angle Between
Half Intensity Points
All
Peak Wavelength
2θ½
λPEAK
—
600
—
nm
λd
—
602
—
nm
Δλ1/2
—
40
—
nm
Speed of Response
τs
—
260
—
ns
Capacitance
C
—
4
—
pF
RθJ-PIN
—
170
—
°C/W
ηv
—
380
—
lm/W
Dominant Wavelength
Spectral Line Half Width
Thermal Resistance
Luminous Efficacy
Broadcom
Test Conditions
Measured at Peak
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
AV02-3609EN
7
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
Yellow
Device
HLMP-
Symbol
Min.
Typ.
Max.
Unit
IV
1.0
3.0
—
mcd
P305-F00xx
1.0
4.0
—
6400-F00xx
1.0
9.0
12.5
6400-JK000
4.0
—
—
6405-J00xx
3.6
20
—
P302-F00xx
Parameter
Luminous Intensity
6405-MN0xx
16
7019-D00xx
0.4
0.6
—
6720-F00xx
0.9
2.0
—
IF = 2 mA
Forward Voltage
(Nonresistor Lamps)
VF
—
2.0
2.4
V
6720
Forward Current
(Resistor Lamps)
IF
—
3.5
5.0
mA
All
Reverse Breakdown Voltage
VR
5.0
50.0
—
V
P305
Included Angle Between
Half Intensity Points
2θ½
—
125
—
Deg.
—
28
—
—
90
—
λPEAK
—
583
—
nm
λd
—
585
—
nm
Δλ1/2
—
36
—
nm
Speed of Response
τs
—
90
—
ns
Capacitance
C
—
15
—
pF
RθJ-PIN
—
170
—
°C/W
ηv
—
500
—
lm/W
All Diffused
All
Peak Wavelength
Dominant Wavelength
Spectral Line Half Width
Thermal Resistance
Luminous Efficacy
Broadcom
IF = 10 mA
50
All
6405
Test Conditions
IF = 10 mA
VF = 5V
Measured at Peak
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
AV02-3609EN
8
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet

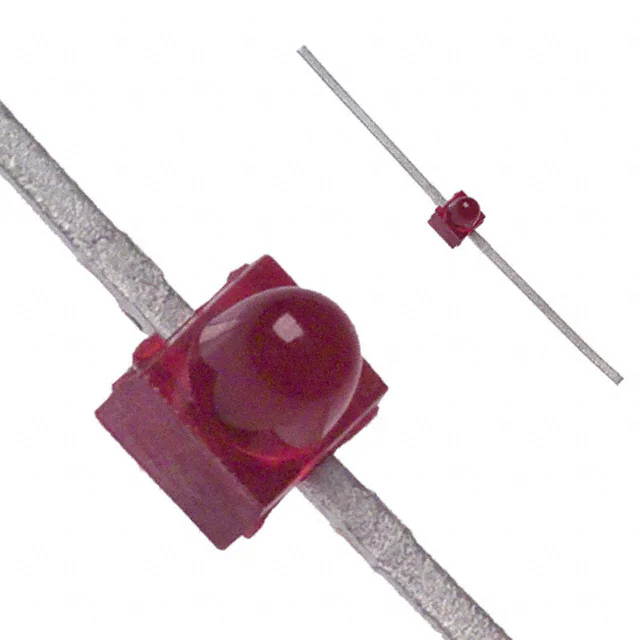

Subminiature LED Lamps
High Performance Green
Device
HLMPP502-F00xx
Parameter
Luminous Intensity
Symbol
Min.
Typ.
Max.
Unit
IV
1.0
3.0
—
mcd
1.6
6.3
—
P505-F00xx
Test Conditions
IF = 10 mA
6500-F00xx
1.0
7.0
—
6505-L00xx
10.0
40.0
—
7040-D00xx
0.4
0.6
—
IF = 2 mA
6800-G00xx
1.6
5.0
—
VF = 5V
6820-F00xx
1.0
2.0
—
All
Forward Voltage
(Nonresistor Lamps)
VF
—
2.1
2.7
V
6800
IF
—
9.6
13.0
mA
6820
Forward Current
(Resistor Lamps)
—
3.5
5.0
All
Reverse Breakdown Voltage
VR
5.0
50.0
—
V
P505
Included Angle Between
Half Intensity Points
2θ½
—
125
—
Deg.
—
28
—
—
90
—
λPEAK
—
565
—
nm
6505
All Diffused
All
Peak Wavelength
Dominant Wavelength
λd
—
569
—
nm
Δλ1/2
—
28
—
nm
Speed of Response
τs
—
500
—
ns
Capacitance
C
—
18
—
pF
RθJ-PIN
—
170
—
°C/W
ηv
—
595
—
lm/W
Spectral Line Half Width
Thermal Resistance
Luminous Efficacy
Broadcom
IF = 10 mA
VF = 5V
IR = 100 µA
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
AV02-3609EN
9
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
High Performance Green1
Device
HLMP-
Symbol
Min.
Typ.
Max.
Unit
IV
1.0
1.5
—
mcd
IF = 10 mA
Q600-F00xx
1.0
1.5
—
Q605-F00xx
1.0
7.5
—
P605-F00xx
All
P605
Parameter
Luminous Intensity
Forward Voltage
VF
—
2.2
3.0
V
IF = 10 mA
Reverse Breakdown Voltage
VR
5.0
—
—
V
IR = 100 µA
Deg.
Q60x
Included Angle Between
Half Intensity Points
All
Peak Wavelength
—
125
—
—
90
—
λPEAK
—
558
—
nm
λd
—
560
—
nm
Δλ1/2
—
24
—
nm
Speed of Response
τs
—
3100
—
ns
Capacitance
C
—
35
—
pF
RθJ-PIN
—
170
—
°C/W
ηv
—
656
—
lm/W
Dominant Wavelength
Spectral Line Half Width
Thermal Resistance
Luminous Efficacy
1.
Broadcom
Test Conditions
2θ½
Measued at Peak
VF = 0; f = 1 MHz
Junction-to-Cathode Lead
For information comparing standard green and emerald green light output degradation, refer to the Luminous Intensity
Degradation Data for Emerald Green LEDs (560 nm) vs. Degradation Data for Standard Green LEDs (569 nm) Application
Note.
AV02-3609EN
10
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
Figure 2: Relative Intensity vs. Wavelength
Figure 3: Forward Current vs. Forward Voltage (Nonresistor Lamp)
Standard Red and DH AS AlGaAs Red
High Efficiency Red, Orange, Yellow, High Performance
Green, and Emerald Green
100
90
HIGH EFFICIENCY
RED/ORANGE
FORWARD CURRENT – mA
80
70
60
YELLOW
50
40
30
HIGH
PERFORMANCE
GREEN,
EMERALD
GREEN
20
10
0
0
0.5
1
1.5
2
2.5
3
3.5
FORWARD VOLTAGE – V
Figure 4: Relative Luminous Intensity vs. Forward Current (Nonresistor Lamp)
Standard Red, DH As AlGaAs Red
Broadcom
Low Current
HER, Orange, Yellow, and High
Performance Green, and Emerald Green
AV02-3609EN
11
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
Figure 5: Relative Efficiency (Luminous Intensity per Unit Current) vs. Peak Current (Nonresistor Lamps)
Standard Red
DH As AlGaAs Red
HER, Orange, Yellow, and High Performance
Green, and Emerald Green
Figure 6: Maximum Forward DC Current vs. Ambient Temperature (Derating Based on TJ Max. = 110°C [Nonresistor Lamps])
Figure 7: Maximum Tolerable Peak Current vs. Pulse Duration (IDC Max. as per Max. Ratings) (Nonresistor Lamps)
Standard Red
Broadcom
HER, Orange, Yellow, and High
Performance Green
DH As AlGaAs Red
AV02-3609EN
12
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Figure 8: Resistor Lamp Forward Current vs. Forward
Voltage
Subminiature LED Lamps
Figure 9: Resistor Lamp Luminous Intensity vs. Forward
Voltage
Figure 10: Relative Intensity vs. Angular Displacement
Broadcom
AV02-3609EN
13
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
Part Numbering System
H
L
M
x
-
X
X
X
X
-
X1
X2
X3
X4
Number
HLMx-XXXX
Description
4 x 4 Product Part Number
X1
Minimum lV Bin Options
X2
Maximum lV Bin Options
X3
Color Bin Selection
X4, X5
Packaging Option
Intensity Bin Limits
Broadcom
X5
Color Bin Limits
Bin
Min.
Max.
Package
Bin
A
0.10
0.20
Emerald Green
0
B
0.16
0.32
9
552
556
C
0.25
0.50
8
555
559
D
0.40
0.80
7
558
562
E
0.63
1.25
6
561
565
F
1.00
2.00
Green
0
Min.
Max.
Full Distribution
Full Distribution
G
1.60
3.20
6
561
565
H
2.50
5.00
5
564
568
J
4.00
8.00
4
567
571
K
6.30
12.50
3
570
574
2
573
577
L
10.00
20.00
M
16.00
32.00
N
25.00
50.00
1
581.5
585.0
P
40.00
80.00
2
584.0
587.5
Yellow
0
Full Distribution
Q
63.00
125.00
3
586.5
590.0
R
100.00
200.00
4
589.0
592.5
S
160.00
320.00
5
591.5
593.5
T
250.00
500.00
6
591.5
595.0
U
400.00
800.00
7
594.0
597.5
V
630.00
1250.00
Orange
0
Full Distribution
W
1000.00
2000.00
1
596.5
600.0
X
1600.00
3200.00
2
599.0
602.5
Y
2500.00
5000.00
3
601.5
604.0
4
603.8
608.2
5
606.8
611.2
6
609.8
614.2
7
612.8
617.2
8
615.8
620.2
AV02-3609EN
14
HLMP-Pxxx Series, HLMP-Qxxx Series, HLMP-6xxx Series, HLMP-70xx Series
Data Sheet
Subminiature LED Lamps
Mechanical Option
00
Straight Leads, Bulk Packaging, Quantity of 500 Parts
10
Right Angle Housing, Bulk Packaging, Quantity of 500 Parts
11
Gull Wing Leads, 12 mm Tape on 7 in. Dia. Reel, 1500 Parts per Reel
12
Gull Wing Lead, Bulk Packaging, Quantity of 500 Parts
14
Gull Wing Leads, 12 mm Tape on 13 in. Dia. Reel, 6000 Parts per Reel
21
Yoke Leads, 12 mm Tape on 7 in. Dia. Reel, 1500 Parts per Reel
22
Yoke Leads, Bulk Packaging, Quantity of 500 Parts
24
Yoke Leads, 12 mm Tape on 13 in. Dia. Reel, 6000 Parts per Reel
31
Z-Bend Leads, 12 mm Tape on 7 in. Dia. Reel, 1500 Parts per Reel
32
Z-Bend Leads, Bulk Packaging, Quantity of 500 Parts
34
Z-Bend Leads, 12 mm Tape on 13 in. Dia. Reel, 6000 Parts per Reel
1L
2.54 mm (0.100 inch) Center Lead Spacing, Long Leads; 10.4 mm (0.410 in.)
1S
2.54 mm (0.100 inch) Center Lead Spacing, Short Leads; 3.7 mm (0.145 in.)
2L
5.08 mm (0.200 inch) Center Lead Spacing, Long Leads; 10.4 mm (0.410 in.)
2S
5.08 mm (0.200 inch) Center Lead Spacing, Short Leads; 3.7 mm (0.145 in.)
NOTE:
Broadcom
All categories are established for classification of products. Products might not be available in all categories.
Contact your Broadcom representative for further clarification/information.
AV02-3609EN
15
Broadcom, the pulse logo, Connecting everything, Avago Technologies, Avago, and the A logo are among the trademarks
of Broadcom and/or its affiliates in the United States, certain other countries, and/or the EU.
Copyright © 2017-2020 Broadcom. All Rights Reserved.
The term “Broadcom” refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com.
Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability,
function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does
not assume any liability arising out of the application or use of this information, nor the application or use of any product or
circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
